Headlight adjustment point "SEP 4800 PKW"
mounting set for headlight adjustment point "SEP 4800 PKW"
- Nº de artículo 89655930
- Original number: BFS4810

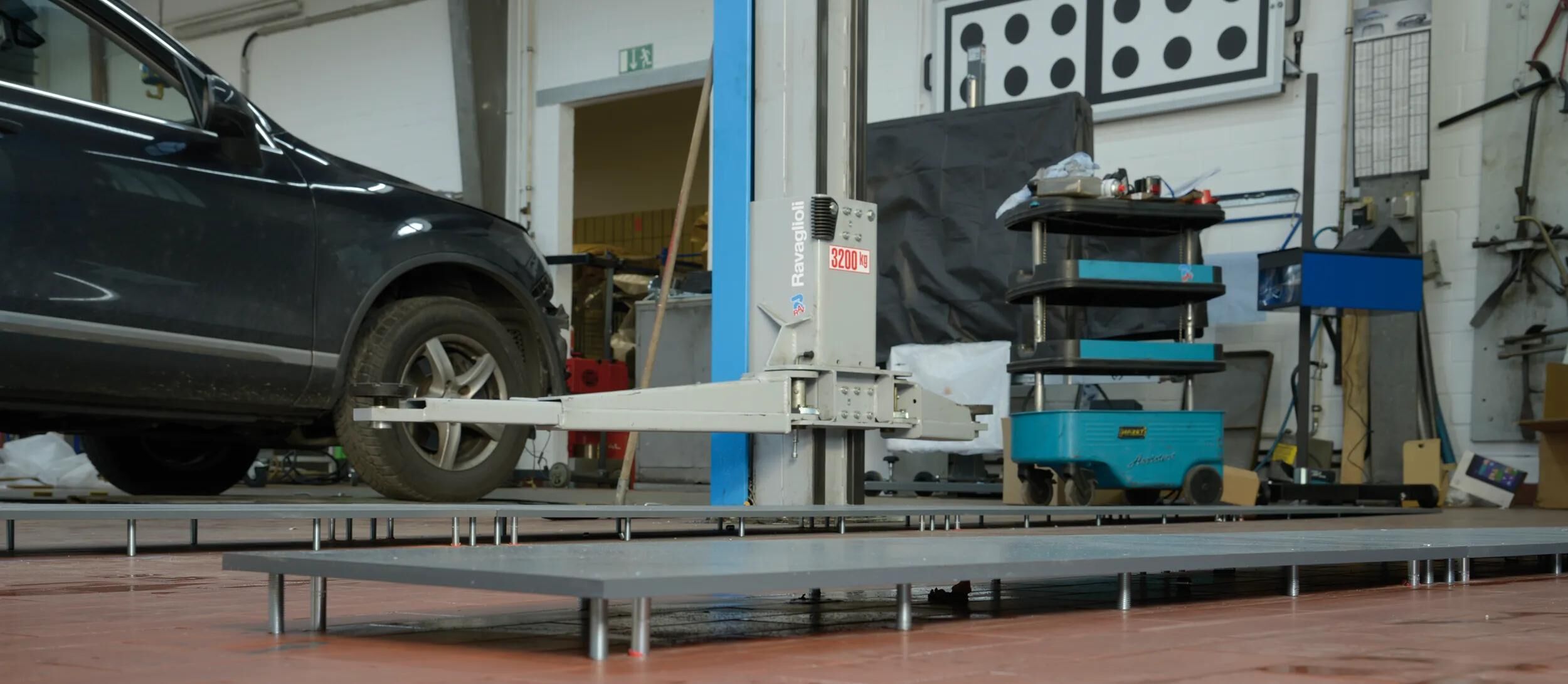

Height-adjustable headlight adjustment surface for cars and vans, 4888 mm test surface

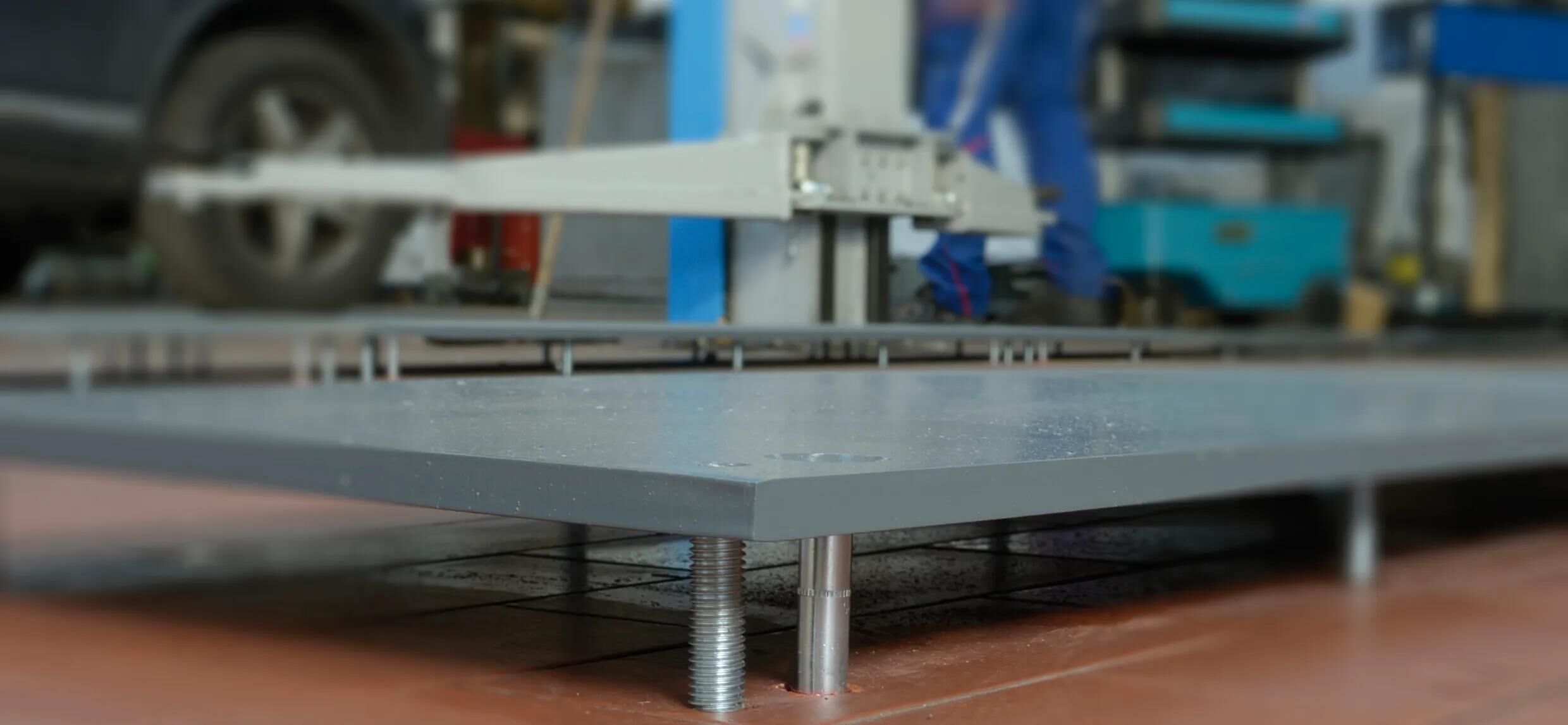

Leveling option for workshop floors with slopes and unevenness or to maintain defined conditions at the headlight adjustment point.
Technical data: Material: S355MC double rolled (high-strength steel for cold forming, thermomechanically rolled), 2x 4 plates á 1220 mm manufactured according to DIN ISO 2768-mT, each plate can be leveled in 14 steps via screw taps according to DIN 18202, perm. Axle load: 3.5 t, height compensation: standard version up to 50 mm, extension up to 100 mm possible (adjustment and relining on site), individual weight: 45.79 kg per panel, total weight: 366.32 kg (set), driving surface: in accordance with GUV-R 181 with non-slip surface R11, coated in RAL 7011 (iron grey)
Note: Meets all requirements of the directive in accordance with Annex 4, § 29 StVZO HU Front Light Test Guideline!
plus freight and installation costs
Información sobre el producto
- Artículo Article
- Características level adjustable
- Carga por eje 3.5 t
- Color principal Gris
- Versión headlight adjustment point
- Ámbito de aplicación car , transporter
- Número de artículo del proveedor: BFS4810
- UVP 464,10 €
- SB-Artículo No
- Marca/Proveedor Hermann Hartje KG
- Unidad de medida: PIECE
Ejecuciones
| Artículo | Precio | |
|---|---|---|
![]() headlight adjustment point "SEP 4800 PKW" Leer más... Read less
| PU 1 | |
![]() mounting set for headlight adjustment point "SEP 4800 PKW" Leer más... Read less
| PU 1 |
