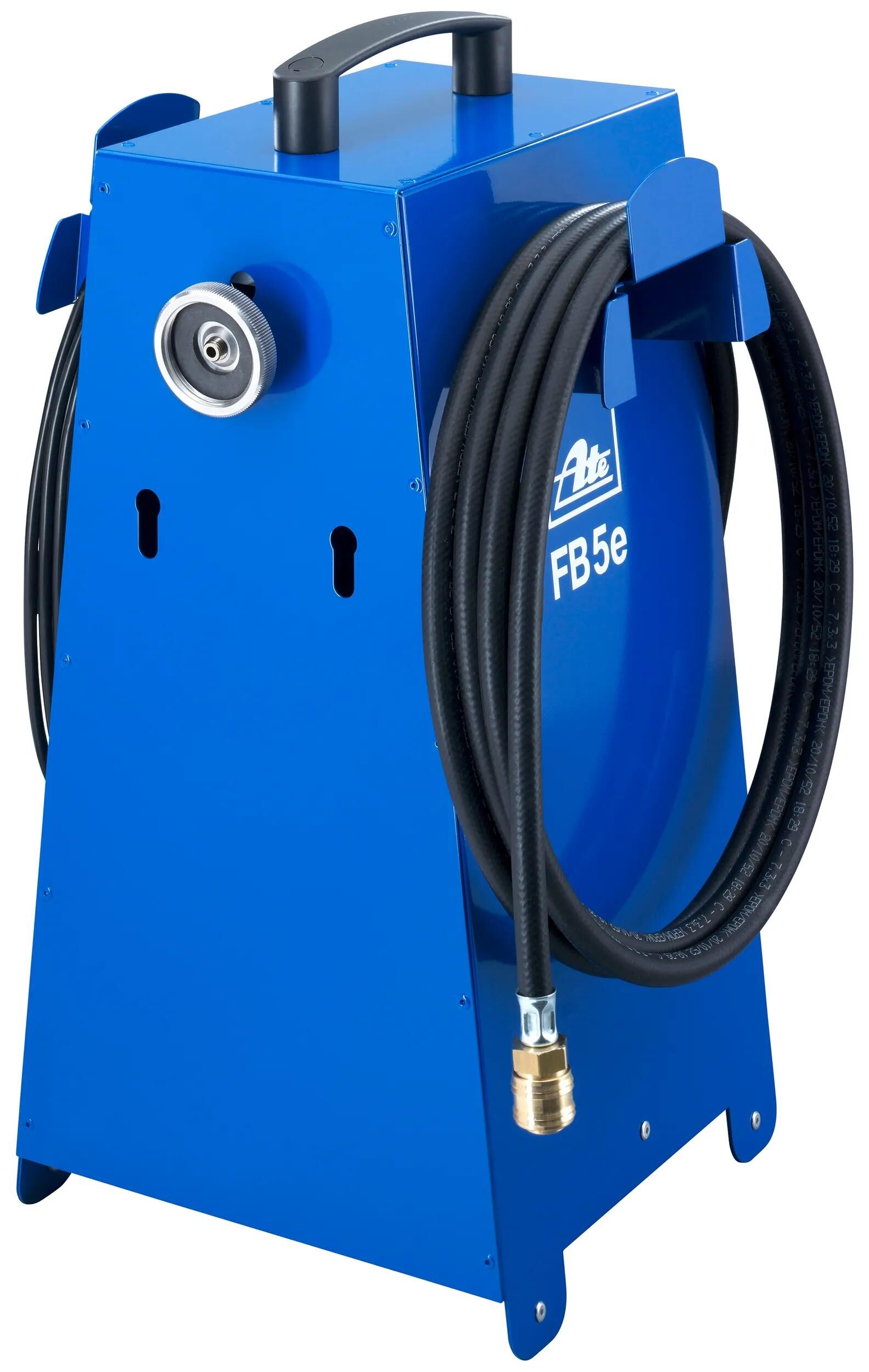

Ate Brake bleeding device "FB 5e"
Weight: 8.5 kg
- Article number: 65314296
- Original number: 03.9302-1500.4
For filling, flushing and bleeding electronic brake systems, 5 liters

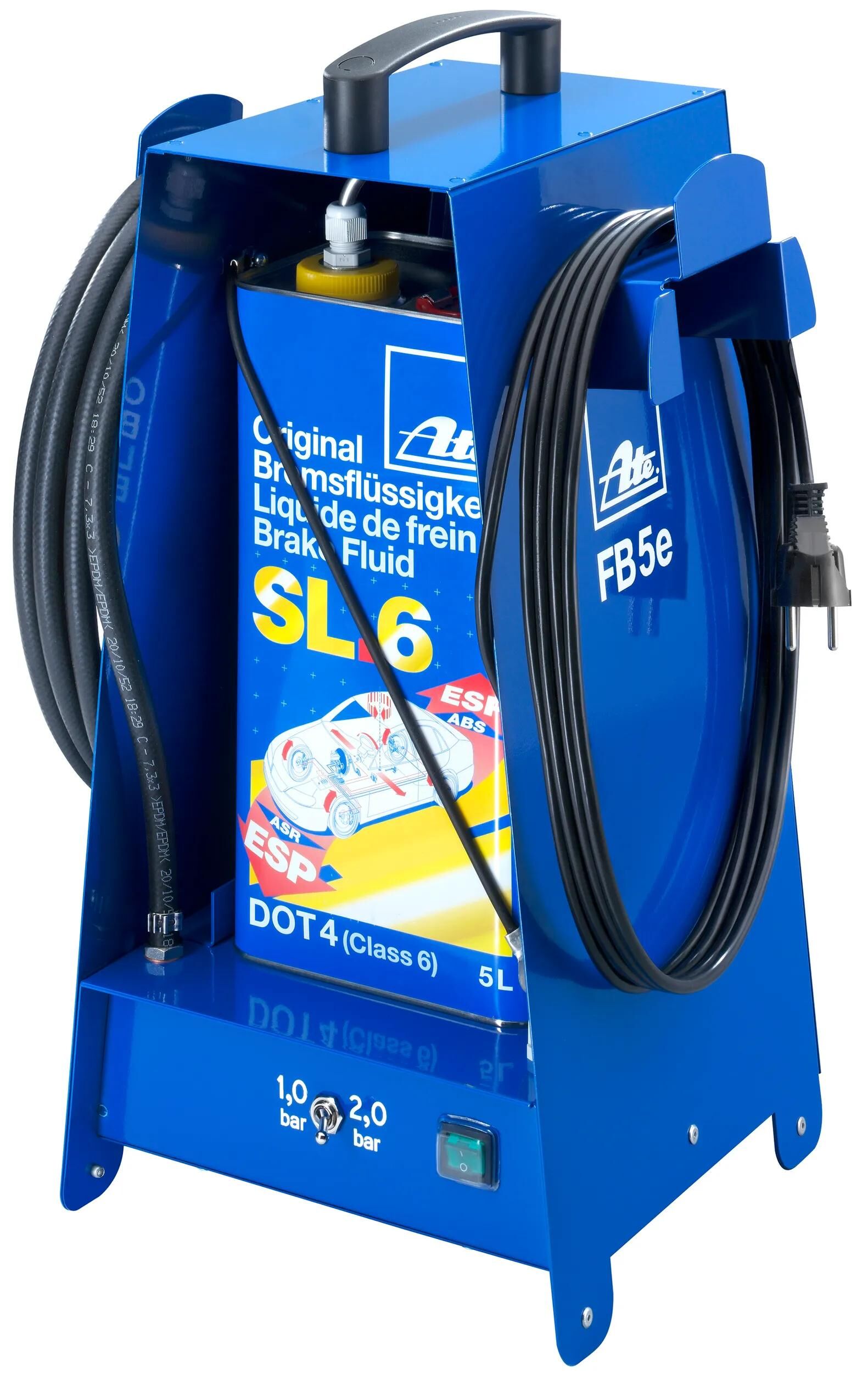

Two pressure levels (1.0 and 2.0 bar) adjustable via toggle switch, therefore no need to check with a Pressure Gauge. No decanting of brake fluids necessary. Can is fixed in the device with strap belt, suction lance is held in the container by screw fitting. With Bracket for filling hoses and Power Cable, mounts for the three air bleed necks on the rear wall of the device and large Grips for carrying. All materials are resistant to brake fluid.
Technical data: Mains connection: 230 V / 50 - 60 Hz, Pump delivery rate: 12 L/h at 2 bar back pressure, Automatic limit switch-off of the pump at approx. 9 mm residual level in the container, Connecting Cable: 4.2 m, Filling hoses: 3.5 m, Dimensions (H x W x D): 530 x 270 x 250 mm
Scope of delivery: Complete appliance, user manual, air bleed neck no. 20 (European nozzle)
Product information
- Application bleeding , filling
- Design brake system
- Flow rate 12 l/h
- Height 530.0 mm
- Length 250.0 mm
- Main colour blue
- Range of application brake fluid
- Use car , commercial vehicle , large capacity limousine , transporter
- Variant Article
- Working pressure 2.0 bar
- Supplier Article Number: 03.9302-1500.4
- EAN: 4006633345576
- MSRP: €624.75
- SB-Article: No
- Brand/Supplier Ate
- Unit of measure: PIECE
- Weight: 9.29 kg
