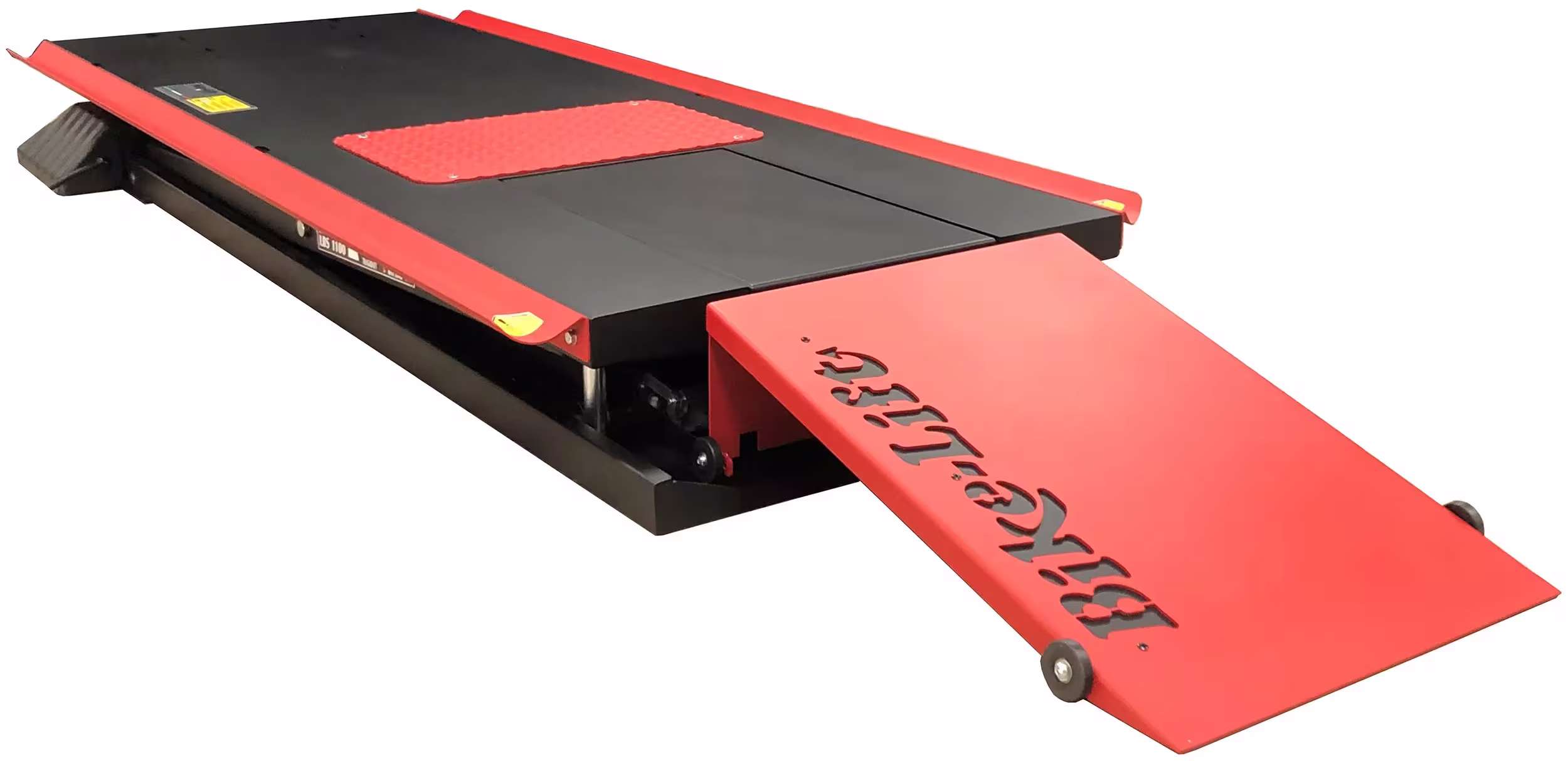

Bike-Lift Lifting platform "Master 504 Gate RETRACT"

Electro-hydraulic, retractable drive-up ramp

Article number: 05762430
Original number: 995063010400

This item is available in 1 variants. All in spare parts All in Accessories

500 kg load capacity, max. lifting height 130 cm, min. lifting height 20 cm, working surface 210 x 75 cm, drive-up ramp 70 x 50 cm, gate dimensions: 60 x 36 cm Weight: 250 kg, overall dimensions: 220 x 99 cm, hand switch cable length 2 m
Suitable for motorcycles and rollers. With retractable gate for easy removal of the rear wheels. The drive-up ramp automatically moves under the platform when it is raised. Delivery includes safety bar, Tool Tray, drive-up ramp and pre-assembled checker plate.
Shipping information:
Each lifting platform is delivered to you in sturdy transport packaging by a forwarding agent, truck with tail lift. Delivery within Germany (no islands) approx. 2-3 working days from order, a net shipping fee of € 119.00 will be charged.

Product information

Design lift
Drive electrohydraulic
Drive voltage 230.0 V
Features retcractable ramp , roll bar , tool tray
Length 220.0 cm
Load 500.0 kg
Main colour black
Max. lifting 130.0 cm
Min. lifting 20.0 cm
Secondary colour red
Type motorcycle / quad
Variant Article
Width 99.0 cm

Supplier Article Number: 995063010400
EAN 8053288166168
MSRP: €4,410.21
WEEE registration number DE92509320
SB-Article No
Brand/Supplier Bike-Lift
Unit of measure: PIECE
Weight 250 kg
