Procurement Item

Bike-Lift Lifting platform "Max 516 Twin Arms"

electrohydraulic

Article number: 05762364
Original number: MTA-516-003

This item is available in 1 variants. All in Accessories All in Spare parts

500 kg load capacity, max. lift height 120 cm, min. lift height 19 cm, work surface 210 x 75 cm, drive-up ramp 62 x 44.5 cm, weight: 280 kg, overall dimensions: 210 x 95 cm
350 kg lifting capacity with twin-arm mechanism, max. lift height 70 cm, min. lift height 35 cm, hand switch cable length 2 m
Suitable for motorcycles. With the special hydraulic twin-arm mechanism, the motorcycle can be lifted via the footrests or the swingarm bushings. Delivery includes automatic wheel holder (W-36S), twin-arm device, Thru Axle for swingarm bushings, footrest mounts, fixture strap, and drive-up ramp.
Please note: This item is not in stock! Delivery time is approximately 4–6 weeks after receipt of order.
Special order—no returns accepted!

Shipping Note:
Each lifting platform is delivered to you in sturdy shipping packaging via a freight carrier using a truck equipped with a tail lift. Delivery within Germany (excluding islands) takes approximately 2–3 business days from the date of order; a flat-rate shipping fee of €119.00 (net) applies.

Product information

Design lift
Drive electrohydraulic
Length 210.0 cm
Load 500.0 kg
Main colour black
Max. lifting 120.0 cm
Min. lifting 19.0 cm
Secondary colour red
Type motorcycle / quad
Variant Article
Width 95.0 cm

Supplier Article Number: MTA-516-003
EAN 8053288162320
MSRP: €6,151.18
WEEE registration number DE92509320
SB-Article No
Brand/Supplier Bike-Lift
Unit of measure: PIECE
Weight 350 kg

	Article	Price
Select article	Bike-Lift Chacker plate "PZA-60" black Read more Read less Article number: 05763230 Original number: PZA-60/SCHWARZ	PU 1 Quantity
Select article	Bike-Lift Rubber pad dimensions (LxWxH): 120 x 140 x 20mm Read more Read less Article number: 05762638 Original number: RA-20	PU 1 Quantity
Select article	Bike-Lift Rubber pad dimensions (LxWxH): 120 x 140 x 40mm Read more Read less Article number: 05762646 Original number: RA-40	PU 1 Quantity
Select article	Bike-Lift Rubber pad dimensions (LxWxH): 120 x 160 x 60mm Read more Read less Article number: 05762653 Original number: 907040020100	PU 1 Quantity
Select article	Bike-Lift Rubber mat "RM" 330 x 450 x 10mm (LxWxH) Read more Read less Article number: 05762687 Original number: 911060020000	PU 1 Quantity
Select article	Procurement Item Bike-Lift Rubber mat "RM" 150 x 450 x 10mm (LxWxH) Read more Read less Article number: 05762695 Original number: 911040400400	PU 1 Quantity
Select article	Bike-Lift Foot pedal operating unit without cable Read more Read less Article number: 05762927 Original number: 914020000200	PU 1 Quantity
Select article	Bike-Lift Protective mat red lined, for MAX lift Read more Read less Article number: 05762968 Original number: 911040100200	PU 1 Quantity
Select article	HM Hydraulic oil "HLP" viscosity / ISO-VG class 32, 1l bottle Read more Read less Article number: 8940962R Original number: 5367021	PU 1 Quantity

	Article	Price
Select article	Out of Stock Successor: 05763230 Procurement Item Bike-Lift Chacker plate "PZA-60" red Read more Read less Article number: 05762703 Original number: PZA-60	PU 1 Quantity

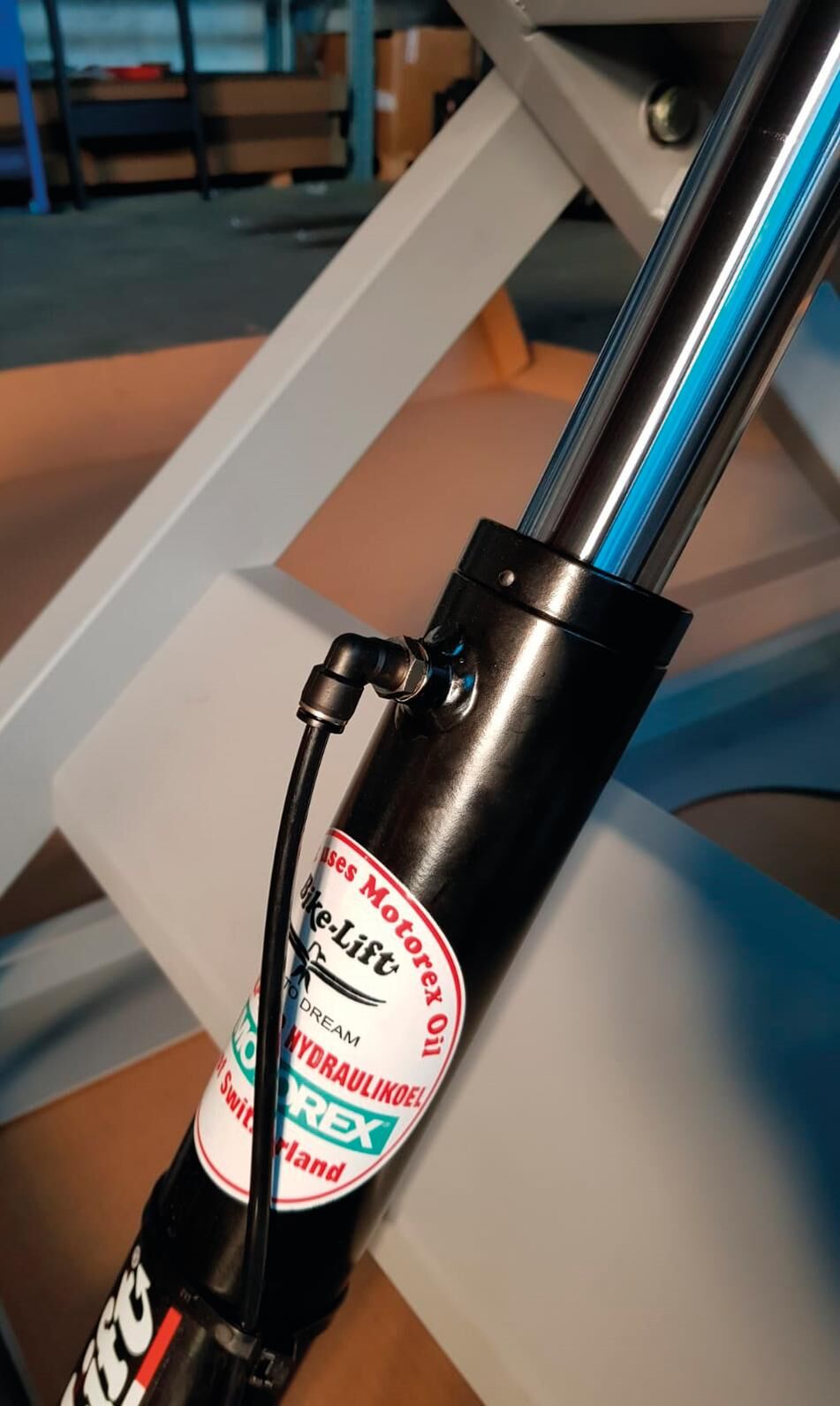

Select article	Bike-Lift Hydraulic cylinder lifting height: 120cm, red Read more Read less Article number: 05763248 Original number: 620500000400	PU 1 Quantity
Select article	Out of Stock Procurement Item Bike-Lift Hydraulic aggregate cpmplete, Brevini Read more Read less Article number: 05762901 Original number: 620701000500	PU 1 Quantity

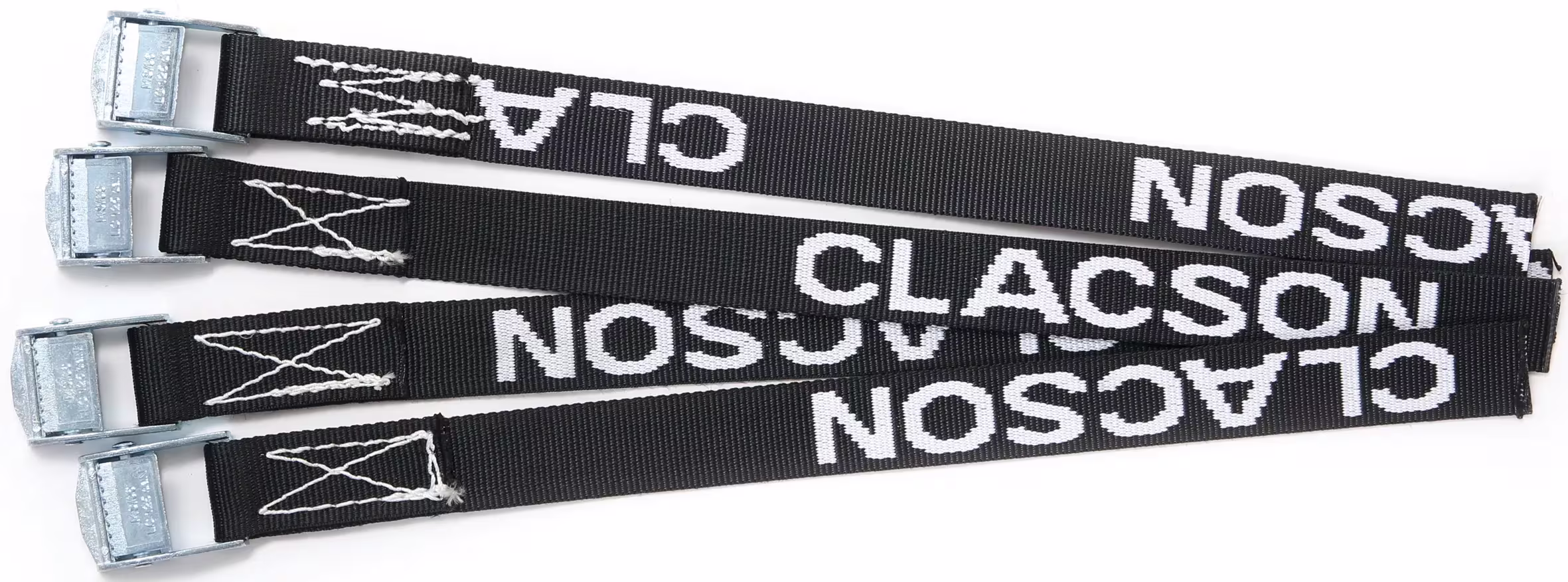

Select article	Bike-Lift Fixture strap "TA-B" set, 4 pieces Read more Read less Article number: 05762802 Original number: 915060000000	PU 1 Quantity
Select article	Out of Stock Procurement Item Bike-Lift Hand switch without cable Read more Read less Article number: 05762836 Original number: 630600000100 O. KABE	PU 1 Quantity
Select article	Procurement Item Bike-Lift Hand switch with cable Read more Read less Article number: 05762828 Original number: 630600000100 M. KABE	PU 1 Quantity

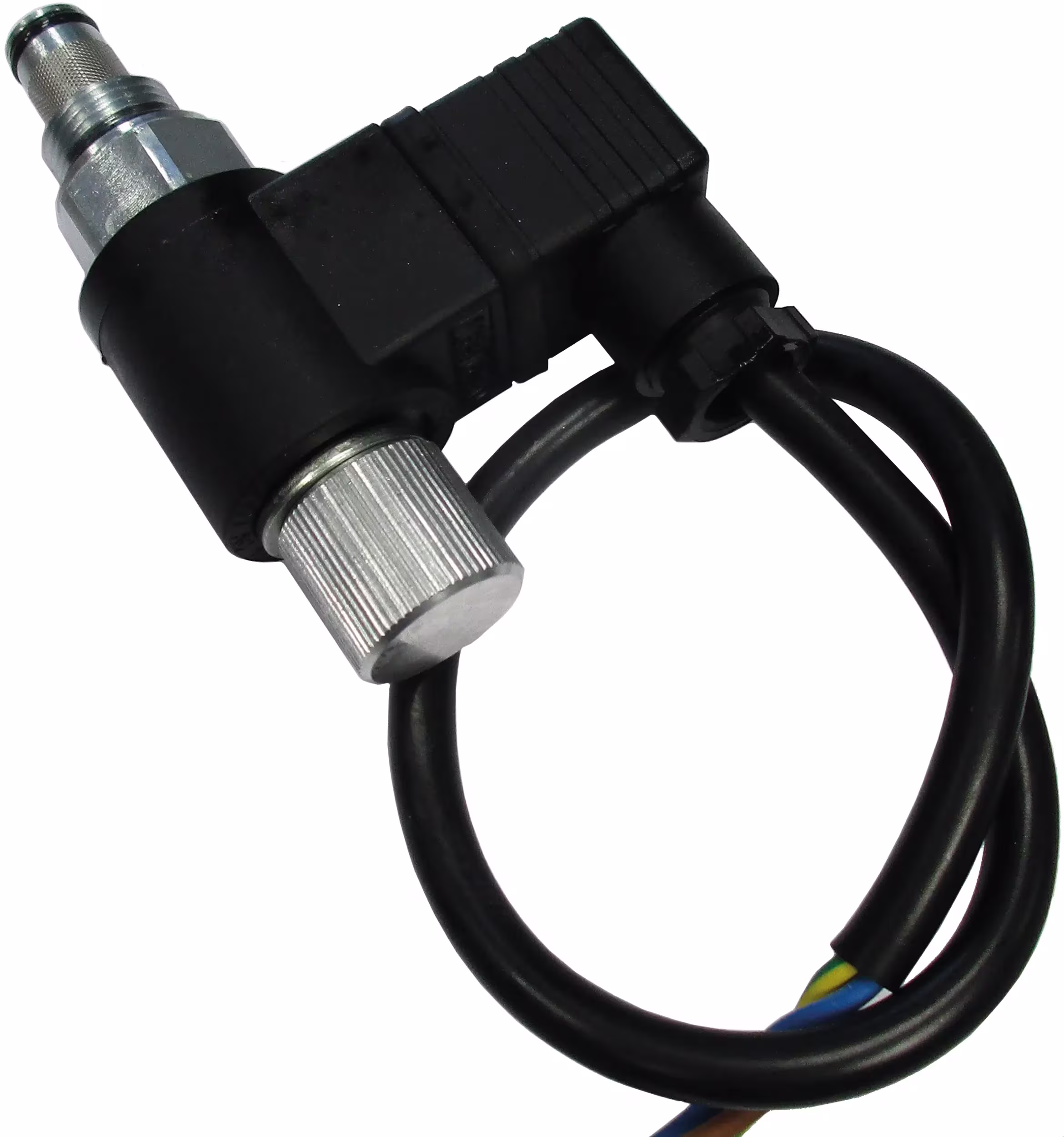

Select article	Bike-Lift Lowering vlve Hydronitlowering valve: MSV30E 14/16magnetic coil: M6316230 Read more Read less Article number: 05762844 Original number: 630205000200	PU 1 Quantity
Select article	Bike-Lift Lowering vlve Brevinilowering valve: QM CRP18E5magnetic coil: M14000007 Read more Read less Article number: 05762851 Original number: 703500000100	PU 1 Quantity
Select article	Out of Stock Procurement Item Bike-Lift Drive-up ramp red, for MAX 516 and ABSOLUTE 756 Read more Read less Article number: 05762935 Original number: 112299007300	PU 1 Quantity
Select article	Bike-Lift Drive-up ramp black, for MAX 516 and ABSOLUTE 756 Read more Read less Article number: 05763263 Original number: 112299007300/BLACK	PU 1 Quantity
Select article	Bike-Lift Control unit control board with housing Read more Read less Article number: 05763040 Original number: CSP04	PU 1 Quantity
Select article	Bike-Lift Drive wheel below, 79,8 x 20,3 x 49,8/39,7 Read more Read less Article number: 05763081 Original number: 412310002903	PU 1 Quantity
Select article	Bike-Lift Magnetic coil for Hydronit lowering valve unit (Hydronit unit) Read more Read less Article number: 05763099 Original number: 630205000110	PU 1 Quantity
Select article	Bike-Lift Magnetic coil for Brevini lowering valve unit (Brevini unit) Read more Read less Article number: 05763107 Original number: 630205000620	PU 1 Quantity
Select article	Bike-Lift Relay for Hydronit lowering valve unit (Hydronit unit) Read more Read less Article number: 05763115 Original number: 630205000120	PU 1 Quantity
Select article	Bike-Lift Relay for Brevini lowering valve unit (Brevini unit) Read more Read less Article number: 05763123 Original number: 630205000630	PU 1 Quantity
Select article	Bike-Lift Lowering vlve for Hydronit lowering valve unit (Hydronit unit) Read more Read less Article number: 05763131 Original number: 630205000130	PU 1 Quantity
Select article	Bike-Lift Lowering vlve for Brevini lowering valve unit (Brevini unit) Read more Read less Article number: 05763149 Original number: 630205000610	PU 1 Quantity

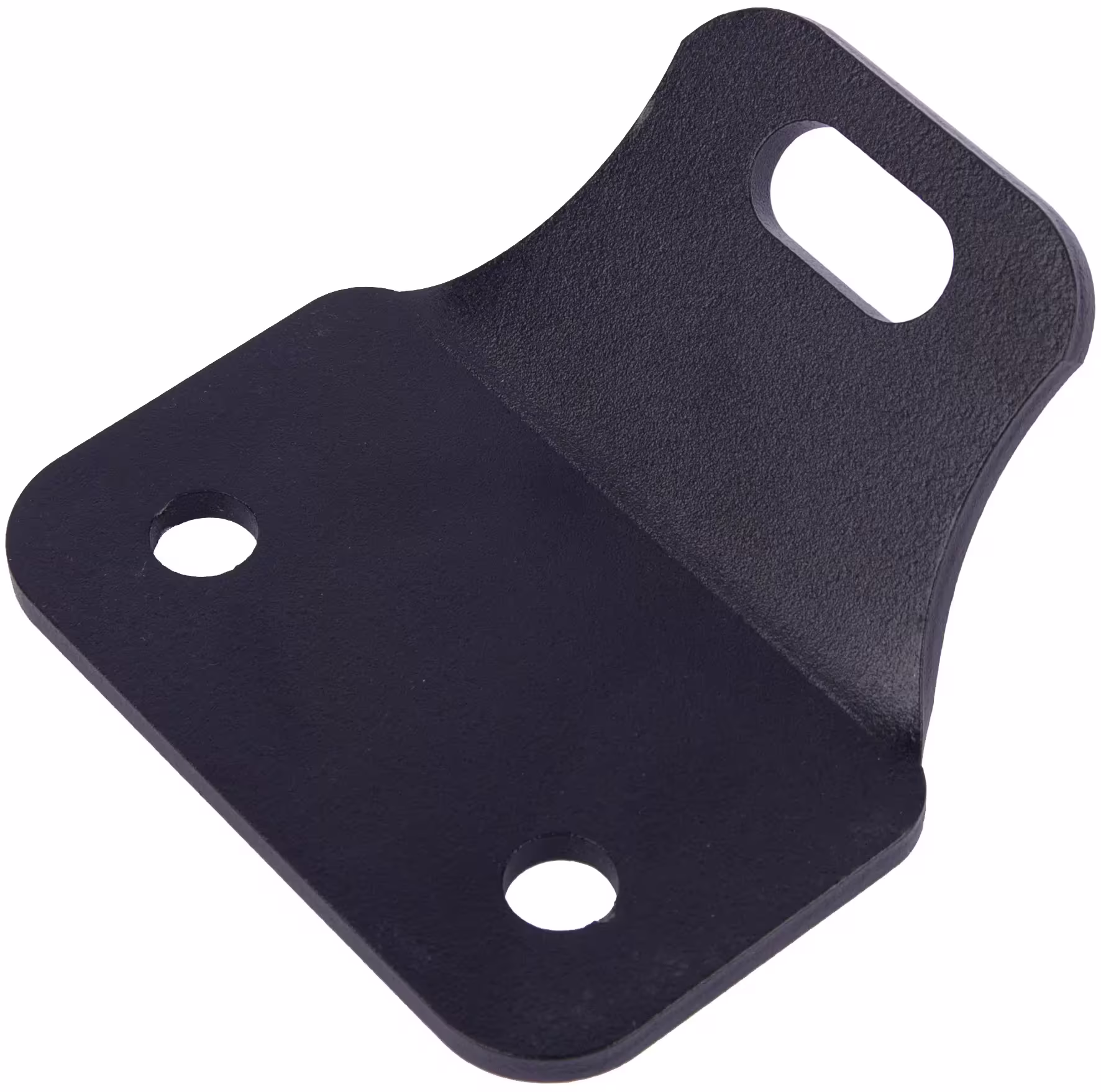

Select article	Procurement Item Bike-Lift Fixture strap for Bike Lift lifting platform "Twin Arms" Read more Read less Article number: 05763156 Original number: 111103016800	PU 1 Quantity

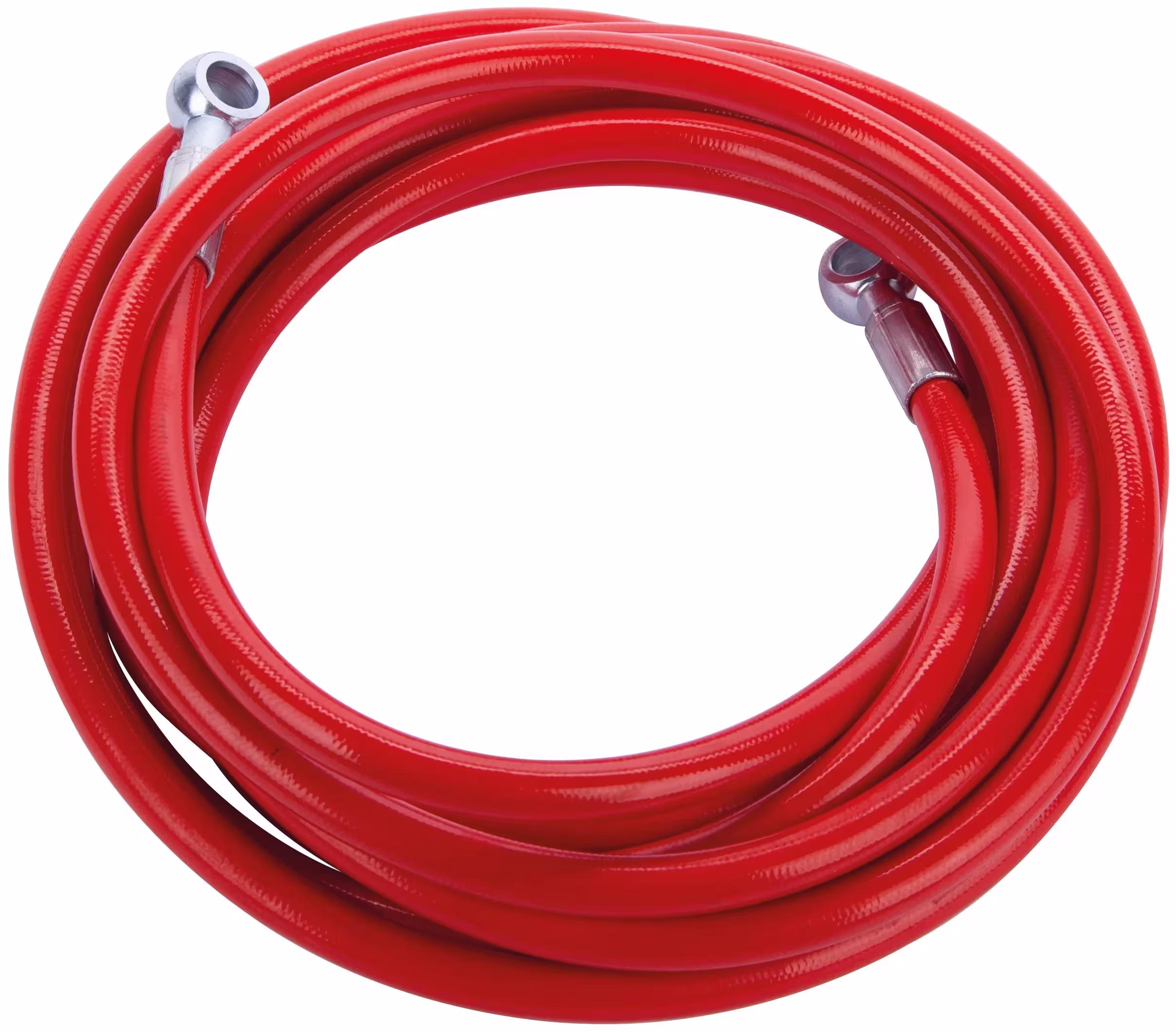

Select article	Bike-Lift Hydraulic hose for twin-arms cylinder left & right, length: 520cm Read more Read less Article number: 05760947 Original number: 620101020200	PU 1 Quantity

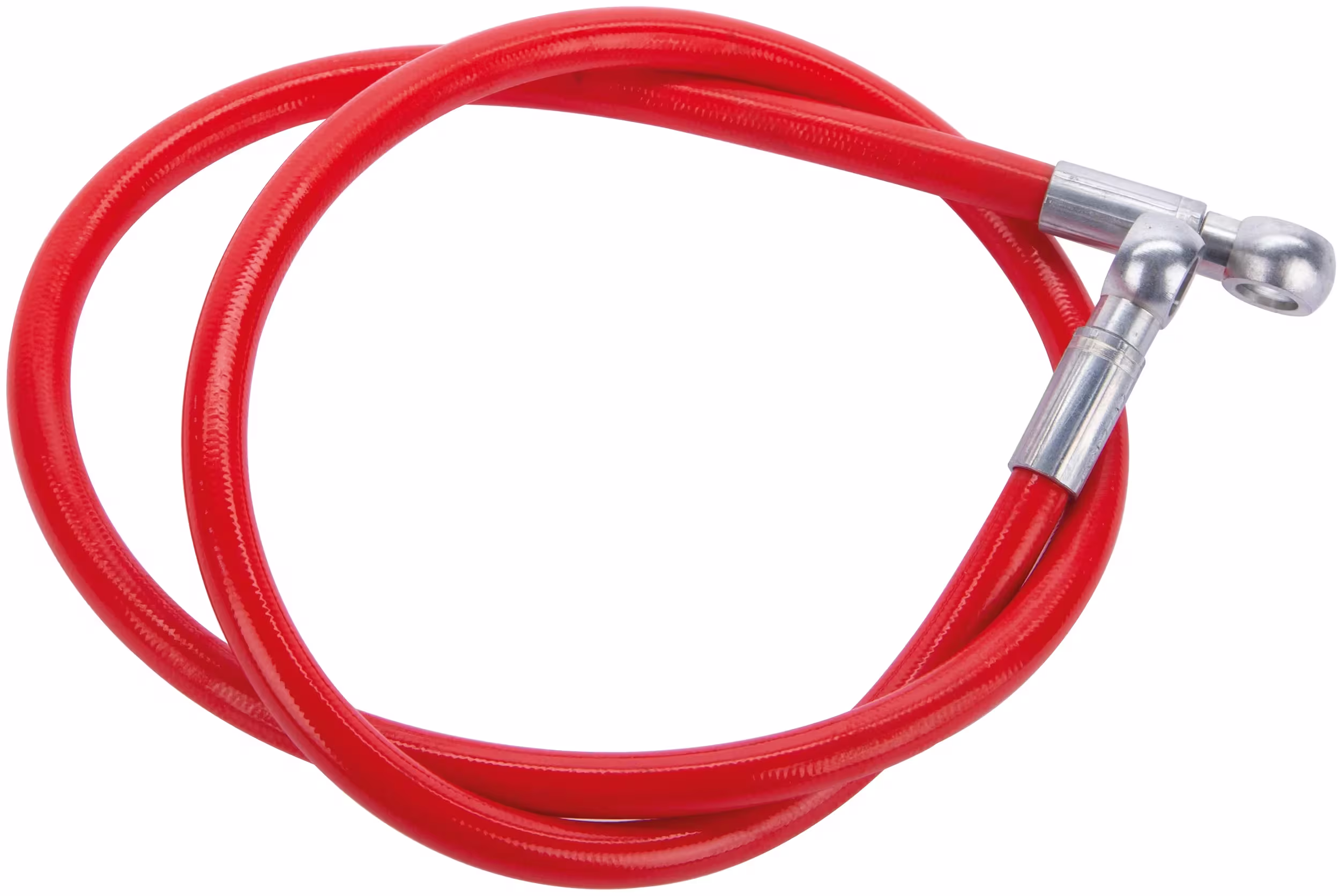

Select article	Bike-Lift Hydraulic hose for twin-arms cylinder connecting hose, length: 120cm Read more Read less Article number: 05760970 Original number: 620101010101	PU 1 Quantity

Product variants

Using the search field, you can refine the selection of product variants.

	Article	Price
Select article	Procurement Item Bike-Lift Lifting platform "Max 516 Twin Arms" electrohydraulic Read more Read less Article number: 05762364 Original number: MTA-516-003	PU 1 Quantity
