BIKESERVICE Assembly Tool

metric, for easy mounting and dismounting of bearings with an inner ring Ø from 10 - 42mm, and for easy removal of e.g. bearings, sprockets and parts with an outer Ø from 30 - 75mm

Technical data:

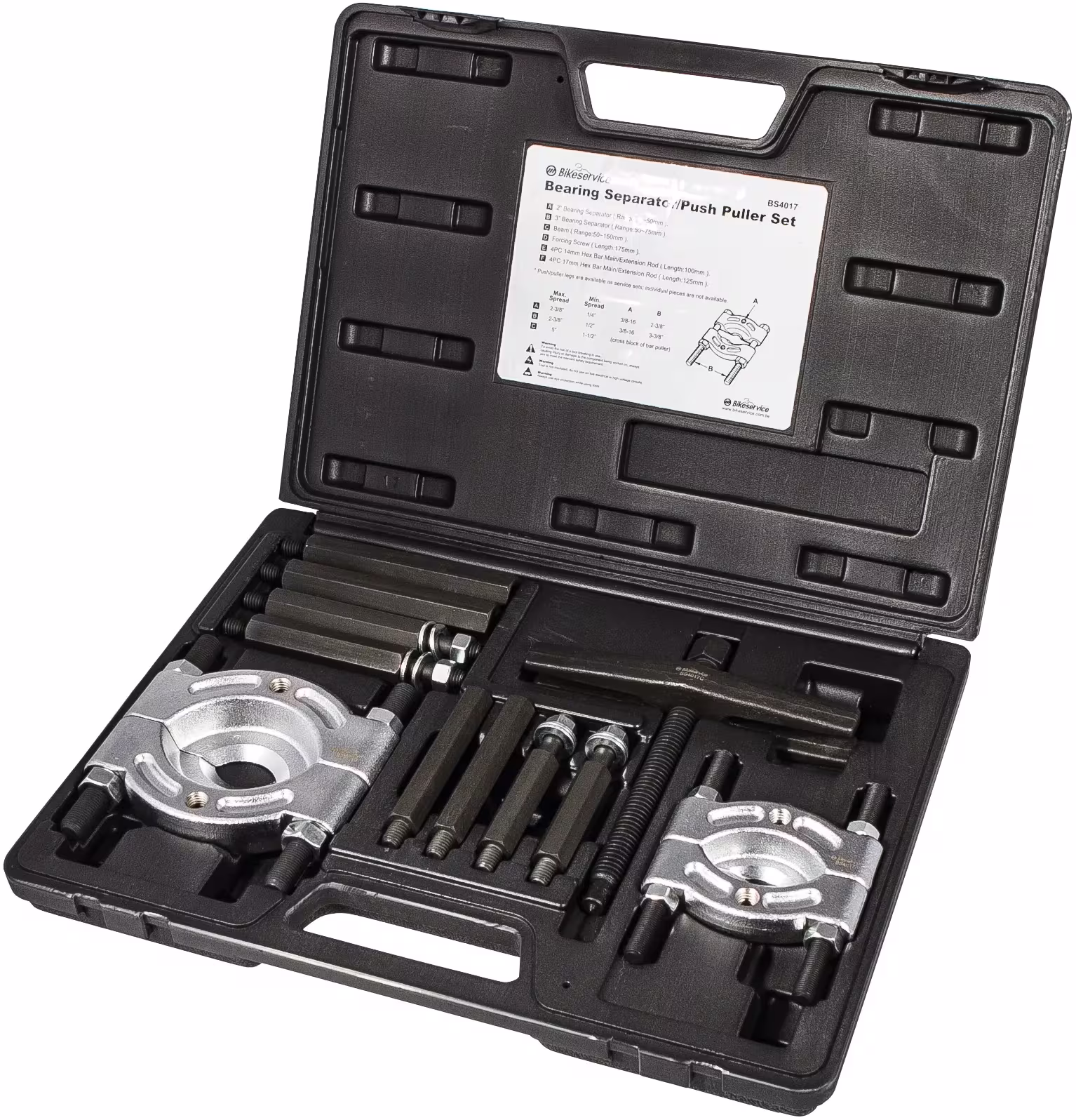

cassette total dimensions (LxWxH): 450 x 300 x 90mm

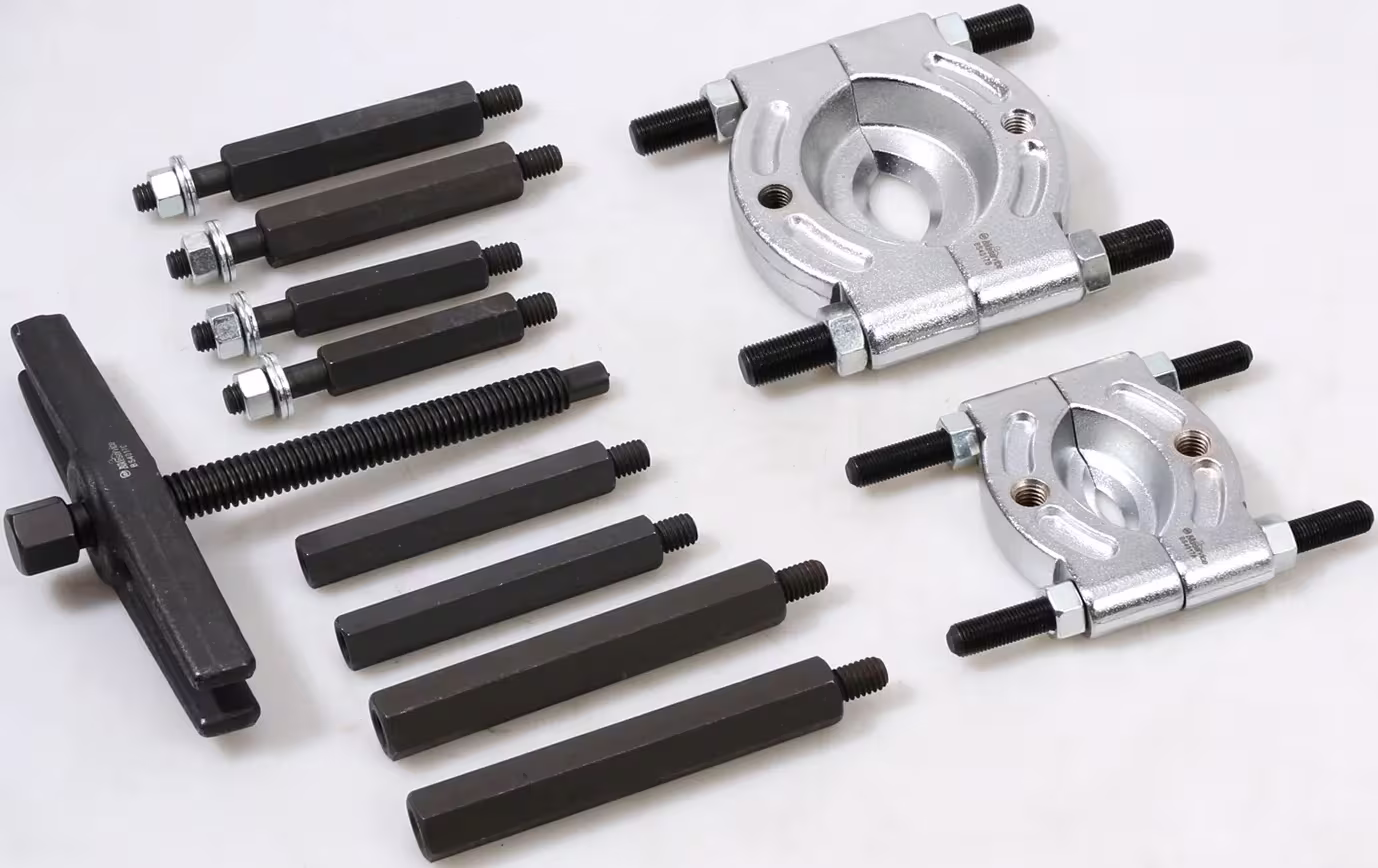

The set contains following articles:
stud bolts, length: 160mm, Ø 12,5mm
Sstud bolts, length: 140mm, Ø 8mm
stud bolts, length: 115mm, Ø 8mm
adapter for Ø 10-12mm
adapter for Ø 12-14mm
adapter for Ø 14-16mm
adapter for Ø 15-17mm
adapter for Ø 16-18mm
adapter for Ø 18-20mm
adapter for Ø 20-22mm
adapter for Ø 22-24mm
adapter for Ø 25-27mm
adapter for Ø 28-30mm
adapter for Ø 30-34mm
adapter for Ø 32-36mm
adapter for Ø 35-40mm
adapter for Ø 38-42mm

disconnection adapter A - threaded rod distance 62mm, for outer Ø 30 - 50mm, min. adapter distance: 50mm, max. adapter distance: 105mm
disconnection adapter B - threaded rod distance 92mm, for outer Ø 50 - 75 mm, min. adapter distance: 80mm, max. adapter distance: 125mm
puller C - min. adapter distance: 50mm, max. adapter distance: 150mm, puller threaded rod length: 175mm
2x adapter - 14mm hex, length: 60mm
2x extensions - 14mm hex, length: 90mm
2x adapter - 17mm hex, length: 82mm
2x extensions - 17mm hex, length: 110mm
