Bikeservice Pressure loss tester

For easy testing of pressure loss by fuel and diesel engine cylinders. Suitable for cars, scooters and motorcycles, thanks to incl. adapter (M10, M12, M14, M16, M18)

Instruction: check the pressure loss
The spark plug of the respective cylinder is replaced by one of the supplied adapters. Then the compressed air must be connected to the pressure loss tester. The pointer should now swing to the left. After that, the control valve must then be pulled out of the locking and turned up until the pointer is exactly on the zero percent mark. Then the adapter must be connected to the pressure loss tester. The display now shows the percentage pressure loss of the cylinder. the pressure loss is OK with a value between 0 - 20%.

Technical data:
cassette total dimensions (LxWxH): 200 x 300 x 85mm
compressed air connection: NW 7,2
pressure input: 4,8 - 11,0 bar
pressure outlet: 4,1 bar

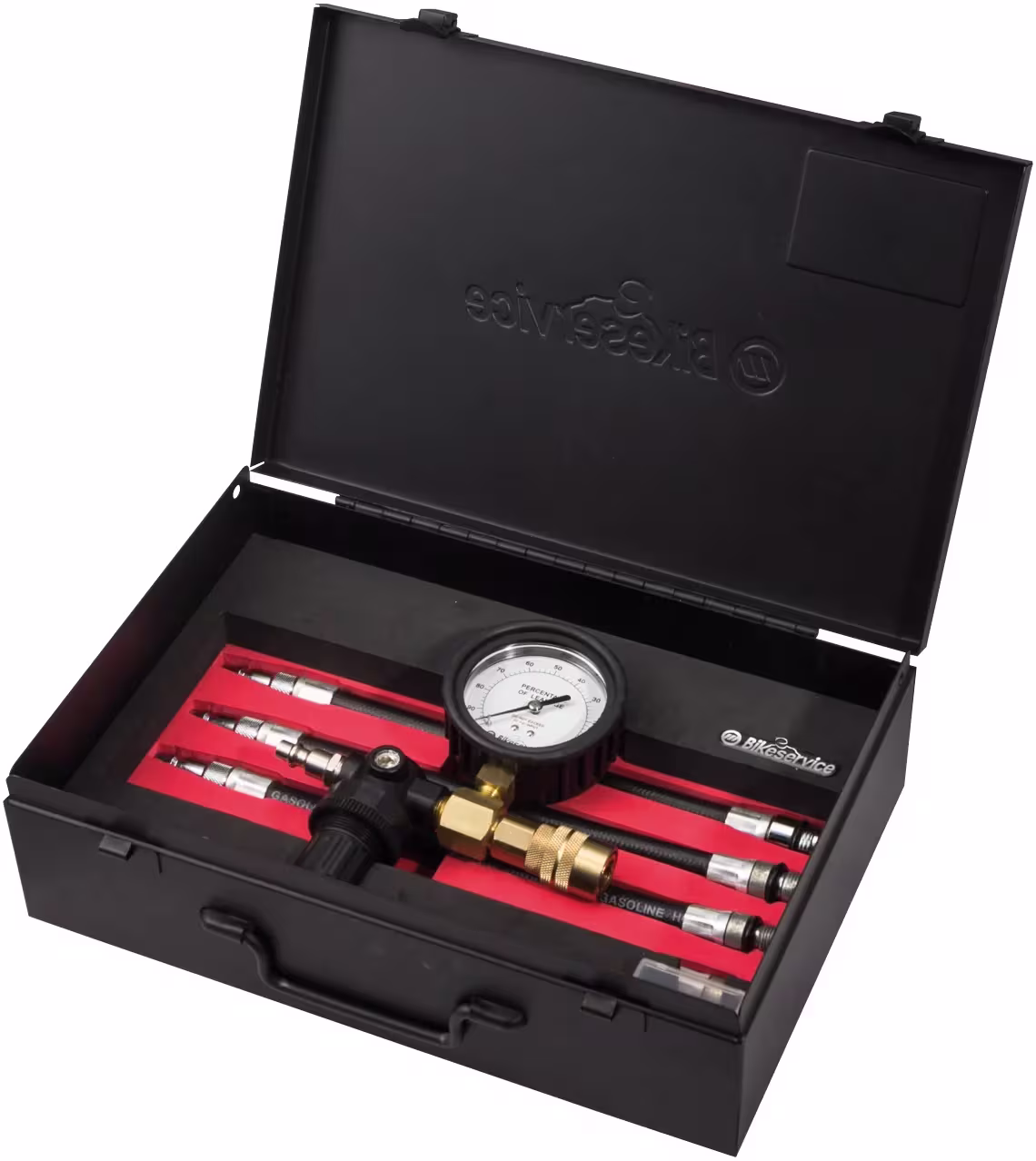

The set contains following articles:
cylinder leakage tester - percentage display of pressure loss, with control valve

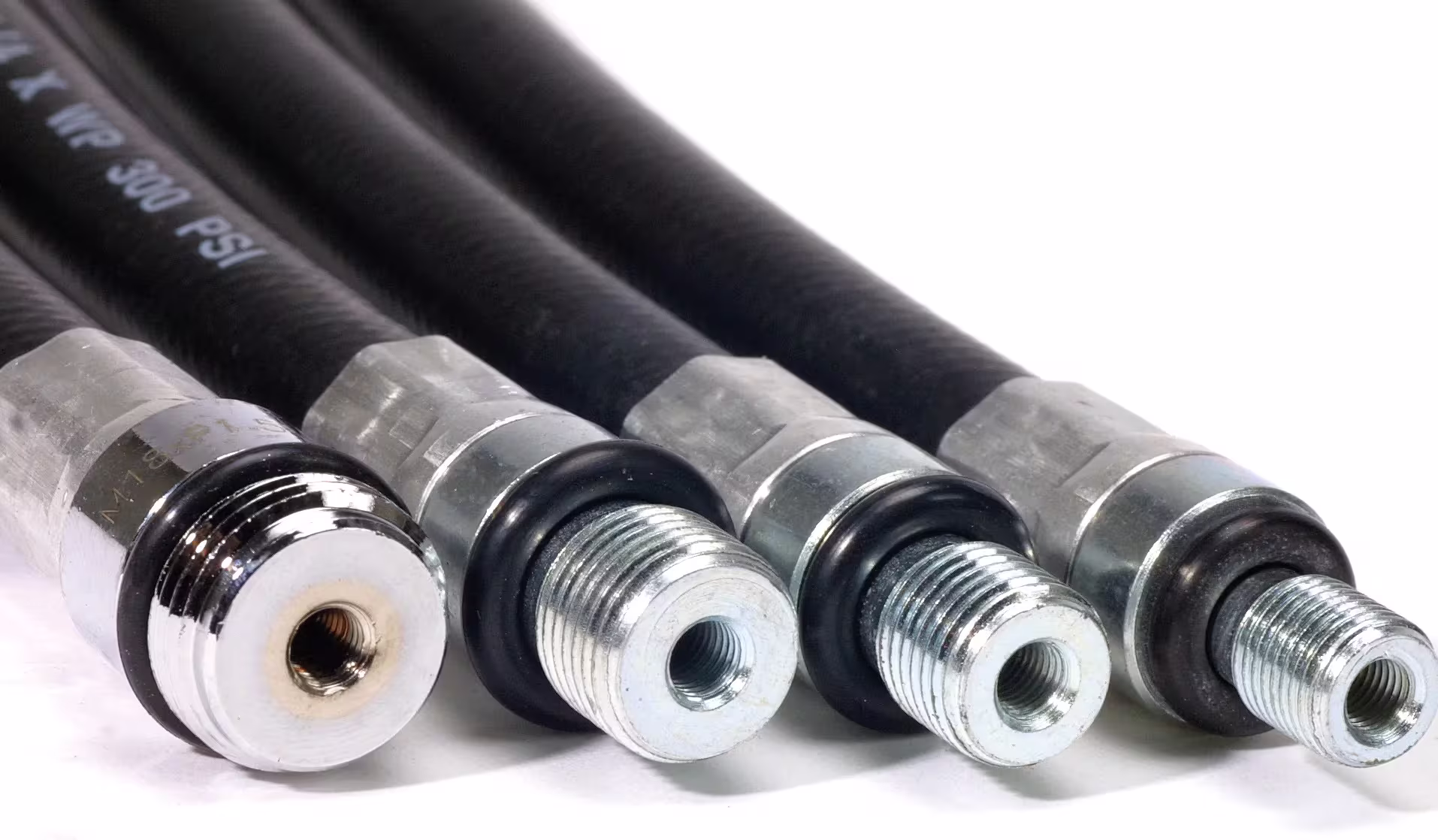

adapter - M10, length: 260mm
adapter - M12, length: 260mm
adapter - M14, length: 260mm
adapter - M16, length: 260mm
adapter - M18, length: 260mm
4x spare seal rings
