CONTEC Aluminium Rim "Exit"

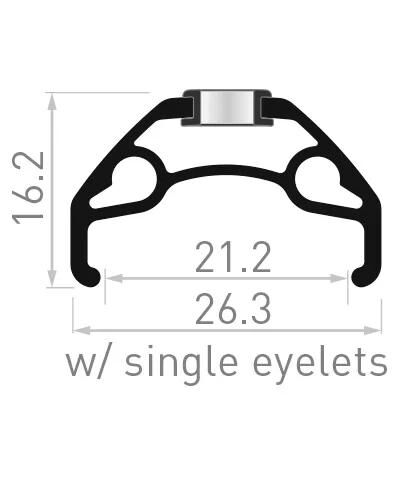

21-622, 608 mm ERD (measured incl. spoke holes), 16.2 mm high, 21.2 mm inner width, 26.3 mm outer width, approx. 536 g
- Article number: 03498173
- Original number: 30002537
29", 32 holes, black
aluminum, hollow chamber
single eyelet, SV, max. load up to 150 kg system weight, max. spoke tension 1200 Nm, suitable for e-bikes, for Disc Brakes
PU 25
Product information
- Brake compatibility rim disc
- Brake mounting disc - 5-hole , disc - 6-hole , disc - Center Lock , drum brake , roller brake
- Brake track no
- Design doublewall
- ERD 608 mm
- ETRTO 21-622
- Eyelet colour silber
- For wheel yes
- Hollow chamber shape symmetrical
- Main colour black
- Number of spoke holes 32 holes
- Permissible system weight 150 kg
- Rim height 16 mm
- Rim model Exit
- Rim outer width 26 mm
- Rim width 21 mm
- Spoke Hole easy eyelets
- Spoke hole diameter für 2,00 mm
- Text wheel configurator suitable for E-bike
- Valve type Sclaverand (SV)
- Variant Article
- Wheel size 28 / 29 "
- maximum spoke tension 1.200 Nm
- Supplier Article Number: 30002537
- EAN 4251971141179
- MSRP: €29.95
- Bidex-Code 204010
- Fedas-Code 160464
- DST-Code 2P02
- SB-Article No
- Brand/Supplier CONTEC
- Unit of measure: PIECE
- Weight 0.536 kg
A robust rims for building a classic wheel for 29" wheels with 32 spokes. Thanks to the hollow chamber design, the 6063 aluminum rims are particularly light and stable. In the finished Wheel, these rims are suitable for a system weight of up to 150 kg. With an inner rim width of 21 mm, tires ranging in size from 35 to 62 mm fit on the rim. The single eyeletted nipple holes ensure additional durability of the rim by reducing the friction between the Spoke Nipple and the rim and also prevent the Nipples from working their way into the rim. The Exit Master rim is only suitable for wheels with disc brakes.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 21-622, 608 mm ERD (measured incl. spoke holes), 16.2 mm high, 21.2 mm inner width, 26.3 mm outer width, approx. 536 g Read more Read less
| PU 25 | |
 23-622, 609 mm ERD (measured incl. spoke holes), 16.2 mm high, 23.2 mm inner width, 28.3 mm outer width, approx. 566 g Read more Read less
| PU 25 | |
 25-622, 607 mm ERD (measured incl. spoke holes), 18 mm high, 24.8 mm inner width, 30 mm outer width, approx. 589 g Read more Read less
| PU 25 |
