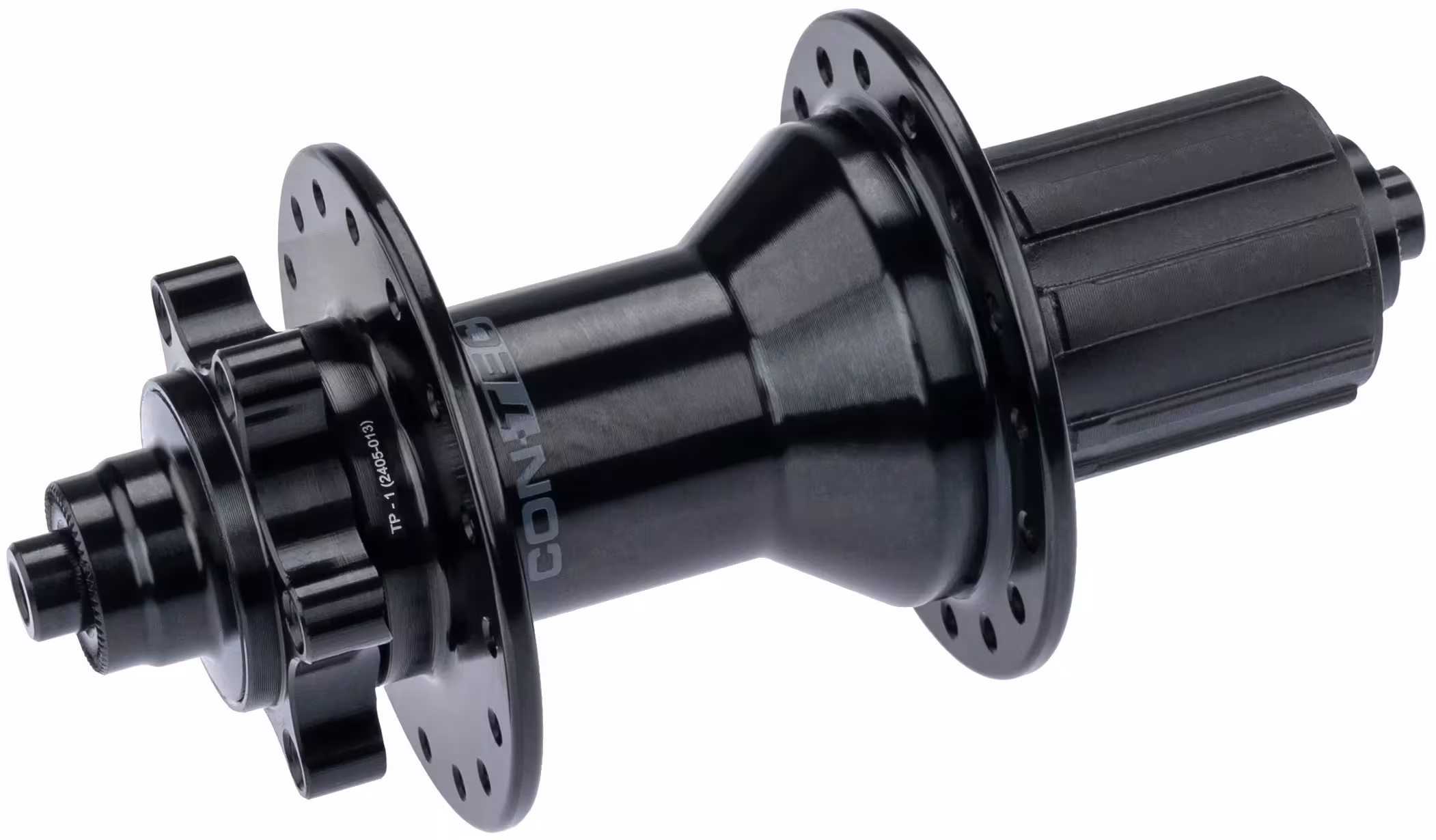

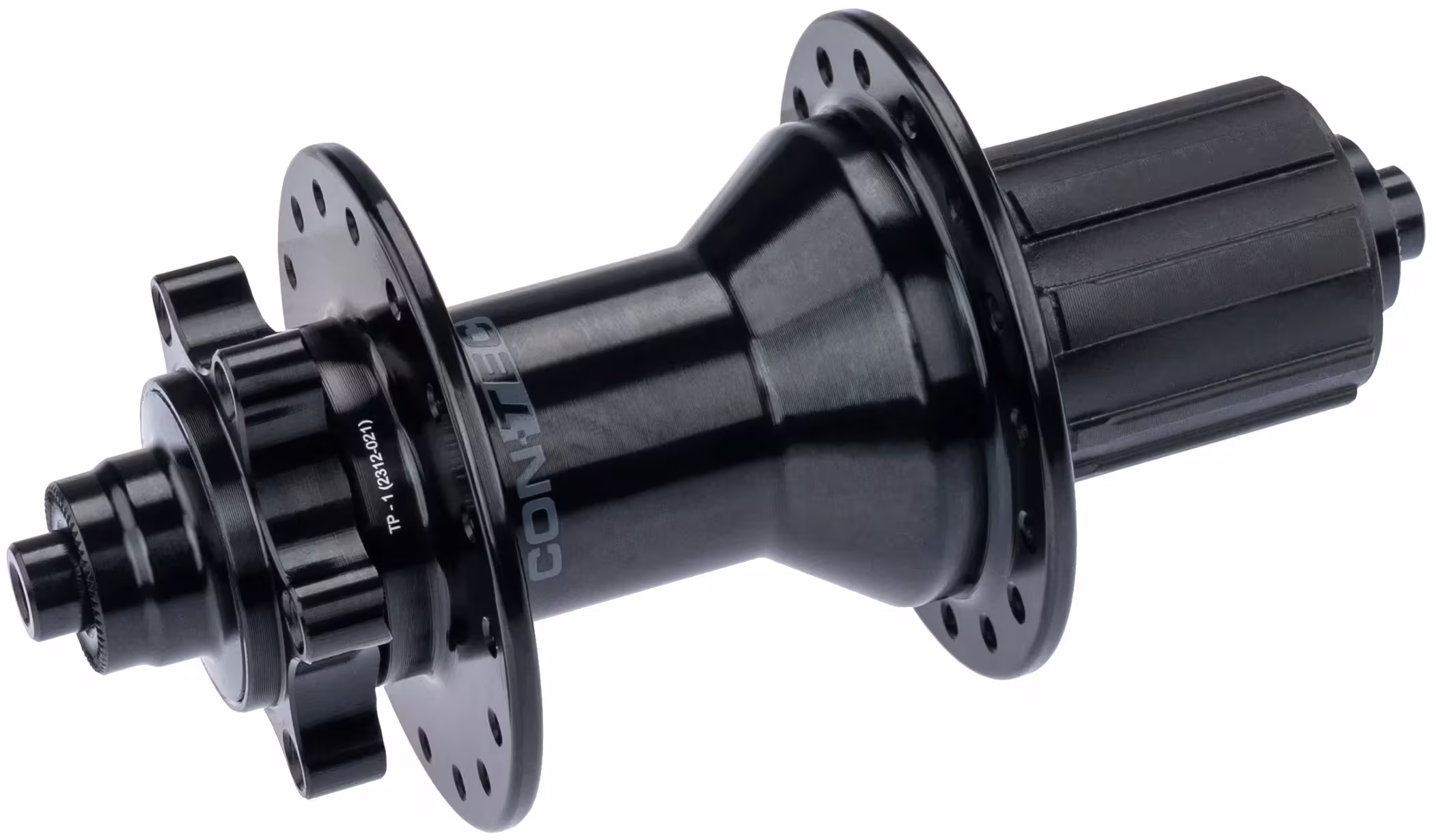

CONTEC Cassette rear hub "Eroq DB"
8-/9-/10-/11-speed Shimano HG-M, MTB Freewheel Body (34.9 mm), mounting width 141 mm (Boost)
- Article number: 07476248
- Original number: TP-1 HG DB

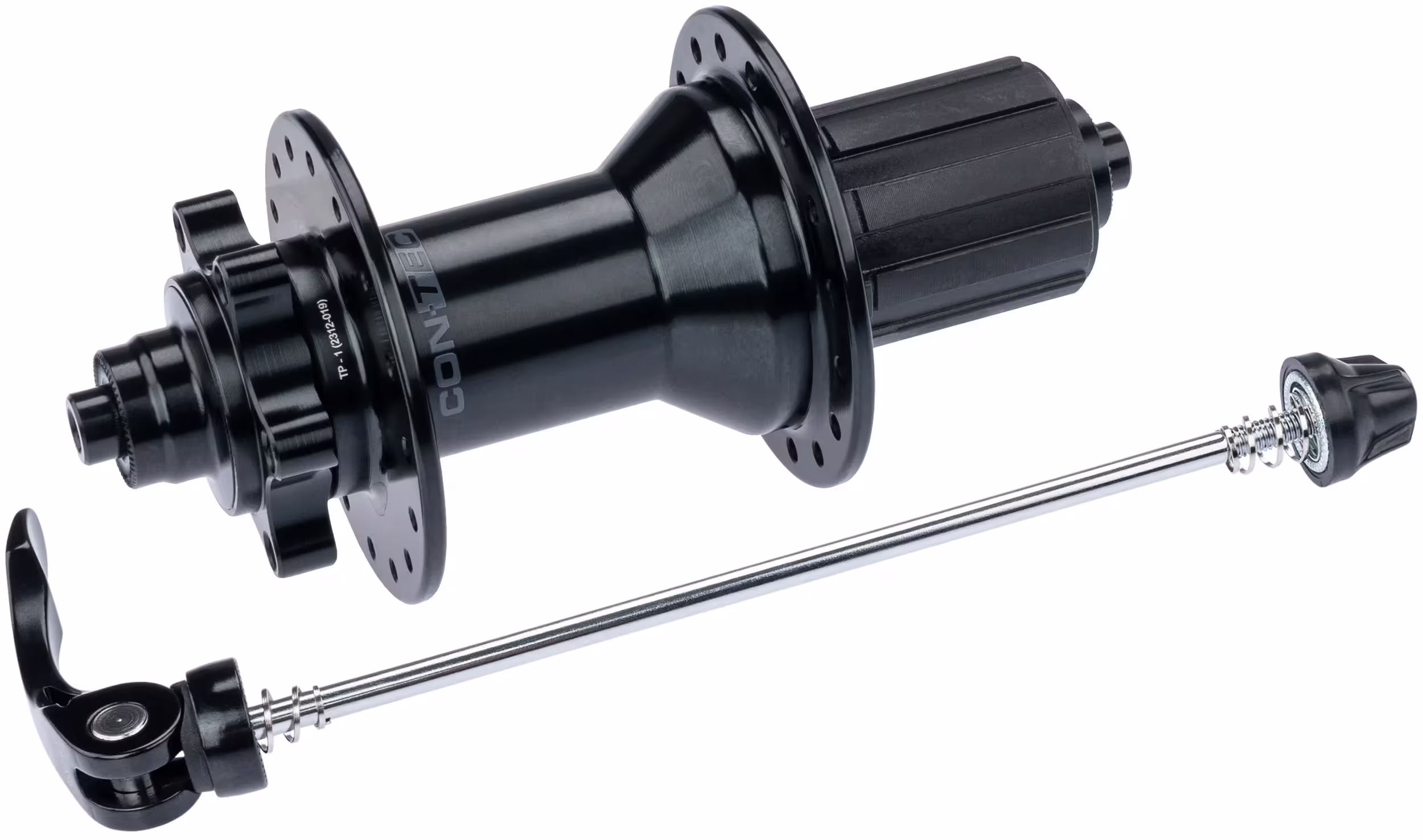

32-hole, hollow axle for QR, 6-hole disc brake mount, suitable for e-bikes, includes CONTEC "Eroq.r" QR lever, black
Aluminum hub body, ball bearings, robust steel Freewheel Body, 27-tooth ratchet freehub system, 3-pawl design
PU 25
Product information
- Axle hollow axle 9 mm
- Bearing type ball bearing
- Brake mounting disc - 6-hole
- Brake track no , yes
- Chainline 47.5 mm
- E-bike type ready
- Flange diameter 68 mm
- For wheel standard
- Freehub system 27
- Freewheel body HG-M, MTB
- Freewheel body material steel
- Gears 8-speed , 9-speed , 10-speed , 11-speed
- Hub body material Aluminium
- Hub model Eroq DB
- Installation width 141 mm (Boost)
- Main colour black
- Mounting rear wheel
- Number of pawls 3 pcs.
- Number of spoke holes 32 holes
- Packaging assembly packaging
- Quick release inkl. 156,5 mm Schnellspanner
- Spoke hole diameter for 2.00 and 2.34 mm
- Spoke type J-Bend
- Text wheel configurator suitable for E-bike
- Type cassette
- Variant Article
- Supplier Article Number: TP-1 HG DB
- EAN 4251971146372
- MSRP: €79.95
- Fedas-Code 160452
- SB-Article No
- Bidex-Code 204030
- DST-Code 2P04
- Brand/Supplier CONTEC
- Unit of measure: PIECE
- Weight 0.445 kg
| Article | Price | |
|---|---|---|
 8-/9-/10-/11-speed Shimano HG, approx. 173 g Read more Read less
| PU 25 | |
 for 135mm installation width, total length: 153mm Read more Read less
| PU 25 | |
 suitable for "Eroq DB" and "Core DB" rear hubs with HG freehub, Set of 4 industrial bearings (2x 17 x 30 x 7, 2x 15 x 28 x 7L), for 0.747.624/4, 0.747.624/8, 0.747.623/1, 0.747.623/5 Read more Read less
| PU 1 | |
 suitable for articles: 0.747.624/4, 0.747.624/6, 0.747.624/8, 0.747.624/9 Read more Read less
| PU 1 |
A hub is like the heart of a bicycle wheel—it forms the stable core that ensures a smooth riding experience. A rear hub has the additional task of securely holding the cassette in place to promote both optimal power transfer from the chains and seamless shifting. Our CONTEC EROQ rear cassette hub is exceptionally robust and can therefore withstand the high torque and heavy weight of an e-bike. The hub features an aluminum body with a hollow axle and is attached to your bike using a compatible QR skewer (e.g., CONTEC EROQ.R Rear). The compatible QR skewer is included with the hub. The Boost mounting width of the CONTEC EROQ rear cassette hub is 141 mm. It is also compatible with 6-bolt brake rotors and has 32 spoke holes. The EROQ rear hub features a robust Shimano HG Freewheel Body made of durable steel with high-quality ball bearings. The ratchet freewheel system, with 27 teeth and 3 Paws, ensures rapid interaction between the freewheel and the hub body, so that your pedaling effort is quickly converted into forward momentum.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 11-/12-speed SRAM XD, 135 mm mounting width Read more Read less
| PU 25 | |
 11-/12-speed SRAM XD, 141 mm mounting width (Boost) Read more Read less
| PU 25 | |
 12-speed Shimano Micro Spline, 141 mm mounting width (Boost) Read more Read less
| PU 25 | |
 Out of Stock 12-speed Shimano Micro Spline, installation width 135 mm Read more Read less
| PU 25 | |
Out of Stock 12-speed Shimano Micro Spline, mounting width 141 mm (booster) Read more Read less
| PU 25 | |
 8-/9-/10-/11-speed Shimano HG-M, MTB Freewheel Body (34.9 mm), mounting width 135 mm Read more Read less
| PU 25 | |
 8-/9-/10-/11-speed Shimano HG-M, MTB Freewheel Body (34.9 mm), mounting width 141 mm (Boost) Read more Read less
| PU 25 | |
 Out of Stock 8-/9-/10-/11-speed Shimano HG, MTB freewheel body (34.9 mm), installation width 135 mm (special item, loose) Read more Read less
| PU 25 |
