CONWAY Electric SUV "Cairon SUV 5.0" Mod. 23
diamond, 29", anthracite matt / black metallic, 12-speed SRAM "SX", 45 cm / M
Read more Read less - Article number: 02824191
- 250 W mid-drive motor and 750.0 Wh battery capacity.
- 12-speed SRAM "SX" derailleur and chain drive.
- Hydraulic Disc Brakes.
- Suspension Fork with 120 mm of travel.
- 28-inch wheels.
- Fenders and electronic Pushing Help.
- Aluminum frame.
- Maximum system weight: 140 kg.
PU 1
Product information
- Battery capacity 750.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Child Seat Approval no
- Colour designation anthracite matt / black metallic
- Drive chain
- Drive system BOSCH Performance Line CX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features electronic sliding aid , fender , suspension fork
- Frame height 45 cm
- Frame shape diamond
- Frame size M
- Gears 12-speed
- Gender gents
- Main colour grey
- Material 1 aluminium
- Model range Cairon
- Permissible system weight 140 kg
- Secondary colour black
- Shifting name 12-Gang SRAM "SX"
- Shifting type derailleur shifting
- Support up to 25km/h
- Trailer Approval no
- Transmission 1x 12-speed
- Travel 120 mm
- Type SUV
- Wheel size 29 "
- Chainstay 455 mm
- Reach 426 mm
- Seat angle 74.5 °
- Seat tube 450 mm
- Stack 649 mm
- Steering tube 120 mm
- Steering tube angle 67.0 °
- Stem length 65.0 mm
- Toptube 600 mm
- Wheel distance 1174 mm
- Battery BOSCH "PowerTube 750", 750 Wh
- Battery Lock AXA "New Lock"
- Chain / belt SRAM "SX Eagle"
- Chain ring / pulley SRAM "X-Sync 2 Eagle", 36 teeth
- Charger BOSCH 4 A
- Crank MIRANDA "Classic", 165 mm, for Bosch Gen. 4, ISIS, Q:12, black
- Derailleur hanger CONWAY for WME Carbon, Xyron, RLC FS, Cairon SUV FS, from mod. 2020

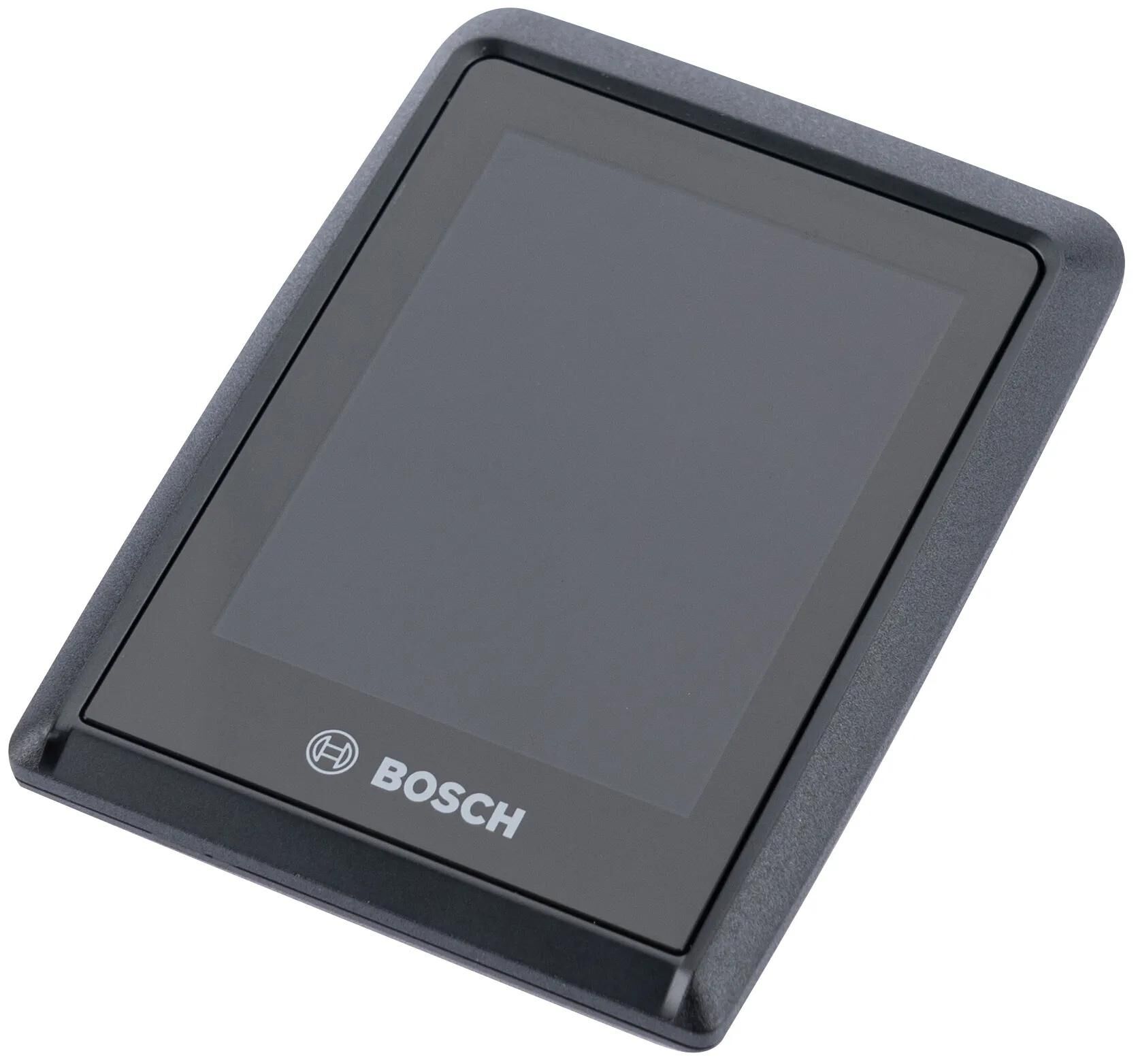

- Display BOSCH "Kiox 300", 4-stages, remote control, push aid
- Engine BOSCH "Performance Line CX", max. 85 Nm
- Fender curana "Apollo 75"
- Fork SR SUNTOUR "SF19-XCM34-BOOST LOR", 120 mm travel, Thru Axle
- Frame Intube Bosch, Gen. 4, BES3, aluminum, diamond, 45 cm
- Front brake TEKTRO Disc Brakes "HD-M530", Post Mount

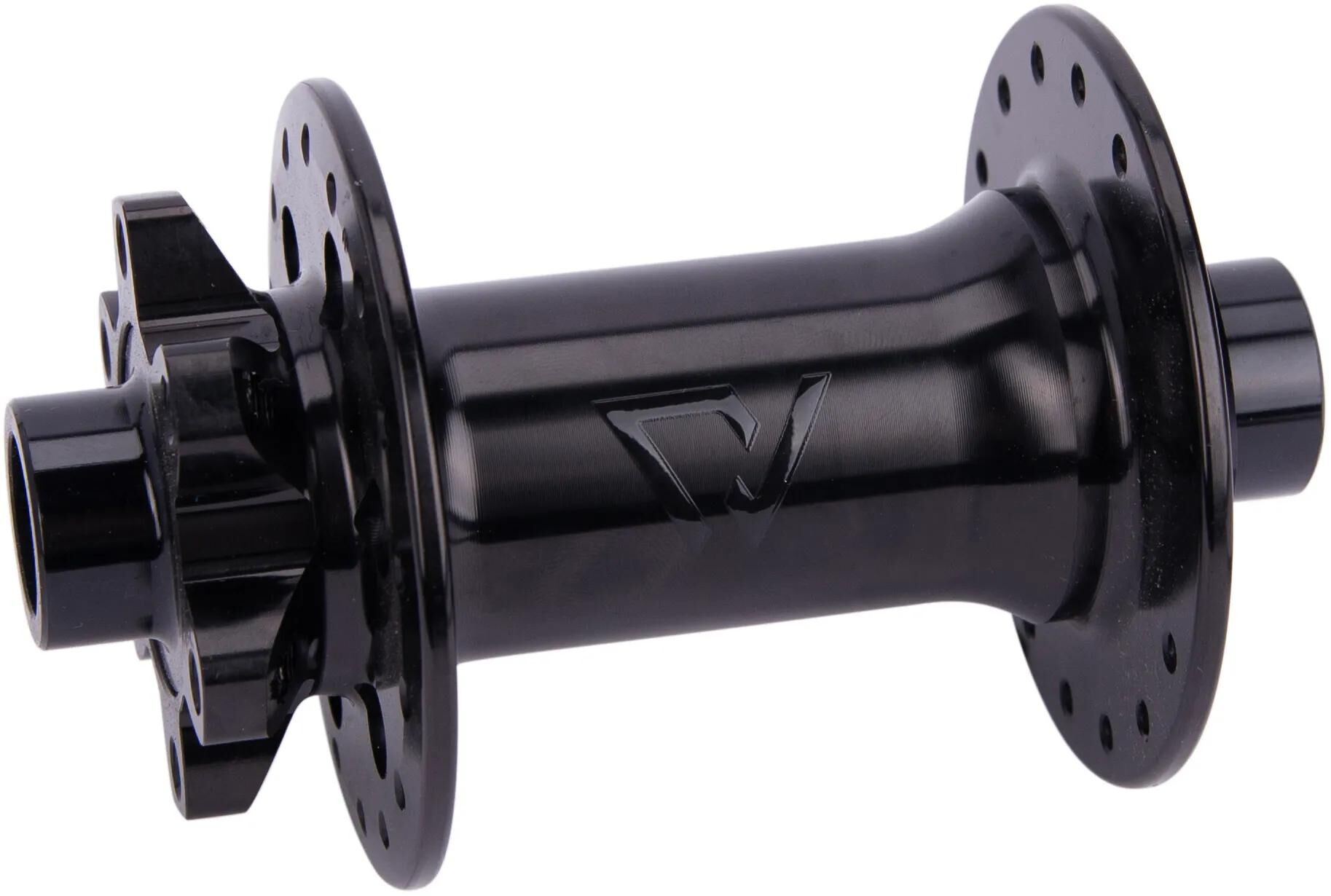

- Front hub FORMULA "DC-511", 15 x 110 mm, Thru Axle
- Front light CONTEC "DLUX 80 E+", 80 lux
- Front rotor TEKTRO "TR203-17", Ø 203 mm, 6-hole, 2.3 mm thick
- Front tire SCHWALBE "Johnny Watts", 60-622, Reflex
- Grips CONTEC "MERGE Mountain Straight", 140 mm, G-Link, black / gray
- Handlebar LEVELNINE "Low Riser", 720 mm, Ø 31.8 mm, backsweep 9°, upsweep 5°
- Headset GLORY WHEEL "SIT3 Strummer", ZS56/28.6 / ZS56/40
- Pedals VP COMPONENTS "VPE-506"
- Rear brake TEKTRO Disc Brake "HD-M530", hydraulic, 2 pistons, for 2.3 mm brake rotors
- Rear carrier atranvelo "Commute Pro"
- Rear derailleur SRAM "SX Eagle"

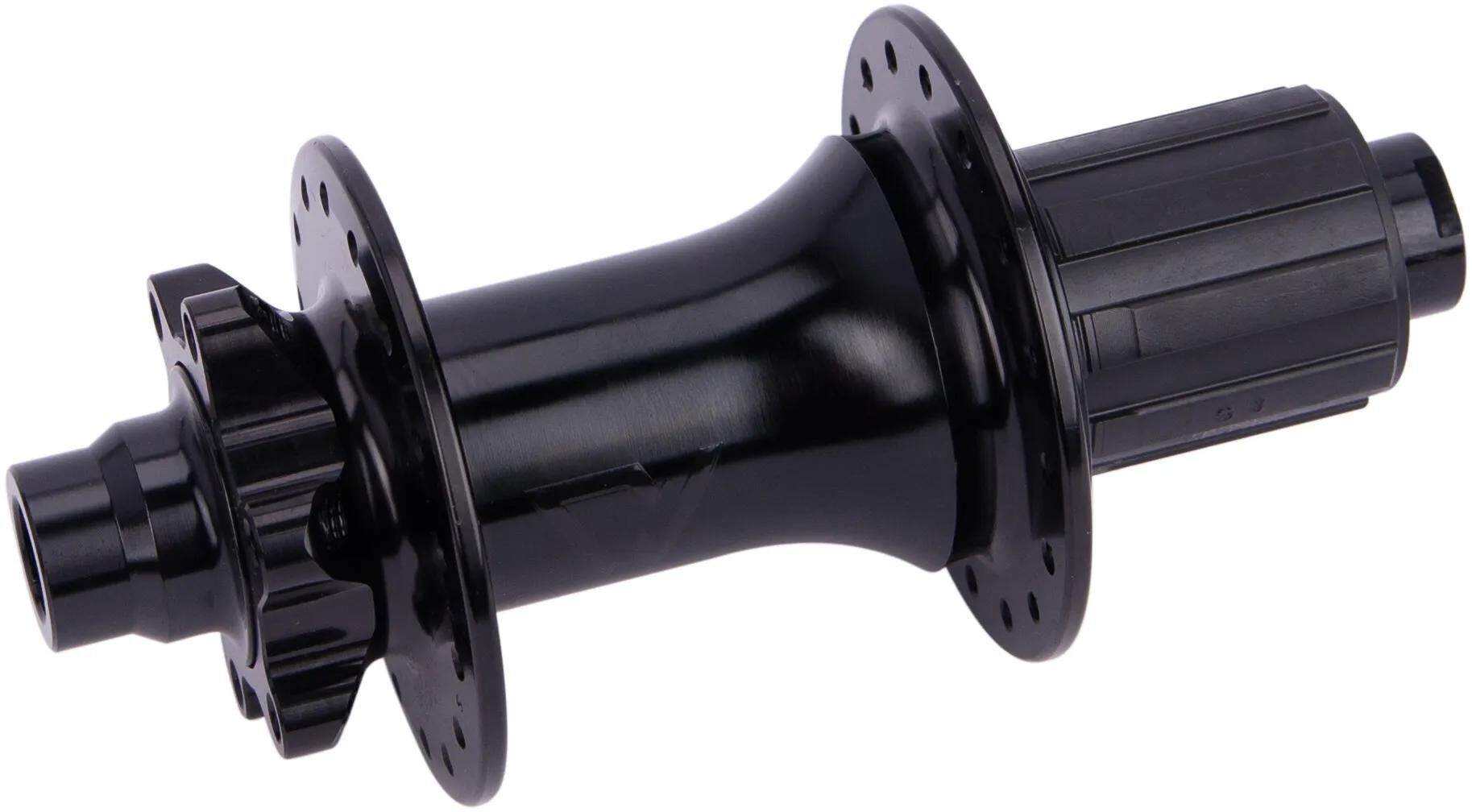

- Rear hub FORMULA "EHL-148S", 12 x 148 mm Boost, Thru Axle, 6-hole
- Rear light CONTEC "TL-335 E-Stop", stop light
- Rear rotor TEKTRO "TR180-17", Ø 180 mm, 2.3 mm thick
- Rear tire SCHWALBE "Johnny Watts", 60-622, Reflex
- Remote BOSCH "BRC3300", Mini Remote
- Rims RODI "Ready 30", 30-622, 32 holes, disc brake, easy eyelets, black
- Saddle Selle Royal "Vivo", Athletic
- Seatpost CONWAY, Ø 31.6 mm, 350 mm long, 15 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever SRAM "SX Eagle"
- Spokes Niro schwarz
- Sprocket / pulley SRAM "PG-1210", 11-50 teeth

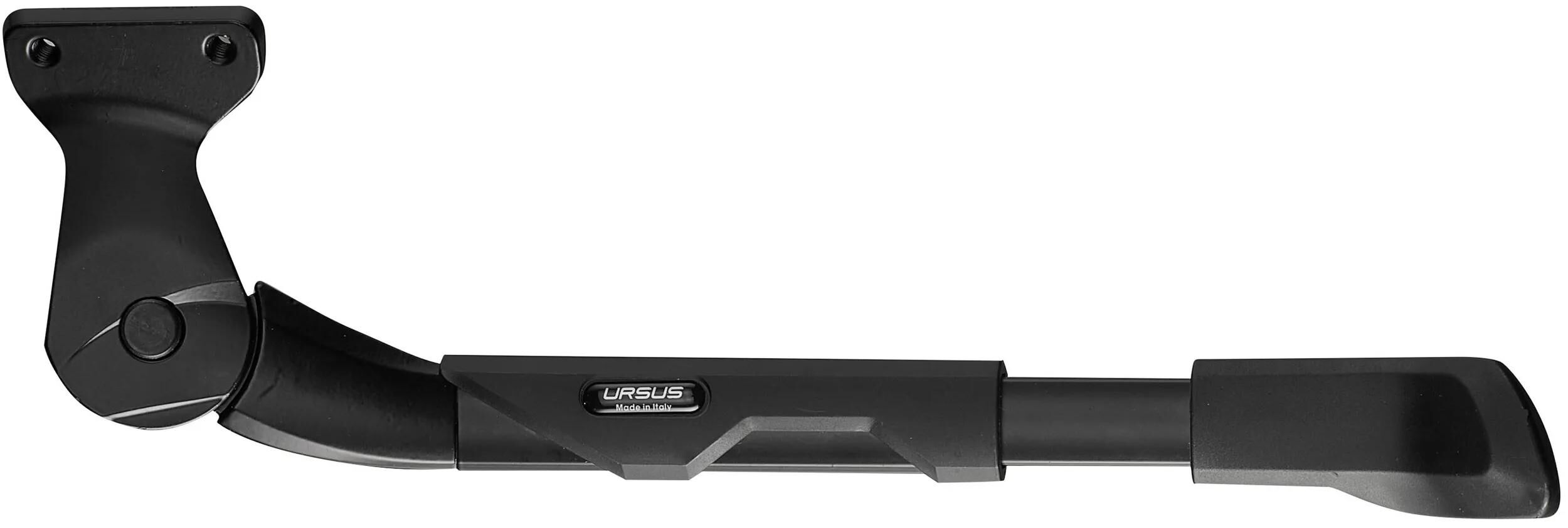

- Stands URSUS "R81 - Wave Rear"
- Stem LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 65mm long, black
- EAN 4251971117785
- MSRP: €4,199.95
- WEEE registration number DE92509320
- DST-Code 1B01
- SB-Article No
- Bidex-Code 122010
- Fedas-Code 155021
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight 28.5 kg
- instruction manual DE
- instruction manual DK
- instruction manual EN
- instruction manual ES
- instruction manual FR
- instruction manual IT
- instruction manual NL
- instruction manual DE
- instruction manual DK
- instruction manual EN
- instruction manual FR
- instruction manual NL
- instruction manual ES
- exploded view Kunststoff und Gummi
- exploded view Metall
| Article | Price | |
|---|---|---|

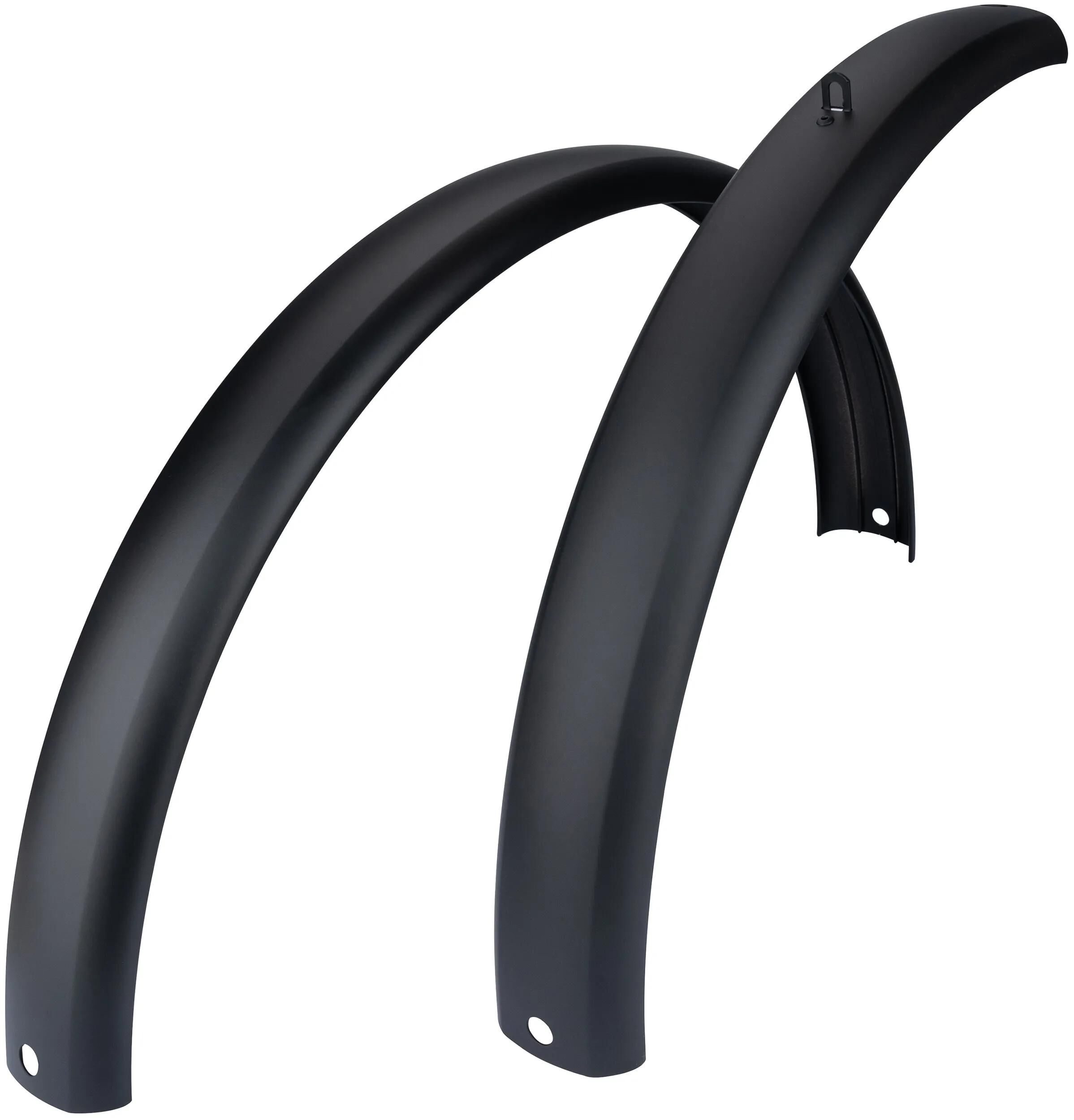

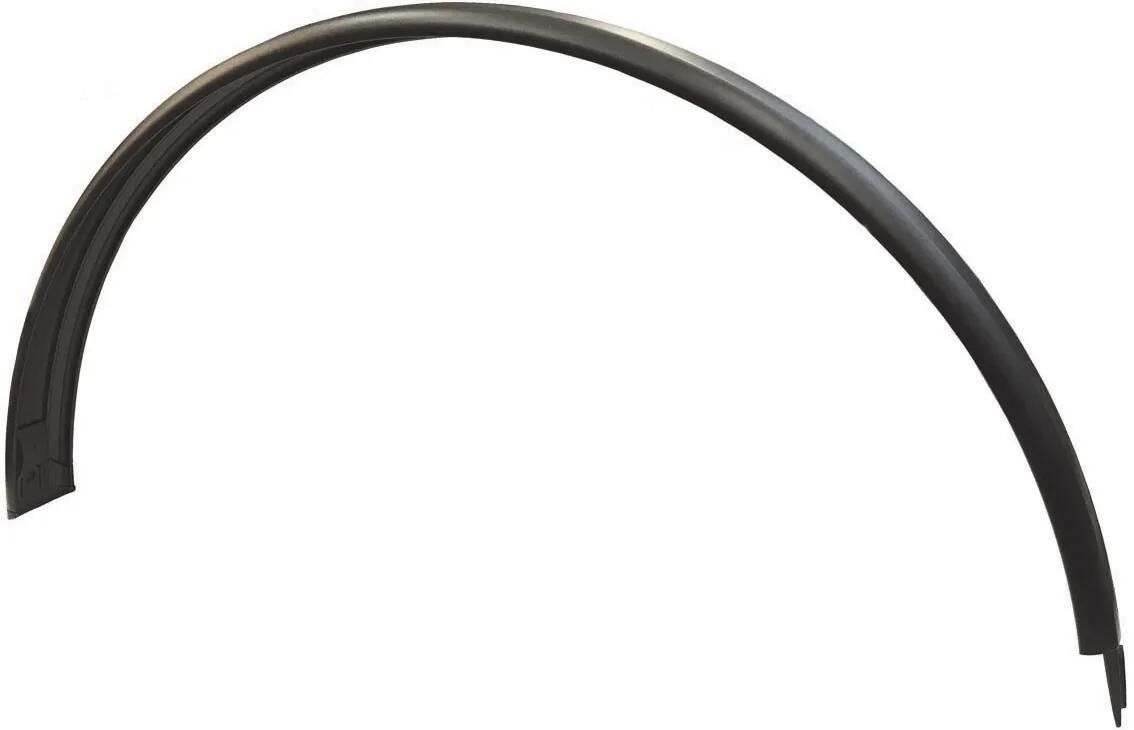

 29", suitable for Cairon C from mod.20dimensions (HxW): 400 x 99mm Read more Read less
| PU 20 | |
 | PU 1 | |
 suitable for all Bosch chargers Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 20 | |
 | PU 32 | |
 anthracite gray, 20/21, MS, ML, RLC, WME, TS, Xyron, Cairon C SUV, eWME, YS7322 Read more Read less
| PU 36 | |
 | PU 36 | |
 | PU 32 | |
 | PU 50 | |
 | PU 50 | |
 | PU 7 | |
 Out of Stock Successor: 03075737 180 mm, old packaging Read more Read less
| PU 20 | |
 Out of Stock Successor: 03075745 203 mm, old packaging Read more Read less
| PU 20 | |
 | PU 15 | |
 Out of Stock Successor: 07109333 bulk Read more Read less
| PU 10 | |
 carrier attachment 50mm, self-service package Read more Read less
| PU 100 | |
 WME Carbon / Xyron / RLC FS / Cairon SUV FS, Mod.20 Read more Read less
| PU 1 | |

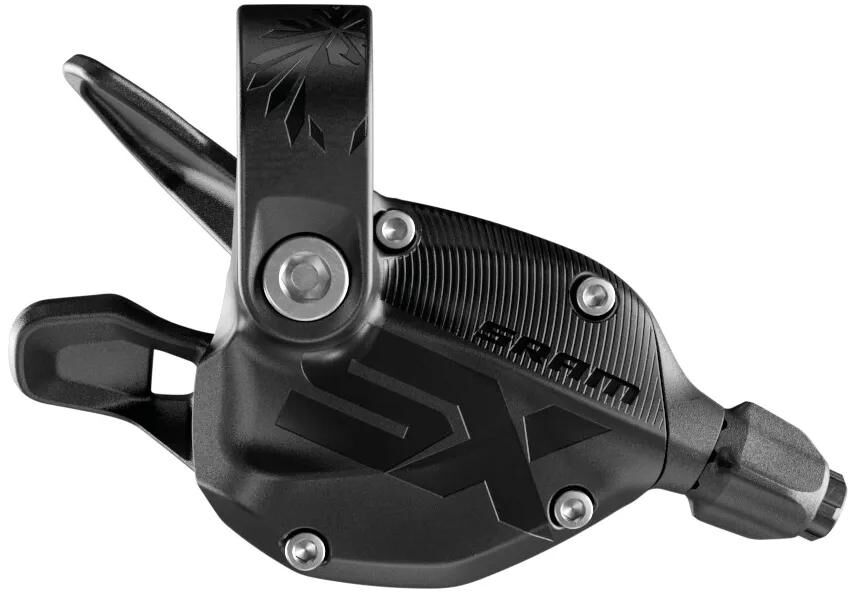

 Out of Stock Successor: 03472416 black, single click (shifts one gear per shifting operation), optimized for the E-bike use Read more Read less
| PU 12 | |
 Out of Stock Successor: 03472380 black Read more Read less
| PU 18 | |
 | PU 24 | |
 | PU 24 | |
 Out of Stock Successor: 03373934 11-13-15-17-19-22-25-28-32-36-42-50 teeth Read more Read less
| PU 10 | |
 Out of Stock Successor: 03342441 126 links Read more Read less
| PU 50 | |
 Out of Stock Successor: 03525343 AZ, removable key Read more Read less
| PU 10 | |
 for Cairon BES3 (Z11 / Z12), Xyron BES3 aluminium and carbon (Z11), Cairon SUV FS BES3 (Z14) and Nyvon (Z17) Read more Read less
| PU 1 | |
 | PU 1 | |
 suitable for Cairon trapeze and gents with thru axle and Xyron, Smart system, BES3 (Z11) Read more Read less
| PU 1 | |
 suitable for Cairon / Xyron (Z11) Read more Read less
| PU 1 | |
 | PU 1 | |
 suitable for Cairon (Z11 and Z12), Cairon SUV FS (Z14) and Xyron (Z11), Gen.4 (Performance CX), smart system (BES3) Read more Read less
| PU 1 | |
 suitable for Cairon Wave / Trapeze / Men (Z11 and Z12), Xyron Aluminum and Xyron Carbon / Aluminum, smart system, BES3 (Z11) and Xyron LT / ST (Z20) Read more Read less
| PU 1 | |
 suitable for Cairon trapeze and gents (Z11, Z12, Z14) and Xyron (Z11), Smart system, Gen.4 (Performance Line CX), BES3 Read more Read less
| PU 1 | |

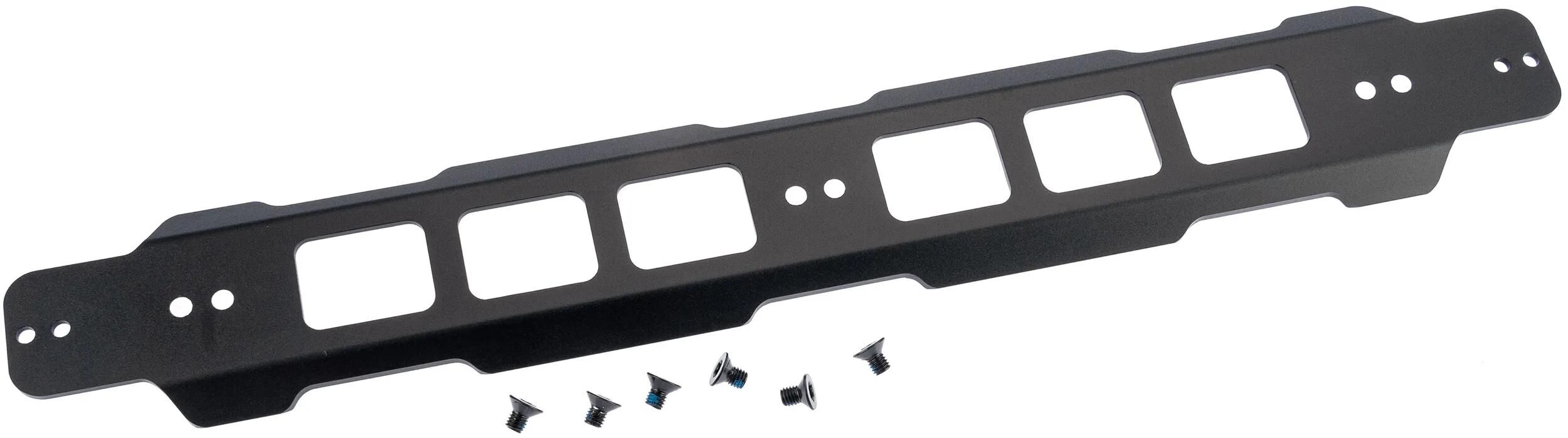

 Extensions for 500 Wh Battery to 625 Wh Battery Bracket and 625 Wh Battery to 750 Wh Battery Bracket Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |

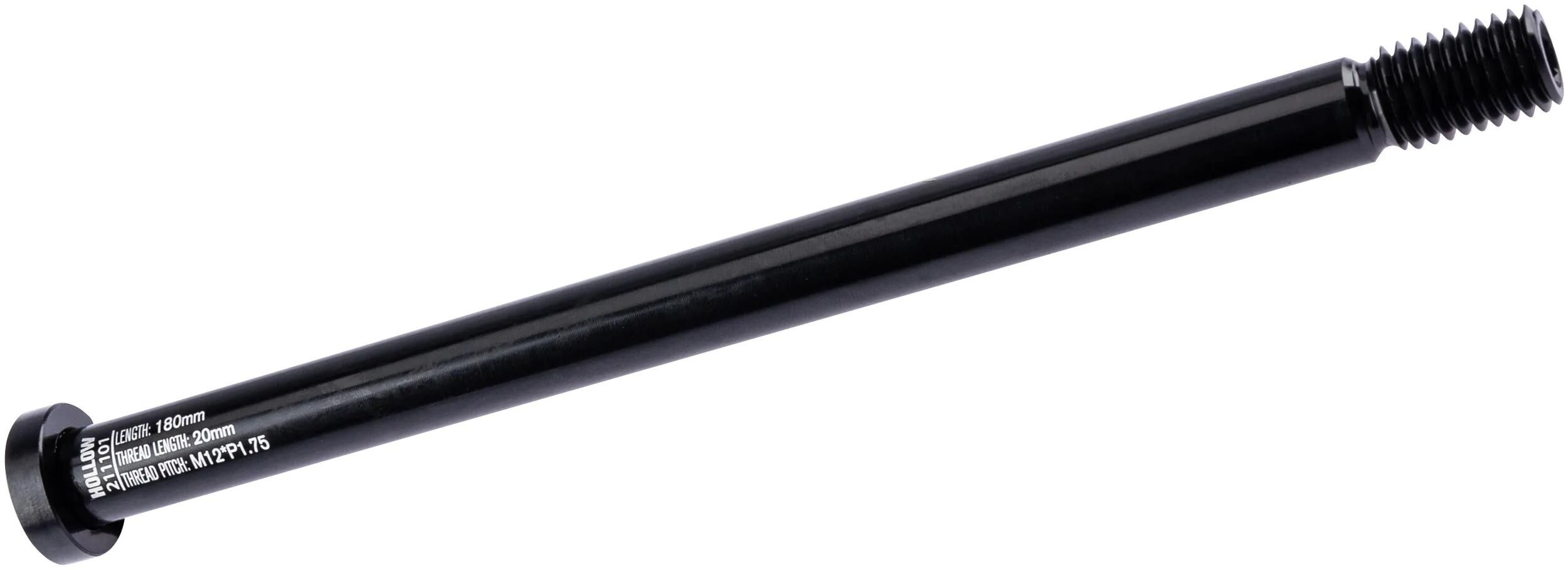

 Out of Stock suitable for WME (Z7), 180 mm / M12 x P1, 75 x 20 mm Read more Read less
| PU 1 | |
 suitable for Cairon trapeze, gents and wave, Smart System, BES3 (Z11 / Z12) Read more Read less
| PU 1 | |

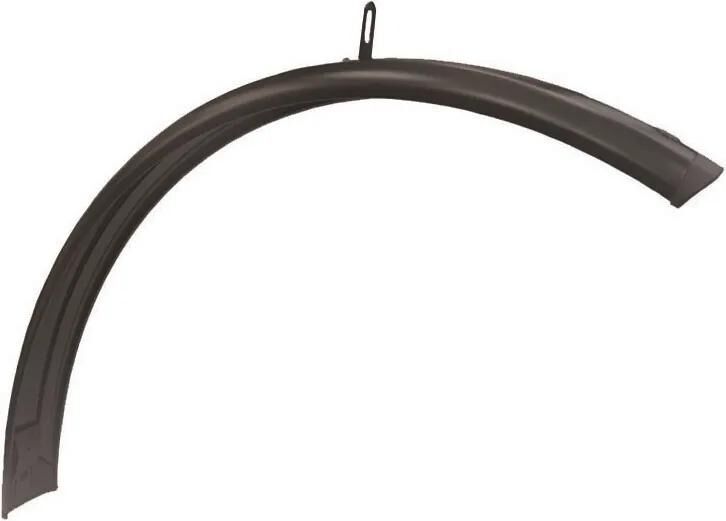

 29", 75mm, suitable for CONWAY Cairon SUV 5.0 / 7.0 Read more Read less
| PU 1 | |
 | PU 1 |
CONWAY's SUVs combine off-road capability and superior handling with an exciting driving experience and comfort. For even more riding fun, the developers have upgraded the “Cairon SUV 5.0” with a more powerful engine and the BOSCH “PowerTube” battery—which offers the longest range and is fully integrated into the Frame.With the four assistance levels of the powerful BOSCH “Performance CX” engine and the 11 gears of the SHIMANO “Deore” derailleur, you can easily adjust the assistance up to 25 km/h. The 750-Wh battery can either be removed from the bottom for charging, or you can simply leave it in the Frame and charge it via the Charging Socket on the left side of the Frame.To ensure top performance and comfort even on unpaved trails, the 58-mm-wide CONTI tires feature a fine tread pattern and, together with the 120-mm SUNTOUR Suspension Fork, effectively absorb the bumps of field and forest paths as well as cobblestones.The hydraulic disc brakes from TEKTRO (front and rear disc diameter: 180 mm) ensure the necessary safety during both fast downhill rides and in city traffic. Braking power can be finely modulated, yet it won’t let you down when you need it most. Thanks to fenders and a lighting system, every ride on the “Cairon SUV 5.0” can be extended into the late evening hours, no matter the weather.
