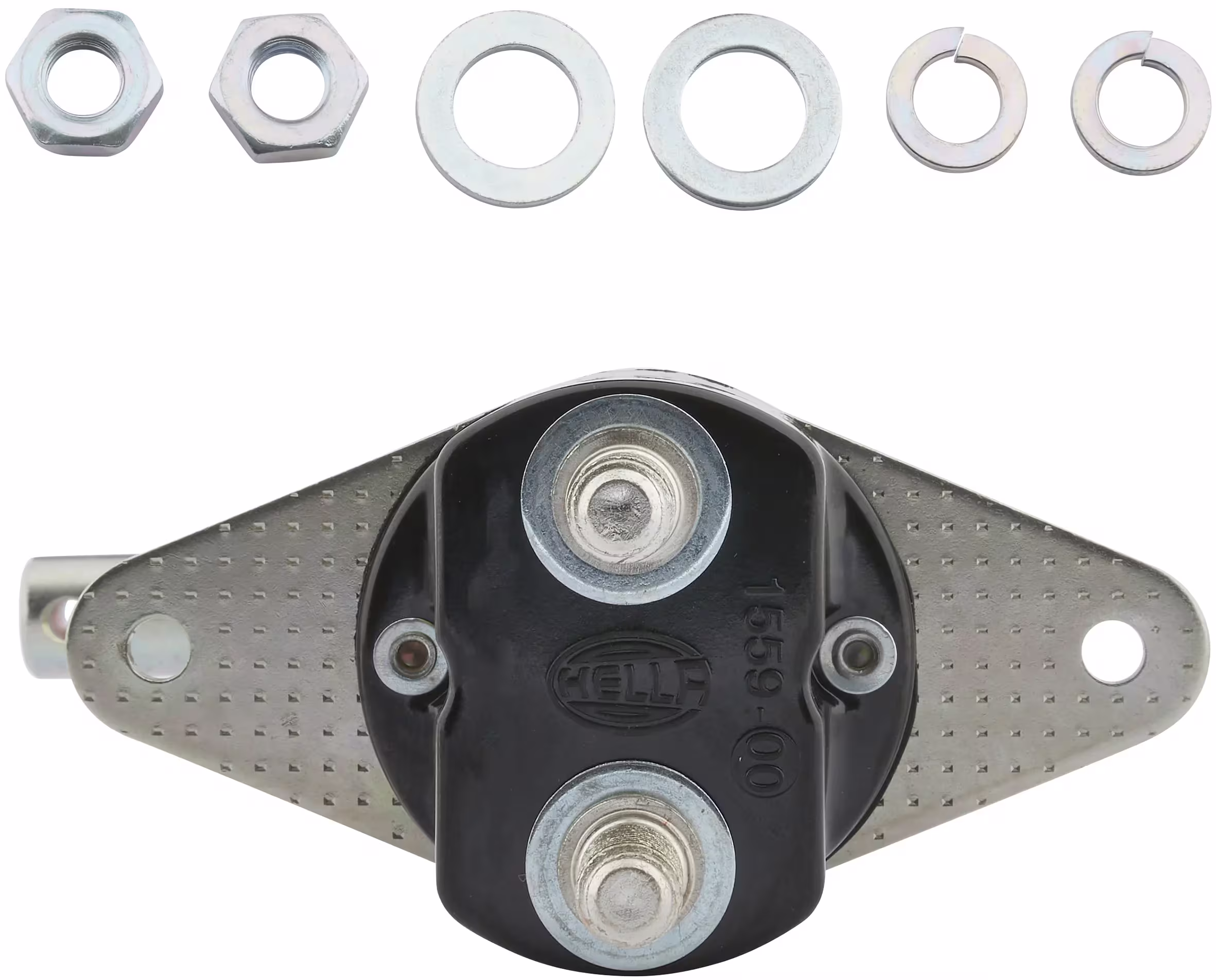

HELLA Main battery switch
with each 1 nut screw connection
- Article number: 20100244
- Original number: 6EK 001 559-001

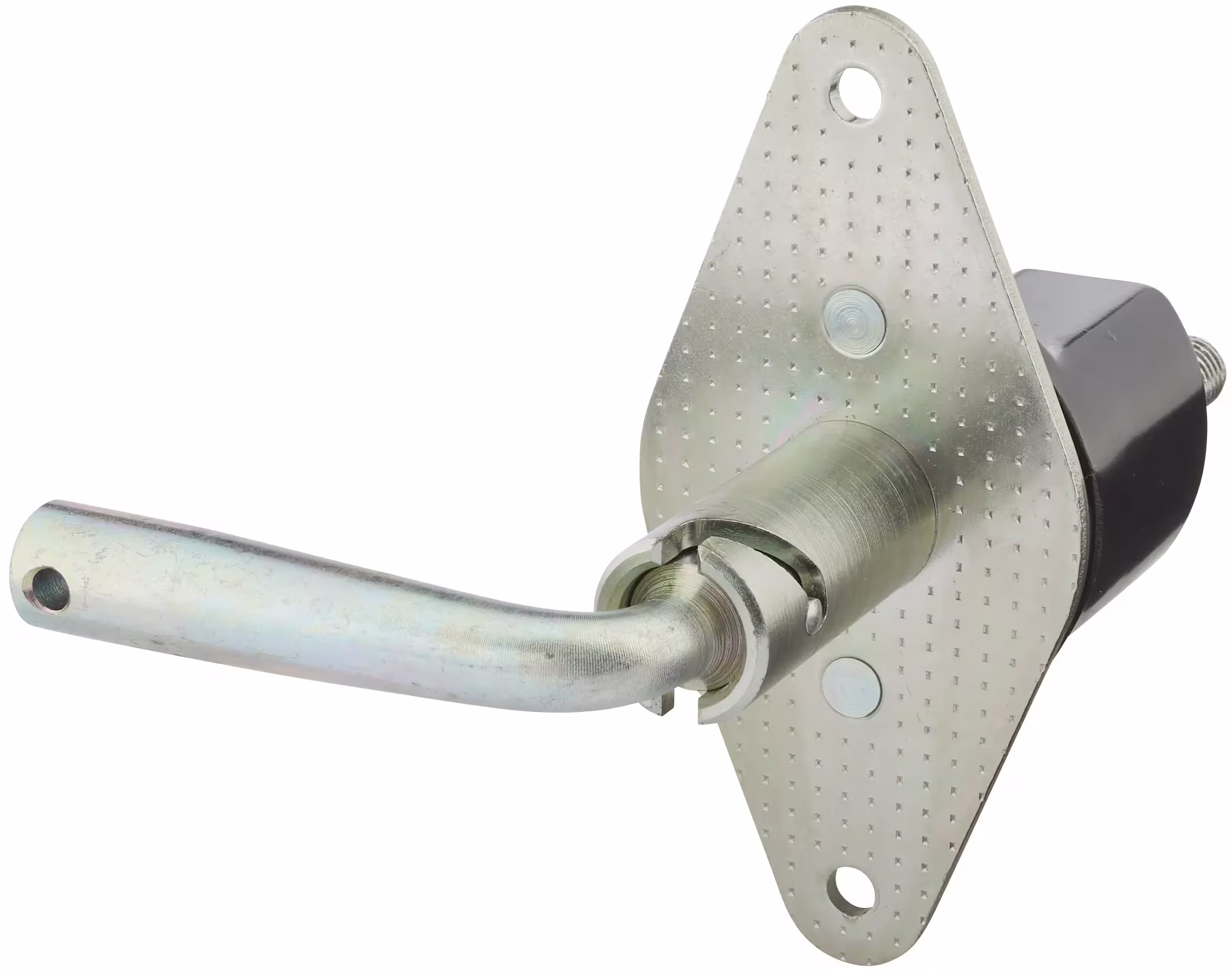

breaker with metal key
max. load: 2500A at 24V (10 sec.). The load capacity at constant state is max. 100 A at max. 60°C ambient temperature and of a line connected with a ring of at least 50 mm². Optional switch for + or - line, key is removable in "off" position, stopped output. 2 screw terminals
PU 1
Product information
- Cable cross section 50,0 mm²
- Design switch / relay
- Load capacity 2500.0 A
- Main colour black
- Power consumption in Volt 24.0 V
- Secondary colour silver
- Variant Article
- Version main switch
- Supplier Article Number: 6EK 001 559-001
- EAN 4082300054583
- MSRP: €177.35
- SB-Article No
- Brand/Supplier HELLA
- Unit of measure: PIECE
- Weight 0.35 kg
- product data sheet HELLA Main battery switch Danish
- product data sheet HELLA Main battery switch German
- product data sheet HELLA Main battery switch English
- product data sheet HELLA Main battery switch Spanish
- product data sheet HELLA Main battery switch French
- product data sheet HELLA Main battery switch Italian
- product data sheet HELLA Main battery switch Dutch
