HOFMANN MEGAPLAN Aligner "CEMB ARGOS"

non-contact measurement of all 4 wheels, camber and toe measurement in 5 s

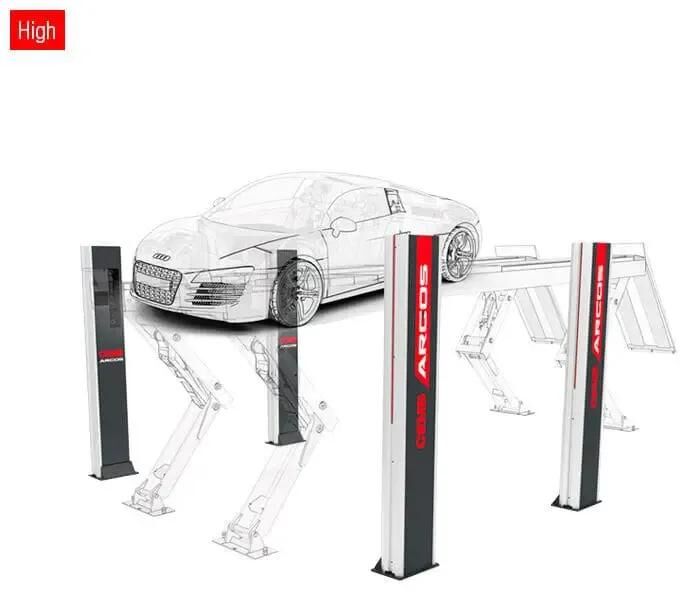

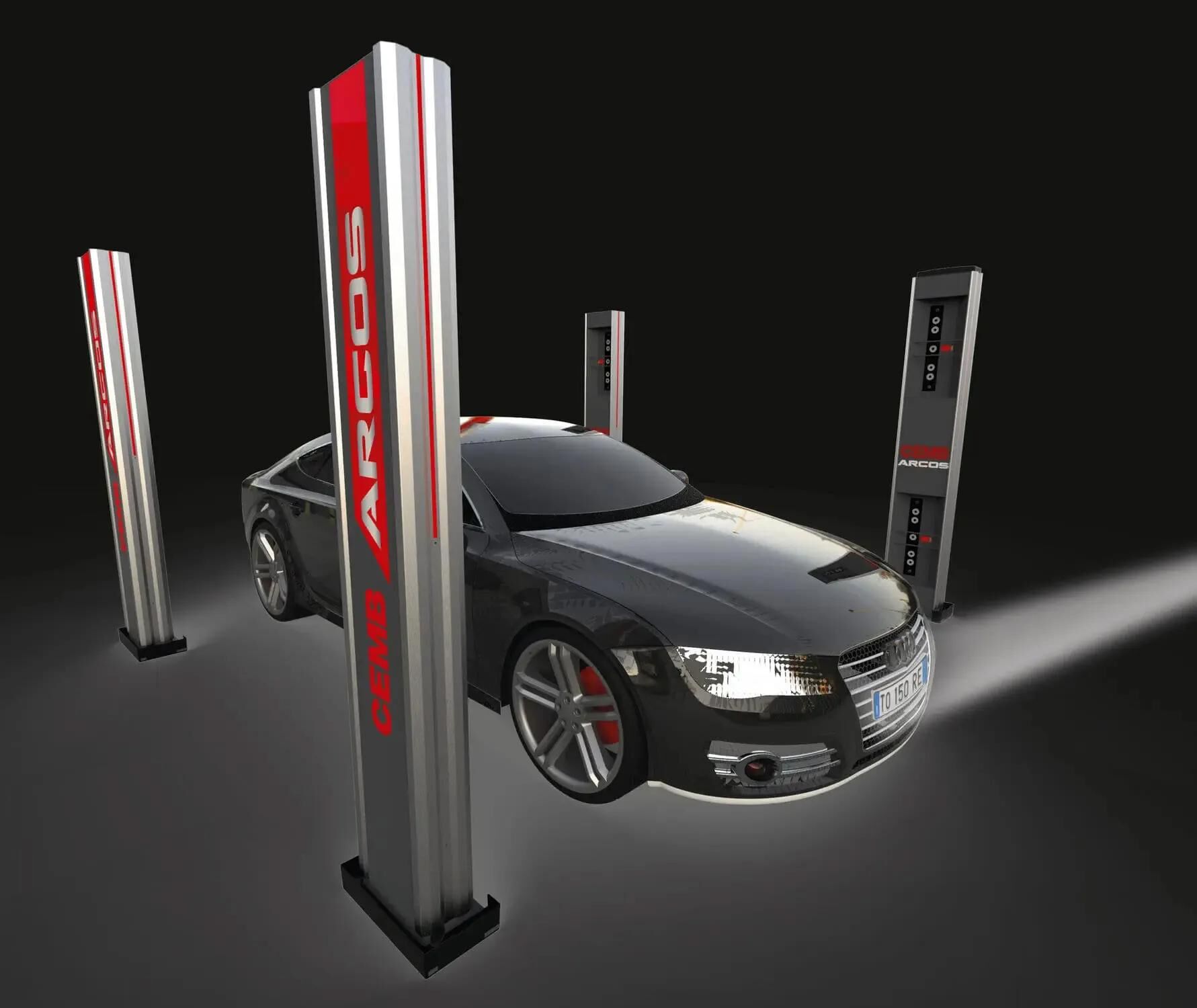

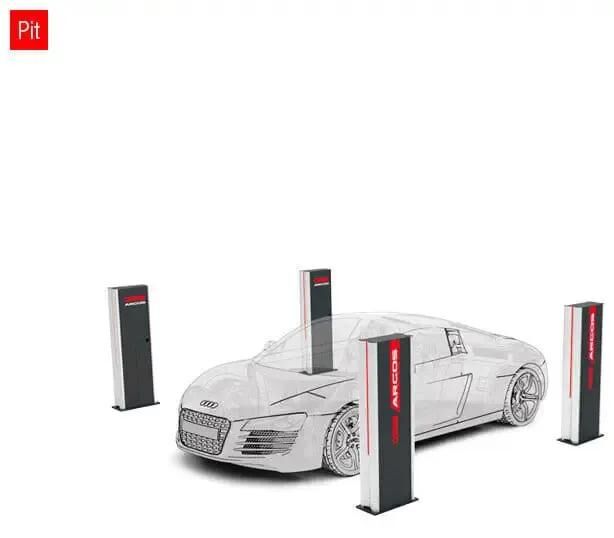

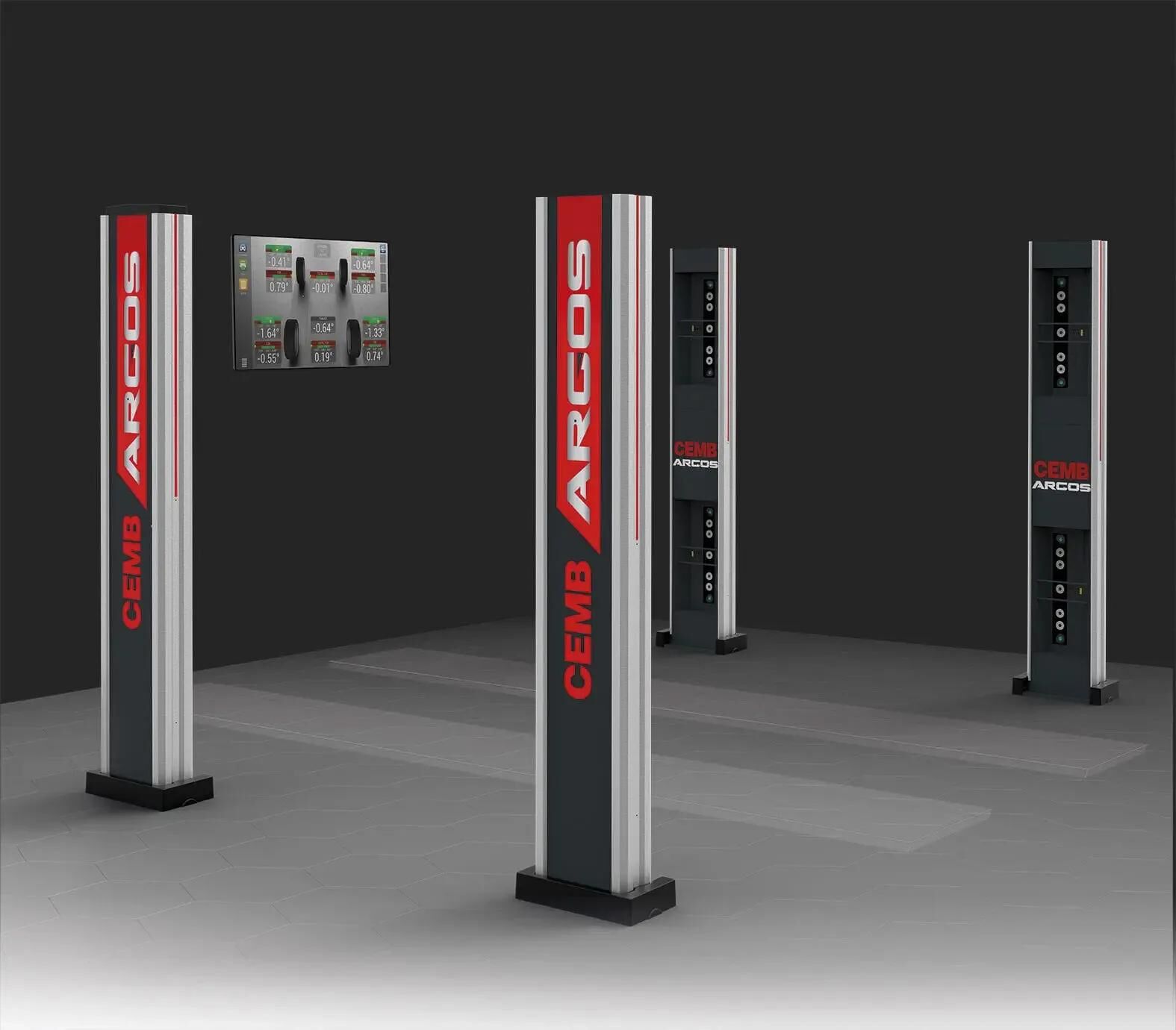

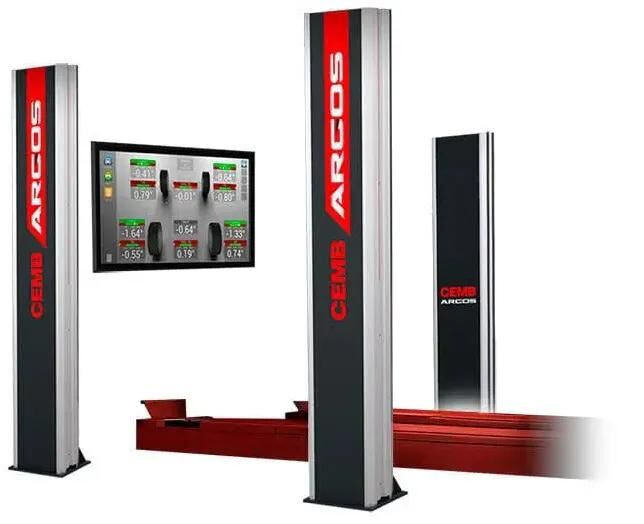

With this device, a complete measurement is possible without the user having to get out of the vehicle. It requires no wheel clamps, reflectors or measuring heads. Manual set-up for vehicles with different wheelbases, a rim run-out or removal of the hubcap is no longer necessary. The measuring process is started automatically when the vehicle enters the vehicle, the measurement of camber and toe is completed in less than 5 seconds, all other angles require only a little more time. A brake pedal lock for measuring the caster is also no longer necessary. It is adaptable to all types of wheel alignment lifts or pits.

Technical data:
total width: 2680 mm
distance between the support guides: 510 mm
height of drive-on surface: 60 mm
max. load capacity of drive-on area: 4 t
track width (min./max.): 1020 - 1920 mm
measuring time: 10 s
measuring accuracy: 0,3 mm
accuracy limit: 0,1 mm
