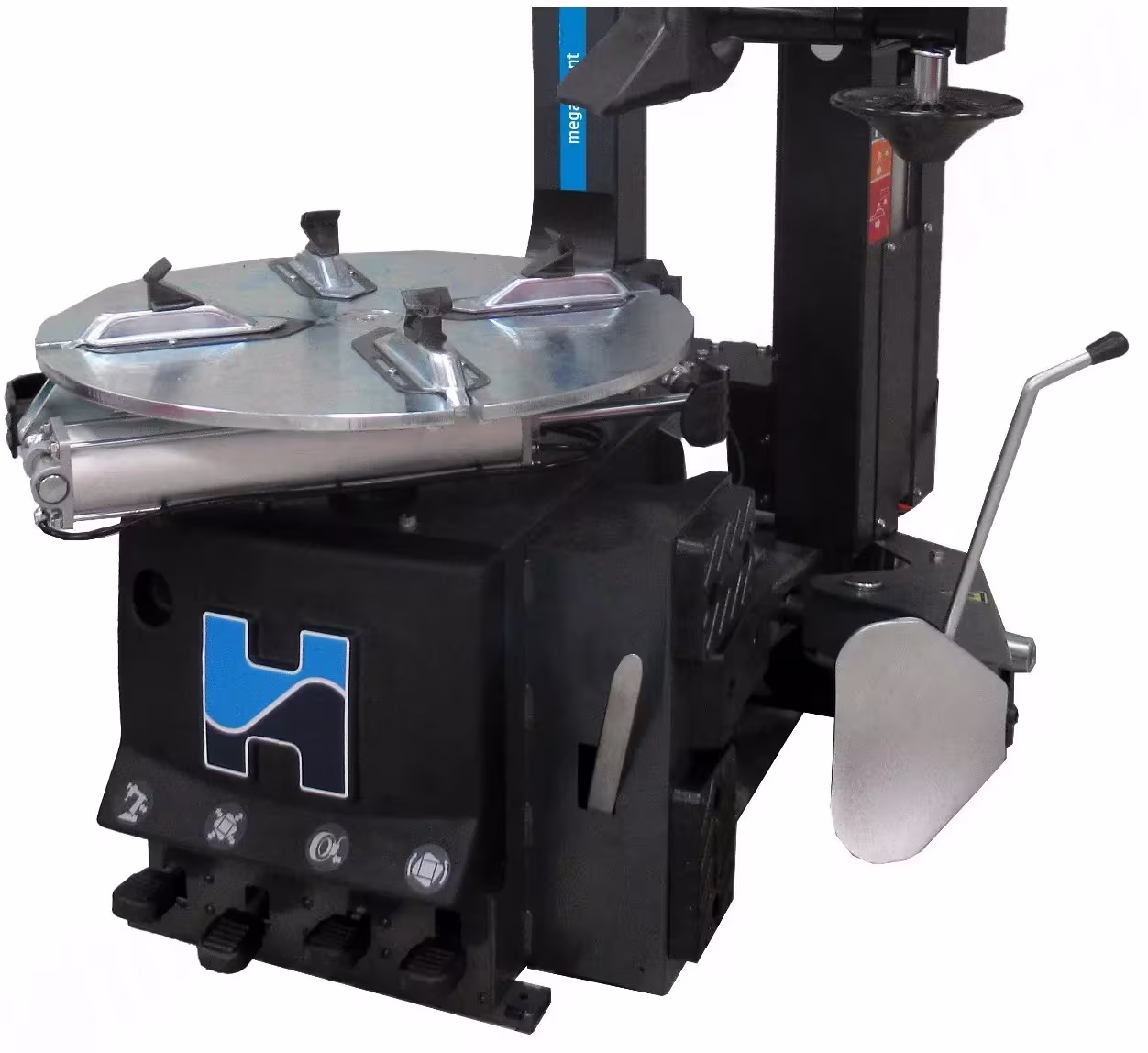

HOFMANN MEGAPLAN tire changer "Megamount"
"Megamount 50F", max. tire width: 360mm / 14"
Technical data:
clamping range outside: 10" - 22"
clamping range inside: 12" - 24"
max. wheel diameter: 1170mm / 46"
max. wheel width: 360mm / 14"
workspace: 8" - 24"
motor power: 0,8 / 1,1 kW - 3 Ph - 400 V - 50 Hz
max. torque: 1200 Nm
rotation speed: 8 - 16 rpm
max. opening bead breaker: 380mm / 15"
bead pressure force on blade (10 bar): 15000 N
working pressure (recom.): 8 - 10 bar
plate height from the floor: 670mm
- Article number: 89668446
- Original number: 40050F
max. wheel Ø 46", working range bead breaker blade 17”, wheel clamping diameter: 10" - 24"

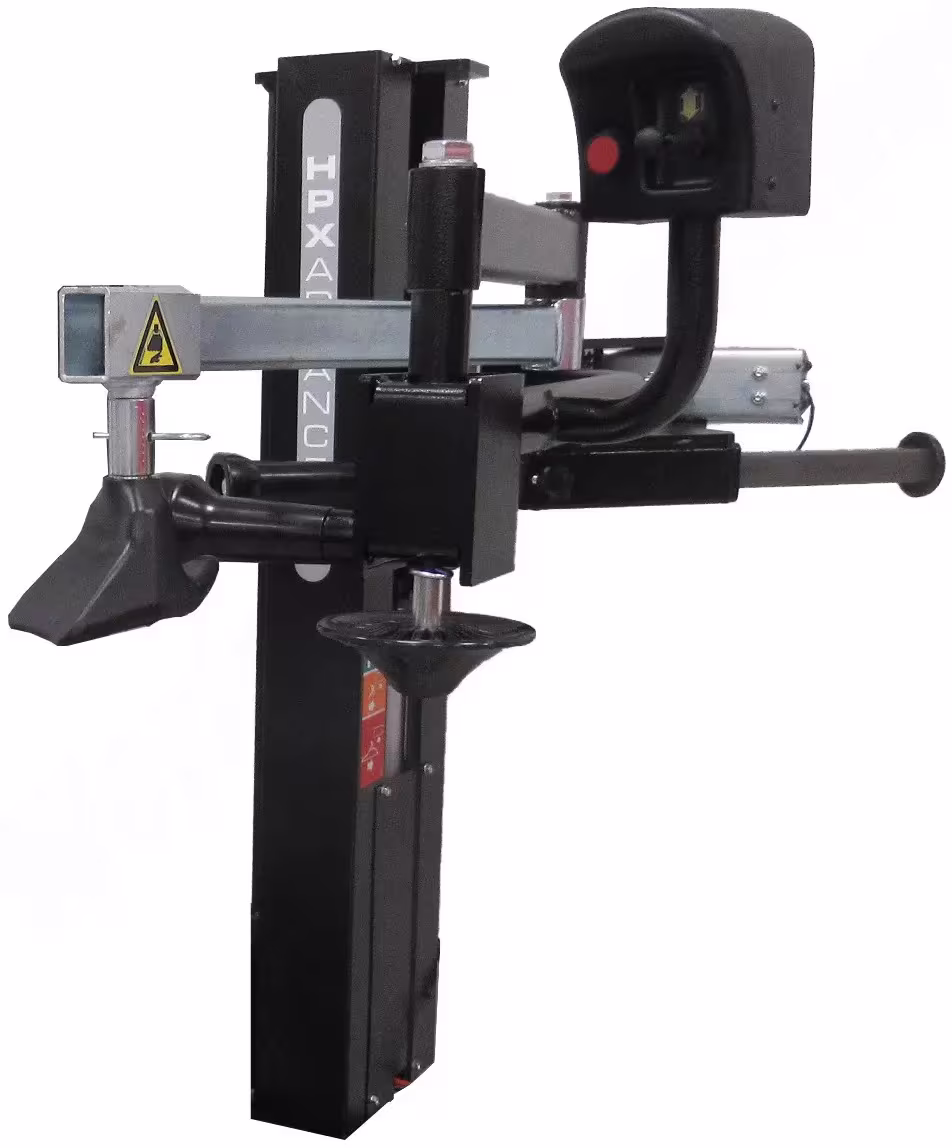

Fully automatic tire changer with pneumatic rear-tilting mounting column and self-centering, pre-adjustable 4-clamping jaw system, as well as two double-acting clamping cylinders.
Note: plus freight and discharge costs
Product information
- Design: assembly machine
- Features: tiltable
- Main colour: black
- Max. wheel diameter: 46.0 "
- Range of application: car
- Rim width from: 10 "
- Rim width up to: 24 "
- Secondary colour: grey
- Type: Article
- Supplier Article Number:: 40050F
- MSRP: €8,782.20
- Brand/Supplier HOFMANN MEGAPLAN
- Unit of measure: PIECE
