kurvX Curve trainer "DIN klein"
black
- Article number: 05764805
- Original number: 401-010
With angled plug for direct connection to the board sockets, suitable for all DIN sockets (Ø 12 mm) as installed on BMW, Triumph, Ducati etc., Set

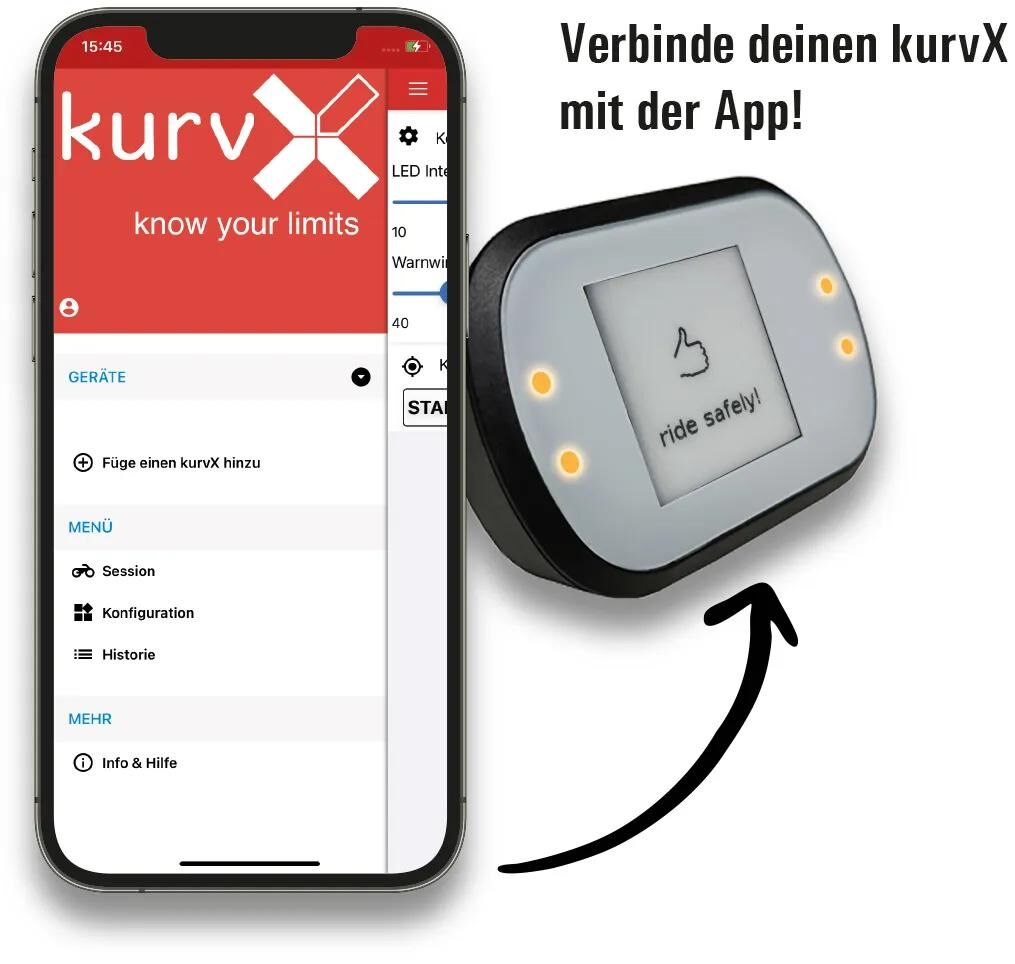

kurvX is an independent inertial measurement unit (IMU) for motorcycles that measures and evaluates lean angle, brakes and acceleration behavior in real time. The sensors combine acceleration values and rotation rates for precise lean angle determination, regardless of vibrations or uneven road surfaces. The data can be retrieved and analyzed during and after the ride via smartphone (Bluetooth 4.0 or higher). Optimum installation and calibration are crucial for accuracy.
Facts:
Measuring functions: Maximum lean angle & real-time display in degrees
Measurement resolution: 1° (graphical)
Accuracy: ±1° on reference distance
Calibration: Automatic offset & drift compensation
Display: High contrast e-paper, flicker-free
Power Supply: 12V vehicle battery, 2A Protection
Protection: Rain & splash-proof
Auto-On / Off
Smartphone / tablet with Android & Bluetooth (from 4.0) required
Scope of delivery:
- 14x kurvX curve trainer
- 1x kurvX Adapter for GoPro
- 1x kurvX adapter with angled plug for on-board power socket DIN ISO 4165 (60cm)
- 4x stainless steel screws & 4x Cable Ties (160mm)
- 1x kurvX Handbook
Note: Holder is not included in the scope of delivery.
kurvX dimensions
Height: 20mm
Length: 77mm
Width: 45mm
Weight: 32gram
Attention: not in stock! Delivery time with availability approx. 5working days.
Special order - No return possible!
Product information
- Height 4.7 cm
- Length 6.7 cm
- Main colour black
- Variant Article
- Width 2.0 cm
- Supplier Article Number: 401-010
- EAN: 4262508080106
- MSRP: €309.00
- WEEE registration number: DE32774000
- SB-Article: No
- Brand/Supplier kurvX
- Unit of measure: PIECE
- Weight: 0.33 kg
