kurvX Curve trainer "USB-A"

With USB-A converter for direct connection to the USB-A on-board power socket, Set

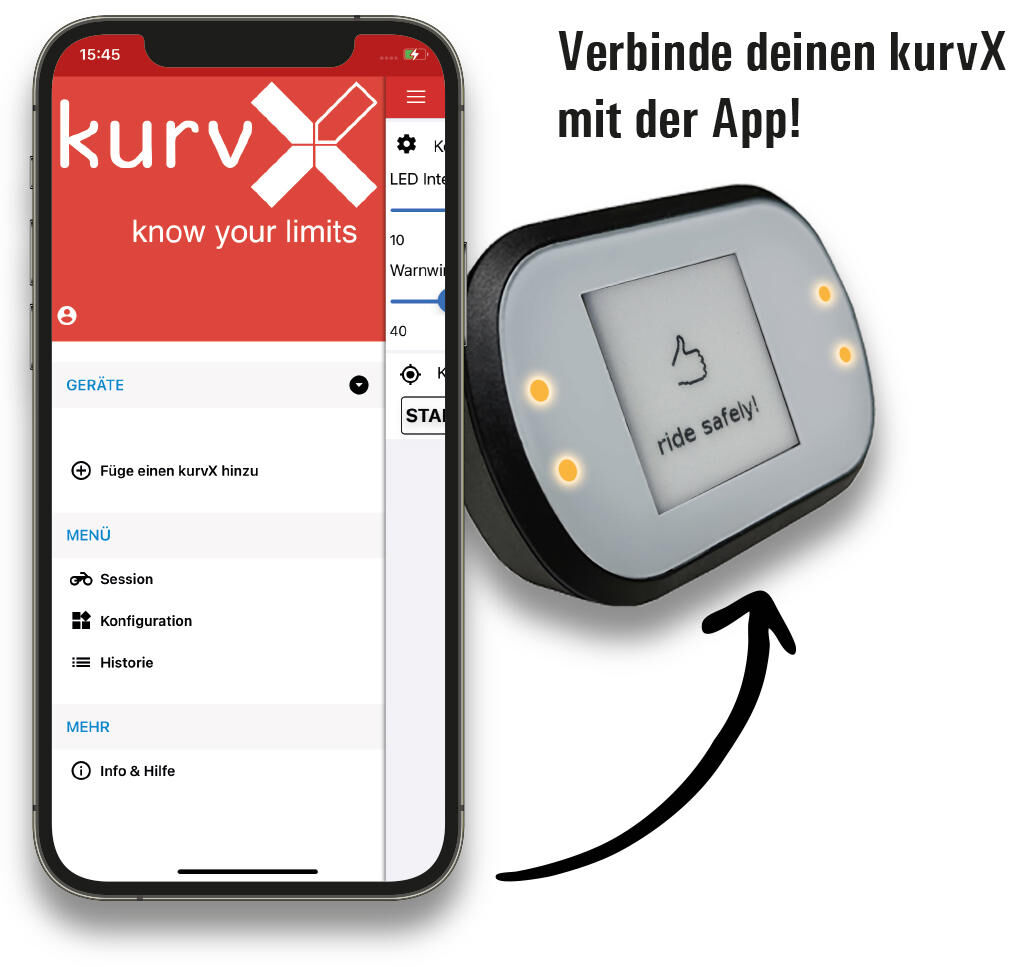

kurvX is an independent inertial measurement unit (IMU) for motorcycles that measures and evaluates lean angle, brakes and acceleration behavior in real time. The sensors combine acceleration values and rotation rates for precise lean angle determination, regardless of vibrations or uneven road surfaces. The data can be retrieved and analyzed during and after the ride via smartphone (Bluetooth 4.0 or higher). Optimum installation and calibration are crucial for accuracy.

Facts kurvX:
Measuring functions: Maximum lean angle & real-time display in degrees
Measurement resolution: 1° (graphical)
Accuracy: ±1° on reference distance
Calibration: Automatic offset & drift compensation
Display: High contrast e-paper, flicker-free
Power Supply: 12V vehicle battery, 2A Protection
Protection: Rain & splash-proof
Auto-On / Off
Smartphone / tablet with Android & Bluetooth (from 4.0) required

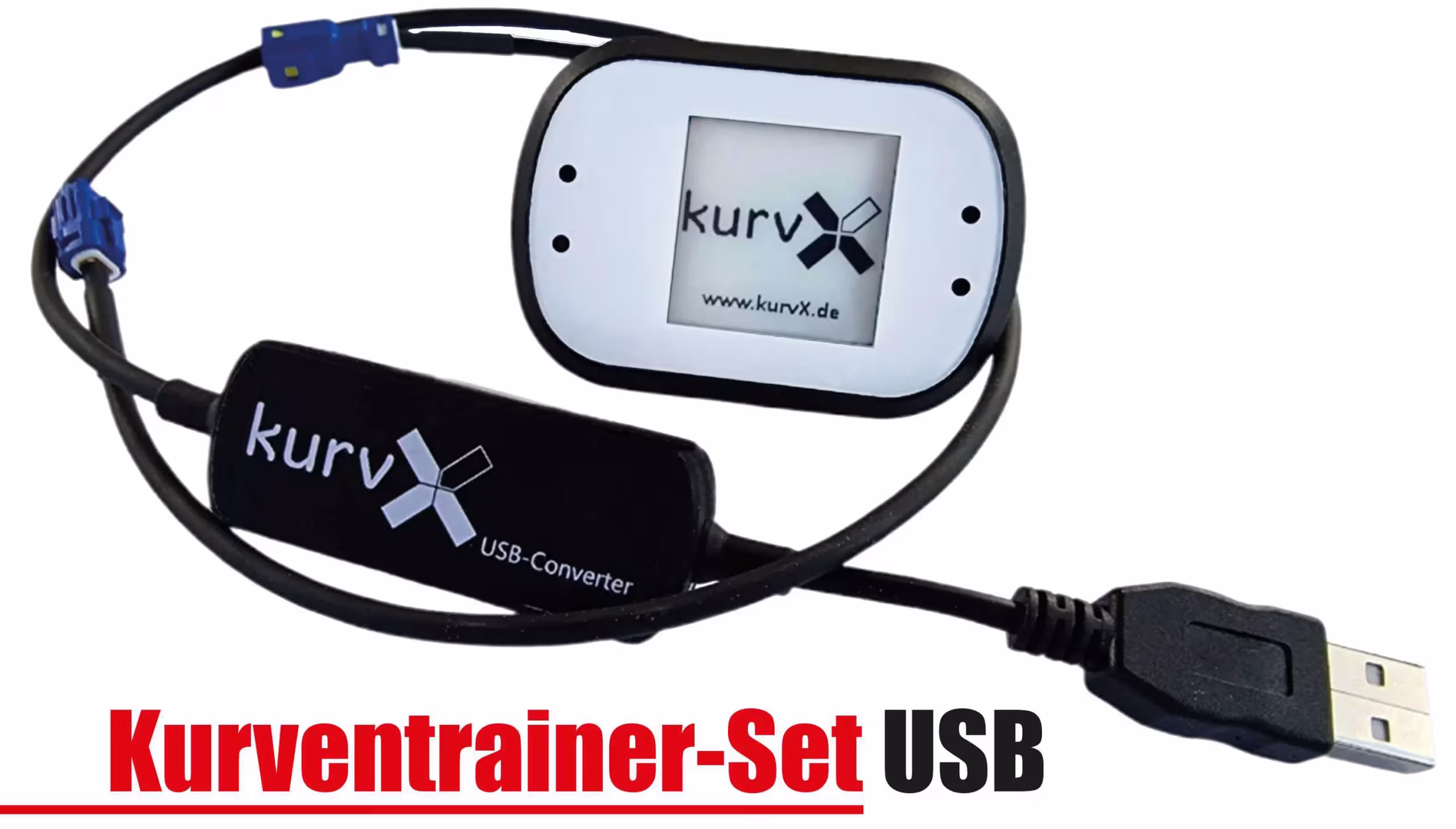

Facts USB converter:
- Conversion from 5Volt (USB) to 12volt (kurvX)
- Shock and splash-proof housing made from high-quality PLA plastic
- Plug connection for the kurvX Power Supply
- USB-A plug

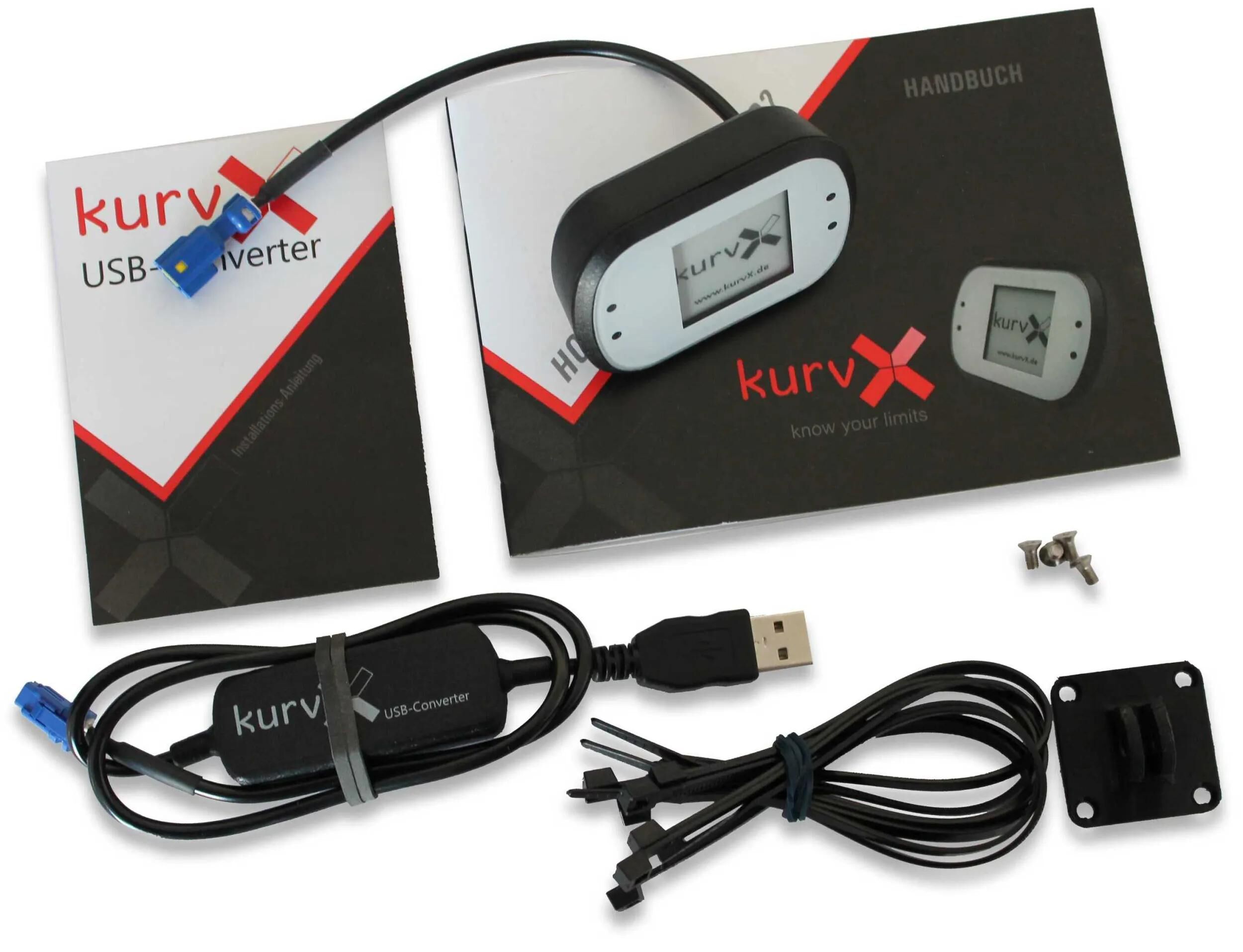

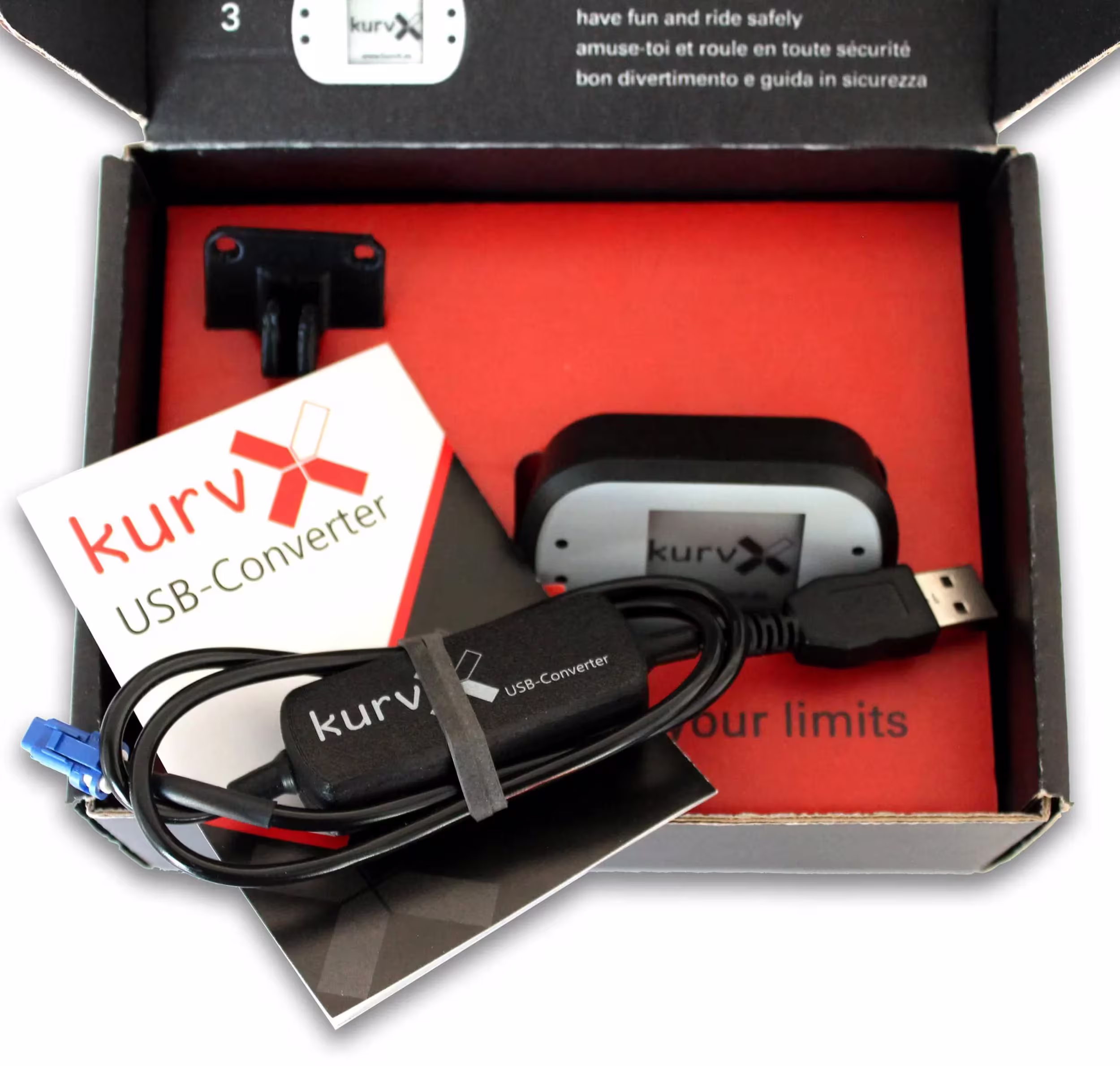

Scope of delivery:
- 1x kurvX curve trainer
- 1x kurvX Adapter for GoPro
- 1x kurvX Adapter with USB-A Converter (60cm)
- 4x stainless steel screws & 8x Cable Ties (160mm)
- 1x Cable Set (cable, fuse holder, ring terminals)
- 1x kurvX Handbook

Note: Holder is not included in the scope of delivery.

kurvX dimensions
Height: 20mm
Length: 77mm
Width: 45mm
Weight: 32gram

Dimensions USB converter:
Total length: 60cm
Length of the cables to the USB plug: 4cm
Length of converter Housing: 6cm

Attention: not in stock! Delivery time subject to availability approx. 5working days.
Special order - No return possible!
