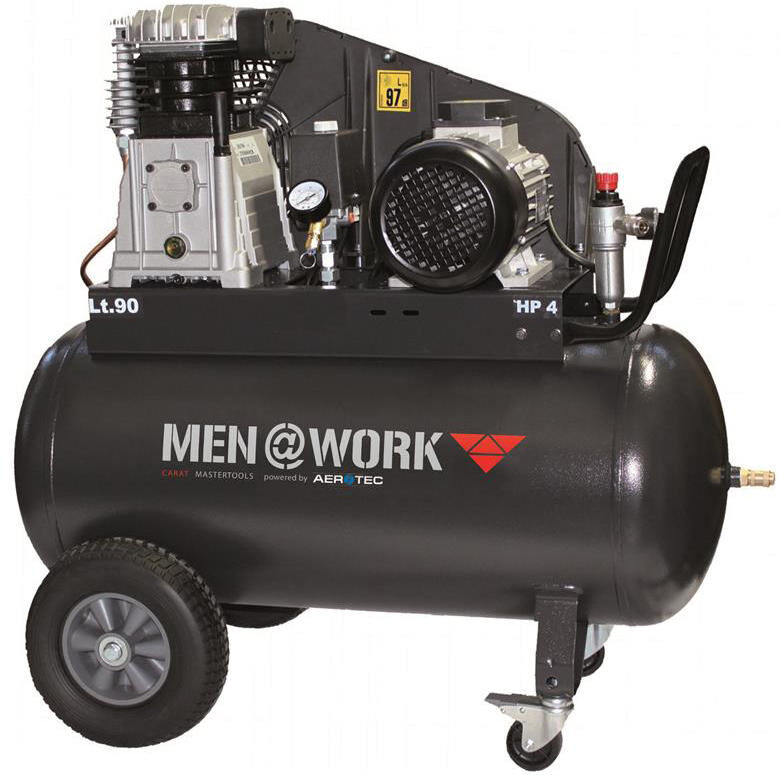

MEN@WORK Compressor "625-90 P"
Suction capacity: 420 l/min
- Article number: 66113754
- Original number: 25126253CARAT
Piston compressor, oil-lubricated, mobile
2 cylinder in-line unit (2-stage), hard rubber wheels and 2 swivel castors, start-up relief via Condor pressure switch, condensate drain via ball valve.
Technical data:
Voltage: 400 V
Suction capacity: 420 l/min
Effective delivery rate: 310 l/min
Max. Pressure: 15 bar
Boiler size: 90 ltr
Weight: 75 kg
Nominal input power: 3 kW
Max. Speed: 900/min
Sound pressure level (LpA): 78 dB(A)
Dimensions: 935 x 400 x 1000 mm
Product information
- Cylinder / levels 2/2
- Design mobile
- Engine power 3 kW
- Filling capacity 310 l/min
- Height 1000.0 mm
- Height 100.0 cm
- Length 935.0 mm
- Length 93.5 cm
- Main colour black
- Secondary colour silver
- Sound power level 78 dB
- Speed 900.0 rpm
- Suction capacity 420 l/min
- Type Article
- Width 40.0 cm
- Width 400.0 mm
- Working pressure 15.0 bar
- Supplier Article Number: 25126253CARAT
- EAN: 2016611375046
- MSRP: €1,279.25
- Brand/Supplier MEN@WORK
- Unit of measure: PIECE
