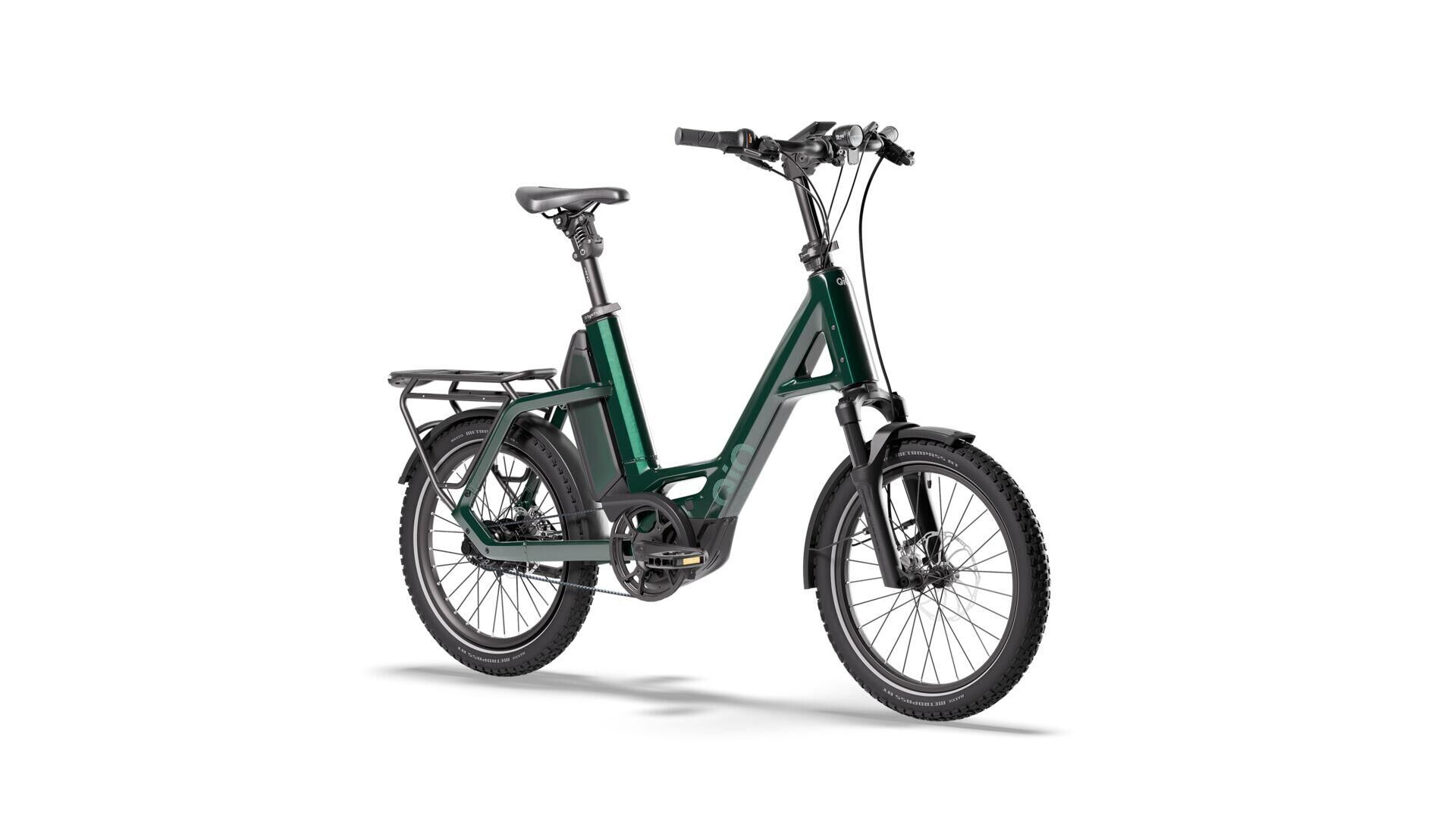

QiO Electric compact bike "Compact CX5x" (#1)
unisex, 20", forest green, Shimano Nexus 5-speed, 48 cm
Read more Read less - Article number: 02652164
- Electric compact bike with a 250 W mid-drive motor and an 800.0 Wh battery capacity.
- Shimano Nexus 5-speed hub gear and Straps.
- Hydraulic Disc Brakes.
- Suspension Fork with 80 mm of travel.
- 20-inch wheels.
- Pushing Help, Chain Guard, Fenders, and integrated luggage rack.
- Aluminum frame.
- Maximum system weight: 180 kg.
PU 1
Product information
- Battery capacity 800.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Colour designation forest green
- Drive belt
- Drive system BOSCH Performance Line CX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , electronic sliding aid , fender , suspension fork , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears 5-speed
- Gender unisex
- Main colour green
- Material 1 aluminium
- Model range Compact
- Permissible system weight 180 kg
- Shifting name Shimano Nexus 5-Gang
- Shifting type internal gear shifting
- Support up to 25km/h
- Travel 80 mm
- Type compact bike
- Wheel size 20 "
- Access height 450 mm
- Chainstay 451 mm
- Length 1685 mm
- Passage width 190 mm
- Reach 408 mm
- Seat angle 71.0 °
- Seat tube 480 mm
- Stack 541 mm
- Standover height 450 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Toptube 576 mm
- Wheel distance 1108 mm
- Battery BOSCH "Active Line Plus", max. 50 Nm
- Battery Lock ABUS "XPlus"
- Bottom bracket BOSCH
- Chain / belt GATES "CDX"
- Chain guard SKS "Chainblade"
- Chain ring / pulley Gates "CDX Fin Line", 46 teeth, belt line 45.5 mm
- Charger BOSCH 4 A
- Crank PROWHEEL "EB03", 170 mm
- Derailleur hanger Slider dropout, suitable for P5, PX5+
- Display BOSCH "Kiox 500", 4-stages, Remote Control, push-aid
- Engine BOSCH "Performance Line CX", BDU38, max. 100 Nm
- Fender SKS "A 69 R"
- Fork SR SUNTOUR "SF22-Mobie34-CGO-Boost", 80 mm travel, Thru Axle
- Frame QIO Compact, Bosch Gen. 4, BES3, aluminum, 48 cm
- Front brake MAGURA "LOUISE"
- Front hub SHIMANO "HB-TC500-15-B", 15 x 110 mm Boost, Thru Axle, Center Lock
- Front light Busch + Müller "IQ-XS E Highbeam", 100 Lux
- Front rotor MAGURA "MDR-C", Ø 180 mm
- Front tire MAXXIS "MetroPass AT", 62-406, Reflex
- Grips HERRMANS "Nucore Town", wave
- Handlebar ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
- Headset ACROS ZS66/31.75 OD74 / ZS66/46/OD72, blocklock
- Pedals MARWI "SP-157" Faltpedale
- Rear brake MAGURA "LOUISE"
- Rear carrier "MIK HD 2.0" for MIK Side
- Rear hub SHIMANO "Nexus SG-C7000-5D", 5-speed, Center Lock
- Rear light Busch + Müller "Dart E Brex "
- Rear rotor MAGURA "MDR-C", Ø 180 mm
- Rear tire MAXXIS "MetroPass AT", 62-406, Reflex
- Rims DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
- Saddle Selle Royal "On", Moderate Wide
- Seatpost by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever SHIMANO "Nexus SL-C7000-5"
- Spokes 2,0 mm, Niro, schwarz
- Sprocket / pulley Gates "CDX:BLACK Fin Line", 28 teeth
- Stands URSUS "Invisible Mount", 20"
- Stem ergotec "Sepia Ahead XL", 80 mm long, adjustable, level 5
- EAN 4251971178380
- MSRP: €4,999.00
- Fedas-Code 159021
- DST-Code 1A01
- WEEE registration number DE92509320
- SB-Article No
- Bidex-Code 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight 28.6 kg
- product data sheet QiO Electric compact bike Compact CX5x DA
- product data sheet QiO Electric compact bike Compact CX5x DE
- product data sheet QiO Electric compact bike Compact CX5x EN
- product data sheet QiO Electric compact bike Compact CX5x ES
- product data sheet QiO Electric compact bike Compact CX5x FR
- product data sheet QiO Electric compact bike Compact CX5x IT
- product data sheet QiO Electric compact bike Compact CX5x NL
| Article | Price | |
|---|---|---|
 | PU 10 | |
 | PU 10 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 3 | |
 | PU 10 | |
 | PU 1 | |
 | PU 4 | |
 | PU 1 | |
 | PU 4 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 |
Suspension meets functionality—the "Compact CX5x" from QiO combines the advantages of a compact e-bike with the comfort of a Suspension Fork. With 80 mm of travel, it smoothly absorbs bumps and delivers noticeably greater riding comfort—especially on cobblestones, forest trails, or rough bike paths. This makes every ride more relaxing, no matter where you’re headed. With a high battery capacity of a full 800 Wh, your rides can easily extend into the evening hours. The Bosch mid-drive motor with Smart System provides powerful assistance up to 25 km/h, while the low-maintenance belt drive and the 5-speed Shimano “Nexus” hub gear system ensure a smooth, reliable riding experience. The hydraulic 4-piston disc brakes from Magura bring you to a safe stop—in any weather.Hydraulic 4-piston disc brakes ensure maximum safety and control, providing reliable stopping power even in wet conditions and at high speeds. Lighting is provided by the high-quality Busch+Müller IQ-XS Beam LED Front Light, which offers excellent illumination of the road with 100 lux for low beam and 150 lux for high beam—ideal for riding in the dark and in poor visibility conditions.
