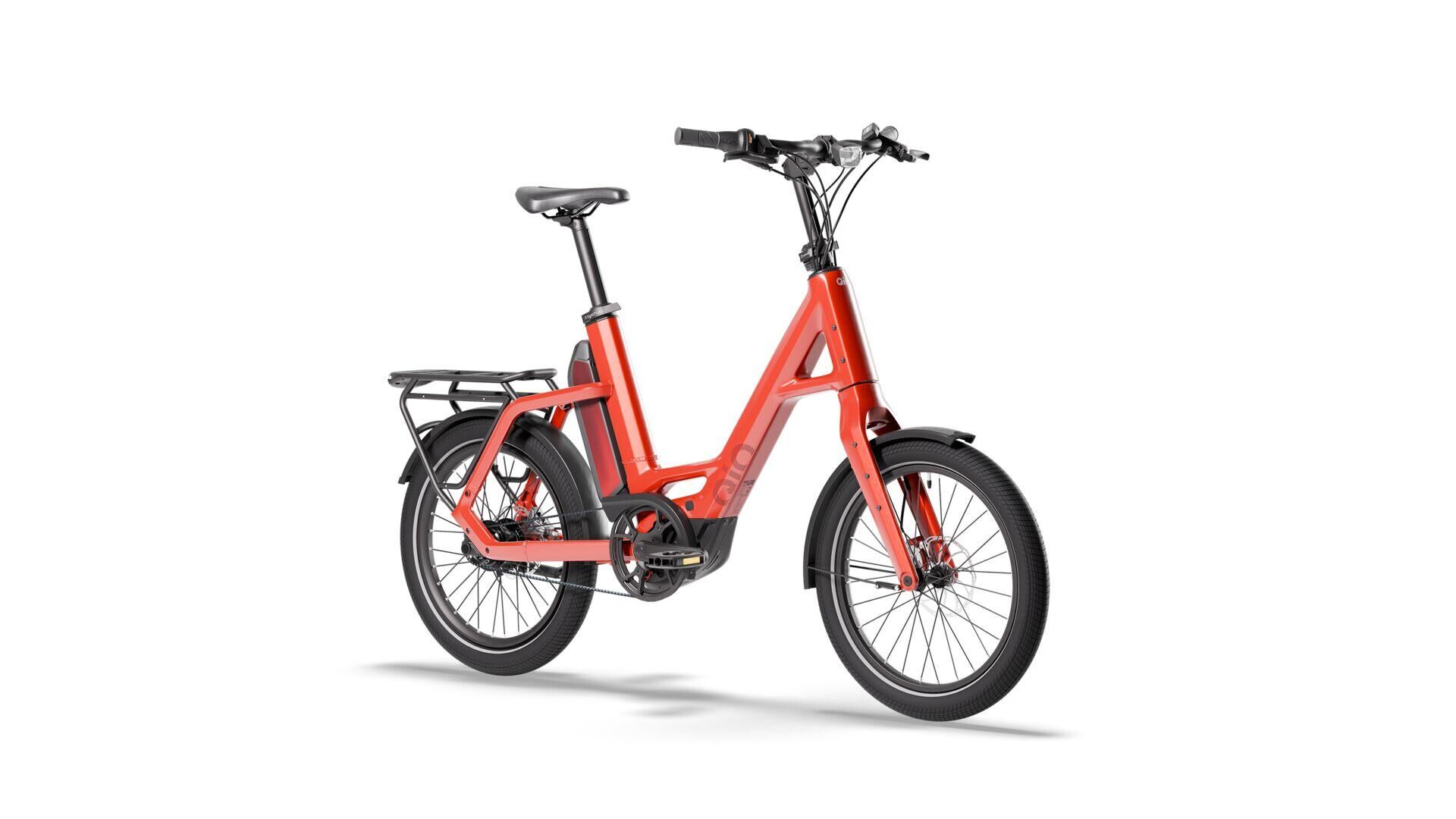

QiO Electric compact bike "Compact P5" (#1)
unisex, 20", imola red, 5-speed SHIMANO "Nexus" coaster, 48 cm
Read more Read less - Article number: 02652117
- Electric compact bike with a 250 W mid-drive motor and a 545.0 Wh battery capacity.
- Hub gears and belt drive.
- 20" wheels.
- Fenders, integrated rack, Pushing Help, Chain Guard.
- Aluminum frame.
- Maximum system weight: 180 kg.
PU 1
Product information
- Battery capacity 545.0 Wh
- Bosch Smart System yes
- Brake system coaster brake , hydraulic disc brake
- Colour designation imola red
- Drive belt
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , electronic sliding aid , fender , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears 5-speed
- Gender unisex
- Main colour red
- Material 1 aluminium
- Model range Compact
- Permissible system weight 180 kg
- Shifting name 5-Gang SHIMANO "Nexus" Rücktritt
- Shifting type internal gear shifting
- Support up to 25km/h
- Type compact bike
- Wheel size 20 "
- Access height 450 mm
- Chainstay 451 mm
- Length 1685 mm
- Passage width 190 mm
- Reach 408 mm
- Seat angle 71.0 °
- Seat tube 480 mm
- Stack 541 mm
- Standover height 450 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Toptube 576 mm
- Wheel distance 1108 mm
- Battery BOSCH "PowerPack 545", 545 Wh
- Battery Lock ABUS Battery Lock
- Bottom bracket BOSCH
- Chain guard SKS "Chainblade"
- Chain ring / pulley Gates "CDC Fin Line", 46 teeth, belt line 45.5 mm
- Charger BOSCH 4 A
- Crank PROWHEEL "EB03", 170 mm
- Derailleur hanger Slider dropout, suitable for P5, PX5+
- Display BOSCH "Purion 200" Display, 4-stage, Remote Control, Pushing Help
- Engine BOSCH "Performance Line" engine, max. 75 Nm
- Fender SKS "A 69 R"
- Fork Aluminum, tapered 1 1/4" - 1.5"
- Frame QIO Compact, Bosch Gen. 4, BES3, aluminum, 48 cm
- Front brake MAGURA "MT A2"
- Front hub SHIMANO "HB-TC500", 12 x 100 mm, Center Lock, Steckachse
- Front light Busch + Müller "Briq-S E", 60 lux
- Front rotor MAGURA "MDR-A", Ø 180 mm
- Front tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Grips HERRMANS "Clik Original DD37"
- Handlebar ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
- Headset ACROS ZS66/31.75 OD74 / ZS66/46/OD72, blocklock
- Pedals MARWI "SP-157" Faltpedale
- Rear brake MAGURA "MT A2"
- Rear carrier "MIK HD 2.0" for MIK Side
- Rear hub SHIMANO "Nexus SG-C7002-5CD", 5-speed, 5-hole
- Rear light Busch + Müller "Dart E Brex "
- Rear rotor MAGURA "MDR-A", Ø 180 mm
- Rear tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Rims DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
- Saddle Selle Royal "On", Moderate Wide
- Seatpost by,schulz "R.3 P-QR", Ø 34.9 mm, 400 mm long, 25 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever SHIMANO "Nexus SL-C7000-5"
- Spokes 2,0 mm, Niro, schwarz
- Sprocket / pulley Gates "CDX:BLACK Fin Line", 28 teeth
- Stands URSUS "Invisible Mount", 20"
- Stem ergotec "Sepia Ahead XL", 80 mm long, adjustable, level 5
- EAN 4251971178014
- MSRP: €3,799.00
- Fedas-Code 159021
- DST-Code 1A01
- WEEE registration number DE92509320
- SB-Article No
- Bidex-Code 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight 24.8 kg
| Article | Price | |
|---|---|---|
 | PU 10 | |
 | PU 10 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 3 | |
 | PU 10 | |
 | PU 1 | |
 | PU 4 | |
 | PU 1 | |
 | PU 4 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 |
The QiO "Compact P5" is your smart companion for everyday life—compact, powerful, and stylish. With the Bosch mid-drive motor, Smart System, and 545 Wh Battery, you can fully enjoy dynamic assistance up to 25 km/h. The low-maintenance belt drive and the 5-speed Shimano “Nexus” hub gear system ensure a quiet, smooth ride—ideal for both city riding and touring.The 20-inch wheels and sturdy aluminum frame offer maneuverability and comfort. The low step-through makes it easy to get on and off the bike.Hydraulic disc brakes, fenders, and a maximum weight capacity of 180 kg make the QiO “Compact P5” a true everyday hero. Everything fits perfectly—for you and your on-the-go lifestyle.
