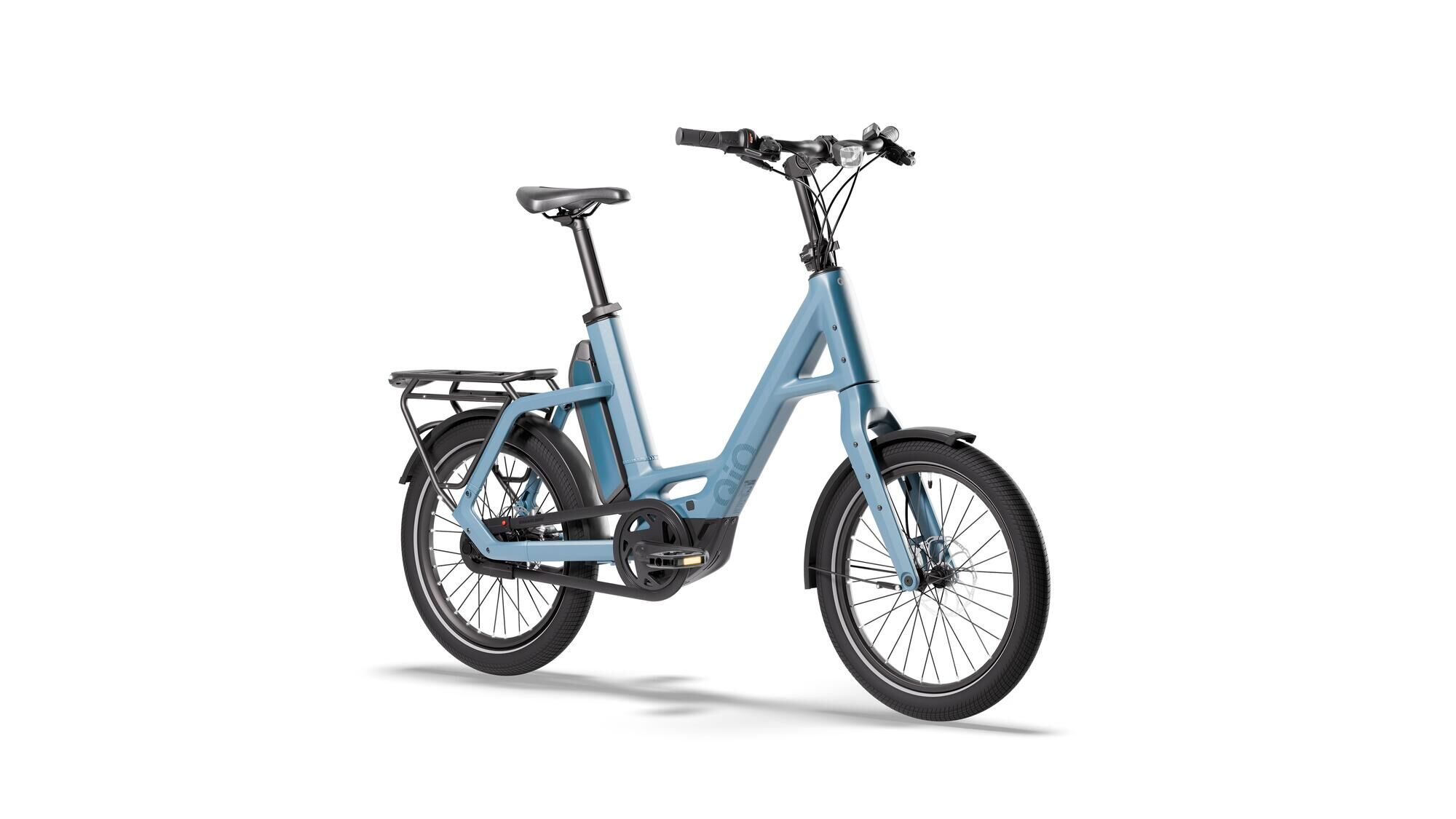

QiO Electric compact bike "Compact P8 RBN" (#1)
unisex, 20", retro blue matt, Shimano Nexus 8-Speed Coaster Brake, 48 cm
Read more Read less - Article number: 02652281
- 250 W mid-drive motor and 540.0 Wh battery capacity.
- Shimano Nexus 8-speed coaster brake and chain drive.
- Coaster brake and hydraulic Disc Brake.
- 20-inch wheels.
- Fenders, integrated rack, Pushing Help, Chain Guard.
- Aluminum frame in lead metal.
- Maximum system weight: 180 kg.
PU 1
Product information
- Battery capacity 540.0 Wh
- Bosch Smart System yes
- Brake system coaster brake , hydraulic disc brake
- Child Seat Approval yes
- Colour designation retro blue matt
- Drive chain
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , electronic sliding aid , fender , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears 8-speed
- Gender unisex
- Main colour grey
- Material aluminium
- Max rack load 27 kg
- Permissible system weight 180 kg
- Shifting name Shimano Nexus 8-Gang Rücktritt
- Shifting type internal gear shifting
- Support up to 25km/h
- Trailer Approval yes
- Type compact bike
- Wheel size 20 "
- Access height 450 mm
- Chainstay 451 mm
- Length 1685 mm
- Passage width 190 mm
- Reach 408 mm
- Seat angle 71.0 °
- Seat tube 480 mm
- Stack 541 mm
- Standover height 450 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Toptube 576 mm
- Wheel distance 1108 mm
- Battery BOSCH "PowerPack 540" 540 Wh
- Chain / belt KMC "e1 EPT"
- Chain guard HEBIE "Chainglider" 44T
- Charger BOSCH 4 A, BES3
- Crank PROWHEEL "EB03", 170 mm, ISIS
- Derailleur hanger Slider QiO Compact - Nexus
- Display BOSCH "Purion 200"
- Engine BOSCH "Performance Line", max. 75 Nm
- Fender SKS "A 69 R"
- Fork QiO, Aluminium, tapered, Steckachse
- Frame QIO Compact, Bosch Gen. 4, BES3, Aluminium, 48 cm
- Front brake MAGURA "MT A2"
- Front hub SHIMANO "HB-TC500", 12 x 100 mm, Center Lock, Steckachse
- Front light Busch + Müller "Briq-S E", 60 Lux
- Front rotor MAGURA "MDR-A", Ø 180 mm, 1.8mm, CL
- Front tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Grips HERRMANS "Clik DD37", 123 / 90 mm
- Handlebar ergotec "Lady Town", 620 mm, Ø 31,8 mm, 30° Backsweep
- Headset ACROS ZS66/31,75 OD74 / ZS66/46/OD72, Blocklock
- Pedals MARWI "SP-157" Faltpedale
- Rear brake MAGURA "MT A2"
- Rear carrier QIO "MIK HD 2.0" für MIK Side
- Rear hub SHIMANO "Nexus SG-C6061-8CD", 8-Gang, 5-Loch
- Rear light Busch + Müller "Dart E Brex", 80 mm, Bremslicht
- Rear rotor MAGURA "MDR-A", Ø 180 mm, 1.8mm, 5-bolt
- Rear tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Rims DT SWISS "U 663", 36 Loch, geöst, Tubeless ready
- Saddle SELLE ROYAL "On", Moderate Wide
- Seatpost satori "Trident" 34,9 x 400 mm
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever SHIMANO "Nexus SL-C6001-8", 8-Gang
- Spokes 2,0 mm, Niro, schwarz
- Stands URSUS "Invisible Mount", 20"
- Stem ergotec "Sepia Ahead XL", 80 mm, verstellbar, Safety-Level 5
- EAN 4251971194779
- MSRP: €3,299.00
- Fedas-Code 159021
- DST-Code 1A01
- WEEE registration number DE92509320
- SB-Article No
- Bidex-Code 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- product data sheet QiO Electric compact bike Compact P8 RBN Danish
- product data sheet QiO Electric compact bike Compact P8 RBN German
- product data sheet QiO Electric compact bike Compact P8 RBN English
- product data sheet QiO Electric compact bike Compact P8 RBN Spanish
- product data sheet QiO Electric compact bike Compact P8 RBN French
- product data sheet QiO Electric compact bike Compact P8 RBN Italian
- product data sheet QiO Electric compact bike Compact P8 RBN Dutch
The QiO Compact P8 makes it easy to get started in the world of high-quality compact bikes. Its balanced and natural handling makes it perfect for a variety of everyday activities: commuting to work in the morning, running errands in the afternoon, and taking a weekend ride through the countryside. The Bosch Performance Line drive provides the necessary support, while the 540-Wh Battery delivers the capacity needed for daily commutes. With eight gears, you can select the right gear ratio for any riding situation. The compact Purion 200 Display shows the most important information right on the Handlebar. Hydraulic Magura disc brakes ensure controlled braking, while the Continental eContact+ tires are designed for daily use. If you head home later in the evening, the Briq-S Front Light with 60 lux ensures good visibility. With a gross vehicle weight rating of 180 kg, the Compact P8 also offers plenty of room for luggage and a variety of daily activities. The result is a compact e-bike for city riding, commuting, and leisurely outings.
