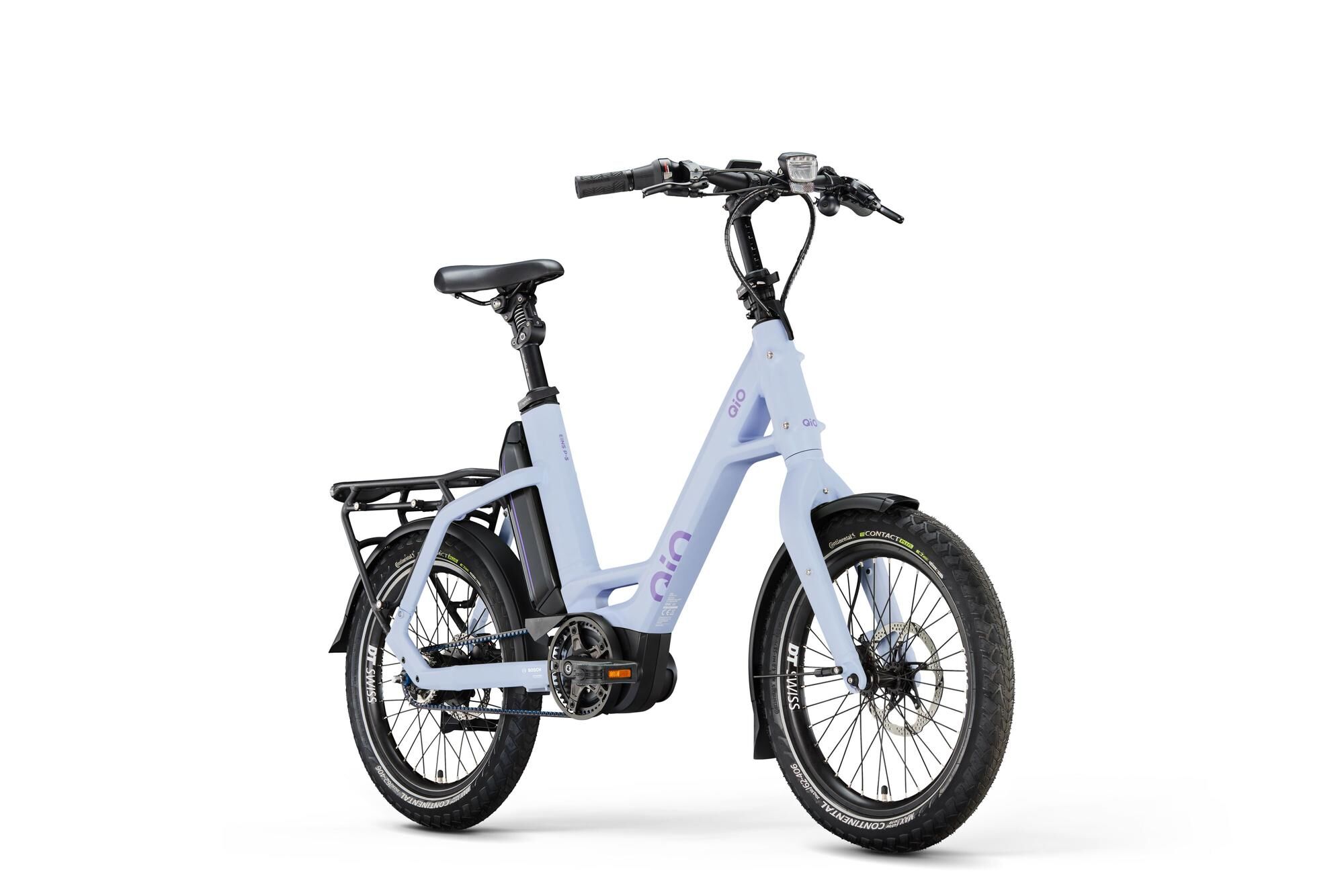

QiO Electric compact bike "EINS P-5" (#1)
unisex, 20", sweet lavender matt, 5-speed SHIMANO "Nexus" coaster brake, 48 cm
Read more Read less - Article number: 02652047
- Original number: 01723485
The electric compact bike has a Bosch Performance Line mid-motor with an output of 250 W. The Battery has a capacity of 545 Wh and is integrated into the frame design. The drives are powered by a belt drive. A hub gear is installed for gear selection. The bike is equipped with a low step-through and offers suspension seatposts and a Chain Guard. The 20" wheels are fitted with Fenders. The permissible system weight is 180 kg, which allows the use of additional luggage.
Product information
- Access height 182 mm
- Battery capacity 545.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Chainstay 451 mm
- Colour designation sweet lavender matt
- Drive belt
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features fender
- Frame height 48 cm
- Frame shape unisex
- Gears 5-speed
- Gender unisex
- Length 1685 mm
- Main colour purple
- Material 1 aluminium
- Passage width 190 mm
- Permissible system weight 180 kg
- Reach 408 mm
- Seat angle 70.5 °
- Seat tube 48 mm
- Shifting name 5-Gang SHIMANO "Nexus" Rücktritt
- Shifting type internal gear shifting
- Stack 541 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Stem length 70.0 mm
- Support up to 25km/h
- Toptube 576 mm
- Type compact bike
- Wheel distance 1108 mm
- Wheel size 20 "
- Battery: BOSCH "PowerPack 545", 545 Wh
- Battery Lock: ABUS Akkuschloss
- Bottom bracket: BOSCH
- Brake lever: TRP HD-EU817
- Bremse H.R.: TRP "C1.8 HD-EU817"
- Bremse V.R.: TRP "C1.8 HD-EU817", Post Mount
- Chain guard: CURANA "C+", 46 teeth
- Chain ring / pulley: GATES"CDC", 46 Zähne, Riemenlinie 45,5 mm
- Charger: BOSCH 4 A
- Crank: Stronglight "Magan 3B", 170 mm
- Derailleur hanger: QIO Slider Dropout
- Display: BOSCH "Intuvia 100", 4-stages, remote control, push aid
- Engine: BOSCH "Performance Line" engine, max. 75 Nm
- Fender: curana "Apollo Orbit 70"
- Fork: QIO EINS 20", aluminum, tapered 1 1/4" - 1.5", 313.5 mm stem, post mount, sweet lavender matt
- Frame: QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm, sweet lavender matt
- Front hub: SHIMANO "Deore HB-M5100", Center Lock, Schnellspanner
- Front light: Busch + Müller "Briq-S E", 60 Lux
- Front rotor: TRP "TR-25", Ø 180 mm, Centerlock
- Front tire: CONTINENTAL "eContact Plus", 62-406, Reflex
- Grips: HERRMANS "Nucore Town", wave
- Handlebar: ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
- Headset: TOKEN "TK255E-HJ04", IS52/40 / IS52/44
- Pedals: UNION "SP-153", foldable
- Rear carrier: QIO "MIK HD 2.0" mit MIK STUDS
- Rear hub: SHIMANO "Nexus SG-C7002-5CD", 5-speed, 5-hole
- Rear light: Busch + Müller "Dart E Brex "
- Rear rotor: TEKTRO "TR160-47", Ø 160 mm, 5-hole
- Rear tire: CONTINENTAL "eContact Plus", 62-406, Reflex
- Remote: BOSCH "BRC3600", LED Remote
- Rims: DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
- Saddle: Selle Royal "On", Moderate Wide
- Seatpost: by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: SHIMANO "Nexus SL-C7000-5"
- Spokes: DT-Swiss ELEMENTAL, schwarz
- Sprocket / pulley: GATES "CDX", 28 teeth
- Stands: URSUS "R78 - King Mini"
- Stem: BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black
- Supplier Article Number: 01723485
- EAN: 4251971163904
- MSRP: €4,199.00
- Fedas-Code: 159021
- DST-Code: 1A01
- WEEE registration number: DE92509320
- SB-Article: No
- Bidex-Code: 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight: 26.5 kg
| Article | Price | |
|---|---|---|
 | ||
 | ||
 for light olive matt frame colour Read more Read less
| ||
 | ||
 | ||
 | ||
 for imola red matt frame colour Read more Read less
| ||
 | ||
 | ||
 | ||
 | ||
 | ||
 | ||
 | ||
 | ||
 | ||
| ||
 | ||
 | ||
 | ||
 for lead metal frame colour Read more Read less
| ||
 | ||
 | ||
| ||
 | ||
 | ||
 for crystal white frame colour Read more Read less
| ||
 for sweet lavender matt frame colour Read more Read less
| ||
"Folding Lock Duo", black, incl. one short and one long XPlus Lock Cylinder Read more Read less
| ||
 | ||
 | ||
 | ||
 | ||
 | ||
 for forest green frame colour Read more Read less
| ||
 for ice blue matt frame colour Read more Read less
| ||
 black, AZ Standard, removable keys, with Battery Lock for PowerPack BES 3 Read more Read less
| ||
 | ||
 | ||
 | ||
 | ||
 | ||
 Scarves: blackCover: dark gray Read more Read less
| ||
 | ||
 | ||
 | ||
 | ||
 | ||
 for night black matt frame colour Read more Read less
|
| Article | Price | |
|---|---|---|
 unisex, 20", sweet lavender matt, 5-speed SHIMANO "Nexus" coaster brake, 48 cm Read more Read less
|
Start your day relaxed with the QiO "EINS P-5" e-bike. Whether it's to the bakery, through the fields or across the campsite - the smart Bosch system (BES3) ensures a fully connected ride.The "EINS P-5" offers the Bosch "Performance Line" engine, a 545 Wh Battery and the "Intuvia 100" Display. The 5-speed Shimano "Nexus" hub gears and the low-maintenance Gates CDC Straps guarantee smooth power transmission. With its 20" wheels, the e-bike is maneuverable and ideal for narrow city streets, where the sprung parallelogram seatposts offer plenty of comfort and are theft-proof.The compact design makes it easy to take with you, whether in the car or camper van. Foldable pedals and rotating Handlebars save space. Ideal for commuters who just want to get going.
