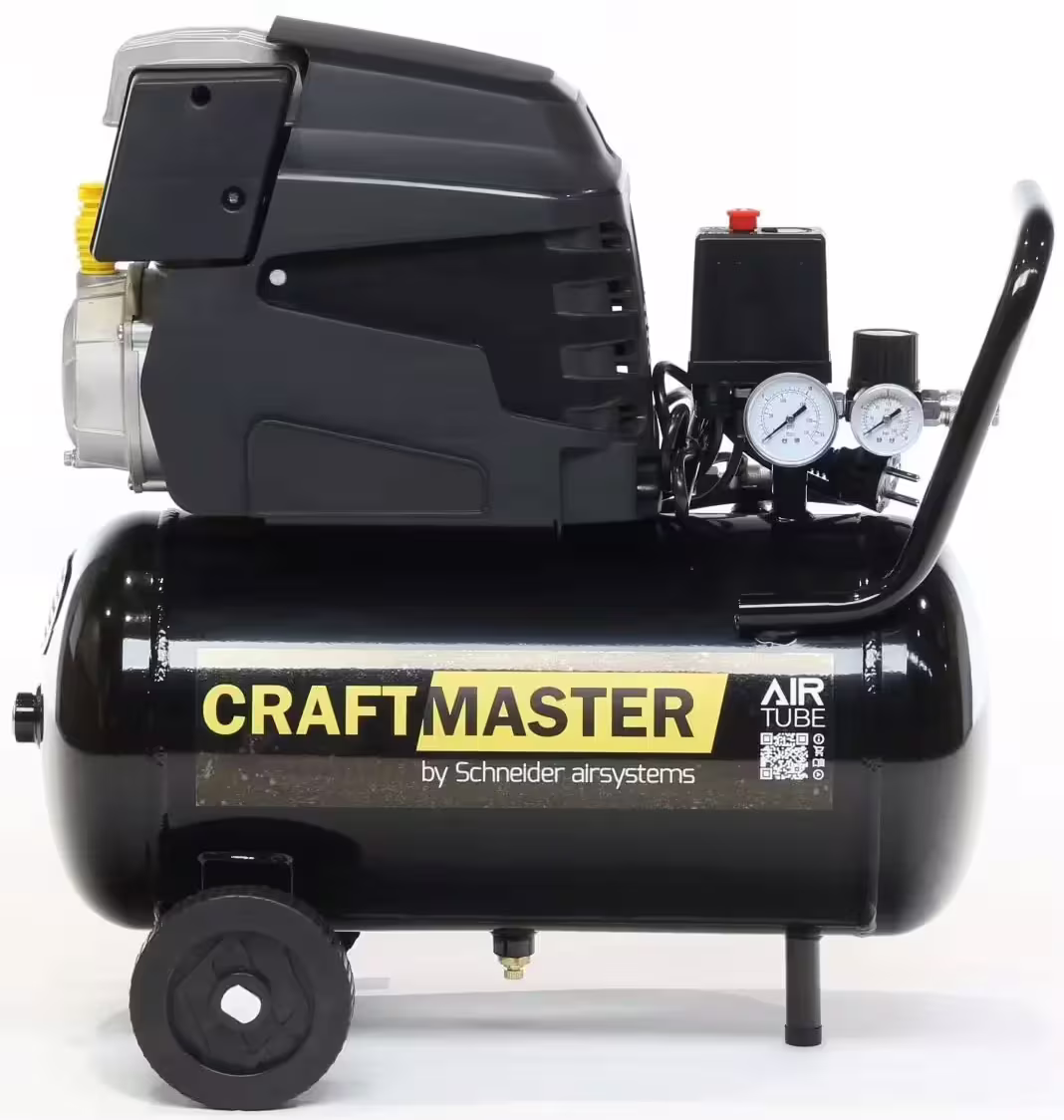

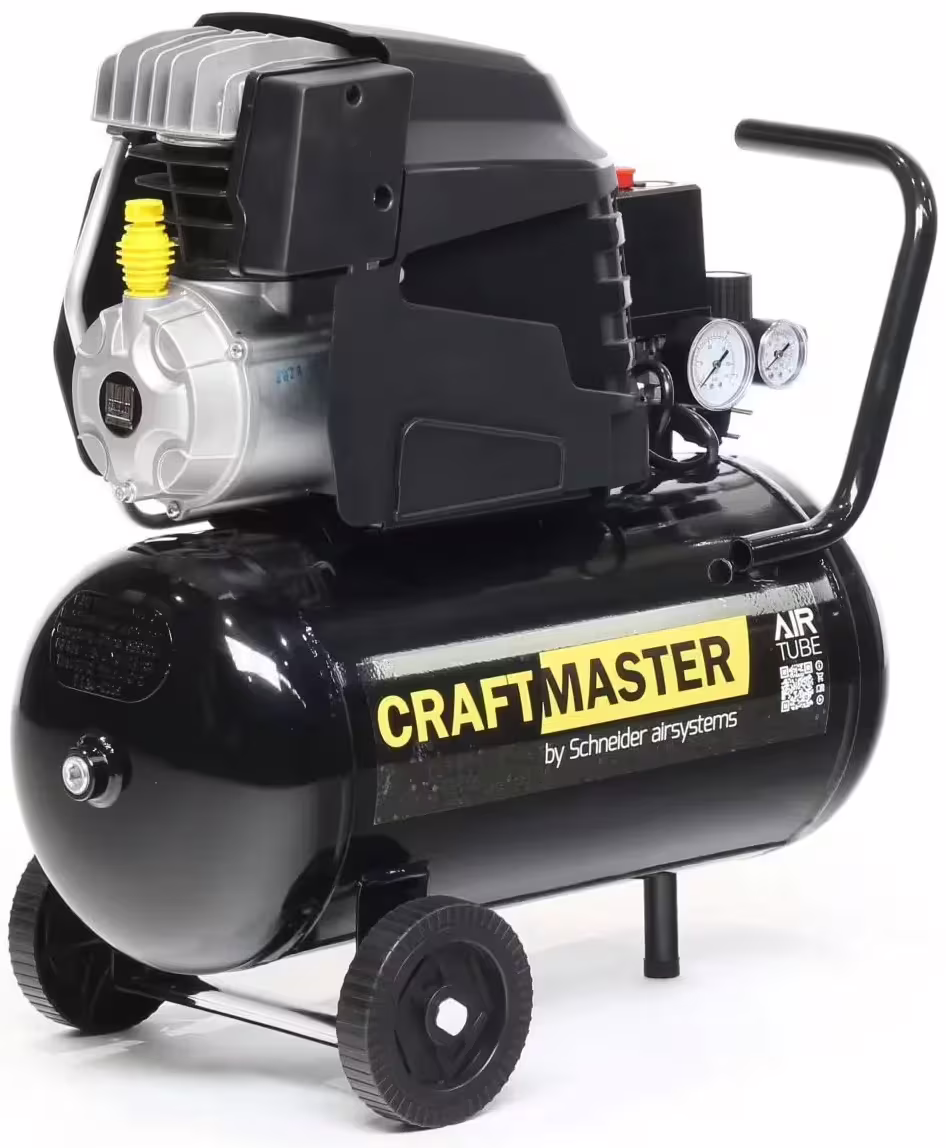

schneider airsystems Compressor "CRAFTMASTER 170-8-24 W"
Suction capacity: 170 l/min
- Article number: 89661435
- Original number: 1129741314
Piston compressor, mobile, with horizontal tank, oil-lubricated
Direct-coupled 1-cylinder compressor. Two Pressure Gauges allow simultaneous reading of tank and working pressure. The air is discharged via a pressure reducer with quick coupling.
Technical data:
Suction capacity: 170 l/min
Filling capacity: 60 l/min
Cylinders/stages: 1/1
Tank volume: 24 l
Voltage: 230 V / 50 Hz / 1 Ph
Start-up: Direct start (DOL)
Motor power: 1.1 kW
Speed: 2850 rpm
Sound power level: 95 dB(A)
Dimensions (L x W x H): 555 x 231 x 545 mm
Weight: 20 kg
PU 1
Product information
- Cylinder / levels 1/1
- Design mobile
- Engine power 1.1 kW
- Filling capacity 60 l/min
- Height 54.5 cm
- Height 545.0 mm
- Length 555.0 mm
- Length 55.5 cm
- Main colour black
- Secondary colour yellow
- Sound power level 95 dB
- Speed 2850.0 rpm
- Suction capacity 170 l/min
- Variant Article
- Width 231.0 mm
- Width 23.1 cm
- Working pressure 8.0 bar
- Supplier Article Number: 1129741314
- MSRP: €152.35
- SB-Article No
- Brand/Supplier schneider airsystems
- Unit of measure: PIECE
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 Suction capacity: 170 l/min Read more Read less
| PU 1 |
