schweisskraft Welding device "EASY-MIG 181 Multi Set"
Weight: 14.5 kg
- Article number: 89661525
- Original number: 1071181SET
Portable multi-function inverter, 230 V, MIG / MAG, TIG Lift Arc and electrode, incl. automatic welding helmet and gloves

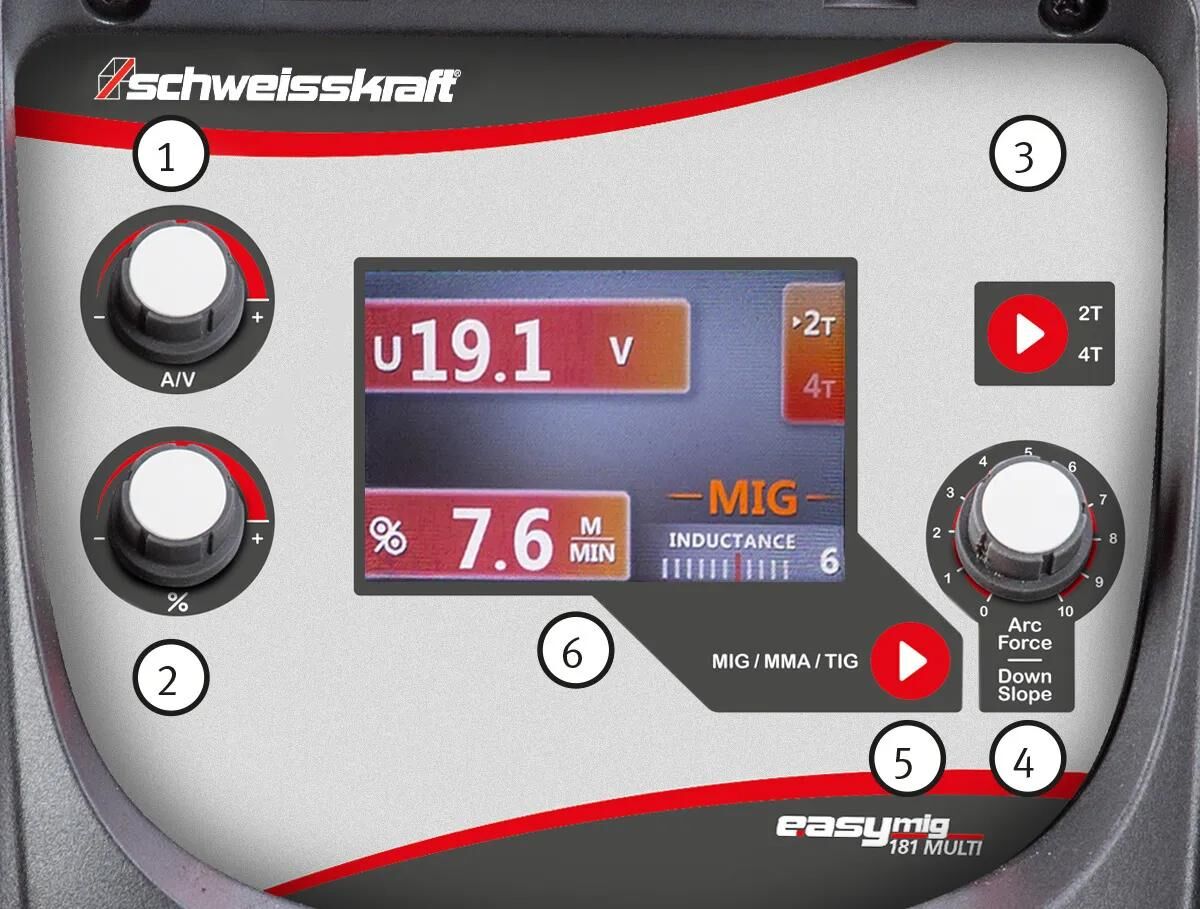

Versatile welding device for professionals with complete equipment in a SET. It offers infinitely variable adjustment of voltage and wire feed via practical rotary knobs, allowing precise control of the welding process. The integrated Arc-Force control ensures a stable arc by continuously monitoring the current and voltage. The polarity of the device can also be reversed, allowing the use of flux-cored wires, TIG lift arc and electrode welding. Thanks to its sophisticated design, it is particularly user-friendly.

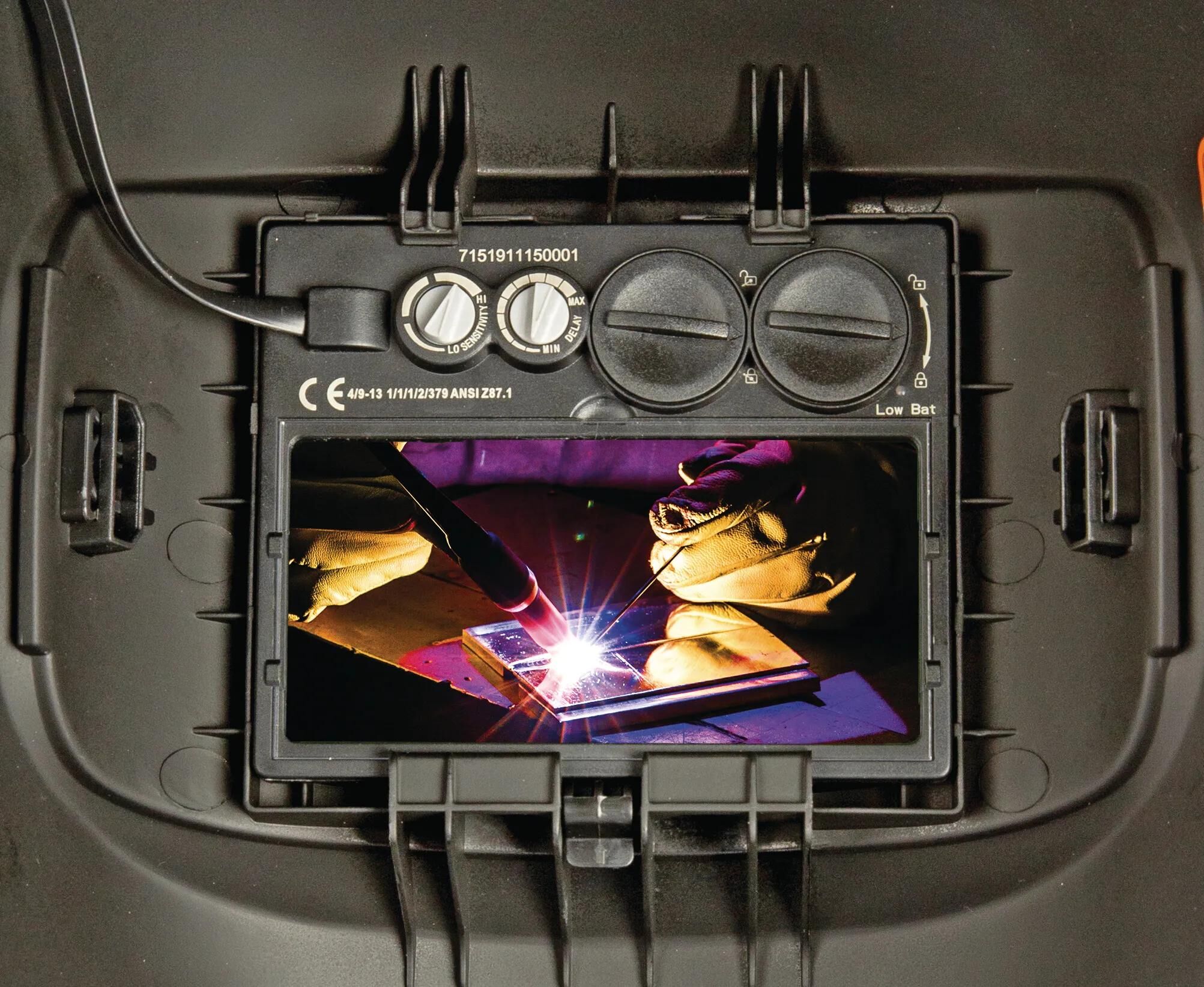

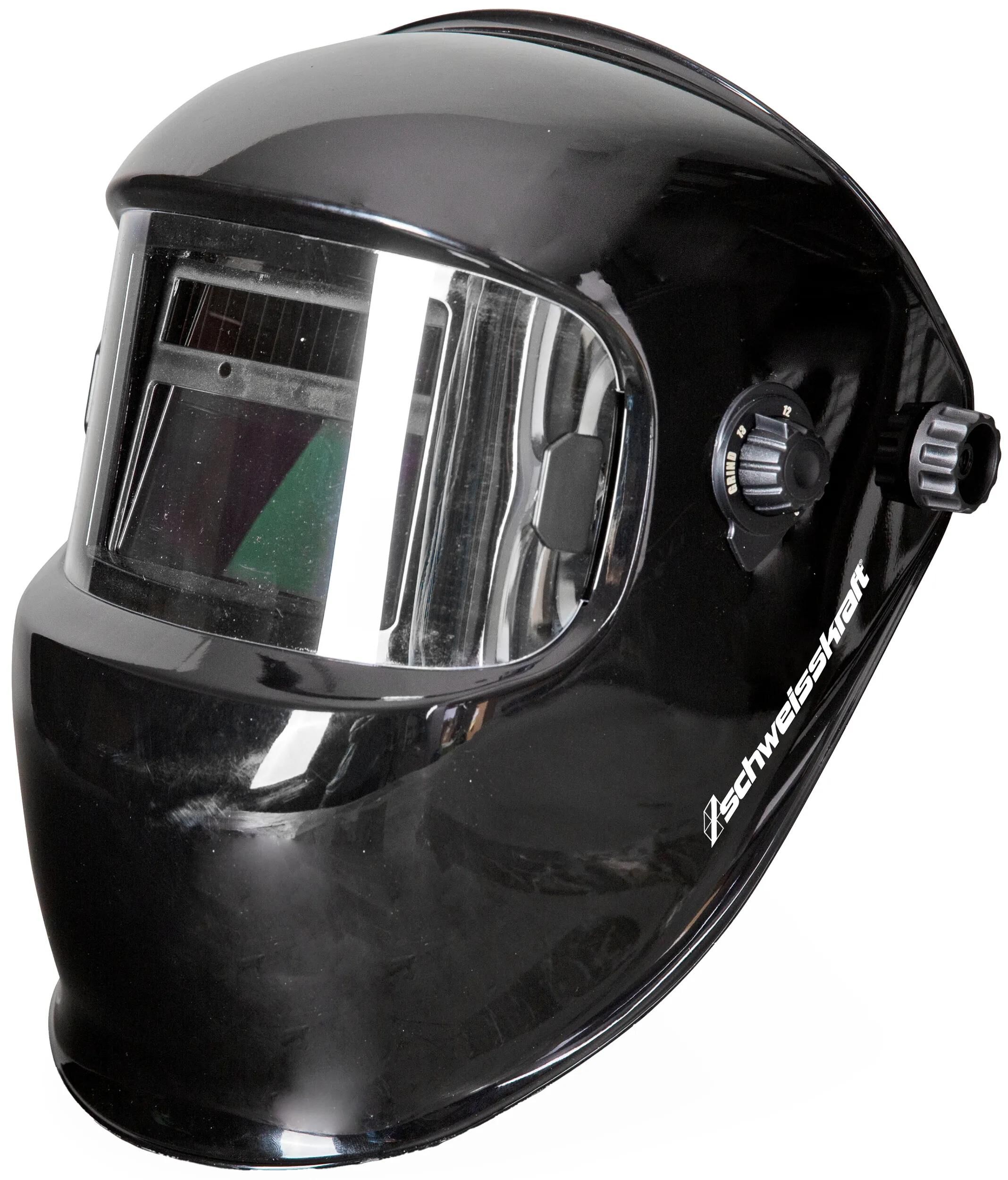

Scope of delivery: 3 m welding cable 16 mm² with 300 A electrode holder, 3 m ground cable 16 mm² with 300 A ground terminal, MIG torch MB 15 (3 m), gas hose 4 m including quick connector and pressure reducer, spare feed rollers 0.8 - 1.0 mm, welding helmet VarioProtect XL-W TC, welding glove Basic size L / 9.
Technical data:
Supply voltage: 230 V
Mains frequency: 50 / 60 Hz
Cooling: AF cooling type, gas torch cooling
MIG/MAG setting range: 40 - 180 A
Electrode setting range: 10 - 160 A
TIG DC setting range: 10 - 180 A
Wire feed: Wire feed speed 2.0 - 13.5 m/min

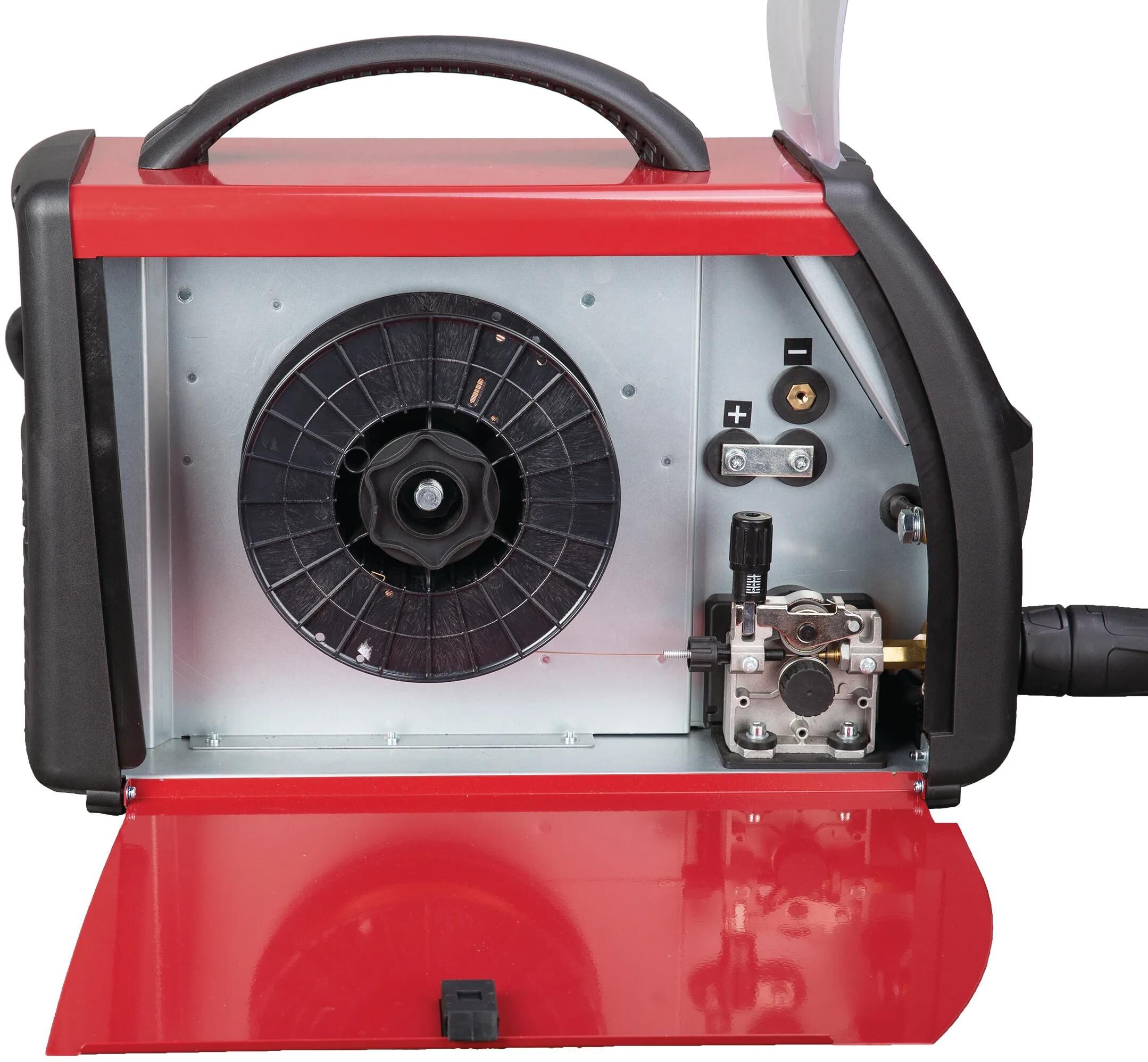

Wire feed unit: 2 Wheels
MIG/MAG power consumption: 8.41 kVA
Power consumption TIG DC: 6.67 kVA
Electrode power consumption: 8.4 kVA
Power factor: 0.6 cos phi
Efficiency: 83.5 %
Open circuit voltage: 67.5 - 69 V
Standard: EN 60 974-1; -10
EMC class: A (not for residential areas with public low-voltage system)
Marking: CE
Product information
- Design welding / soldering device
- Height 41.0 cm
- Height 410.0 mm
- Length 52.5 cm
- Length 525.0 mm
- Main colour red
- Secondary colour black
- Variant Article
- Width 220.0 mm
- Width 22.0 cm
- Wire feed 2 rolls
- Supplier Article Number: 1071181SET
- EAN: 4036351280439
- MSRP: €949.50
- SB-Article: No
- Brand/Supplier schweisskraft
- Unit of measure: PIECE
