schweisskraft Welding device "EASY-TIG 201 AC/DC PULSE Aktions-Set"

Portable AC/DC TIG inverter, 230 V, incl. automatic welding helmet and gloves

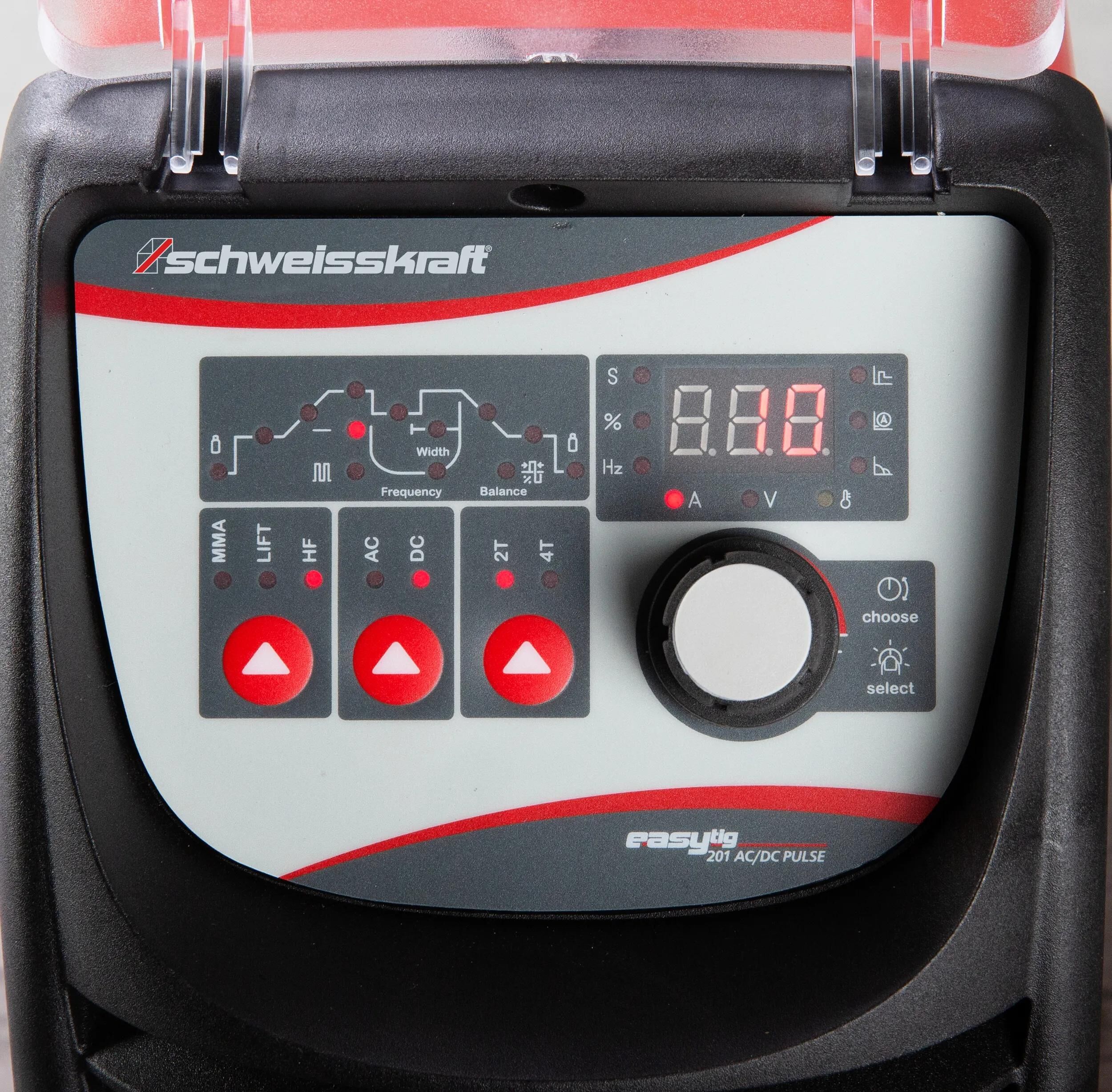

For outdoor assembly work (ladders or scaffolding), the device impresses with precise parameter settings via a digital Display and the ability to safely process all common electrode types. The pulse function in TIG mode specifically reduces the heat input, while the HF high-frequency ignition ignites the arc without contact. A quiet fan efficiently dissipates the heat generated, thus supporting long duty cycles. The welding curve can also be adjusted as required. Thanks to its generator-compatible operation, the system is recommended for workshops, schools and training companies, metal construction, construction sites and agricultural applications.

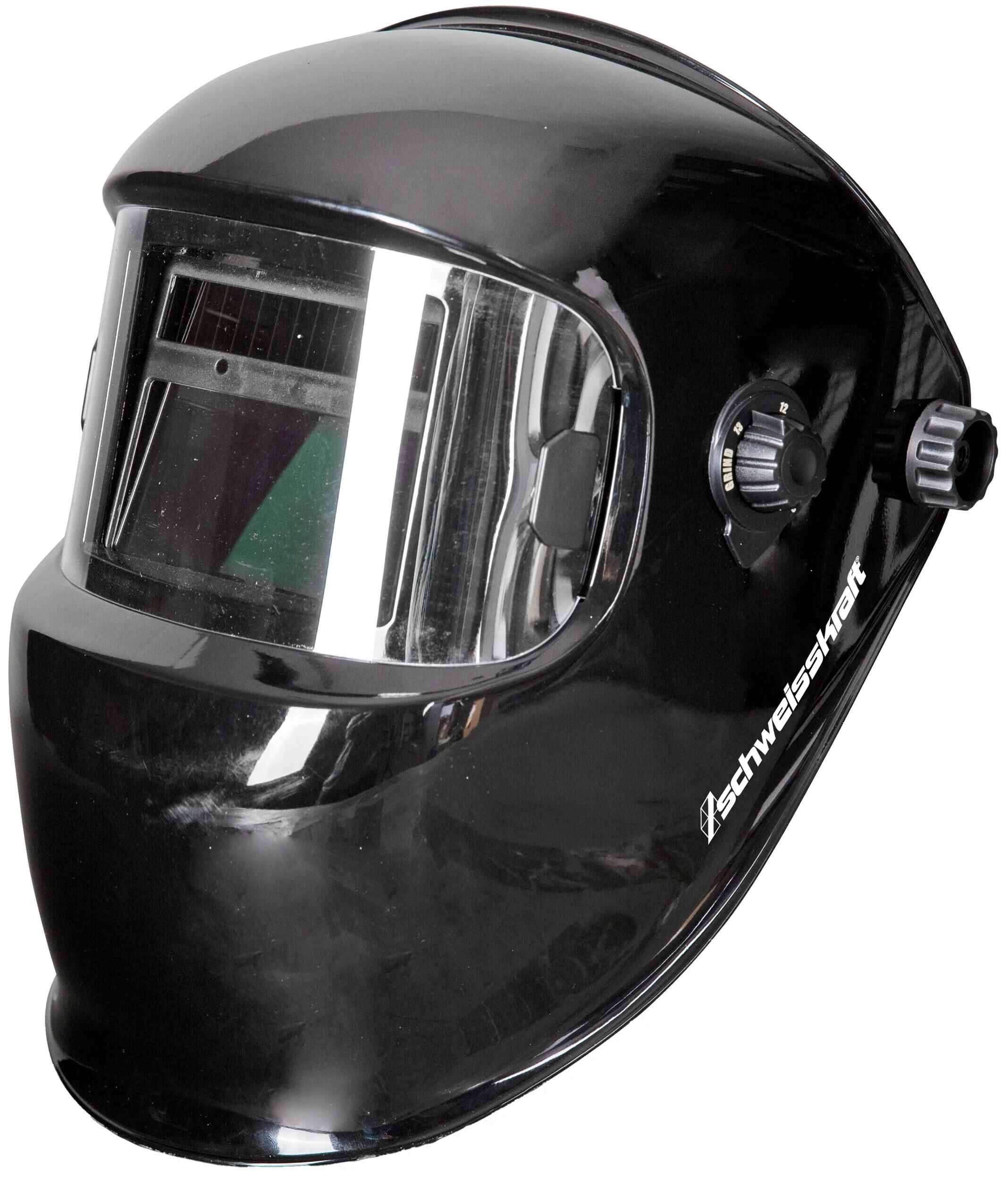

Scope of delivery: Gas hose 4 m incl. quick connector, TIG 26 torch (4 m), 3 m ground cable 25 mm² with ground terminal, VarioProtect XL-W TC welding helmet, TIG welding glove Basic size L / 9

Technical data:
Supply voltage: 230 V
Mains frequency: 50 / 60 Hz
Pulse frequency: 0.5 - 200 Hz
Ignition: High frequency
Cooling: Gas torch cooling
Weldable electrodes: 1.6 - 4.0 mm
TIG setting range: 10 - 170 A
Electrode setting range: 10 - 170 A
Current consumption TIG AC: 34 A
Current consumption TIG DC: 29.1 A
Current consumption electrode AC: 40.2 A
Current consumption electrode DC: 42.9 A
Power consumption TIG: 4 kVA
Electrode power consumption: 5.9 kVA
Required generator power: > 9.8 kVA
Power consumption in idle mode: < 50 W
Power factor: 0.6 cos phi
Efficiency: 83.5 %
Open-circuit voltage: AC TIG 73.4 V, DC TIG 69.8 V, AC MMA 69.3 V, DC MMA 69.3 V
Standard: EN 60 974-1; -10
EMC class: A (not for residential areas with public low-voltage system)
