TECMATE synchronizer "VacuumMate Allweather"

• Article number: 05407234
• Original number: TS72KIT

carburetor / fuel injection throttle synchronizer, speed and valve diagnostics, battery operated
Fast and accurate synchronization of up to 4 carburetors/fuel injection throttle valves on 2- and 4-stroke engines. Displays individual manifold pressure of 4 separate carburetors (or fuel injector throttle bodies) on four vertically arranged bright LED bars (40 LEDs per bar).

Fixed resolution accuracy of 0.5 cmHg, as recommended by motorcycle and outboard engine OEMs.

Built-in tachometer displays engine speed in RPM (based on pressure pulses, no additional sensor required).
DYNamic mode for troubleshooting poor motor synchronization, shows differences in valve sealing.

4 Motorola industrial/medical grade pressure transducers. Approved as recommended equipment by Mercury, Honda, Yamaha.

Cylinder: 4 (6 possible with 4-to-6-cylinder adapter (0.540.725/9))
Method: comparison and display of the individual pressures of 4 carburetor/fuel injection manifolds
Display / resolution: 4 displays with 40 very bright LEDs, fixed resolution of 0,5 cmHg
Selection / adjustment: SYNC: 5 25 cmHg, 20 40 cmHg, 35 55 cmHg areas
Speed: 500 2500 rpm area, selection 2-/ 4-stroke
Main switch: 7,2V NiMH battery with 6 hrs. autonomy, charged with 12V DC (11 15 VDC), power can also be taken from vehicle battery.

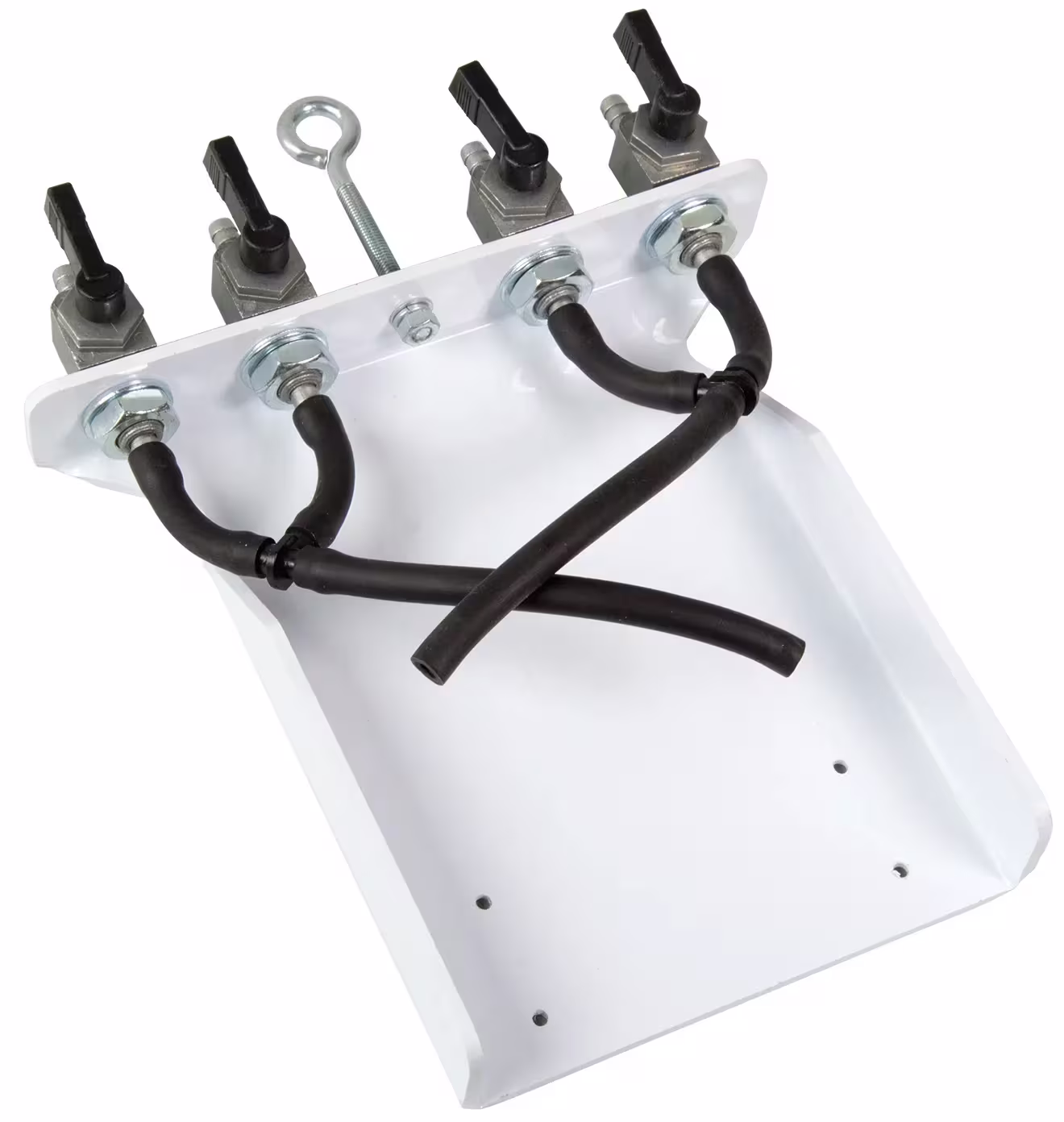

OPTIONS: 4-to-6-cylinder adapter (0.540.725/9)

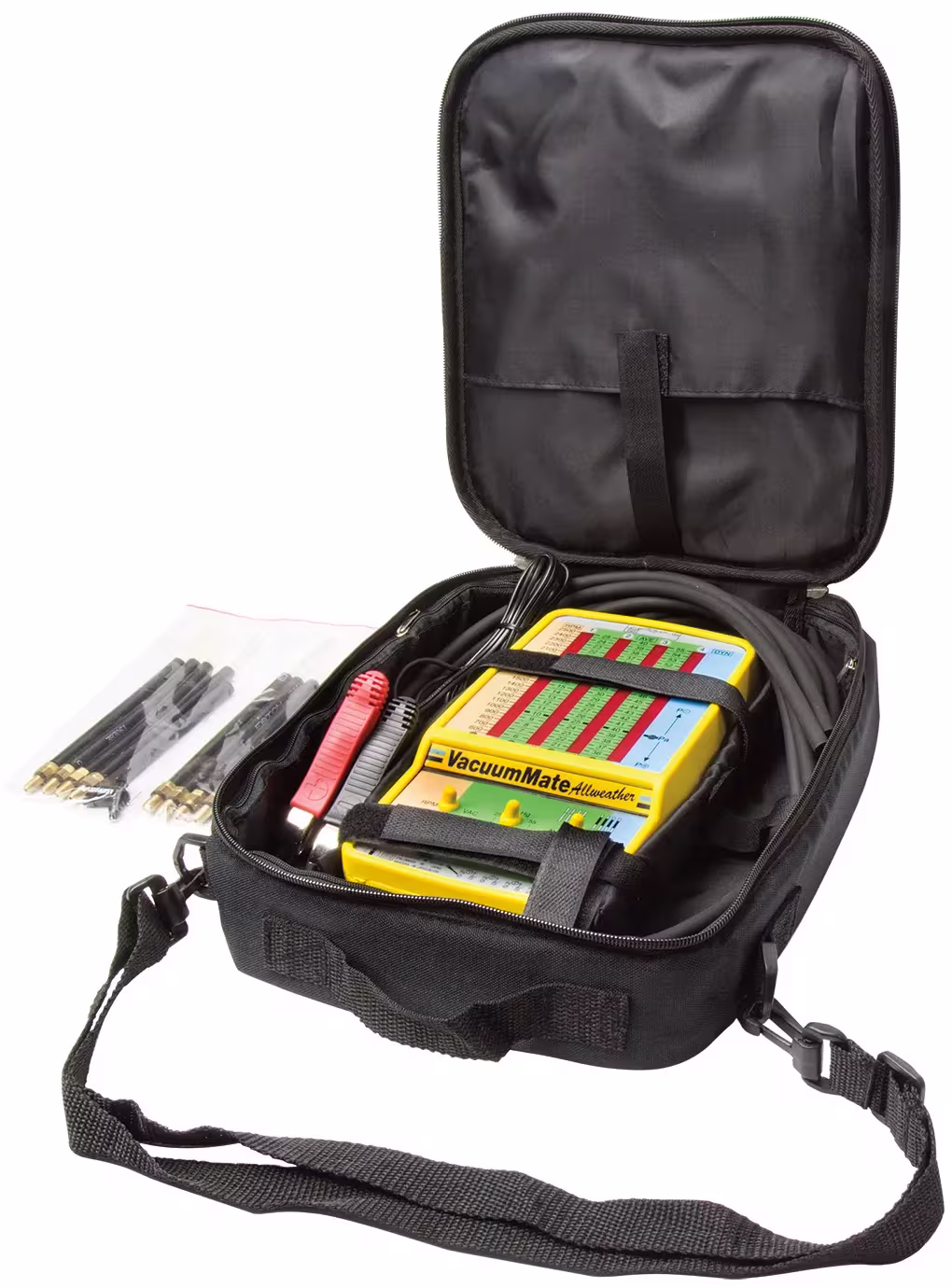

Design / scope of delivery: fuel and oil resistant rubber hoses, DC connection socket with 6 1/2 ft/ 200cm connection cable with battery terminals at the end, 4x M5 Flexi-rigid adapters, 4x M6 Flexi-rigid adapters, fuel switch T-piece, instruction manual
