Product information

  • Access height 380 mm
  • Battery capacity 545.0 Wh
  • Bosch Smart System yes
  • Brake system hydraulic disc brake
  • Chainstay 434 mm
  • Child Seat Approval no
  • Colour designation concrete grey
  • Drive belt
  • Drive system BOSCH Performance Line
  • Drive version middle motor
  • E-bike yes
  • Engine power 250 W
  • Features chain guard , deep entry , electronic sliding aid , fender , frame lock , system carrier
  • Folded size (LxHxW) 88x77x38
  • Frame height 45 cm
  • Frame shape unisex
  • Frame size Onesize
  • Gears 5-speed
  • Gender unisex
  • Length 1653 mm
  • Main colour grey
  • Material 1 aluminium
  • Model series Flygran
  • Passage width 201 mm
  • Permissible system weight 120 kg
  • Reach 483 mm
  • Seat angle 73.0 °
  • Seat tube 457 mm
  • Shifting name 5-Gang SHIMANO "Nexus" Leerlauf
  • Shifting type internal gear shifting
  • Stack 455 mm
  • Steering tube 190 mm
  • Steering tube angle 70.0 °
  • Support up to 25km/h
  • Toptube 622 mm
  • Trailer Approval no
  • Transmission 1x 5-speed
  • Type folding bike
  • Wheel distance 1133 mm
  • Wheel size 20 "

  • Battery BOSCH "Powerpack 545" 545Wh, BES3
  • Battery Lock ABUS
  • Bottom bracket BOSCH
  • Brake SHIMANO "BL-MT201/BR-MT200
  • Brake lever SHIMANO BL-MT201
  • Chain / belt GATES "CDC" 122T, 1342mm, Schwarz
  • Chain guard CURANA C+ 55T
  • Chain ring / pulley GATES "CDX", 55 Zähne, Bosch Gen. 3, 5-Arm, inkl. Spider und Schutz
  • Charger BOSCH 2 Ah
  • Crank Prowheel EB03 Alu schwarz matt 170mm BNI
  • Derailleur hanger Slider, Nabenschaltung
  • Engine BOSCH "Performance Line", Gen. 3, BES3
  • Fork "Fylgran 3" Alugabel
  • Frame Victoria Fylgran, BES3, Aluminium
  • Frame Lock ABUS "4750L" Rahmenschloss
  • Front hub SHIMANO "HB-QC400" Center Lock,OLD:100mm, QR:133mm, 36H
  • Front light AXA "NXT 45" 45 LUX
  • Front mudguard CURANA "Apollo" 70mm, Front, Schwarz Matt
  • Front rotor SHIMANO SM-RT30 180mm
  • Front tire Schwalbe SUPER MOTO-X Perf, GreenGuard, SnakeSkin, 62-406 B/B-SK+RT
  • Grips ERGOTEC Ambition, 22,2, 135/92mm, TPE/Recycled TP-Glasfiber
  • Handlebar ERGOTEC "FLAT BAR", 25,4mm, 5°, 1,4-2,25-1.4560mm
  • Handlepost "FOLDING LENKSTANGE", 400mm, 25.4x278.5
  • Headset VP, VP-A45AC, ZS44/28,6 ZS44/30
  • Pedals MARWI "SP157" Antislip, Alu
  • Rear carrier Gepäckträger MIK-HD HA013
  • Rear hub SHIMANO "Nexus" 5-Gg. LL
  • Rear light AXA "MIK Carrier Rear Light"
  • Rear mudguard CURANA "Apollo" 70mm, Rear, Schwarz Matt
  • Rear rotor SHIMANO SM-RT30 160mm
  • Rear tire Schwalbe SUPER MOTO-X Perf, GreenGuard, SnakeSkin, 62-406 B/B-SK+RT
  • Remote BOSCH LED-Remote "BRC3600"
  • Rims MACH1 "Kargo L" 20" 25C-406, 36 Loch
  • Saddle SELLE ROYAL "Orbis Unitech", schwarz
  • Seatpost ERGOTEC "SKALAR", 12mm Offset, Level6, Schwarz
  • Sensor Pedal pressure measuring im Motor + speed sensor
  • Shifting lever SHIMANO "SL-C7000-5", 5-Gang Revoshift
  • Spokes Niro, 2 mm, Schwarz
  • Sprocket / pulley GATES für Shimano 5, 28 Zähne
  • Stands NUVO "NH-KF54SA" Hinterbauständer

  • Supplier Article Number: KHA250002
  • EAN 4251971168404
  • MSRP: €3,999.00
  • Fedas-Code 157025
  • WEEE registration number DE92509320
  • Bidex-Code 129010
  • SB-Article No
  • DST-Code 1H01
  • Brand/Supplier VICTORIA
  • Unit of measure: PIECE
  • Weight 23.3 kg

  Article Price
Elektro-Falträder,Falträder,Faltrad
Out of Stock
unisex, 20", concrete grey, 5-speed SHIMANO "Nexus" freewheel,
  • Article number: 02980514
  • Original number: KHAF23102
PU 1

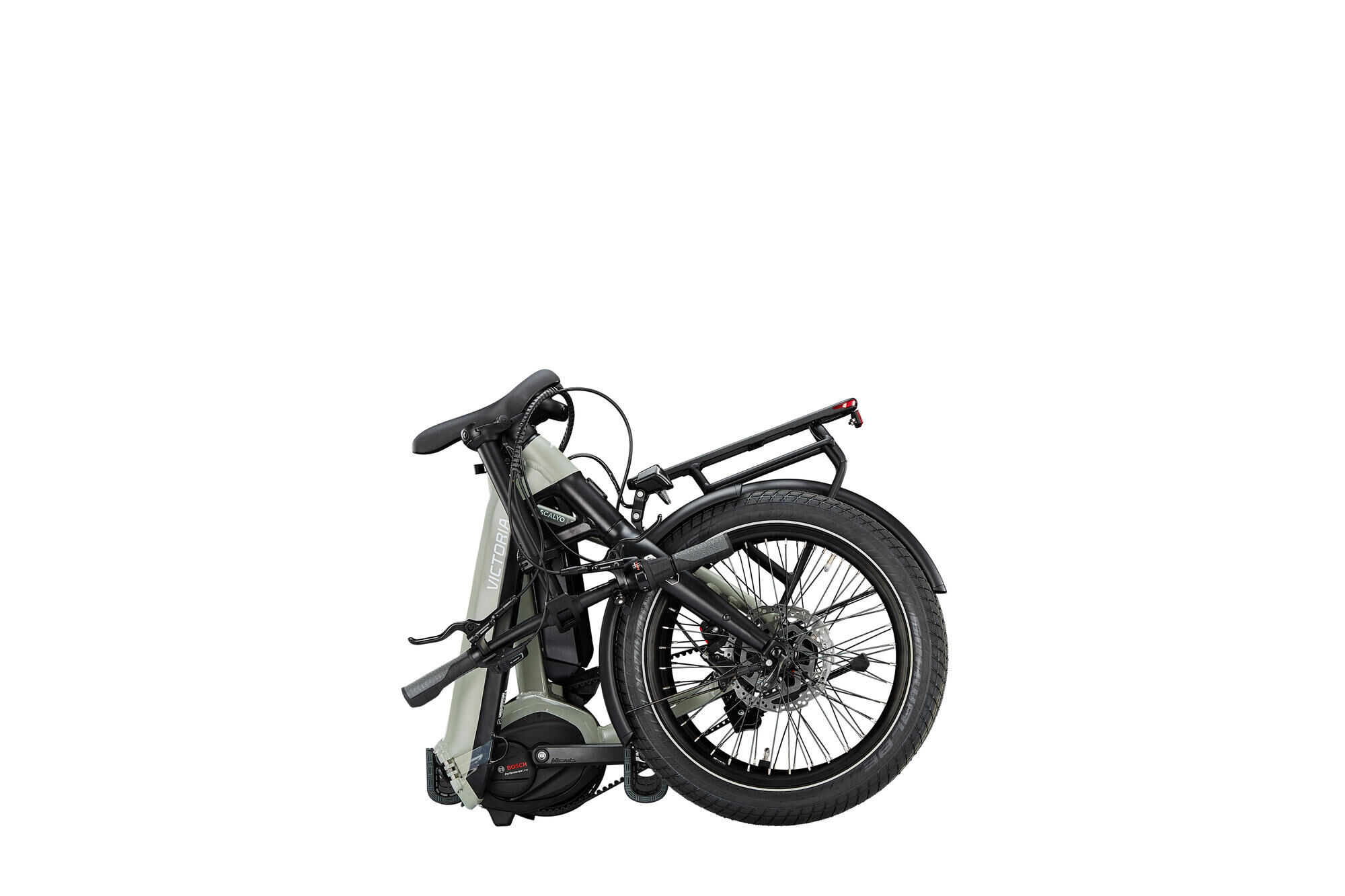

Whether on the daily commute to the station or for short journeys within the city - the Victoria FYLGRAN 3 cuts a fine figure in any case. Thanks to its compact folding size (88x77x38 cm), it can easily be taken on the train and stowed away in a niche at home in the evening. To save as much space as possible, not only the Frame is foldable, but also the Pedals. The Handlepost can be adjusted in height.The new Bosch Smart System Performance engine provides superior support for trips beyond the city limits. It is powered by the Bosch "PowerPack 545", which has enough energy for day trips.The Gates Straps transfer the power from the legs and the engine directly to the rear wheels. Particularly valuable for commuters: the Straps are resistant to moisture and dirt and can be easily cleaned with water. It also requires hardly any maintenance as it runs without chain greases, which also means that trouser legs stay clean. Gears are shifted using the tried-and-tested 5-speed "Nexus" hub gears from Shimano - you can choose between neutral and coaster brake. The hydraulic Disc Brakes provide additional safety reserves.New are the Schwalbe "Super Moto X" tires, which give the FYLGRAN in the 62-406 version a sturdy appearance that goes well with the compact bike.And there is another difference compared to the FYLGRAN 1: if the Bosch eFlow app is downloaded, the response behavior of the different support levels can be fine-tuned - either even more intensively than the factory setting already specifies or in a particularly energy-saving manner for maximum range. Navigation apps such as Komoot or Strava are also compatible with the eFlow app, so that city trips don't end up in the middle of nowhere.

Product variants

  Article Price
Elektro-Falträder,Falträder,Faltrad
unisex, 20", blackberry violett, 5-speed SHIMANO "Nexus" coaster brake, 45 cm / Onesize
  • Article number: 02920003
  • Original number: KHA250003
PU 1
Elektro-Falträder,Falträder,Faltrad
unisex, 20", concrete grey, 5-speed SHIMANO "Nexus" freewheel, 45 cm / Onesize
  • Article number: 02920002
  • Original number: KHA250002
PU 1
