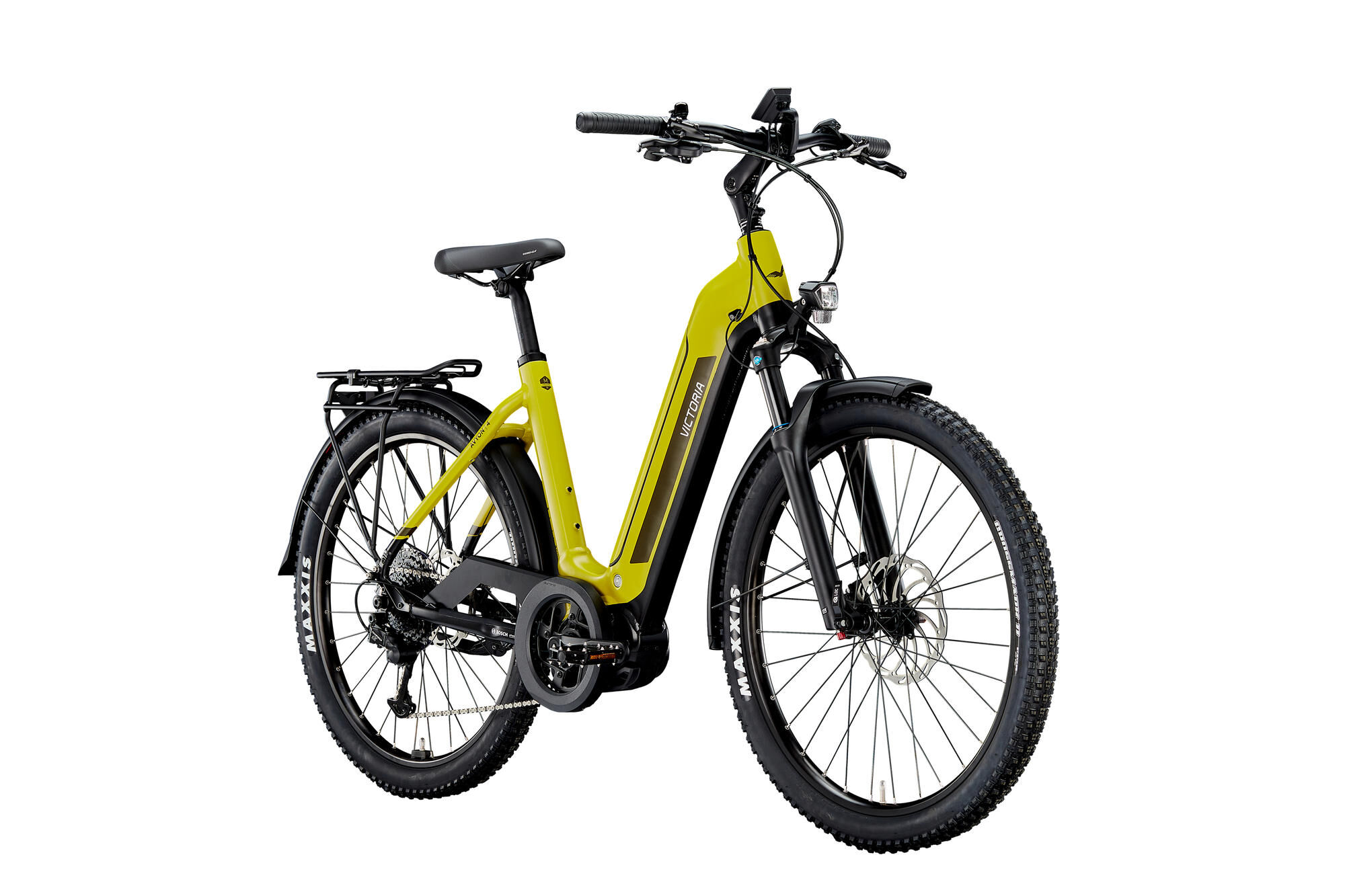

VICTORIA Electric trekking bike "Avyon 4" (#1)
wave, 27,5", safari sand matt, 1x9-speed SHIMANO "Cues", 51 cm / M
Read more Read less - Article number: 02920434
- 250 W mid-drive motor and 625.0 Wh battery capacity.
- 1x9-speed SHIMANO "Cues" drivetrain and chain drive.
- Hydraulic Disc Brakes.
- Suspension Fork with 100 mm of travel.
- 27.5-inch wheels.
- Pushing Help, Chain Guard, Fenders, integrated rack.
- Aluminum frame.
- Maximum system weight: 140 kg.
PU 1
Product information
- Battery capacity 625.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Child Seat Approval no
- Colour designation safari sand matt
- Drive chain
- Drive system BOSCH Performance Line CX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , electronic sliding aid , fender , suspension fork , system carrier
- Frame height 51 cm
- Frame shape wave
- Frame size M
- Gears 9-speed
- Gender ladies
- Main colour yellow
- Material aluminium
- Model range Avyon
- Permissible system weight 140 kg
- Secondary colour black
- Shifting name 1x9-Gang SHIMANO "Cues"
- Shifting type derailleur shifting
- Support up to 25km/h
- Torque 85 Nm
- Trailer Approval no
- Transmission 1x 9-speed
- Travel 100 mm
- Type SUV
- Wheel size 27,5 "
- Chainstay 467 mm
- Reach 415 mm
- Seat angle 73.0 °
- Seat tube 510 mm
- Stack 660 mm
- Standover height 420 mm
- Steering tube 160 mm
- Steering tube angle 69.0 °
- Toptube 617 mm
- Wheel distance 1156 mm
- Battery BOSCH "PowerTube 625", Lithium-Ionen mit BMS, 625 Wh
- Bottom bracket BOSCH
- Brake SHIMANO "BR-MT200"
- Brake lever SHIMANO "BR-MT201"
- Chain / belt SHIMANO "CN-LG500"
- Chain guard CURANA "Chainguard"
- Chain ring / pulley FSA, 38T, megatooth
- Charger BOSCH 2 Ah
- Crank FSA "CK-745", Gen.4
- Crankset FSA "W0147 + WB488", megatooth
- Display BOSCH, "Kiox 300" 4-Stufen, Remote Control, Schiebehilfe
- Engine BOSCH "Performance CX", 36 V, 250 W
- Fender CURANA "Apollo", 70mm, schwarz matt, Spoiler
- Fork SUNTOUR "SF21-MOBIE34 AIR", einstellbar, Lockout, 100mm
- Frame Bosch-Intube-SUV-Frame, Aluminium 6061
- Frame Lock CONTEC "Powerloc XL AZ"
- Front hub SHIMANO "HB-MT400", OLD 100 mm, 15mm, Disc, Center Lock
- Front light CONTEC "Dlux 50 E+" 50 Lux
- Front rotor SHIMANO "SM-RT30", 203mm, Center-Lock
- Front tire MAXXIS "Rekon", 61-584, Reflex
- Grips CONTEC "G-Link MTB Smol Wing"
- Handlebar CONTEC "Mito 60", Breite 680 mm, Rise 15 mm, 15° Backsweep
- Pedals VP "VP-531E", Alu,
- Rear carrier MIK-ALU-GEPÄCKTRÄGER "TA7652A" MIK-System
- Rear derailleur SHIMANO "Cues"
- Rear hub SHIMANO "FH-MT400-B ", Disc
- Rear light CONTEC „TL-335 E-Stop“, mit Stoplicht
- Rear rotor SHIMANO "SM-RT30", 180mm, Center-Lock
- Rear tire MAXXIS "Rekon", 61-584, Reflex
- Remote BOSCH, "BRC3600" LED Remote
- Rims MACH 1 "MAXX"
- Saddle SELLE ROYAL "Explora" Italy, Moderate Female
- Seatpost ERGOTEC Patent "Viper", Ø 31,6 mm, 10mm Setback, Alu, black
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever SHIMANO "Cues"
- Spokes 2,0 mm, Niro, black
- Sprocket / pulley SHIMANO "Cues"
- Stands URSUS "King2", für Victoria Hinterbau, 40 mm, verstellbar
- Stem CONTEC "Lida", 31,8 mm, 90 mm, Ahead, verstellbar, schwarz
- EAN 4251971151444
- MSRP: €3,999.00
- WEEE registration number DE92509320
- DST-Code 1B01
- SB-Article No
- Bidex-Code 122010
- Fedas-Code 155021
- Brand/Supplier VICTORIA
- Unit of measure: PIECE
- Weight 28.9 kg
| Article | Price | |
|---|---|---|
![]() Out of Stock wave, 27,5", safari sand matt, 1x9-speed Tektro RD-M350, 51 cm / M Read more Read less
| PU 1 |
We’re making it easy to enter the world of the Victoria Overlander with Bosch “Smart System” drive with the “AVYON 4,” which, like its siblings, is equipped with the “Performance CX” engine. It draws its power from the “PowerTube 625.”The new, clearly structured “Kiox 300” color display is not only easy to read both during the day and at night, but it’s also very easy to operate via the LED remote unit on the left side of the Handlebar. Using the free eFlow app in Victoria design, the various riding modes can also be customized. This allows you to provide more assistance than the factory setting or consume less power, depending on your needs.In terms of suspension, the “AVYON 4” is equipped with an air-sprung fork and sturdy Thru Axles at both the front and rear, which is immediately apparent from the very first few meters in the form of a very secure riding experience. Stopping safely is ensured by hydraulic disc brakes in the 203/180 mm size, with a stable four-piston brake system up front.Gear changes are handled by the new Shimano “Cues” 9-speed derailleur. The new “eRuban” SUV all-round tires from Continental, in turn, help extend the range thanks to their energy-saving tread. The taller shoulder knobs provide the necessary grip on wet meadows and loose terrain.The “AVYON 4” is available in two frame versions and paints. As with all new Victoria models, the Bosch PowerTube battery—integrated into the down tube—can be removed from the top, but can of course also be charged directly in the bike while installed.
