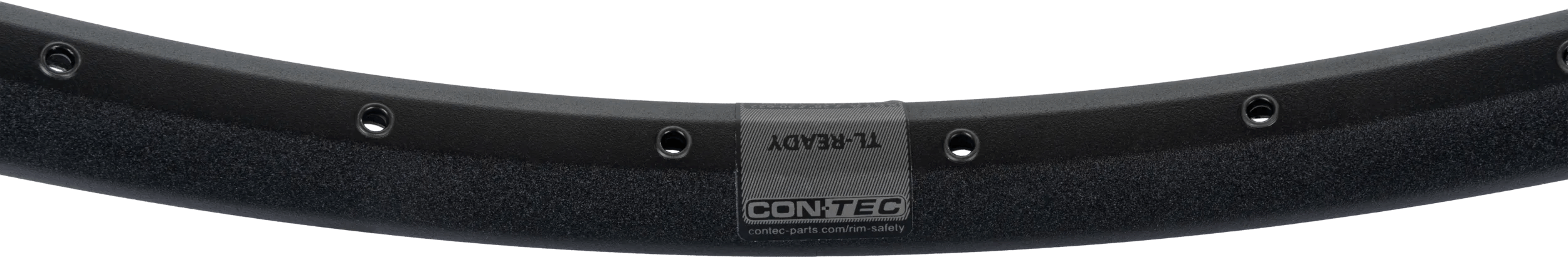

CONTEC Aluminium Rim "Xeta"
27-584, 567 mm ERD (incl. spoke holes measured), 18 mm high, 27 mm inner width, 31 mm outer width, approx. 543 g
- Article number: 03498195
- Original number: 30002499
27.5", 32 hole, tubeless ready, black
aluminum, hollow chamber
single eyelet, SV, max. load up to 150 kg system weight, max. spoke tension 1200 Nm, suitable for E-bikes, for Disc Brakes
PU 25
Product information
- Brake compatibility rim disc
- Brake mounting disc - 5-hole , disc - 6-hole , disc - Center Lock , drum brake , roller brake
- Brake track no
- Design doublewall
- ETRTO 27-584
- For wheel yes
- Height 18.0 cm
- Main colour black
- Number of spoke holes 32 holes
- Permissible system weight 150 kg
- Rim height 18 mm
- Rim outer width 31 mm
- Rim width 27 mm
- Spoke Hole easy eyelets
- Text wheel configurator suitable for E-bike
- Tubeless system tubeless ready
- Valve type Sclaverand (SV)
- Variant Article
- Wheel size 27,5 "
- Width 31.0 cm
- Supplier Article Number: 30002499
- MSRP: €39.95
- Bidex-Code 204010
- Fedas-Code 160464
- DST-Code 2P02
- SB-Article No
- Brand/Supplier CONTEC
- Unit of measure: PIECE
The ideal basis for building a tubeless-ready Wheel for 27.5" (650B) wheels with 32 spokes. Thanks to the hollow chamber design, the Xeta rims made of 6063 aluminum are particularly light and stable. In the finished Wheel, these rims are suitable for a system weight of up to 150 kg. With an inner rim width of 27 mm, tires ranging in size from 53 to 69 mm fit on the rim. The single eyeletted nipple holes ensure additional durability of the rim by reducing the friction between the Spoke Nipple and the rim and also prevent the Nipples from working their way into the rim. The Xeta rim is only suitable for wheels with disc brakes. You can find suitable tubeless rim tapes in our CONTEC range.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 25-584, 570 mm ERD (incl. spoke holes measured), 16.3 mm high, 25 mm inner width, 29.3 mm outer width, approx. 534 g Read more Read less
| PU 25 | |
 27-584, 567 mm ERD (incl. spoke holes measured), 18 mm high, 27 mm inner width, 31 mm outer width, approx. 543 g Read more Read less
| PU 25 | |
 30-584, 566 mm ERD (incl. spoke holes measured), 18.15 mm high, 30 mm inner width, 34 mm outer width, approx. 579 g Read more Read less
| PU 25 | |
 35-584, 566 mm ERD (incl. spoke holes measured), 18.15 mm high, 35 mm inner width, 39 mm outer width, approx. 633 g Read more Read less
| PU 25 |
