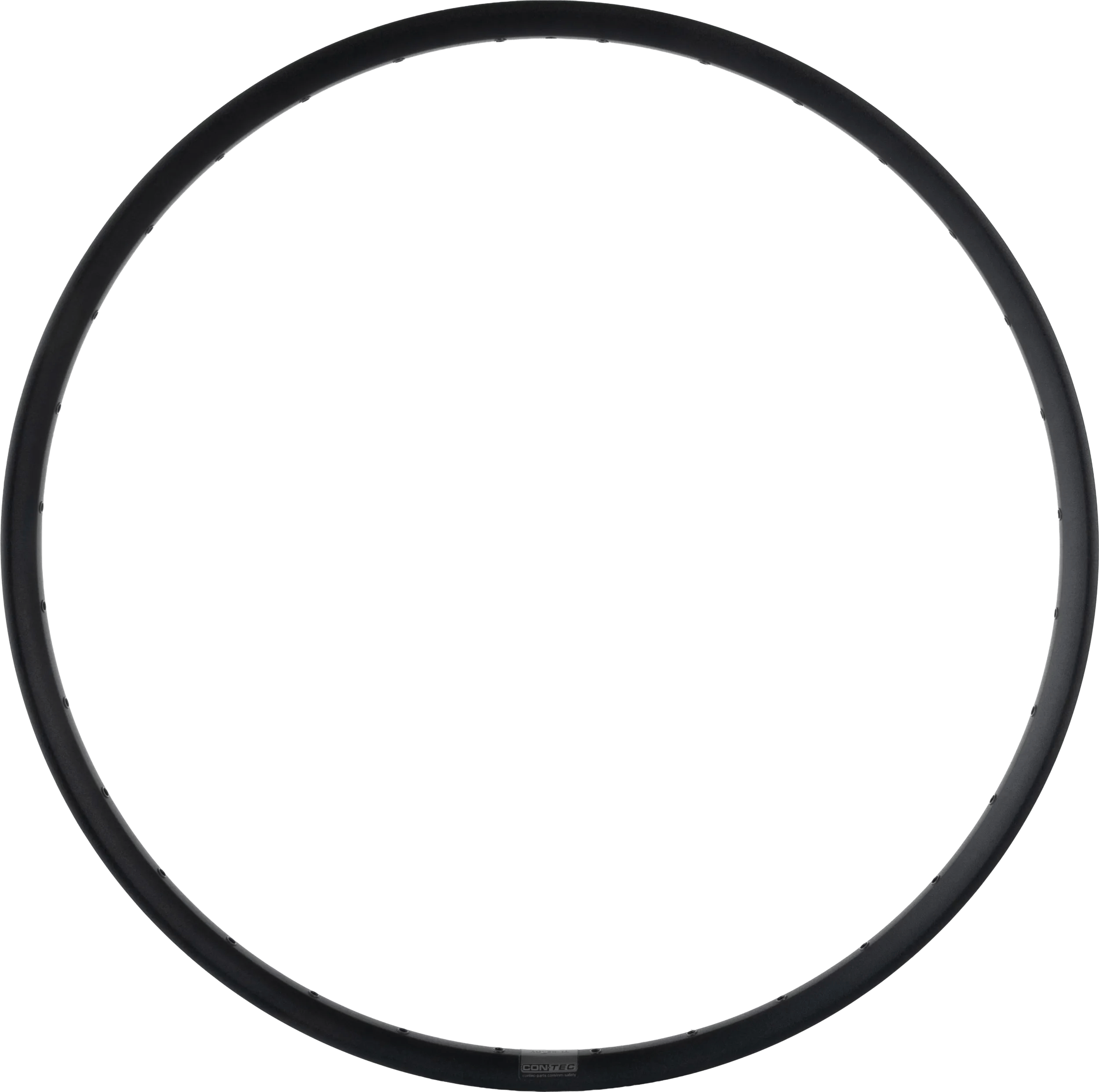

CONTEC Aluminium Rim "Xeta"

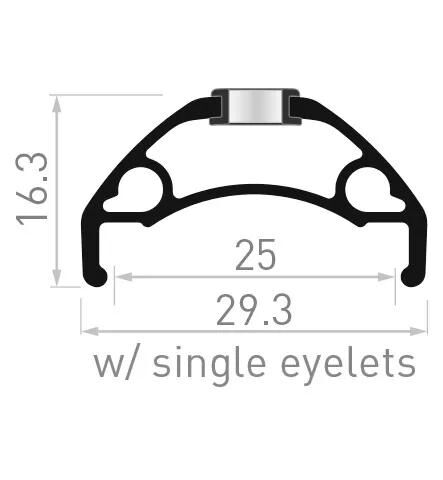

25-584, 570 mm ERD (measured including spoke holes), 16.3 mm high, 25 mm inner width, 29.3 mm outer width, approx. 534 g
- Article number: 03498160
- Original number: 30008497
27.5", 32-hole, tubeless-ready, black
Aluminum, hollow-wall
single-eyelet, SV, max. load up to 150 kg system weight, maximum spoke tension 1200 N, suitable for e-bikes, for Disc Brakes
PU 25
Product information
- Brake compatibility rim disc
- Brake mounting disc - 5-hole , disc - 6-hole , disc - Center Lock , drum brake , roller brake
- Brake track no
- Design doublewall
- E-bike type ready
- ETRTO 25-584
- For wheel yes
- Height 16.0 cm
- Main colour black
- Number of spoke holes 32 holes
- Permissible system weight 150 kg
- Rim height 16.3 mm
- Rim model Xeta
- Spoke Hole easy eyelets
- Tubeless system tubeless ready
- Valve type Sclaverand (SV)
- Variant Article
- Wheel size 27,5 "
- Width 29.3 cm
- Supplier Article Number: 30008497
- EAN 5604315353001
- MSRP: €39.95
- Bidex-Code 204010
- Fedas-Code 160464
- DST-Code 2P02
- SB-Article No
- Brand/Supplier CONTEC
- Unit of measure: PIECE
- Weight 0.515 kg
- product data sheet CONTEC Aluminium Rim Xeta Danish
- product data sheet CONTEC Aluminium Rim Xeta German
- product data sheet CONTEC Aluminium Rim Xeta English
- product data sheet CONTEC Aluminium Rim Xeta Spanish
- product data sheet CONTEC Aluminium Rim Xeta French
- product data sheet CONTEC Aluminium Rim Xeta Italian
- product data sheet CONTEC Aluminium Rim Xeta Dutch

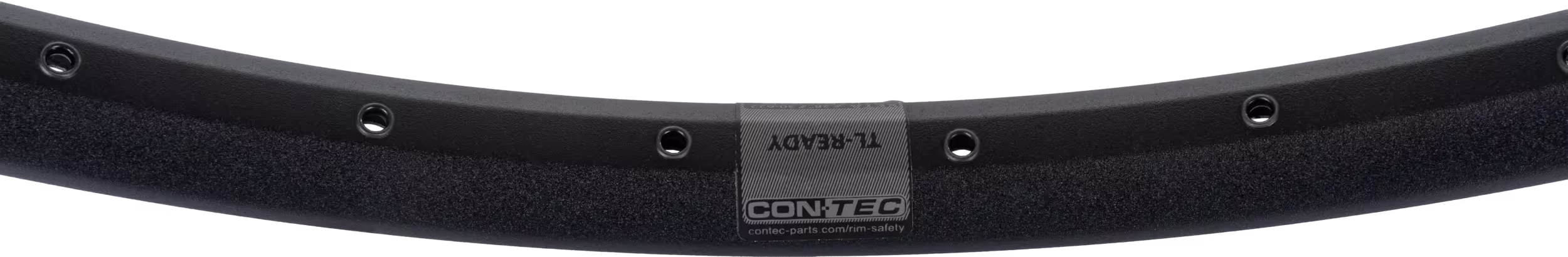

The ideal foundation for building a tubeless-ready wheel for 27.5" (650B) bikes with 32 spokes. Thanks to its hollow-chamber construction, the Xeta Aluminium Rim, made of 6063 aluminum, is particularly lightweight and sturdy. When assembled into a complete wheel, these rims are suitable for a system weight of up to 150 kg. With an inner rim width of 25 mm, tires ranging from 42 to 62 mm in width fit on the rim. The single-eyelet nipple holes ensure additional durability of the aluminium rim by reducing friction between the Spoke Nipples and the rim and also preventing the Nipples from grinding into the rim. The Xeta rim is only suitable for wheels with disc brakes. You can find compatible tubeless Rim Tape in our CONTEC product range.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 25-584, 570 mm ERD (measured including spoke holes), 16.3 mm high, 25 mm inner width, 29.3 mm outer width, approx. 534 g Read more Read less
| PU 25 | |
 27-584, 567 mm ERD (measured including spoke holes), 18 mm high, 27 mm inner width, 31 mm outer width, approx. 543 g Read more Read less
| PU 25 | |
 30-584, 566 mm ERD (measured including spoke holes), 18.15 mm high, 30 mm inner width, 34 mm outer width, approx. 579 g Read more Read less
| PU 25 | |
 35-584, 566 mm ERD (measured including spoke holes), 18.15 mm high, 35 mm inner width, 39 mm outer width, approx. 633 g Read more Read less
| PU 25 |
