CONTEC Aluminium Rim "Exit"

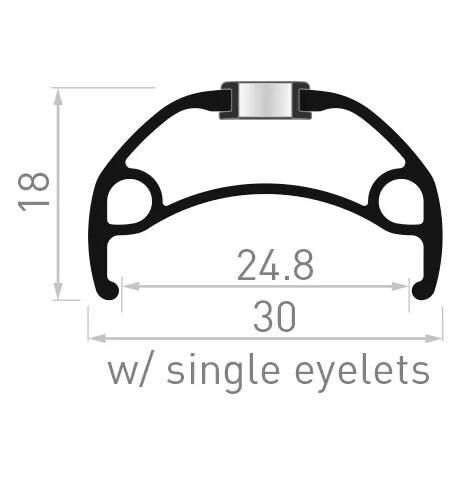

25-584, 568 mm ERD (incl. spoke holes measured), 18 mm high, 24.8 mm inner width, 30 mm outer width, approx. 553 g
- Article number: 03498172
- Original number: BLACKROCK 584X25 32P
27.5", 32 hole, black
aluminum, hollow chamber
single eyelet, SV, max. load up to 150 kg system weight, max. spoke tension 1200Nm, suitable for e-bikes, for Disc Brakes
PU 25
Product information
- Brake compatibility rim disc
- Brake mounting disc - 5-hole , disc - 6-hole , disc - Center Lock , drum brake , roller brake
- Brake track no
- Design doublewall
- ERD 568 mm
- ETRTO 25-584
- Eyelet colour silber
- For wheel yes
- Height 18.0 cm
- Hollow chamber shape symmetrical
- Main colour black
- Number of spoke holes 32 holes
- Permissible system weight 150 kg
- Rim height 18 mm
- Rim model Exit
- Rim outer width 30 mm
- Rim width 25 mm
- Spoke Hole easy eyelets
- Spoke hole diameter für 2,00 mm
- Text wheel configurator suitable for E-bike
- Valve type Sclaverand (SV)
- Variant Article
- Wheel size 27,5 "
- Width 30.0 cm
- maximum spoke tension 1.200 Nm
- Supplier Article Number: BLACKROCK 584X25 32P
- EAN 4251971141162
- MSRP: €39.95
- Bidex-Code 204010
- Fedas-Code 160464
- DST-Code 2P02
- SB-Article No
- Brand/Supplier CONTEC
- Unit of measure: PIECE
- Weight 0.553 kg
| Article | Price | |
|---|---|---|
 25-584, 570 mm ERD (incl. spoke holes measured), 16.3 mm high, 25 mm inner width, 29.3 mm outer width, approx. 534 g Read more Read less
| PU 25 |
A robust rims for building a classic wheel for 27.5" wheels with 32 spokes. Thanks to the hollow chamber design, the 6063 aluminum rims are particularly light and stable. In the finished Wheel, these rims are suitable for a system weight of up to 150 kg. With an inner rim width of 25 mm, tires ranging in size from 42 to 62 mm fit on the rim. The single eyeletted nipple holes ensure additional durability of the rim by reducing the friction between the Spoke Nipple and the rim and also prevent the Nipples from working their way into the rim. The Exit rim is only suitable for wheels with disc brakes.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 21-584, 570 mm ERD (incl. spoke holes measured), 16.2 mm high, 21.2 mm inner width, 26.3 mm outer width, approx. 503 g Read more Read less
| PU 25 | |
 23-584, 571 mm ERD (incl. spoke holes measured), 16.2 mm high, 23.2 mm inner width, 28.3 mm outer width, approx. 532 g Read more Read less
| PU 25 | |
 25-584, 568 mm ERD (incl. spoke holes measured), 18 mm high, 24.8 mm inner width, 30 mm outer width, approx. 553 g Read more Read less
| PU 25 |
