CONTEC Aluminium Rim "Exit"

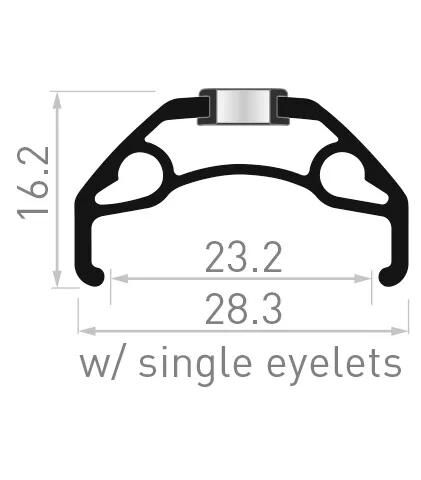

23-584, 571 mm ERD (measured including spoke holes), 16.2 mm high, 23.2 mm inner width, 28.3 mm outer width, approx. 532 g
- Article number: 03498171
- Original number: 30002551
27.5", 32-hole, black
Aluminum, hollow-wall
single-eyelet, SV, max. load up to 150 kg system weight, maximum spoke tension 1200 N, suitable for e-bikes, for Disc Brakes
PU 25
Product information
- Brake compatibility rim disc
- Brake mounting disc - 5-hole , disc - 6-hole , disc - Center Lock , drum brake , roller brake
- Brake track no
- Design doublewall
- E-bike type ready
- ETRTO 23-584
- Effective Rim Diameter 571 mm
- Eyelet color silver
- For wheel yes
- Height 16.0 cm
- Hollow chamber shape symmetrical
- Main colour black
- Number of spoke holes 32 holes
- Permissible system weight 150 kg
- Rim height 16 mm
- Rim inner width 23 mm
- Rim model Exit
- Rim outer width 28 mm
- Spoke Hole easy eyelets
- Spoke hole diameter for 2.00 mm
- Valve type Sclaverand (SV)
- Variant Article
- Wheel size 27,5 "
- Width 28.3 cm
- max. spoke tension 1.200 N
- Supplier Article Number: 30002551
- EAN 4251971141155
- MSRP: €29.95
- Bidex-Code 204010
- Fedas-Code 160464
- DST-Code 2P02
- SB-Article No
- Brand/Supplier CONTEC
- Unit of measure: PIECE
- Weight 0.532 kg
- product data sheet CONTEC Aluminium Rim Exit Danish
- product data sheet CONTEC Aluminium Rim Exit German
- product data sheet CONTEC Aluminium Rim Exit English
- product data sheet CONTEC Aluminium Rim Exit Spanish
- product data sheet CONTEC Aluminium Rim Exit French
- product data sheet CONTEC Aluminium Rim Exit Italian
- product data sheet CONTEC Aluminium Rim Exit Dutch
| Article | Price | |
|---|---|---|
 Successor: 03498171 black matt Read more Read less
| PU 9 |
A sturdy aluminium rim for building a classic fixed-gear wheel for 27.5" wheels with 32 spokes. Thanks to its hollow-chamber construction, this 6063 aluminum rim is particularly lightweight and sturdy. When assembled into a wheel, these rims are suitable for a system weight of up to 150 kg. With an inner rim width of 23 mm, tires ranging from 37 to 62 mm in width fit on the rim. The single-eyelet nipple holes ensure additional durability of the rim by reducing friction between the Spoke Nipples and the rim and also preventing the Nipples from grinding into the rim. The Exit rim is only suitable for wheels with disc brakes.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 21-584, 570 mm ERD (measured including spoke holes), 16.2 mm high, 21.2 mm inner width, 26.3 mm outer width, approx. 503 g Read more Read less
| PU 25 | |
 23-584, 571 mm ERD (measured including spoke holes), 16.2 mm high, 23.2 mm inner width, 28.3 mm outer width, approx. 532 g Read more Read less
| PU 25 | |
 Out of Stock Successor: 03498160 25-584, 568 mm ERD (incl. spoke holes measured), 18 mm high, 24.8 mm inner width, 30 mm outer width, approx. 553 g Read more Read less
| PU 25 |
