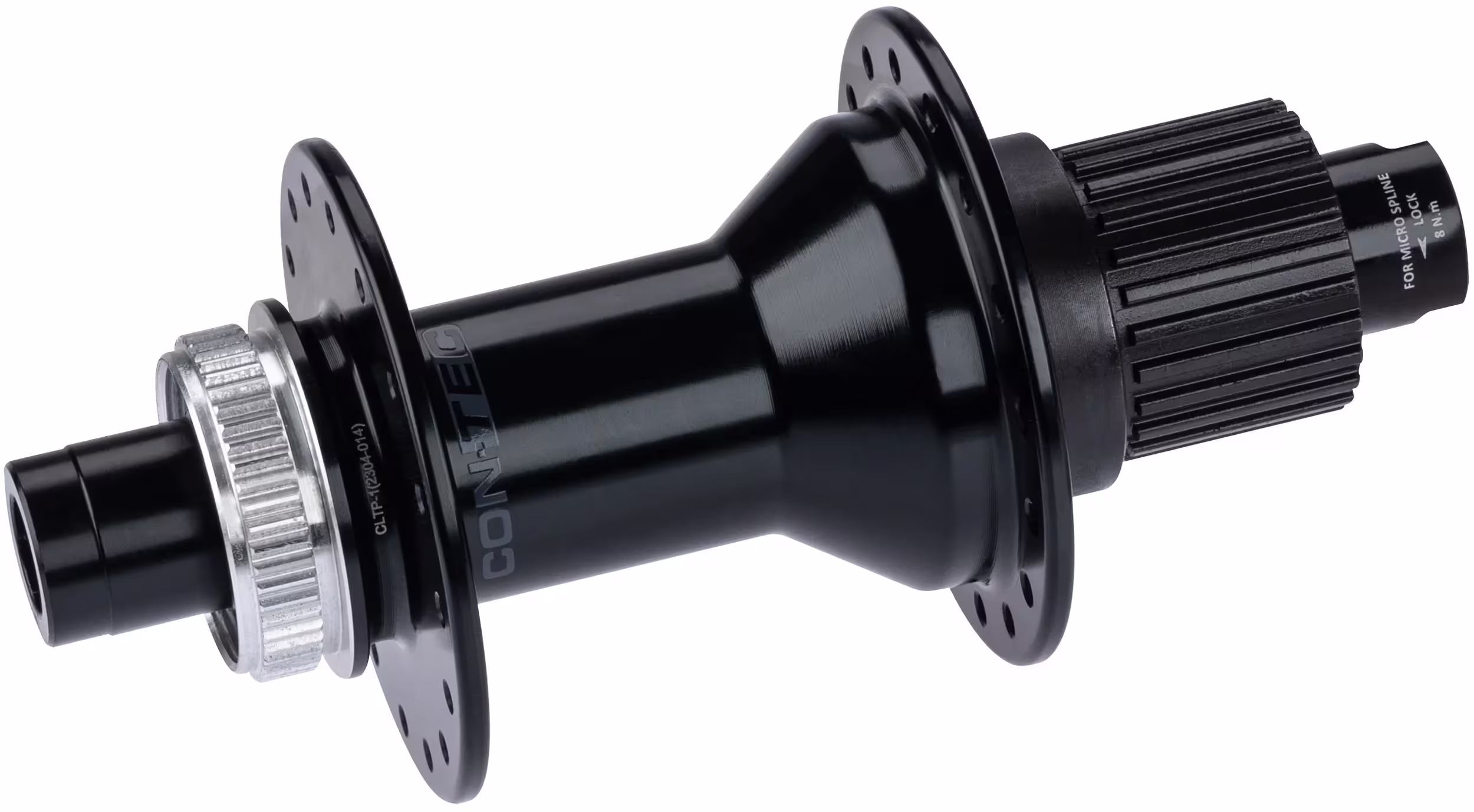

CONTEC Rear Hub "Core CL"
12-speed Shimano Micro Spline, 148 mm mounting width (Boost), approx. 405 g
- Article number: 07476223
- Original number: CL-TP-1 MICROSPLINE
32-hole, Center Lock disc brake mount, for 12 mm Thru Axle, suitable for e-bikes, black
Aluminum hub body, ball bearings, rugged steel Freewheel Body, 27-tooth ratchet freehub system, 3-pawl design
PU 25
Product information
- Axle 12mm full-floating axle
- Bearing type ball bearing
- Brake mounting disc - Center Lock
- Brake track no , yes
- Chainline 44.5 mm
- E-bike type ready
- Flange diameter 68 mm
- For wheel standard
- Freehub system 27
- Freewheel body Micro Spline
- Freewheel body material steel
- Gears 12-speed
- Hub body material Aluminium
- Hub model Core CL
- Installation width 148 mm (Boost)
- Main colour black
- Mounting rear wheel
- Number of pawls 3 pcs.
- Number of spoke holes 32 holes
- Spoke hole diameter for 2.00 and 2.34 mm
- Spoke type J-Bend
- Type cassette
- Variant Article
- Supplier Article Number: CL-TP-1 MICROSPLINE
- EAN 4251971137981
- MSRP: €79.95
- Fedas-Code 160452
- SB-Article No
- Bidex-Code 204030
- DST-Code 2P04
- Brand/Supplier CONTEC
- Unit of measure: PIECE
- Weight 0.405 kg
- product data sheet CONTEC Rear Hub Core CL Danish
- product data sheet CONTEC Rear Hub Core CL German
- product data sheet CONTEC Rear Hub Core CL English
- product data sheet CONTEC Rear Hub Core CL Spanish
- product data sheet CONTEC Rear Hub Core CL French
- product data sheet CONTEC Rear Hub Core CL Italian
- product data sheet CONTEC Rear Hub Core CL Dutch
| Article | Price | |
|---|---|---|
 12-speed Shimano Micro Spline, approx. 196 g Read more Read less
| PU 25 | |

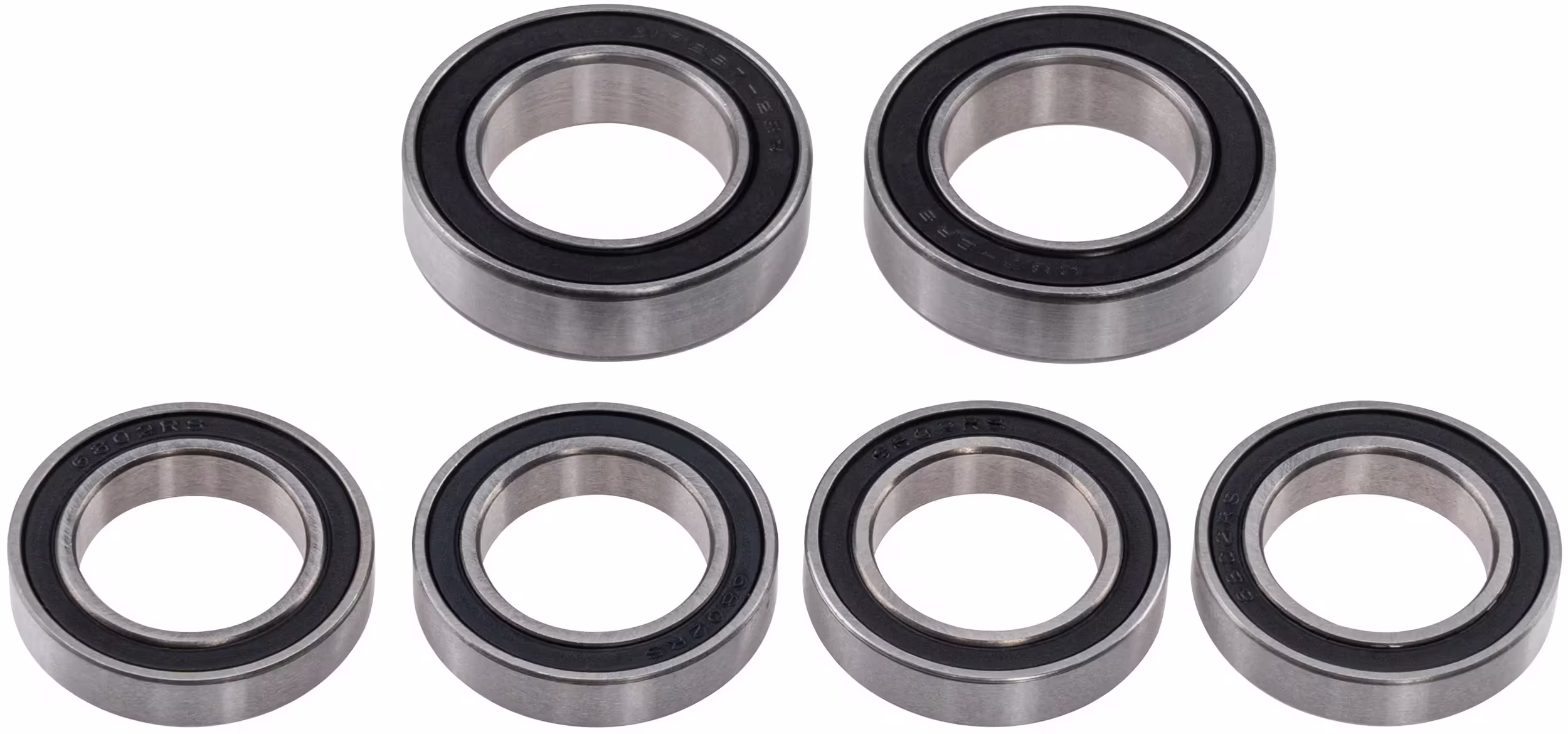

 suitable for "Core CL" rear hubs with Microspline freewheel, Set of 6 industrial bearings (2x 17 x 28 x 7, 4x 15 x 26 x 7L), for 0.747.622/0, 0.747.622/3 Read more Read less
| PU 1 | |
 suitable for Core CL / M.Core CL rear hubs with Microspline Freewheel Body (0.747.622/0, 0.747.622/3, 0.747.620/0) Read more Read less
| PU 1 |
With our Core hubs, you can build a reliable and sturdy Wheel that’s ready for all the challenges of everyday use. Their outstanding quality also makes them ideal for use on e-bikes. Made of aluminum, the Core rear hub features 32 spoke holes, a Center Lock brake rotor mount, a 12 mm Thru Axle, and is designed for a 148 mm (Boost) mounting width. The steel Microspline Freewheel Body is specifically designed for ruggedness and durability, as are the high-quality ball bearings. The ratchet freehub system, with 27 teeth and 3 Pawls, ensures rapid interaction between the freehub and the hub body, so that your pedaling effort is quickly converted into forward motion.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 11-/12-speed SRAM XD, 142 mm mounting width, approx. 357 g Read more Read less
| PU 25 | |
 11-/12-speed SRAM XD, 148 mm mounting width (Boost), approx. 366 g Read more Read less
| PU 25 | |
 12-speed Shimano Micro Spline, 148 mm mounting width (Boost), approx. 405 g Read more Read less
| PU 25 | |
 12-speed Shimano Micro Spline, mounting width 142 mm, approx. 397 g Read more Read less
| PU 25 | |
 8-/9-/10-/11-speed Shimano HG-M, MTB Freewheel Body (34.9 mm), mounting width 142 mm, approx. 373 g Read more Read less
| PU 25 | |
 8-/9-/10-/11-speed Shimano HG-M, MTB Freewheel Body (34.9 mm), mounting width 148 mm (Boost), approx. 381 g Read more Read less
| PU 25 |
