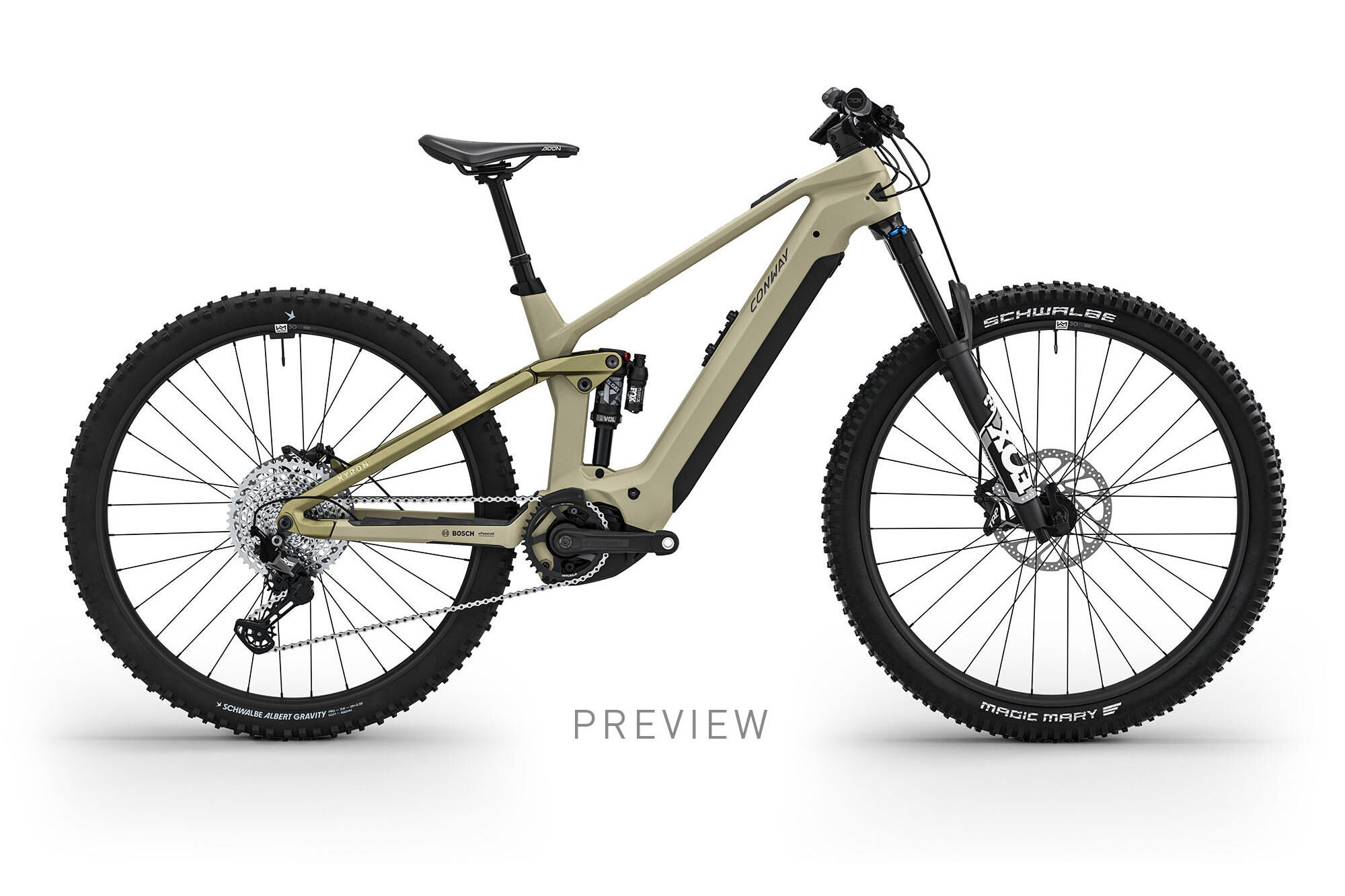

CONWAY Electric MTB full suspension "Xyron ST 8.0" (#1)
full suspension, 29", desert matt / bronze matt, 12-speed SHIMANO "Deore", 44 cm / L
Read more Read less - Article number: 02810434
- Original number: 01025899
Das Fahrrad ist ausgestattet mit einer Federgabel und hat einen Gabelfederweg von 150 mm. Der Rahmen bietet einen Federweg von 150 mm. Der Antrieb erfolgt über eine Kette. Das Fahrrad kommt mit einem 12-Gang SHIMANO "Deore". Die Laufradgröße beträgt 29 ". Das Bremssystem besteht aus einer hydraulischen Scheibenbremse. Das zulässige Gesamtgewicht beträgt 140 kg. Die Akkukapazität liegt bei 800,0 Wh und der Antriebssystem ist BOSCH mit Mittelmotor und einer Motorleistung von 250 W.
Product information
- Battery capacity 800.0 Wh
- Brake system hydraulic disc brake
- Category full suspension
- Category E-bike 3
- Chainstay 452 mm
- Colour designation desert matt / bronze matt
- Drive chain drive
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features electronic sliding aid
- Frame height 44 cm
- Frame shape full suspension
- Frame size L
- Frame travel 150 mm
- Gears 12-speed
- Gender gents
- Main colour beige
- Material 1 carbon
- Reach 485 mm
- Seat angle 77.6 °
- Seat tube 440 mm
- Secondary colour gold
- Shifting name 12-Gang SHIMANO "Deore"
- Shifting type derailleur shifting
- Stack 637 mm
- Steering tube 130 mm
- Steering tube angle 64.5 °
- Stem length 50.0 mm
- Support up to 25km/h
- Toptube 615 mm
- Transmission 1x 12-speed
- Travel 150 mm
- Wheel distance 1269 mm
- Wheel size 29 "
- Battery Lock: ABUS "XPlus", für Bosch PowerTube
- Bottom bracket: BOSCH
- Brake: TEKTRO "SLATE EVO HD-M807"
- Brake lever: TEKTRO "SLATE EVO HD-M807"
- Chain / belt: SHIMANO "Deore CN-M6100"
- Derailleur hanger: SRAM "UDH", for Thru Axle, 1 mm thread pitch
- Display: BOSCH "Kiox 300", 4-stages, remote control, push aid
- Frame: Intube Bosch, Gen. 4, BES3, Carbon, Fullsuspension, 44 cm
- Front rotor: TRP "RS01E", Ø 203 mm, 6-hole, 2.3 mm thickness
- Grips: SQLAB "70X", size S, 135 mm, black
- Rear derailleur: SHIMANO "Deore RD-M6100", long cage
- Rear rotor: TRP "RS01E", Ø 203 mm, 6-hole, 2.3 mm thickness
- Remote: BOSCH "BRC3300", Mini Remote
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Spokes: NEWMEN "Performance 30"
- Stem: LEVELNINE "Team A-Head", 1 1/8", 31,8mm handlebar clamp, 40mm long, black
- System Interface: BOSCH "BRC3100"
- Supplier Article Number: 01025899
- EAN: 4251971167926
- MSRP: €5,999.95
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 24.2 kg
- Explosionszeichnung torque
- Konformitätserklärung IT
- Explosionszeichnung plastic
- Konformitätserklärung NL
- Konformitätserklärung ES
- Bedienungsanleitung
- Explosionszeichnung metal
- Konformitätserklärung EN
- Explosionszeichnung grease
- Konformitätserklärung DK
- Konformitätserklärung DE
- Konformitätserklärung FR
| Article | Price | |
|---|---|---|
 | ||
 suitable for Xyron LT 9.0 / ST 8.0, desert matt / bronze matt Read more Read less
| ||
 suitable for Ryvon (Z18) and all Xyron LT / ST (Z20) Read more Read less
| ||
 | ||
 10-12-14-16-18-21-24-28-33-39-45-51 teeth Read more Read less
| ||
 for Cairon BES3 (Z11 / Z12), Xyron BES3 aluminium and carbon (Z11), Cairon SUV FS BES3 (Z14) and Nyvon (Z17) Read more Read less
| ||
suitable for Xyron (Z20), with Bosch Performance CX 2 bolts Read more Read less
| ||
 Plastic with rubber rim, suitable for all Xyron LT / ST (Z20) Read more Read less
| ||
 suitable for eWME (Z10), Ryvon (Z18), matching thru axle 0.281.502/5 and Nyvon (Z17), matching thru axle 0.747.383/0 Read more Read less
| ||
 black, fits Conway eWME from 2021 and Victoria eParcour, among others Read more Read less
| ||
| ||
 | ||
 suitable for all Bosch chargers Read more Read less
| ||
only suitable for Xyron Alu ST 4.0 + 5.0 with 1.5 mm thread pitch (Z20), for rear triangle Read more Read less
| ||
suitable for Xyron LT / ST (Z20) Read more Read less
| ||
Lower part, suitable for Conway Xyron Carbon LT / ST (Z20) Read more Read less
| ||
 UDH, suitable for eWME (Z10), Nyvon (Z17), Ryvon (Z18) and Xyron ST / LT (Z20)(equivalent substitute: 0.347.028/3) Read more Read less
| ||
 | ||
 | ||
 | ||
 regular, (LxW): 255 x 145mm, 262g Read more Read less
| ||
 for down tube inner side, suitable for Nyvon (Z17) and Ryvon (Z18)(Only two holders are required for Nyvon models) Read more Read less
| ||
 | ||
 for head tube, suitable for Ryvon (Z18) and Xyron LT / ST Carbon (Z20) Read more Read less
| ||
 | ||
 for Frame main bearing, suitable for Xyron aluminum and carbon with BES3 and smart system (Z11), Ryvon (Z18) and all Xyron LT / ST Read more Read less
| ||
suitable for Xyron LT / ST (Z20) Read more Read less
| ||
suitable for all Xyron LT / ST (Z20) Read more Read less
| ||
suitable for Xyron Carbon LT / ST (Z20) Read more Read less
| ||
suitable for all Xyron LT / ST (Z20) Read more Read less
| ||
 Ø 31,6mm, 440mm long, 150mm adjustment range Read more Read less
| ||
 suitable for Ryvon (Z18) and Xyron Carbon LT / ST (Z20) Read more Read less
| ||
 Suitable for the smart system (BES3)Note: only for battery sizes PT600 and PT800 Read more Read less
| ||
 | ||
 for Rocker, suitable for Ryvon (Z18) and Xyron LT / ST (Z20) Read more Read less
| ||
 suitable for all Xyron Carbon, WME (Z7), Ryvon (Z18), M12x1.0, shaft length 30.5 mm Read more Read less
| ||
 | ||
 | ||
 | ||
suitable for Xyron Carbon LT / ST (Z20) Read more Read less
| ||
incl. ball bearings, suitable for Xyron LT 9.0 / ST 8.0, desert matt / bronze matt (Z20) Read more Read less
| ||
 | ||
 for down tube, suitable for Cairon gents, trapeze and wave und Xyron with 500 / 625 Wh PT battery, BES2 (Z6) Read more Read less
| ||
 suitable for eWME (Z10), 180 mm / M12 x P1.0 x 14.5 mm Read more Read less
| ||
Top part, suitable for Conway Xyron Carbon LT / ST (Z20) Read more Read less
| ||
suitable for Xyron Carbon LT / ST, desert matt / bronze matt, Mod. 25 Read more Read less
|
| Article | Price | |
|---|---|---|
 full suspension, 29", desert matt / bronze matt, 12-speed SHIMANO "XT" Blender, 44 cm / L Read more Read less
|
The "Xyron ST 8.0" is the ultimate machine for all trail junkies and adventure seekers. With the powerful Bosch "Performance CX" mid-motor and a battery capacity of a whopping 800 Wh, you are equipped for any challenge. The support up to 25 km/h gives you the boost you need, whether you're climbing or descending. The 29" wheels master even the most demanding trails with ease and ensure a smooth ride.The Shimano "Deore" 12-speed derailleur system enables lightning-fast and smooth gear changes so that you always find the perfect gear ratio. This means more control and speed, whether you're battling uphill or going full throttle downhill. And if things get dicey, the hydraulic Disc Brakes ensure that you always come to a safe stop.With 150 mm fork travel and 150 mm frame travel, the "Xyron ST 8.0" is perfectly equipped for all mountain trails. The electronic Pushing Help is the perfect companion when you need a breather. With a permissible total weight of 140 kg, you are ready for any adventure. Get on and experience the trails like never before!
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 full suspension, 29", carbon raw / graphit grey matt, 12-speed SHIMANO "Deore", 44 cm / L Read more Read less
| ||
 full suspension, 29", carbon raw / graphit grey matt, 12-speed SHIMANO "Deore", 42 cm / M Read more Read less
| ||
 full suspension, 29", desert matt / bronze matt, 12-speed SHIMANO "Deore", 42 cm / M Read more Read less
| ||
 full suspension, 29", desert matt / bronze matt, 12-speed SHIMANO "Deore", 44 cm / L Read more Read less
| ||
 full suspension, 29", carbon raw / graphit grey matt, 12-speed SHIMANO "Deore", 46 cm / XL Read more Read less
| ||
 full suspension, 29", desert matt / bronze matt, 12-speed SHIMANO "Deore", 39 cm / S Read more Read less
| ||
 full suspension, 29", carbon raw / graphit grey matt, 12-speed SHIMANO "Deore", 39 cm / S Read more Read less
| ||
 full suspension, 29", desert matt / bronze matt, 12-speed SHIMANO "Deore", 46 cm / XL Read more Read less
|
