Out of Stock

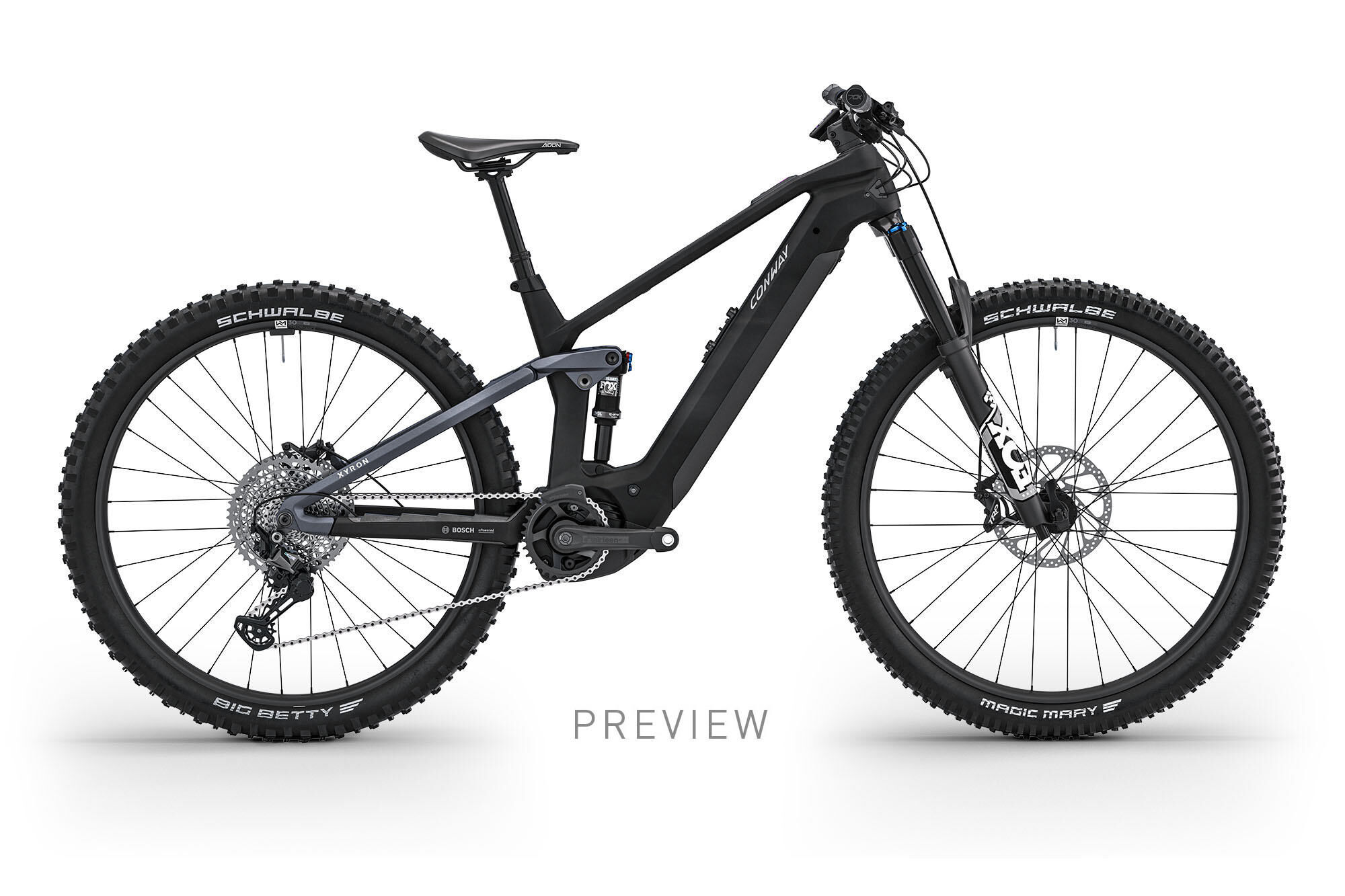

CONWAY Electric MTB full suspension "Xyron ST 8.0" (#2)
full suspension, 29", desert matt / bronze matt, 12-Speed SHIMANO "XT" Mix, 44 cm / L
Read more Read less - Article number: 02810933
- Original number: 01027077
- Motor power: 250 W
- Drive type: mid-drive motor
- Battery capacity: 800.0 Wh
- Transmission type: derailleur
- Drivetrain name: 12-speed SHIMANO "XT" Mix
- Drive: Chain
- Braking system: Hydraulic Disc Brakes
- Fork travel: 150 mm
- Frame travel: 150 mm
- Wheel size: 29"
- Maximum system weight: 140 kg
- Material: Carbon
- Features: Suspension Fork
- Features: Electronic Pushing Help
- Features: Damper
PU 1
Product information
- Battery capacity 800.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Child Seat Approval no
- Colour designation desert matt / bronze matt
- Drive chain
- Drive system BOSCH Performance Line CX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features damper , electronic sliding aid , suspension fork
- Frame height 44 cm
- Frame shape full suspension
- Frame size L
- Frame travel 150 mm
- Gears 12-speed
- Gender gents
- Main colour beige
- Material carbon
- Model range Xyron
- Permissible system weight 140 kg
- Secondary colour brown
- Shifting name 12-Gang SHIMANO "XT" Mix
- Shifting type derailleur shifting
- Support up to 25km/h
- Trailer Approval no
- Transmission 1x 12-speed
- Travel 150 mm
- Type full suspension
- Wheel size 29 "
- Chainstay 452 mm
- Reach 485 mm
- Seat angle 77.6 °
- Seat tube 440 mm
- Stack 637 mm
- Steering tube 130 mm
- Steering tube angle 64.5 °
- Stem length 40.0 mm
- Toptube 615 mm
- Wheel distance 1269 mm
- Battery BOSCH "Powertube 800", Lithium-Ionen mit BMS, HOR w. SOP Pivot
- Bottom bracket BOSCH
- Brake TEKTRO "SLATE EVO HD-M807", 4/4-Kolben
- Brake lever TEKTRO "SLATE EVO HD-M807"
- Chain / belt SHIMANO "Deore"
- Chain ring / pulley E13 "Helix Core e*spec", 34 Z.
- Charger Bosch 4 Ah, BES3
- Crank E13 "Helix Core e*spec", 160 mm
- Damper FOX "Float Rhythm", 2 Pos.
- Derailleur hanger 0347028/3
- Display BOSCH "Kiox 400"
- Engine BOSCH Mittelmotor Gen.5 "Performance CX", 36 V, 250 W
- Fork FOX "36 Performance"
- Frame CONWAY Fully Intube Bosch, Carbon
- Front hub NEWMEN "Basic", 15 x 110 mm
- Front rotor TEKTRO "RS01E", 203 mm
- Front tire SCHWALBE "Albert Trail Pro" 63-622, ultra soft, Radial
- Grips SQLAB "70X"
- Handlebar LEVEL 9 "Race e35.0", Rise 20mm, 780 mm
- Headset ACROS "ZS56-ZS56", Blocklock
- Rear derailleur SHIMANO "Deore XT", 12speed
- Rear hub NEWMEN "Basic", 12 x 148 mm, MS
- Rear rotor TEKTRO "RS01E", 203 mm
- Rear tire SCHWALBE "Albert Trail Pro" 63-622, soft, Radial
- Remote BOSCH "Mini Remote"
- Rims NEWMEN "Performance 30 Base", 30-622
- Saddle SELLE ROYAL "SRX+", 145mm
- Seatpost LIMOTEC "A1", 31,6 mm, 170 mm
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever SHIMANO "Deore XT"
- Spokes SAPIM
- Sprocket / pulley SHIMANO "Deore", 10-51 Z.
- Stem LEVEL 9, "Race e35.0", 40mm
- Supplier Article Number: 01027077
- EAN 4251971177475
- MSRP: €5,499.95
- Fedas-Code 154050
- WEEE registration number DE92509320
- DST-Code 1E01
- SB-Article No
- Bidex-Code 121020
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight 24.2 kg
- product data sheet CONWAY Electric MTB full suspension Xyron ST 8.0 Danish
- product data sheet CONWAY Electric MTB full suspension Xyron ST 8.0 German
- product data sheet CONWAY Electric MTB full suspension Xyron ST 8.0 English
- product data sheet CONWAY Electric MTB full suspension Xyron ST 8.0 Spanish
- product data sheet CONWAY Electric MTB full suspension Xyron ST 8.0 French
- product data sheet CONWAY Electric MTB full suspension Xyron ST 8.0 Italian
- product data sheet CONWAY Electric MTB full suspension Xyron ST 8.0 Dutch
- exploded view grease
- exploded view metal
- exploded view plastic
- exploded view torque
| Article | Price | |
|---|---|---|
 suitable for all Bosch chargers Read more Read less
| PU 1 | |
 | PU 25 | |
 for 1 x 12-speed, max. 51 teeth, SGS Read more Read less
| PU 25 | |
 | PU 50 | |
 black, fits Conway eWME from 2021 and Victoria eParcour, among others Read more Read less
| PU 100 | |
 for Cairon BES3 (Z11 / Z12), Xyron BES3 aluminium and carbon (Z11), Cairon SUV FS BES3 (Z14) and Nyvon (Z17) Read more Read less
| PU 1 | |
 for Frame main bearing, suitable for Xyron aluminum and carbon with BES3 and smart system (Z11), Ryvon (Z18) and all Xyron LT / ST, (Z20), M15x1.0 mm Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 Out of Stock UDH, suitable for eWME (Z10), Nyvon (Z17), Ryvon (Z18) and Xyron ST / LT (Z20)(equivalent substitute: 0.347.028/3) Read more Read less
| PU 1 | |
 suitable for Cairon / Xyron (Z6 and Z11), all Xyron LT / ST (Z20) and Cairon men (CB23AD) Read more Read less
| PU 1 | |
 suitable for eWME (Z10), 180 mm / M12 x P1.0 x 14.5 mm Read more Read less
| PU 1 | |
 suitable for eWME (Z10), Ryvon (Z18), matching thru axle 0.281.502/5 and Nyvon (Z17), matching thru axle 0.747.383/0 Read more Read less
| PU 1 | |
 | PU 36 | |
 | PU 36 | |
 Ø 31.6 mm, 460 mm long, 150 mm adjustment range, maximum insertion depth 233 mm Read more Read less
| PU 10 | |
 for Rocker, suitable for Ryvon (Z18) and Xyron LT / ST (Z20) Read more Read less
| PU 1 | |
 suitable for Ryvon (Z18) and all Xyron LT / ST (Z20) Read more Read less
| PU 1 | |
 for head tube, suitable for Ryvon (Z18) and Xyron LT / ST Carbon (Z20) Read more Read less
| PU 1 | |
 suitable for Ryvon (Z18) and Xyron Carbon LT / ST (Z20) Read more Read less
| PU 1 | |
 for down tube inner side, suitable for Nyvon (Z17), Ryvon (Z18) and Xyron LT / ST (Z20)(Only two brackets are required for Nyvon models) Read more Read less
| PU 1 | |
 Plastic with rubber rim, suitable for all Xyron LT / ST (Z20) Read more Read less
| PU 1 | |
 suitable for Xyron (Z20), with Bosch Performance CX 2 bolts Read more Read less
| PU 1 | |
 suitable for Xyron LT / ST (Z20) Read more Read less
| PU 1 | |
 | PU 1 | |
 Only suitable for Xyron Carbon LT / ST (Z20), incl. Screws M6 x 12 mm Read more Read less
| PU 1 | |
 suitable for all Xyron LT / ST (Z20) Read more Read less
| PU 1 | |
 suitable for all Xyron Carbon, WME (Z7), Ryvon (Z18), M12x1.0, shaft length 30.5 mm Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 Suitable for the smart system (BES3)Note: only for battery sizes PT600 and PT800 Read more Read less
| PU 1 | |
 suitable for Xyron Carbon LT / ST (Z20) Read more Read less
| PU 1 | |
 Top part, suitable for Conway Xyron Carbon LT / ST (Z20) Read more Read less
| PU 1 | |
 Lower part, suitable for Conway Xyron Carbon LT / ST (Z20) Read more Read less
| PU 1 | |
 suitable for Xyron Carbon LT / ST (Z20) Read more Read less
| PU 1 | |
 suitable for Xyron LT / ST (Z20) Read more Read less
| PU 1 | |
 suitable for Xyron LT 9.0 / ST 8.0, desert matt / bronze matt Read more Read less
| PU 1 | |
 incl. ball bearings, suitable for Xyron LT 9.0 / ST 8.0, desert matt / bronze matt (Z20) Read more Read less
| PU 1 | |
 for Xyron ST, black matt, from mod. 2025 (Z20), incl. ball bearings Read more Read less
| PU 1 | |
 | PU 1 |
| Article | Price | |
|---|---|---|
 Out of Stock Successor: 02810933 full suspension, 29", desert matt / bronze matt, 12-speed SHIMANO "Deore", 44 cm / L Read more Read less
| PU 1 |
The "Xyron ST 8.0" is your ticket to uncompromising off-road riding fun. With 150 mm of suspension travel front and rear, 29" wheels, and a carbon frame that’s both lightweight and extremely durable, you’re ready for whatever the trail throws at you.The Bosch mid-drive motor with an 800-Wh battery gives you the power you need to tackle long rides and conquer steep climbs. The Shimano “XT” 12-speed drivetrain ensures precise performance, while the hydraulic disc brakes provide reliable control.The geometry puts you in an active, centered position on the bike—perfect for technical sections. The handling is direct and agile. The tool mount under the top tube and the hidden kickstand mount on the rear triangle make the bike incredibly practical for everyday use, too.
