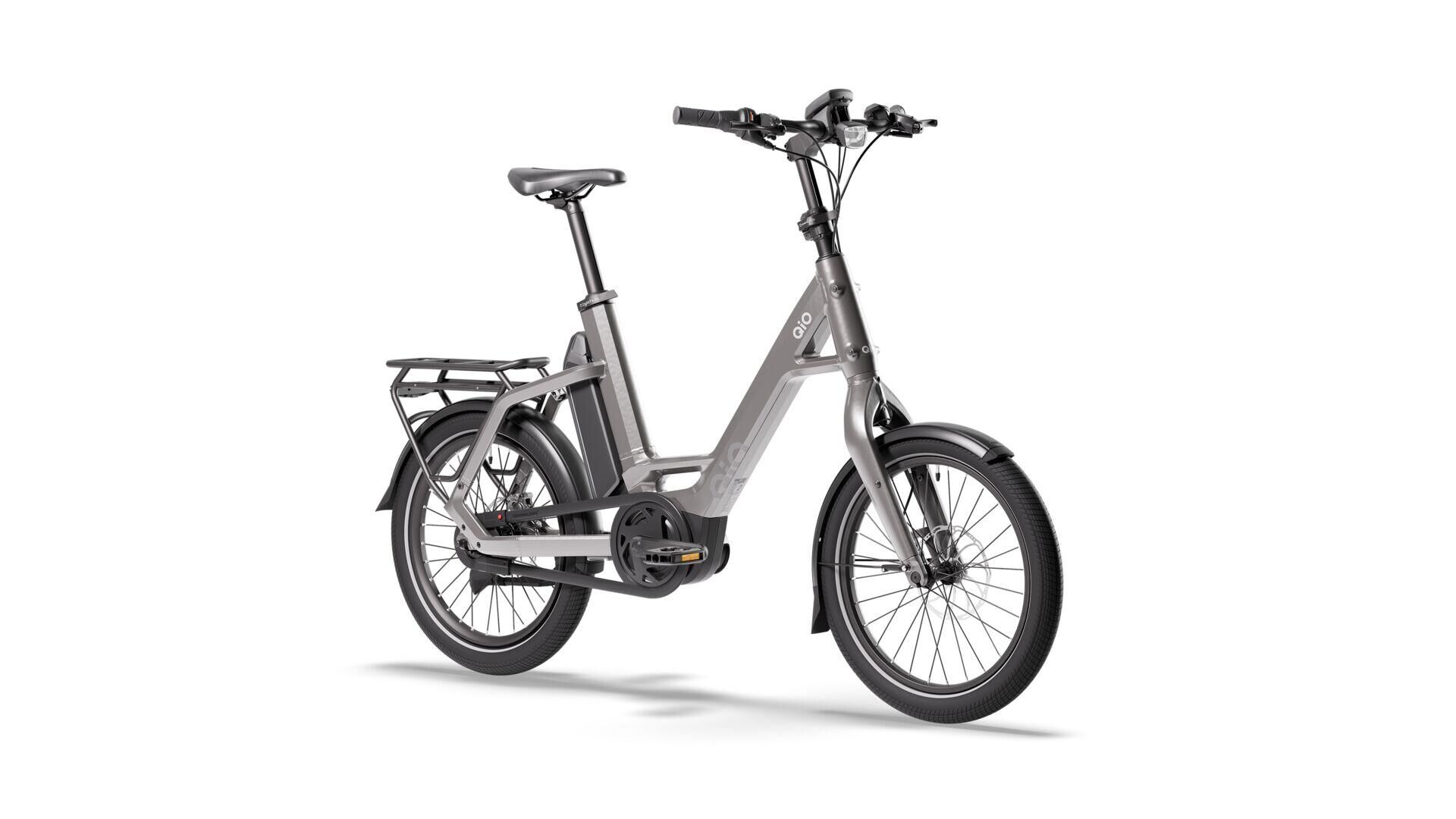

QiO Electric compact bike "Compact AP-8" (#1)
unisex, 20", lead metal, 8-speed SHIMANO "Nexus" coaster, 48 cm
Read more Read less - Article number: 02652211
The electric compact bike is equipped with a BOSCH Active Line Plus mid-motor, which offers a motor power of 250 W. The integrated Battery has a capacity of 545 Wh. The electric compact bike is equipped with hub gears for gear selection. The chain drive transmits the power to the wheels. It is equipped with electronic Pushing Help, a system luggage carrier, a chain guard and Fenders. The frame is made of aluminum and has a low entry. The wheel size is 20 inches. The permissible system weight is 180 kg.
PU 1
Product information
- Battery capacity 545.0 Wh
- Bosch Smart System yes
- Brake system coaster brake , hydraulic disc brake
- Colour designation lead metal
- Drive chain
- Drive system BOSCH Active Line Plus
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , deep entry , electronic sliding aid , fender , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears 8-speed
- Gender unisex
- Main colour grey
- Material 1 aluminium
- Model range Compact
- Permissible system weight 180 kg
- Shifting name 8-Gang SHIMANO "Nexus" Rücktritt
- Shifting type internal gear shifting
- Support up to 25km/h
- Type compact bike
- Wheel size 20 "
- Battery BOSCH "PowerPack 545", 545 Wh
- Battery Lock ABUS Battery Lock
- Bottom bracket BOSCH
- Brake lever TRP HD-EU817
- Chain / belt KMC "e1 EPT"
- Chain guard hebie "Chainglider", front 44 teeth, rear 16-18 teeth
- Chain ring / pulley STRONGLIGHT, 44 teeth
- Charger BOSCH 2 A
- Crank Stronglight "Magan 3B", 170 mm
- Derailleur hanger QIO Slider Dropout
- Display BOSCH "Purion 200" Display, 4-stage, Remote Control, Pushing Help
- Engine BOSCH "Active Line Plus", max. 50 Nm
- Fender SKS "A 69 R"
- Fork Aluminum, tapered 1 1/4" - 1.5"
- Frame QIO Compact, Bosch Gen. 3, BES3, aluminum, 48 cm
- Front brake TRP "C1.8 HD-EU817", Post Mount
- Front hub SHIMANO "HB-QC400", Center Lock, QR
- Front light CONTEC "DLUX 50 E+", 50 lux
- Front rotor TRP "TR-25", Ø 180 mm, Centerlock
- Front tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Grips HERRMANS "Clik Original DD37"
- Handlebar ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
- Headset TOKEN "TK255E-HJ04", IS52/40 / IS52/44
- Pedals UNION "SP-153" Faltpedal
- Rear brake TRP "C1.8 HD-EU817"
- Rear carrier "MIK HD 2.0" for MIK Side
- Rear hub SHIMANO "Nexus SG-C6061-8CD", 8-speed, 5-hole
- Rear light CONTEC "TL-335 E-Stop", stop light
- Rear rotor TEKTRO "TR160-47", Ø 160 mm, 5-hole
- Rear tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Rims SCHÜRMANN "YAK DISC 25", 25-406, 36 holes, disc brake, black
- Saddle Selle Royal "On", Moderate Wide
- Seatpost by,schulz "R.3 P-QR", Ø 34.9 mm, 400 mm long, 25 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever SHIMANO "Nexus, SL-C6000-8"
- Spokes 2mm, schwarz
- Sprocket / pulley SHIMANO "SM-GEAR", 16 teeth
- Stands URSUS "R78 - King Mini"
- Stem BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black
- EAN 4251971178755
- MSRP: €3,299.00
- Fedas-Code 159021
- DST-Code 1A01
- WEEE registration number DE92509320
- SB-Article No
- Bidex-Code 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight 26.5 kg
| Article | Price | |
|---|---|---|
 | PU 10 | |
 | PU 25 | |
 Scarves: blackCover: dark gray Read more Read less
| PU 1 | |
 | PU 10 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 10 | |
 | PU 10 | |
 | PU 10 | |
 | PU 10 | |
 | PU 10 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 5 | |
 | PU 5 | |
 | PU 3 | |
 | PU 10 | |
 | PU 1 | |
 | PU 4 | |
 | PU 12 | |
 | PU 4 | |
| PU 12 | |
 | PU 4 | |
"Folding Lock Duo", black, incl. one short and one long XPlus Lock Cylinder Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 |
The "Compact AP-8" from QiO is the ideal entry-level model for anyone who wants to combine compact mobility with style and function. With 20" wheels and a sturdy aluminum frame, it offers you maneuverability and a compact size for urban life.The Bosch mid-motor with Smart System provides reliable support up to 25 km/h. The 8-speed Shimano "Nexus" hub gears ensure simple, precise gear changes, while the chain drive gives you a direct riding experience. Hydraulic Disc Brakes bring you safely to a stop - even in wet conditions.With a 545 Wh battery capacity, Fenders, Rear Light with brake light and a permissible total weight of 180 kg, the "Compact AP-8" is a well thought-out compact bike for anyone who wants a compact e-bike with easy handling.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|

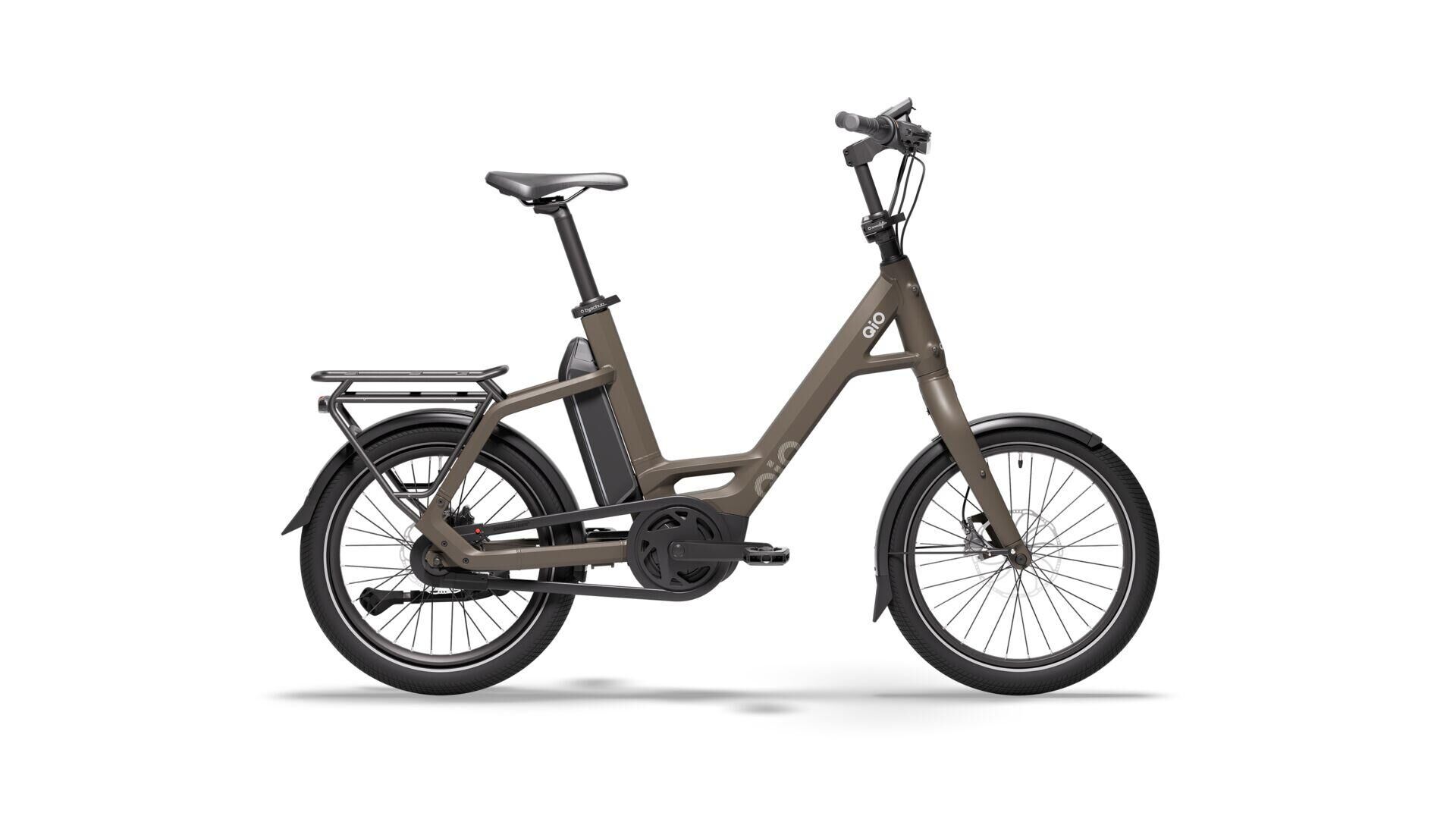

 unisex, 20", dark olive matt, 8-speed SHIMANO "Nexus" coaster, 48 cm Read more Read less
| PU 1 | |
 unisex, 20", dark olive matt, 8-speed SHIMANO "Nexus" neutral gear, 48 cm Read more Read less
| PU 1 | |
 unisex, 20", forest green, 8-speed SHIMANO "Nexus" coaster, 48 cm Read more Read less
| PU 1 | |
 unisex, 20", forest green, 8-speed SHIMANO "Nexus" neutral gear, 48 cm Read more Read less
| PU 1 | |

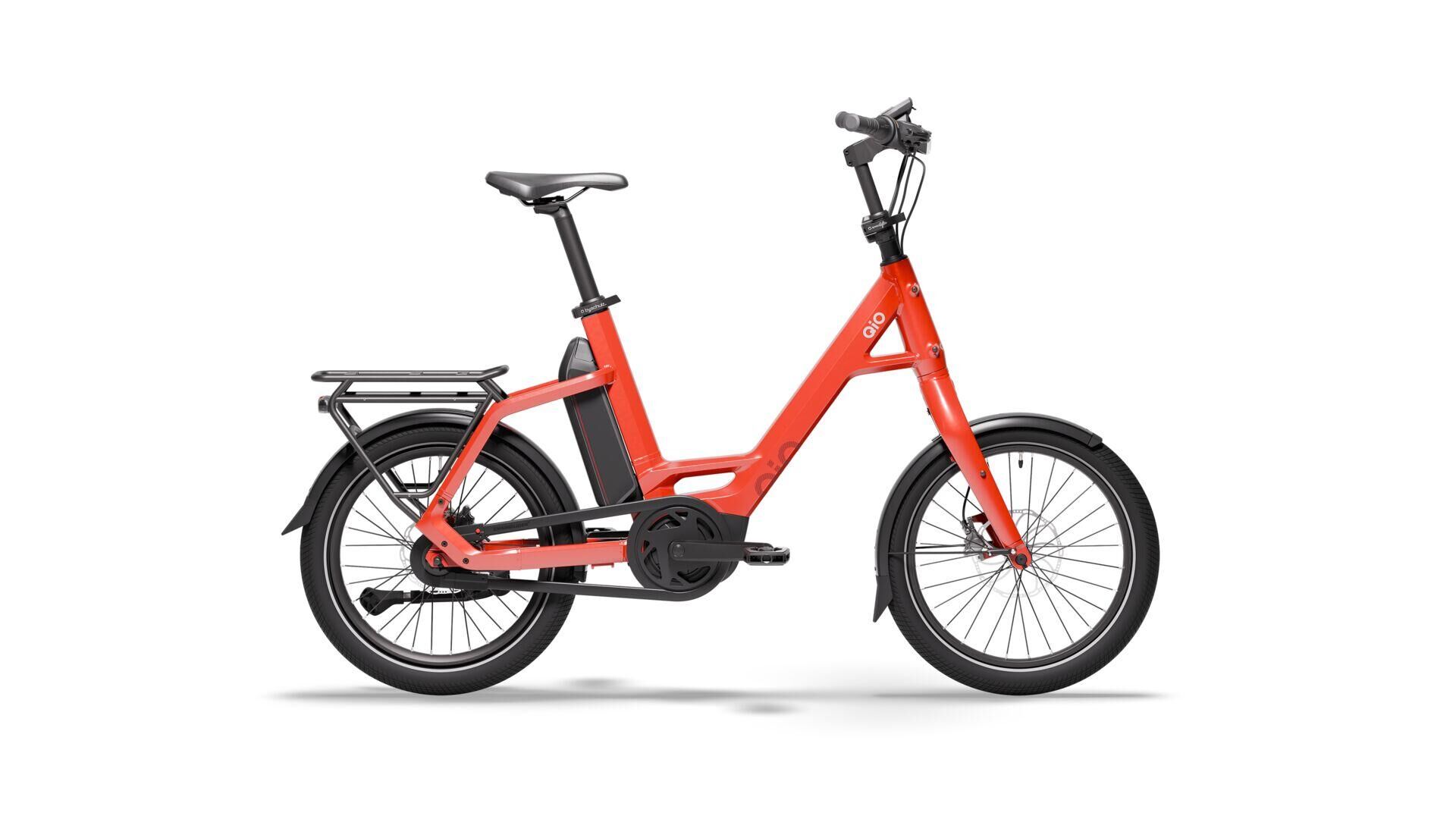

 unisex, 20", imola red, 8-speed SHIMANO "Nexus" coaster, 48 cm Read more Read less
| PU 1 | |
 unisex, 20", imola red, 8-speed SHIMANO "Nexus" neutral gear, 48 cm Read more Read less
| PU 1 | |
 unisex, 20", lead metal, 8-speed SHIMANO "Nexus" coaster, 48 cm Read more Read less
| PU 1 | |
 unisex, 20", lead metal, 8-speed SHIMANO "Nexus" neutral gear, 48 cm Read more Read less
| PU 1 | |
 unisex, 20", lunar white matt, 8-speed SHIMANO "Nexus" coaster, 48 cm Read more Read less
| PU 1 | |
 unisex, 20", lunar white matt, 8-speed SHIMANO "Nexus" neutral gear, 48 cm Read more Read less
| PU 1 | |

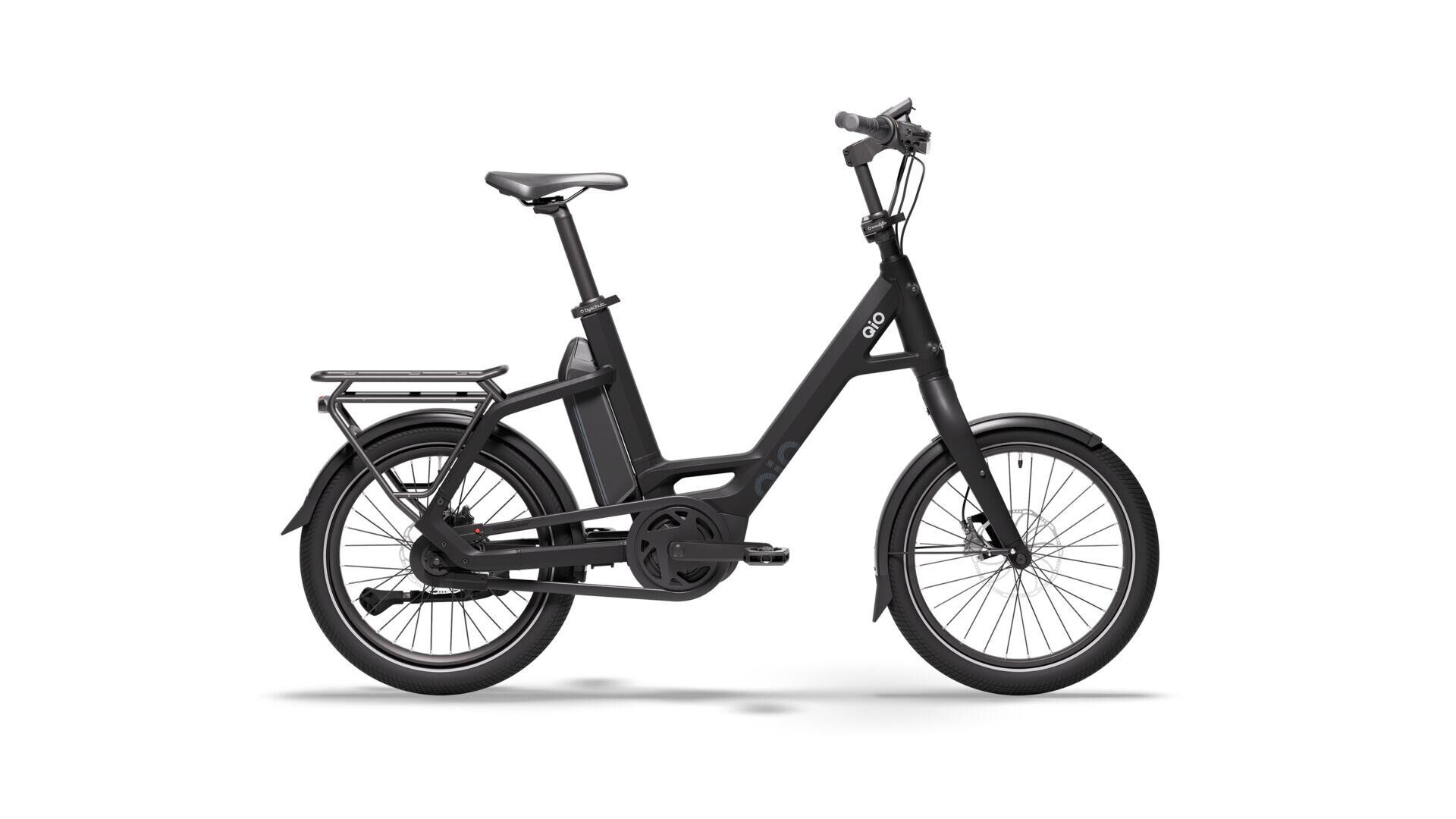

 unisex, 20", night black matt, 8-speed SHIMANO "Nexus" coaster, 48 cm Read more Read less
| PU 1 | |
 unisex, 20", night black matt, 8-speed SHIMANO "Nexus" neutral gear, 48 cm Read more Read less
| PU 1 | |

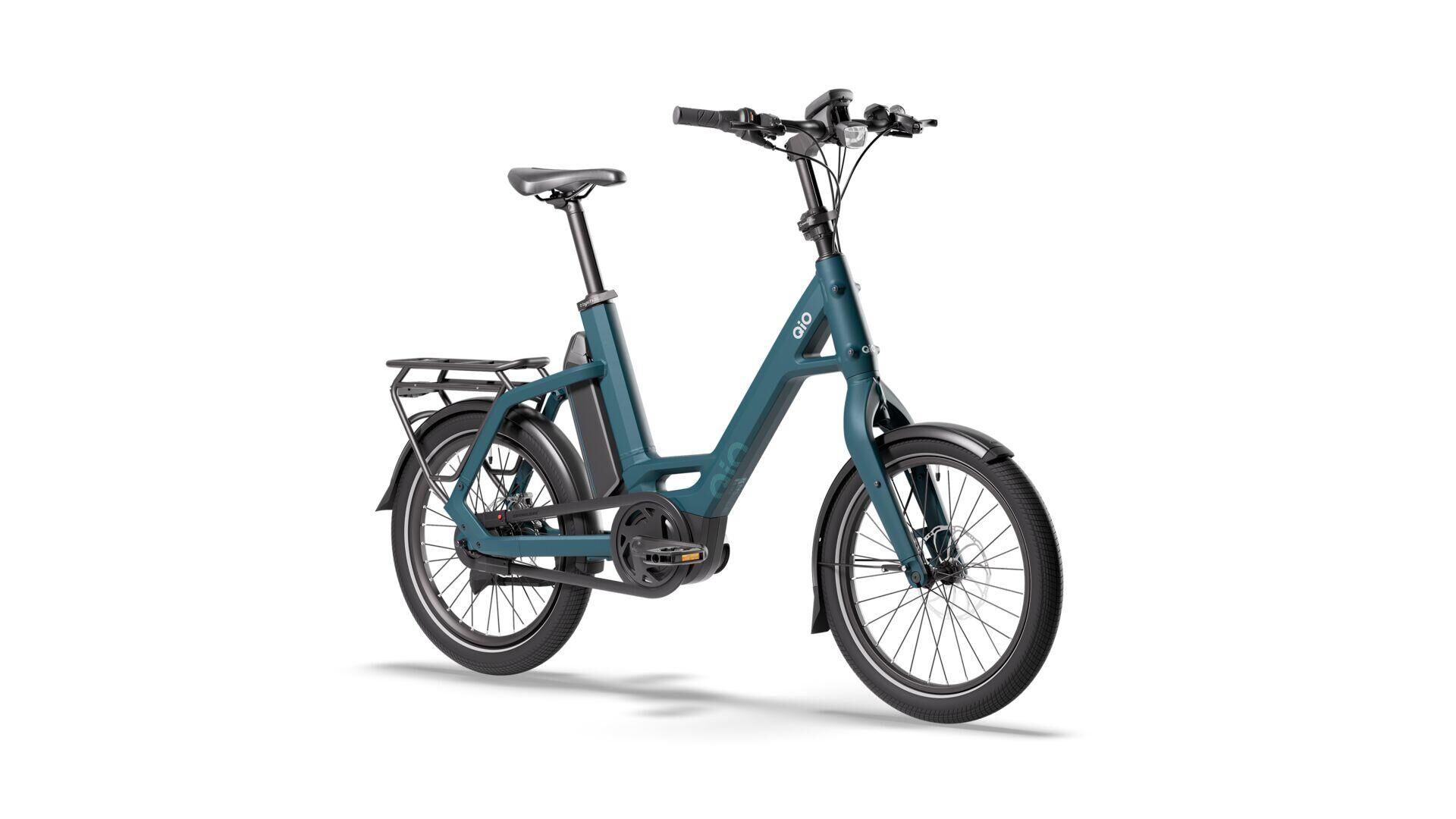

 unisex, 20", petrol blue matt, 8-speed SHIMANO "Nexus" coaster, 48 cm Read more Read less
| PU 1 | |
 unisex, 20", petrol blue matt, 8-speed SHIMANO "Nexus" idle gear, 48 cm Read more Read less
| PU 1 | |

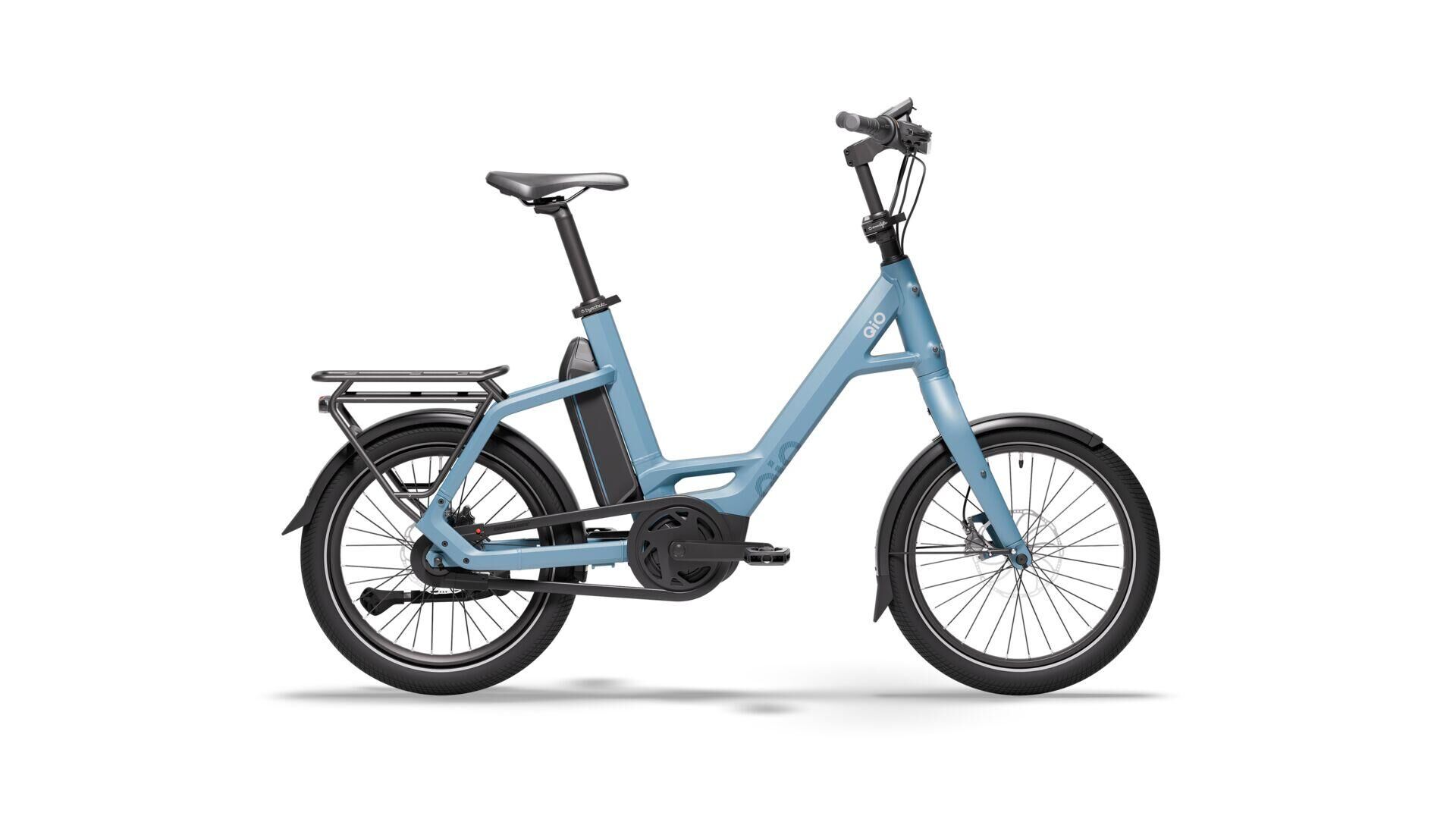

 unisex, 20", retro blue matt, 8-speed SHIMANO "Nexus" coaster, 48 cm Read more Read less
