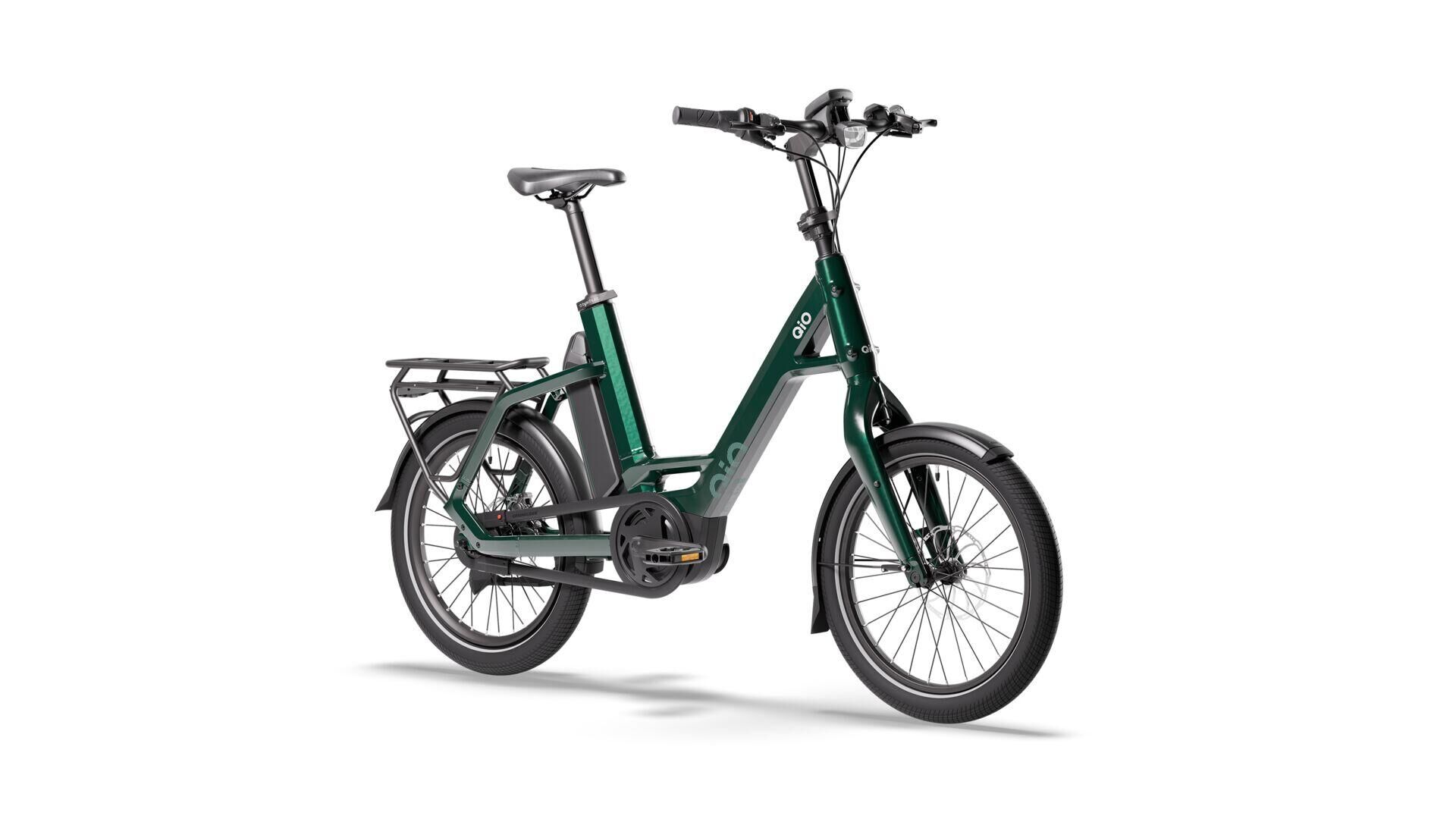

QiO Electric compact bike "Compact AP-8" (#1)
unisex, 20", forest green, 8-speed SHIMANO "Nexus" coaster, 48 cm
Read more Read less - Article number: 02652214
- Electric compact bike with a 250 W mid-drive motor and a 545.0 Wh battery capacity.
- Hub gears and chain drive.
- 20" wheels.
- Electronic Pushing Help, integrated luggage rack, Chain Guard, Fenders, low step-through frame.
- Aluminum frame.
- Maximum system weight: 180 kg.
PU 1
Product information
- Battery capacity 545.0 Wh
- Bosch Smart System yes
- Brake system coaster brake , hydraulic disc brake
- Colour designation forest green
- Drive chain
- Drive system BOSCH Active Line Plus
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , deep entry , electronic sliding aid , fender , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears 8-speed
- Gender unisex
- Main colour green
- Material 1 aluminium
- Model range Compact
- Permissible system weight 180 kg
- Shifting name 8-Gang SHIMANO "Nexus" Rücktritt
- Shifting type internal gear shifting
- Support up to 25km/h
- Type compact bike
- Wheel size 20 "
- Access height 182 mm
- Chainstay 451 mm
- Length 1685 mm
- Passage width 190 mm
- Reach 408 mm
- Seat angle 70.5 °
- Seat tube 48 mm
- Stack 541 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Stem length 70.0 mm
- Toptube 576 mm
- Wheel distance 1108 mm
- Battery BOSCH "PowerPack 545", 545 Wh
- Battery Lock ABUS Battery Lock
- Bottom bracket BOSCH
- Brake lever TRP HD-EU817
- Chain / belt KMC "e1 EPT"
- Chain guard hebie "Chainglider", front 44 teeth, rear 16-18 teeth
- Chain ring / pulley STRONGLIGHT, 44 teeth
- Charger BOSCH 2 A
- Crank Stronglight "Magan 3B", 170 mm
- Derailleur hanger QIO Slider Dropout
- Display BOSCH "Purion 200" Display, 4-stage, Remote Control, Pushing Help
- Engine BOSCH "Active Line Plus", max. 50 Nm
- Fender SKS "A 69 R"
- Fork Aluminum, tapered 1 1/4" - 1.5"
- Frame QIO Compact, Bosch Gen. 3, BES3, aluminum, 48 cm
- Front brake TRP "C1.8 HD-EU817", Post Mount
- Front hub SHIMANO "HB-QC400", Center Lock, QR
- Front light CONTEC "DLUX 50 E+", 50 lux
- Front rotor TRP "TR-25", Ø 180 mm, Centerlock
- Front tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Grips HERRMANS "Clik Original DD37"
- Handlebar ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
- Headset TOKEN "TK255E-HJ04", IS52/40 / IS52/44
- Pedals UNION "SP-153" Faltpedal
- Rear brake TRP "C1.8 HD-EU817"
- Rear carrier "MIK HD 2.0" for MIK Side
- Rear hub SHIMANO "Nexus SG-C6061-8CD", 8-speed, 5-hole
- Rear light CONTEC "TL-335 E-Stop", stop light
- Rear rotor TEKTRO "TR160-47", Ø 160 mm, 5-hole
- Rear tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Rims SCHÜRMANN "YAK DISC 25", 25-406, 36 holes, disc brake, black
- Saddle Selle Royal "On", Moderate Wide
- Seatpost by,schulz "R.3 P-QR", Ø 34.9 mm, 400 mm long, 25 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever SHIMANO "Nexus, SL-C6000-8"
- Spokes 2mm, schwarz
- Sprocket / pulley SHIMANO "SM-GEAR", 16 teeth
- Stands URSUS "R78 - King Mini"
- Stem BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black
- EAN 4251971178786
- MSRP: €3,299.00
- Fedas-Code 159021
- DST-Code 1A01
- WEEE registration number DE92509320
- SB-Article No
- Bidex-Code 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight 26.5 kg
- product data sheet QiO Electric compact bike Compact AP-8 DA
- product data sheet QiO Electric compact bike Compact AP-8 DE
- product data sheet QiO Electric compact bike Compact AP-8 EN
- product data sheet QiO Electric compact bike Compact AP-8 ES
- product data sheet QiO Electric compact bike Compact AP-8 FR
- product data sheet QiO Electric compact bike Compact AP-8 IT
- product data sheet QiO Electric compact bike Compact AP-8 NL
| Article | Price | |
|---|---|---|
 | PU 10 | |
 | PU 10 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 3 | |
 | PU 10 | |
 | PU 1 | |
 | PU 4 | |
 | PU 1 | |
 | PU 4 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 |
The "Compact AP-8" from QiO is the ideal entry-level model for anyone who wants to combine compact mobility with style and functionality. With 20" wheels and a sturdy aluminum frame, it offers you maneuverability and a compact size perfect for urban living.The Bosch mid-drive motor with Smart System provides reliable assistance up to 25 km/h. The 8-speed Shimano “Nexus” hub gear system ensures smooth, precise shifting, while the chain drive delivers a direct riding feel. Hydraulic disc brakes bring you to a safe stop—even in wet conditions.With a 545 Wh battery capacity, Fenders, A Rear Light with Brake Light, and a maximum weight capacity of 180 kg, the “Compact AP-8” is a well-designed compact bike for anyone looking for a compact e-bike that’s easy to handle.
