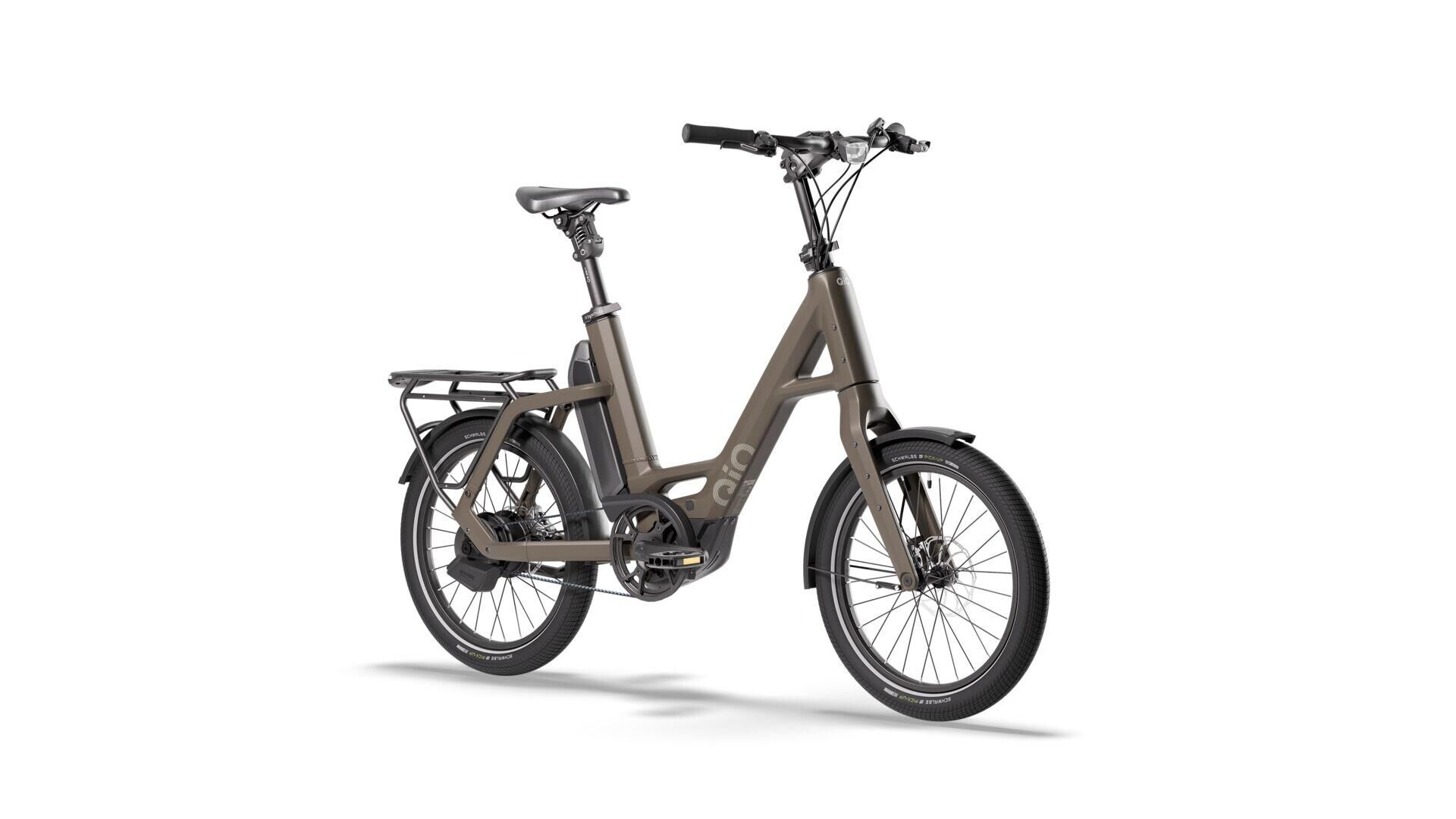

QiO Electric compact bike "Compact PXA+" (#1)
unisex, 20", dark olive matt, Enviolo TR Automatiq, 48 cm
Read more Read less - Article number: 02652155
BEC Showroom
This item is available in 8 variants. All in Accessories - Electric compact bike with a 250 W mid-drive motor and an 800.0 Wh battery capacity.
- Enviolo TR Automatiq hub gear system and belt drive.
- Hydraulic Disc Brakes.
- 20-inch wheels.
- Fenders, integrated rack, Pushing Help, Chain Guard.
- Aluminum.
- Maximum system weight: 180 kg.
PU 1
Product information
- Battery capacity 800.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Colour designation dark olive matt
- Drive belt
- Drive system BOSCH Performance Line PX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , electronic sliding aid , fender , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears stepless
- Gender unisex
- Main colour green
- Material 1 aluminium
- Model range Compact
- Permissible system weight 180 kg
- Shifting name Enviolo TR Automatiq
- Shifting type internal gear shifting
- Support up to 25km/h
- Type compact bike
- Wheel size 20 "
- Access height 450 mm
- Chainstay 451 mm
- Length 1685 mm
- Passage width 190 mm
- Reach 408 mm
- Seat angle 71.0 °
- Seat tube 480 mm
- Stack 541 mm
- Standover height 450 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Toptube 576 mm
- Wheel distance 1108 mm
- Battery BOSCH "Active Line Plus", max. 50 Nm
- Battery Lock ABUS "XPlus"
- Bottom bracket BOSCH
- Chain / belt GATES "CDX"
- Chain guard SKS "Chainblade"
- Chain ring / pulley Gates "CDX Fin Line", 55 teeth, belt line 50 mm
- Charger BOSCH 4 A
- Crank PROWHEEL "EB03", 170 mm
- Derailleur hanger Slider dropout, suitable for PE, PXA+
- Display BOSCH "Kiox 500", 4-stages, Remote Control, push-aid
- Engine BOSCH "Performance Line PX", max. 85 Nm
- Fender SKS "A 69 R"
- Fork Aluminum, tapered 1 1/4" - 1.5"
- Frame QIO Compact, Bosch Gen. 4, BES3, aluminum, 48 cm
- Front brake MAGURA "LOUISE"
- Front hub SHIMANO "HB-TC500", 12 x 100 mm, Center Lock, Steckachse
- Front light Busch + Müller "Briq-S E", 60 lux
- Front rotor MAGURA "MDR-C", Ø 180 mm
- Front tire SCHWALBE "Pick-up", 60-406, Reflex
- Grips HERRMANS "Nucore Town", wave
- Handlebar ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
- Headset ACROS ZS66/31.75 OD74 / ZS66/46/OD72, blocklock
- Pedals MARWI "SP-157 HD" Faltpedale
- Rear brake MAGURA "LOUISE"
- Rear carrier "MIK HD 2.0" for MIK Side
- Rear hub ENVIOLO "TR", stepless, 6-hole
- Rear light Busch + Müller "Dart E Brex "
- Rear rotor MAGURA "MDR-C", Ø 180 mm
- Rear tire SCHWALBE "Pick-up", 60-406, Reflex
- Rims DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
- Saddle Selle Royal "On", Moderate Wide
- Seatpost by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Spokes 2,0 mm, Niro, schwarz
- Sprocket / pulley Gates "CDX Fin Line", 22 teeth
- Stands URSUS "Invisible Mount", 20"
- Stem ergotec "SWELL-RE", 80 mm long, adjustable, level 6
- EAN 4251971178311
- MSRP: €5,299.00
- Fedas-Code 159021
- DST-Code 1A01
- WEEE registration number DE92509320
- SB-Article No
- Bidex-Code 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight 29.4 kg
- product data sheet QiO Electric compact bike Compact PXA+ DA
- product data sheet QiO Electric compact bike Compact PXA+ DE
- product data sheet QiO Electric compact bike Compact PXA+ EN
- product data sheet QiO Electric compact bike Compact PXA+ ES
- product data sheet QiO Electric compact bike Compact PXA+ FR
- product data sheet QiO Electric compact bike Compact PXA+ IT
- product data sheet QiO Electric compact bike Compact PXA+ NL
| Article | Price | |
|---|---|---|
 | PU 10 | |
 | PU 10 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 3 | |
 | PU 10 | |
 | PU 1 | |
 | PU 4 | |
 | PU 1 | |
 | PU 4 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 |
Want to move around freely without compromising on comfort and style? The "Compact PXA+" from QiO makes exactly that possible. With the Bosch mid-drive motor and Smart System, you can ride effortlessly up to 25 km/h—supported by a quiet, low-maintenance belt drive. A special highlight of this compact e-bike is the continuously variable Enviolo “Automatiq” hub gear system. It shifts automatically and adapts entirely on its own to your speed and riding style, ensuring a particularly relaxed riding experience.With a capacity of 800 Wh, the battery reliably powers you through everyday life and on tours. So you can even enjoy an extra lap after work. The sturdy aluminum frame, with its 20" wheels and hydraulic disc brakes, offers you safety and control—in any weather. Fenders are already built in.The “+” in the name stands for a maximum Fahrer weight of 150 kg—ideal for anyone who needs a little more wiggle room. And with a gross vehicle weight rating of 180 kg, your daily life becomes even more flexible—you can load quite a bit onto it. Whether you’re using it as a Porter in the city or traveling with extra luggage—your “Compact PXA+” offers enough flexibility for both.
