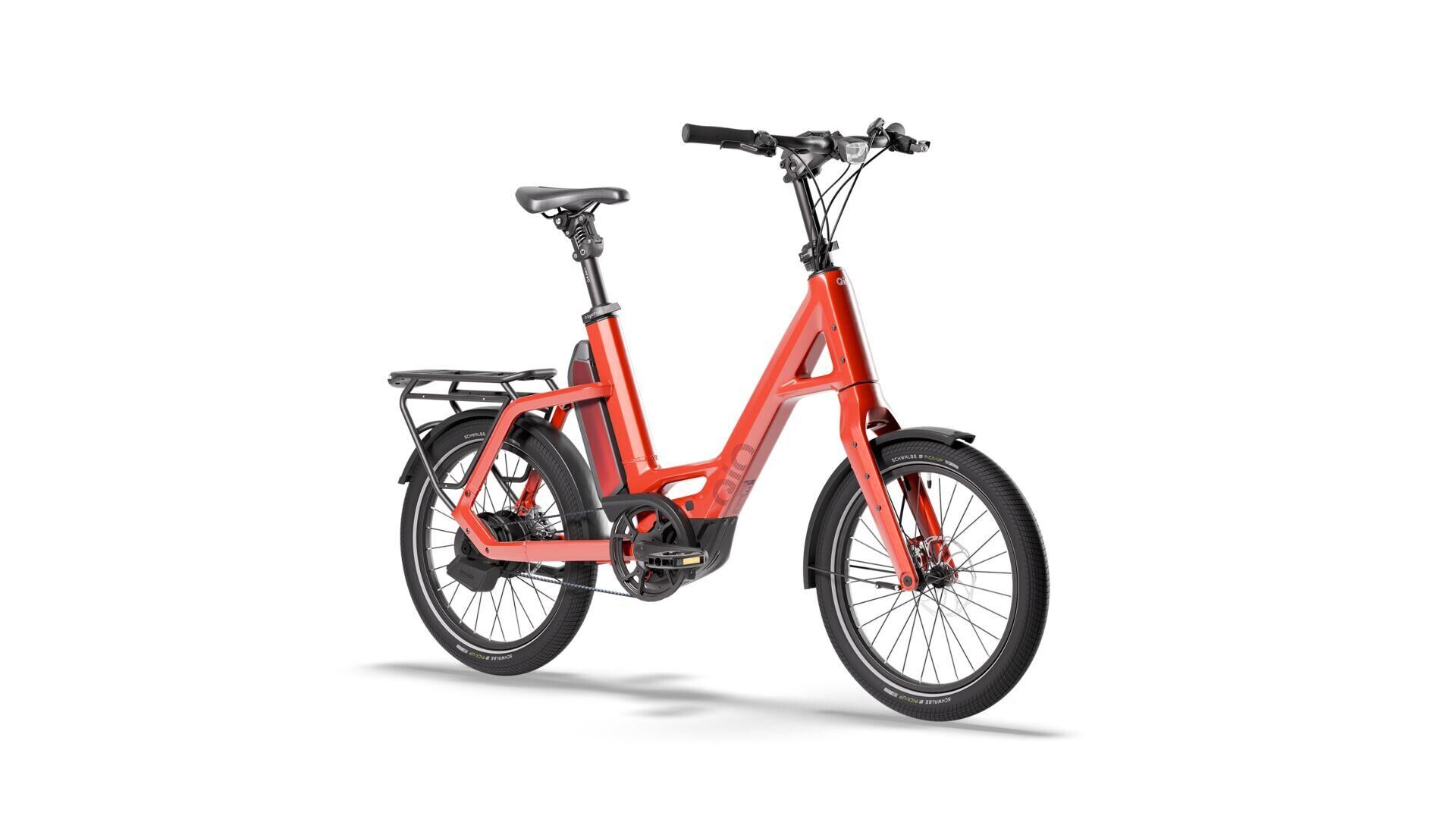

QiO Electric compact bike "Compact PXA+" (#1)
unisex, 20", imola red, Enviolo TR Automatiq, 48 cm
Read more Read less - Article number: 02652157
- Original number: 4251971178335
The electric compact bike is equipped with a BOSCH Performance Line PX mid-motor that delivers 250 W of power. A battery with a capacity of 800 Wh is integrated into the frame. The bike uses an Enviolo TR Automatiq hub gear system for gear selection. The drives are provided by a belt drive. Hydraulic disc brakes provide braking power on both wheels. The bike has 20" wheels and offers a permissible system weight of 180 kg. It includes Fenders, a system luggage rack and a chain guard.
PU 1
Product information
- Access height 450 mm
- Battery capacity 800.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Chainstay 451 mm
- Colour designation imola red
- Drive belt
- Drive system BOSCH Performance Line PX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features fender
- Frame height 48 cm
- Frame shape unisex
- Gears stepless
- Gender unisex
- Length 1685 mm
- Main colour red
- Material 1 aluminium
- Modellreihe Compact
- Passage width 190 mm
- Permissible system weight 180 kg
- Reach 408 mm
- Seat angle 71.0 °
- Seat tube 480 mm
- Shifting name Enviolo TR Automatiq
- Shifting type internal gear shifting
- Stack 541 mm
- Standover height 450 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Support up to 25km/h
- Toptube 576 mm
- Type compact bike
- Wheel distance 1108 mm
- Wheel size 20 "
- Battery: BOSCH "Active Line Plus", max. 50 Nm
- Battery Lock: ABUS "XPlus"
- Bottom bracket: BOSCH
- Bremse H.R.: MAGURA "LOUISE"
- Bremse V.R.: MAGURA "LOUISE"
- Chain / belt: GATES "CDX"
- Chain guard: SKS "Chainblade"
- Chain ring / pulley: Gates "CDX Fin Line", 55 teeth, belt line 50 mm
- Charger: BOSCH 4 A
- Crank: PROWHEEL "EB03", 170 mm
- Derailleur hanger: Slider dropout, suitable for PE, PXA+
- Display: BOSCH "Kiox 500", 4-stages, Remote Control, push-aid
- Engine: BOSCH "Performance Line PX", max. 85 Nm
- Fender: SKS "A 69 R"
- Fork: QIO EINS 20", aluminum, tapered 1 1/4" - 1.5", 313.5 mm stem, post mount, pinot line glossy
- Frame: QIO Compact, Bosch Gen. 4, BES3, aluminum, 48 cm
- Front hub: SHIMANO "HB-TC500", 12 x 100 mm, Center Lock, Steckachse
- Front light: Busch + Müller "Briq-S E", 60 Lux
- Front rotor: MAGURA "MDR-C", Ø 180 mm
- Front tire: SCHWALBE "Pick-Up", 60-406, Reflex
- Grips: HERRMANS "Nucore Town", wave
- Handlebar: ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
- Headset: ACROS ZS66/31,75 OD74 / ZS66/46/OD72, Blocklock
- Pedals: MARWI "SP-157 HD" Faltpedale
- Rear carrier: "MIK HD 2.0" for MIK Side
- Rear hub: ENVIOLO "TR", stepless, 6-hole
- Rear light: Busch + Müller "Dart E Brex "
- Rear rotor: MAGURA "MDR-C", Ø 180 mm
- Rear tire: SCHWALBE "Pick-Up", 60-406, Reflex
- Rims: DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
- Saddle: Selle Royal "On", Moderate Wide
- Seatpost: by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Spokes: 2,0 mm, Niro, schwarz
- Sprocket / pulley: Gates "CDX Fin Line", 22 teeth
- Stands: URSUS "Invisible Mount", 20"
- Stem: ergotec "SWELL-RE", 80 mm long, adjustable, level 6
- Supplier Article Number: 4251971178335
- EAN: 4251971178335
- MSRP: €5,299.00
- Fedas-Code: 159021
- DST-Code: 1A01
- WEEE registration number: DE92509320
- SB-Article: No
- Bidex-Code: 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
| Article | Price | |
|---|---|---|
 "R Duo" - removable keys, with two Battery Locks Read more Read less
| PU 12 | |
| PU 12 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 10 | |
 | PU 10 | |
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
"Folding Lock Duo", black, incl. one short and one long XPlus Lock Cylinder Read more Read less
| PU 1 | |
 | PU 1 | |
| PU 10 | |
| PU 1 | |
 Scarves: blackCover: dark gray Read more Read less
| PU 1 | |
| PU 1 | |
 | PU 10 | |
 | PU 1 | |
| PU 1 | |
 | PU 50 | |
 | PU 1 | |
 | PU 1 | |
 | PU 10 | |
 | PU 10 | |
"NR Duo" - non-removable keys, with two Battery Locks Read more Read less
| PU 12 | |
 | PU 1 | |
| PU 3 | |
 | PU 5 | |
 | PU 1 | |
 | PU 1 | |
 | PU 10 | |
| PU 12 | |
 | PU 1 | |
 | PU 1 | |
| PU 25 | |
 | PU 5 | |
 | PU 1 |
Do you want to move freely without compromising on comfort and style? The "Compact PXA+" from QiO makes exactly that possible. With the Bosch mid-motor and Smart System, you can ride effortlessly up to 25 km/h - supported by a quiet, low-maintenance belt drive. A special highlight of this compact e-bike is the continuously variable Enviolo "Automatiq" gear hub. It shifts gears automatically and adapts to your speed and riding style all by itself. It ensures a particularly relaxed riding experience.With 800 Wh, the Battery provides you with reliable power for everyday use and on tours. This means you can also enjoy an extra lap after work. The sturdy aluminum frame with its 20" wheels and hydraulic disc brakes offers you safety and control - whatever the weather. Fenders are already integrated.The '+' in the name stands for a maximum rider weight of 150 kg - ideal for anyone who needs more room to maneuver. And with a permissible total weight of 180 kg, your everyday life becomes even more flexible - you can fit a lot on here. Whether as a Porter in the city or on the road with extra luggage - your "Compact PXA+" offers you enough flexibility for both.
