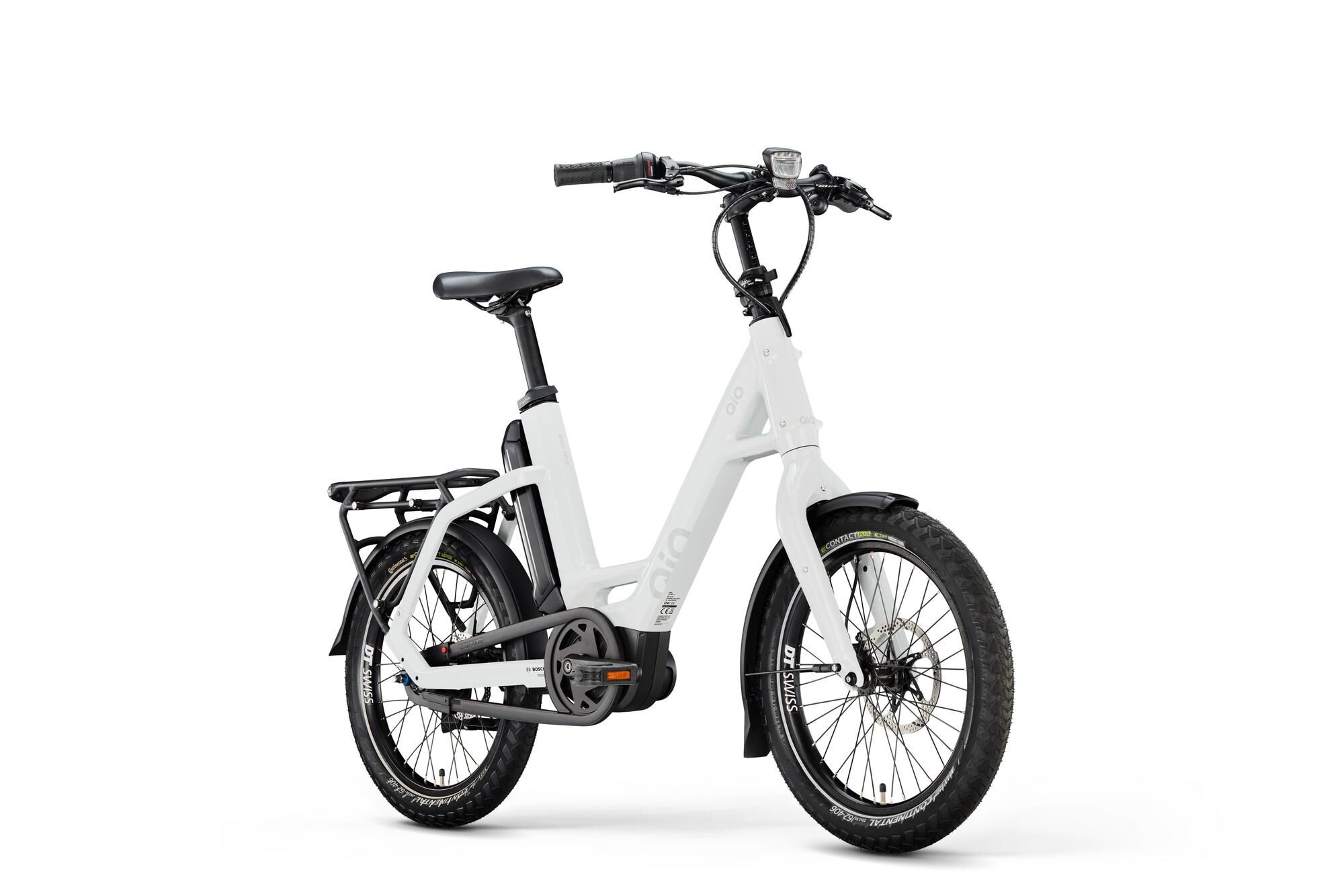

QiO Electric compact bike "EINS AP-8" (#1)
unisex, 20", crystal white, 8-speed SHIMANO "Nexus" coaster brake, 48 cm
Read more Read less - Article number: 02652009
- Original number: 01723758
The electric compact bike is equipped with a BOSCH Active Line Plus mid-motor, which offers a motor power of 250 W. The battery capacity is 400.0 Wh and is integrated in the down tube. The bike has a hub gear system for gear selection. It is equipped with an electronic Pushing Help, a system luggage carrier, a chain guard and Fenders. The frame is made of aluminum and offers a low entry. The wheel size is 20", while the permissible system weight is 180 kg. Drives are provided by a chain drive.
PU 1
Product information
- Access height 182 mm
- Battery capacity 400.0 Wh
- Bosch Smart System yes
- Brake system coaster brake , hydraulic disc brake
- Chainstay 451 mm
- Colour designation crystal white
- Drive chain
- Drive system BOSCH Active Line Plus
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , deep entry , electronic sliding aid , fender , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears 8-speed
- Gender unisex
- Length 1685 mm
- Main colour white
- Material 1 aluminium
- Model series EINS
- Passage width 190 mm
- Permissible system weight 180 kg
- Reach 408 mm
- Seat angle 70.5 °
- Seat tube 48 mm
- Shifting name 8-Gang SHIMANO "Nexus" Rücktritt
- Shifting type internal gear shifting
- Stack 541 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Stem length 70.0 mm
- Support up to 25km/h
- Toptube 576 mm
- Type compact bike
- Wheel distance 1108 mm
- Wheel size 20 "
- Battery BOSCH "PowerPack 400", 400 Wh
- Battery Lock ABUS Akkuschloss
- Bottom bracket BOSCH
- Brake lever TRP HD-EU817
- Chain / belt KMC "e1 EPT"
- Chain guard hebie "Chainglider", front 44 teeth, rear 16-18 teeth
- Chain ring / pulley STRONGLIGHT, 44 teeth
- Charger BOSCH 4 A
- Crank Stronglight "Magan 3B", 170 mm
- Derailleur hanger QIO Slider Dropout
- Display BOSCH "Purion 200" Display, 4-stage, Remote Control, Pushing Help
- Engine BOSCH "Active Line Plus", max. 50 Nm
- Fender curana "Apollo Orbit 70"
- Fork Aluminum, tapered 1 1/4" - 1.5"
- Frame QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm
- Front hub SHIMANO "HB-QC400", Center Lock, QR
- Front light Busch + Müller "Briq-S E", 60 Lux
- Front rotor TRP "TR-25", Ø 180 mm, Centerlock
- Front tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Front wheel brake TRP "C1.8 HD-EU817", Post Mount
- Grips HERRMANS "Nucore Town", wave
- Handlebar satori "Wien", 640 mm, Ø 31,8 mm, Rise 20 mm
- Headset TOKEN "TK255E-HJ04", IS52/40 / IS52/44
- Pedals UNION "SP-153", foldable
- Rear carrier "MIK HD 2.0" for MIK Side
- Rear hub SHIMANO "Nexus SG-C6061-8CD", 8-speed, 5-hole
- Rear light Busch + Müller "Dart E Brex "
- Rear rotor TEKTRO "TR160-47", Ø 160 mm, 5-hole
- Rear tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Rear wheel brake TRP "C1.8 HD-EU817"
- Rims DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
- Saddle Selle Royal "On", Moderate Wide
- Seatpost by,schulz "R.3 P-QR", Ø 34.9 mm, 400 mm long, 25 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever SHIMANO "Nexus, SL-C6000-8"
- Spokes DT-Swiss ELEMENTAL, schwarz
- Sprocket / pulley SHIMANO "SM-GEAR", 16 teeth
- Stands URSUS "R78 - King Mini"
- Stem 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 6°
- Supplier Article Number: 01723758
- EAN 4251971163522
- MSRP: €3,299.00
- Fedas-Code 159021
- DST-Code 1A01
- WEEE registration number DE92509320
- SB-Article No
- Bidex-Code 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight 26.4 kg
| Article | Price | |
|---|---|---|
 Out of Stock unisex, 20", crystal white, 8-speed SHIMANO "Nexus" coaster brake, 48 cm Read more Read less
| PU 1 |
| Article | Price | |
|---|---|---|
 | PU 5 | |
 | PU 1 | |
 | PU 16 | |
 | PU 25 | |
 Scarves: blackCover: dark gray Read more Read less
| PU 1 | |
 | PU 1 | |
 black, AZ Standard, removable keys, with Battery Lock for PowerPack BES 3 Read more Read less
| PU 480 | |
 | PU 1 | |
 for imola red matt frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 10 | |
 | PU 1 | |
 | PU 1 | |
 | PU 5 | |
 for lead metal frame colour Read more Read less
| PU 1 | |
 | PU 10 | |
 | PU 1 | |
 | PU 10 | |
 | PU 1 | |
 | PU 10 | |
 for light olive matt frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 for crystal white frame colour Read more Read less
| PU 1 | |
 | PU 14 | |
 for ice blue matt frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 10 | |
 | PU 10 | |
 | PU 1 | |
 for night black matt frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 for sweet lavender matt frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 50 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 "Folding Lock Duo", black, incl. one short and one long XPlus Lock Cylinder Read more Read less
| PU 1 | |
 | PU 10 | |
 | PU 1 | |
 | PU 1 | |
 | PU 3 | |
 | PU 1 | |
 for forest green frame colour Read more Read less
| PU 1 | |
 | PU 1 |
If you want to enrich your everyday life with an e-bike, QiO's "EINS AP-8" is the perfect choice. The compact e-bike impresses with its space-saving size and the smart Bosch system (BES3). The "Purion 200" Display provides all important information at a glance. The maximum rider weight is 120 kg. Practical and comfortable: The "EINS AP-8" has a low step-through with Handle, tool-free QR for Saddles and Handlebars and a MIK HD system luggage carrier. With its 20'' wheels, it maneuvers agilely through the city. The Bosch "Active Line Plus" engine supports up to 25 km/h, powered by a 400 Wh "PowerPack". The Battery can be easily removed and recharged. The 8-speed Shimano "Nexus" hub gears are low-maintenance. Thanks to the bright LED Front Light and Rear Light with stop light function integrated into the Carrier, you are safe on the road in the evening. The Stem can be rotated by 90° and the Pedals can be folded down - perfect for saving space.
