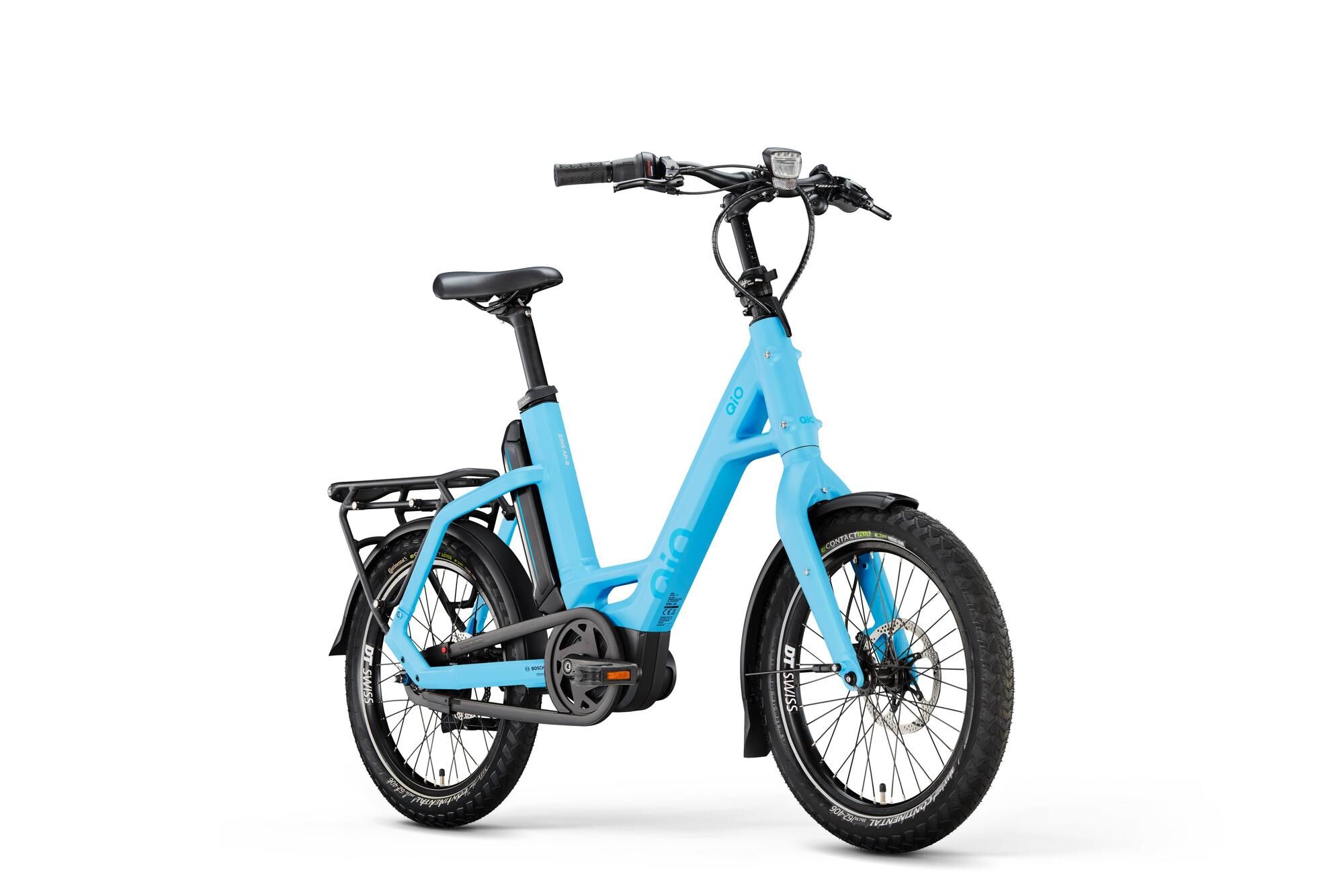

QiO Electric compact bike "EINS AP-8" (#1)
unisex, 20", ice blue matt, 8-speed SHIMANO "Nexus" coaster brake, 48 cm
Read more Read less - Article number: 02652013
- Original number: 01723790
Product information
- Access height 182 mm
- Battery capacity 400.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Category compact bike
- Chainstay 451 mm
- Colour designation ice blue matt
- Drive chain drive
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features fender
- Frame height 48 cm
- Frame shape unisex
- Gears 8-speed
- Gender unisex
- Length 1685 mm
- Main colour blue
- Material 1 aluminium
- Passage width 190 mm
- Reach 408 mm
- Seat angle 70.5 °
- Seat tube 48 mm
- Shifting name 8-Gang SHIMANO "Nexus" Rücktritt
- Shifting type internal gear shifting
- Stack 541 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Stem length 70.0 mm
- Support up to 25km/h
- Toptube 576 mm
- Wheel distance 1108 mm
- Wheel size 20 "
- Battery: BOSCH Powerpack 400, Li-Ionen, 36 V / 11,1 Ah / 400 Wh
- Battery Lock: ABUS 40973 T82 DT3.1, BES3
- Bottom bracket: BOSCH
- Brake lever: TRP HD-EU817
- Bremse H.R.: TRP Scheibenbremse HD-EU817
- Bremse V.R.: TRP Scheibenbremse HD-EU817
- Chain / belt: KMC "E01 EPT"
- Chain guard: HEBIE "Chainglider"
- Chain ring / pulley: STRONGLIGHT, 44 Z., Aluminium
- Charger: Bosch 4 Ah
- Crank: STRONGLIGHT "Magan"
- Derailleur hanger: QIO Slider Dropout
- Display: BOSCH, "Purion 200", 4-Stufen, Schiebehilfe, eBike Flow App
- Engine: BOSCH Mittelmotor "Active Line PLUS", 36 V, 250 W, das smarte System
- Fender: CURANA "Apollo Orbit 70", Aluminium, 20 Zoll, schwarz matt
- Fork: Alu 6061 Disc
- Frame: QIO EINS, Alu 6061
- Front hub: SHIMANO " HB-QC400", 36 Loch, schwarz
- Front light: BUSCH&MÜLLER "BRIQ-S" 60 LUX, DC 9-15V
- Front rotor: 180mm Centerlock
- Front tire: CONTINENTAL "E Contact" Plus, 62-406
- Grips: HERRMANS "Nucore Town Wave", schwarz, Rechts 90MM, Links 123MM
- Handlebar: SATORI "Wien", Ø 31,8 mm
- Headset: TOKEN "TK255E-HJ04"
- Pedals: UNION "SP-153" Faltpedal
- Rear carrier: QIO "MIK-HD" und "MIK-SIDE" Systemträger, B&M Rücklicht integriert
- Rear hub: SHIMANO "Nexus" 8-Gg. RBN
- Rear light: BUSCH&MÜLLER "TOPLIGHT DART BREX", 6-50V, DC, mit Notbremslichtfunktion
- Rear rotor: TEKTRO TR-47, 160mm 5 Loch (RBN)
- Rear tire: CONTINENTAL "E Contact" Plus, 62-406
- Rims: DT Swiss "U663", Disc, schwarz
- Saddle: SELLE ROYAL "ON"
- Seatpost: BY,SCHULZ "R.3" antitheft 34,9mm x 400mm, schwarz Alu
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: SHIMANO "Nexus", 8-Gg.
- Spokes: DT-Swiss ELEMENTAL, schwarz
- Sprocket / pulley: SHIMANO, 16 Z.
- Stands: URSUS "King-EVO" 40mm schwarz
- Stem: JD "ST123A" 70mm, 6°, 31,8mm
- Supplier Article Number: 01723790
- EAN: 4251971163560
- MSRP: €3,299.00
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight: 26.4 kg
| Article | Price | |
|---|---|---|
 unisex, 20", ice blue matt, 8-speed SHIMANO "Nexus" coaster brake, 48 cm Read more Read less
|
If you want to enrich your everyday life with an e-bike, QiO's "EINS AP-8" is the perfect choice. The compact e-bike impresses with its space-saving size and the smart Bosch system (BES3). The "Purion 200" Display provides all important information at a glance. The maximum rider weight is 120 kg. Practical and comfortable: The "EINS AP-8" has a low step-through with Handle, tool-free QR for Saddles and Handlebars and a MIK HD system luggage carrier. With its 20'' wheels, it maneuvers agilely through the city. The Bosch "Active Line Plus" engine supports up to 25 km/h, powered by a 400 Wh "PowerPack". The Battery can be easily removed and recharged. The 8-speed Shimano "Nexus" hub gears are low-maintenance. Thanks to the bright LED Front Light and Rear Light with stop light function integrated into the Carrier, you are safe on the road in the evening. The Stem can be rotated by 90° and the Pedals can be folded down - perfect for saving space.
