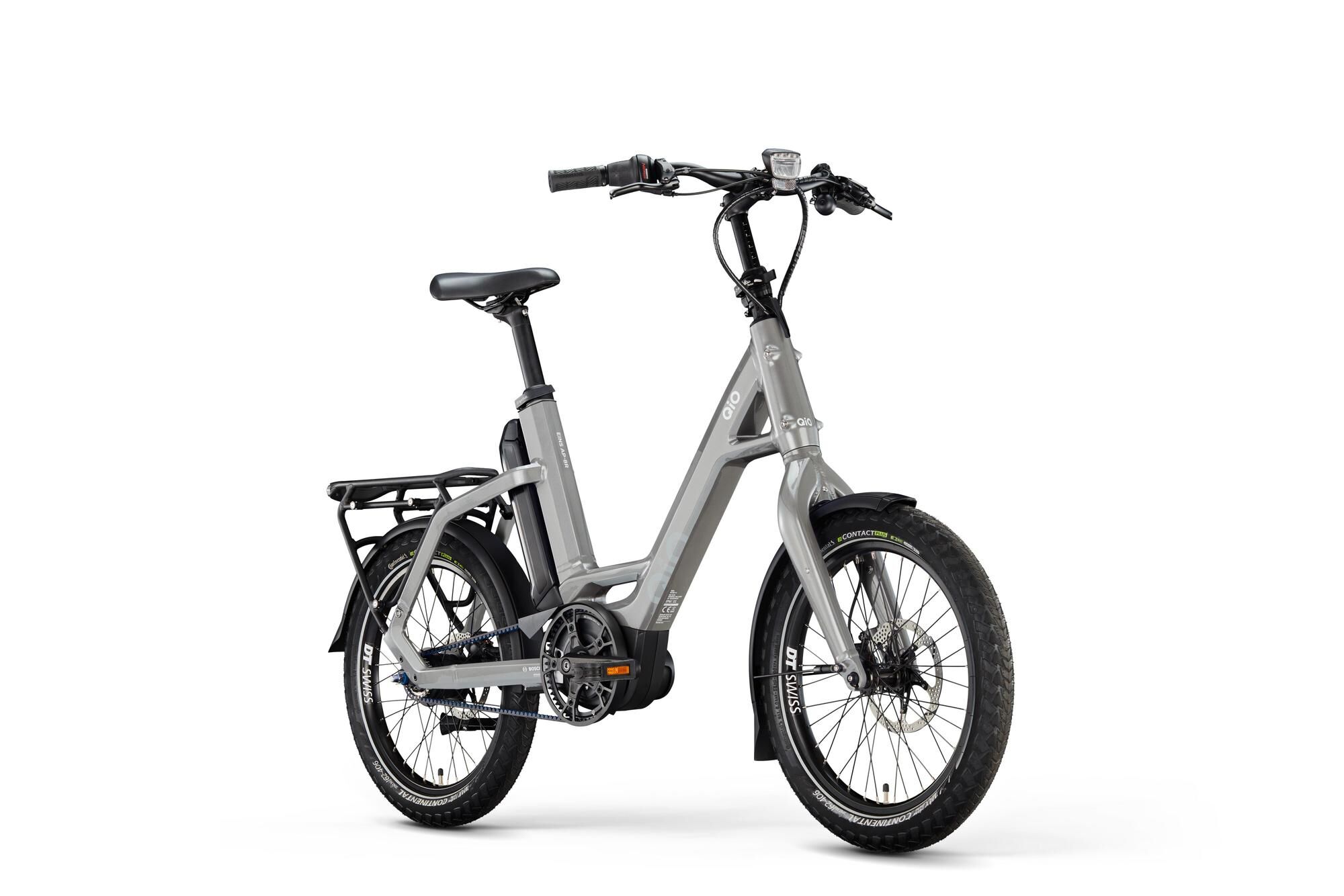

QiO Electric compact bike "EINS AP-8R" (#1)
unisex, 20", lead metal, 8-speed SHIMANO "Nexus" coaster brake, 48 cm
Read more Read less - Article number: 02652024
- Original number: 01723260
The electric compact bike is equipped with a Bosch Active Line Plus mid-motor that delivers 250 W of power. The frame contains a Battery with a capacity of 400 Wh. The gears are selected via a gear hub. The drives are realized via a belt drive. The equipment features include an electronic Pushing Help, a system luggage rack, Fenders and a Chain Guard. The frame is made of aluminum and has a low step-through. The wheel size is 20 inches. The permissible system weight is 180 kg.
PU 1
Product information
- Access height 182 mm
- Battery capacity 400.0 Wh
- Bosch Smart System yes
- Brake system coaster brake , hydraulic disc brake
- Chainstay 451 mm
- Colour designation lead metal
- Drive belt
- Drive system BOSCH Active Line Plus
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , deep entry , electronic sliding aid , fender , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears 8-speed
- Gender unisex
- Length 1685 mm
- Main colour grey
- Material 1 aluminium
- Model series EINS
- Passage width 190 mm
- Permissible system weight 180 kg
- Reach 408 mm
- Seat angle 70.5 °
- Seat tube 48 mm
- Shifting name 8-Gang SHIMANO "Nexus" Rücktritt
- Shifting type internal gear shifting
- Stack 541 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Stem length 70.0 mm
- Support up to 25km/h
- Toptube 576 mm
- Type compact bike
- Wheel distance 1108 mm
- Wheel size 20 "
- Battery BOSCH "PowerPack 400", 400 Wh
- Battery Lock ABUS Akkuschloss
- Bottom bracket BOSCH
- Brake lever TRP HD-EU817
- Chain / belt GATES "CDC"
- Chain guard CURANA "C+", 55 teeth
- Chain ring / pulley Gates "CDC", 55 teeth, belt line 45.5 mm
- Charger BOSCH 4 A
- Crank Stronglight "Magan 3B", 170 mm
- Derailleur hanger QIO Slider Dropout
- Display BOSCH "Purion 200" Display, 4-stage, Remote Control, Pushing Help
- Engine BOSCH "Active Line Plus", max. 50 Nm
- Fender curana "Apollo Orbit 70"
- Fork Aluminum, tapered 1 1/4" - 1.5"
- Frame QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm
- Front hub SHIMANO "HB-QC400", Center Lock, QR
- Front light Busch + Müller "Briq-S E", 60 Lux
- Front rotor TRP "TR-25", Ø 180 mm, Centerlock
- Front tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Front wheel brake TRP "C1.8 HD-EU817", Post Mount
- Grips HERRMANS "Nucore Town", wave
- Handlebar satori "Wien", 640 mm, Ø 31,8 mm, Rise 20 mm
- Headset TOKEN "TK255E-HJ04", IS52/40 / IS52/44
- Pedals UNION "SP-153", foldable
- Rear carrier "MIK HD 2.0" for MIK Side
- Rear hub SHIMANO "Nexus SG-C6061-8CD", 8-speed, 5-hole
- Rear light Busch + Müller "Dart E Brex "
- Rear rotor TEKTRO "TR160-47", Ø 160 mm, 5-hole
- Rear tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Rear wheel brake TRP "C1.8 HD-EU817"
- Rims DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
- Saddle Selle Royal "On", Moderate Wide
- Seatpost by,schulz "R.3 P-QR", Ø 34.9 mm, 400 mm long, 25 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever SHIMANO "Nexus, SL-C6000-8"
- Spokes DT-Swiss ELEMENTAL, schwarz
- Sprocket / pulley Gates "CDC", 22 teeth
- Stands URSUS "R78 - King Mini"
- Stem 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 6°
- Supplier Article Number: 01723260
- EAN 4251971163676
- MSRP: €3,499.00
- Fedas-Code 159021
- DST-Code 1A01
- WEEE registration number DE92509320
- SB-Article No
- Bidex-Code 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight 26.2 kg
| Article | Price | |
|---|---|---|
 Out of Stock unisex, 20", lead metal, 8-speed SHIMANO "Nexus" coaster brake, 48 cm Read more Read less
| PU 1 |
| Article | Price | |
|---|---|---|
 | PU 1 | |
 for sweet lavender matt frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 10 | |
 | PU 14 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 50 | |
 | PU 1 | |
 | PU 5 | |
 | PU 5 | |
 | PU 10 | |
 | PU 10 | |
 black, AZ Standard, removable keys, with Battery Lock for PowerPack BES 3 Read more Read less
| PU 480 | |
 | PU 1 | |
 | PU 1 | |
 | PU 10 | |
 for night black matt frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 10 | |
 | PU 25 | |
 | PU 1 | |
 | PU 10 | |
 for imola red matt frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 for light olive matt frame colour Read more Read less
| PU 1 | |
 | PU 10 | |
 for lead metal frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 3 | |
 for crystal white frame colour Read more Read less
| PU 1 | |
 Scarves: blackCover: dark gray Read more Read less
| PU 1 | |
 "Folding Lock Duo", black, incl. one short and one long XPlus Lock Cylinder Read more Read less
| PU 1 | |
 | PU 16 | |
 for ice blue matt frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 for forest green frame colour Read more Read less
| PU 1 |
The QiO "EINS AP-8R" is the sister model of the "EINS AP-8" and offers even lower maintenance. In addition to the virtually maintenance-free hub gears, it is equipped with a Gates CDC Straps. The "EINS AP-8R" is ideal for simply getting on and riding off, whether for commuting or spontaneous tours.A new feature is the "Purion 200" Display, which shows all the important information at a glance. The Bosch "Active Line Plus" engine provides harmonious support up to 25 km/h and is powered by a 400 Wh "PowerPack". The Battery can be easily removed and recharged. The 8-speed Shimano "Nexus" gear hub is particularly low-maintenance. Thanks to the bright LED Front Light and Rear Light with stop light function integrated in the Carrier, you are safe on the road in the evening. The Stem can be rotated by 90° and the Pedals can be folded down to save space. The maximum rider weight is 120 kg.
