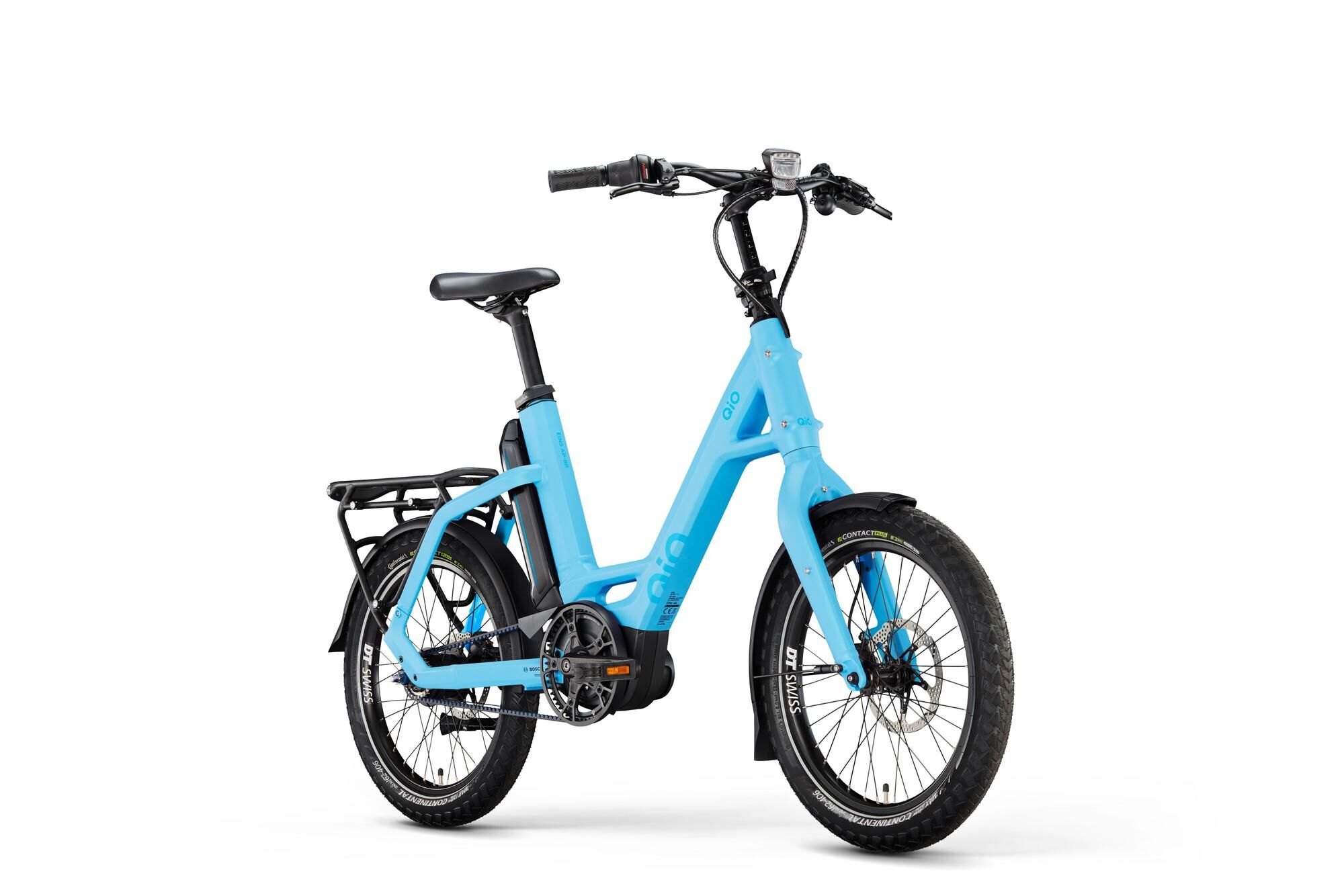

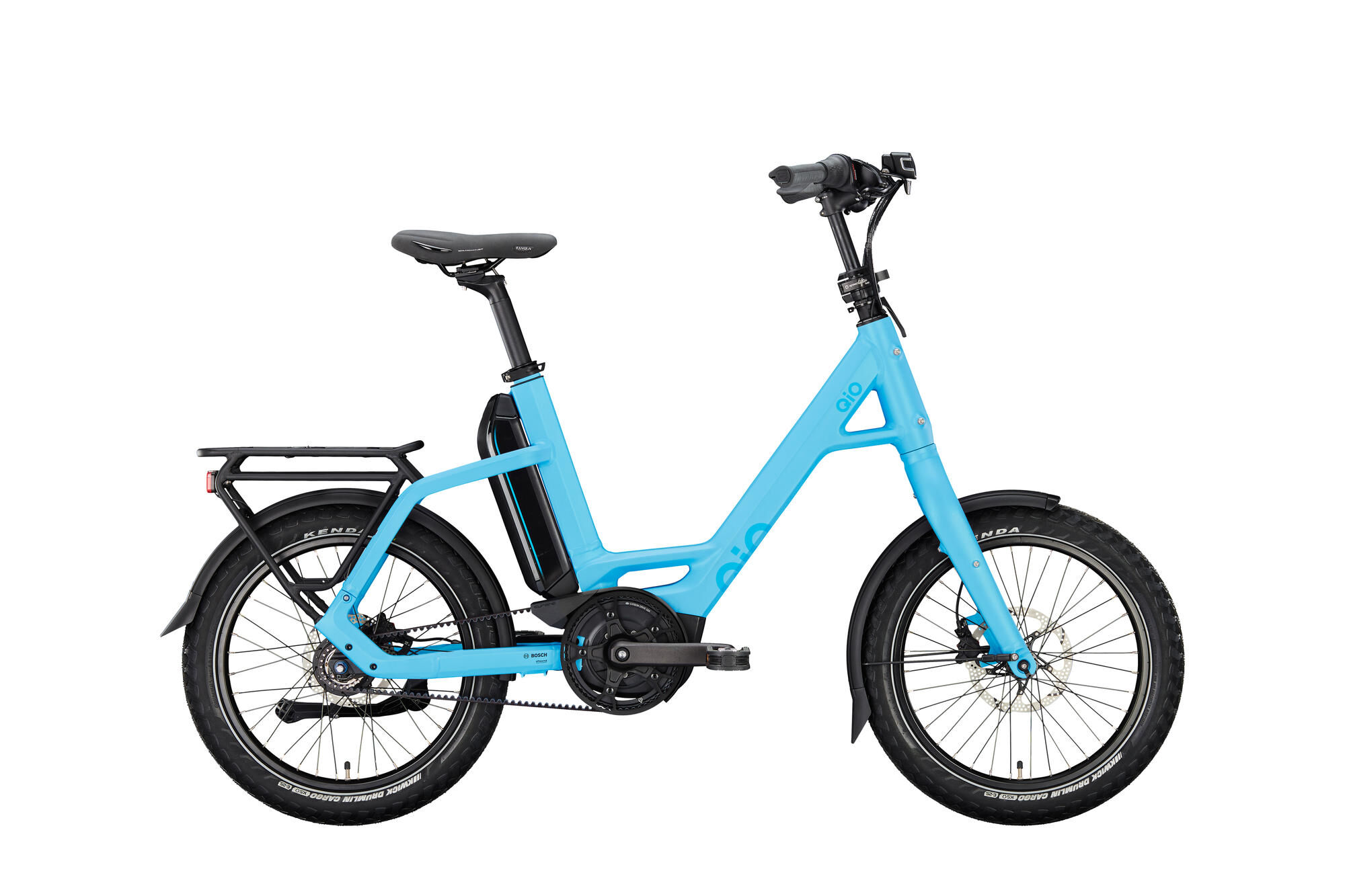

QiO Electric compact bike "EINS AP-8R" (#1)
unisex, 20", ice blue matt, 8-speed SHIMANO "Nexus" coaster brake, 48cm
- Article number: 02652029
- Original number: 01723311
Product information
- Access height: 182 mm
- Battery capacity: 400.0 Wh
- Bosch Smart System: yes
- Brake system: hydraulic disc brake
- Category: compact bike
- Chainstay: 451 mm
- Colour designation: ice blue matt
- Drive: belt drive
- Drive system: BOSCH
- Drive version: middle motor
- E-bike: yes
- Engine power: 250 W
- Features: fender
- Frame height: 48 cm
- Frame shape: unisex
- Gears: 8-speed
- Gender: unisex
- Length: 1685 mm
- Main colour: blue
- Material 1: aluminium
- Passage width: 190 mm
- Permissible total weight: 180 kg
- Reach: 408 mm
- Seat angle: 70.5 °
- Seat tube: 48 mm
- Shifting name: 8-Gang SHIMANO "Nexus" Rücktritt
- Shifting type: internal gear shifting
- Stack: 541 mm
- Steering tube: 220 mm
- Steering tube angle: 71.0 °
- Stem length: 70.0 mm
- Support: up to 25km/h
- Toptube: 576 mm
- Wheel distance: 1108 mm
- Wheel size: 20 "
- Battery: BOSCH Powerpack 400, Li-Ionen, 36 V / 11,1 Ah / 400 Wh
- Battery Lock: ABUS 40973 T82 DT3.1, BES3
- Bottom bracket: BOSCH
- Brake lever: TRP HD-EU817
- Bremse H.R.: TRP Scheibenbremse HD-EU817
- Bremse V.R.: TRP Scheibenbremse HD-EU817
- Chain / belt: GATES "CDC", 122Z.
- Chain guard: CURANA "C+" zweiteilig, 55Z.
- Chain ring / pulley: GATES "CDC", 55Z.
- Charger: Bosch 4 Ah
- Crank: STRONGLIGHT "Magan"
- Derailleur hanger: QIO Slider Dropout
- Display: BOSCH, "Purion 200", 4-Stufen, Schiebehilfe, eBike Flow App
- Engine: BOSCH Mittelmotor "Active Line PLUS", 36 V, 250 W, das smarte System
- Fender: CURANA "Apollo Orbit 70", Aluminium, 20 Zoll, schwarz matt
- Fork: Alu 6061 Disc
- Frame: QIO EINS, Alu 6061
- Front hub: SHIMANO " HB-QC400", 36 Loch, schwarz
- Front light: BUSCH&MÜLLER "BRIQ-S" 60 LUX, DC 9-15V
- Front rotor: 180mm Centerlock
- Front tire: CONTINENTAL "E Contact" Plus, 62-406
- Grips: HERRMANS "Nucore Town Wave", schwarz, Rechts 90MM, Links 123MM
- Handlebar: SATORI "Wien", Ø 31,8 mm
- Headset: TOKEN "TK255E-HJ04"
- Pedals: UNION "SP-153" Faltpedal
- Rear carrier: QIO "MIK-HD" und "MIK-SIDE" Systemträger, B&M Rücklicht integriert
- Rear hub: SHIMANO "Nexus" 8-Gg. RBN
- Rear light: BUSCH&MÜLLER "TOPLIGHT DART BREX", 6-50V, DC, mit Notbremslichtfunktion
- Rear rotor: TEKTRO TR-47, 160mm 5 Loch (RBN)
- Rear tire: CONTINENTAL "E Contact" Plus, 62-406
- Rims: DT Swiss "U663", Disc, schwarz
- Saddle: SELLE ROYAL "ON"
- Seatpost: BY,SCHULZ "R.3" antitheft 34,9mm x 400mm, schwarz Alu
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: SHIMANO "Nexus", 8-Gg.
- Spokes: DT-Swiss ELEMENTAL, schwarz
- Sprocket / pulley: GATES "CDC", 22 Z.
- Stands: URSUS "King-EVO" 40mm schwarz
- Stem: JD "ST123A" 70mm, 6°, 31,8mm
- Supplier Article Number:: 01723311
- EAN: 4251971163720
- MSRP: €3,499.00
- Brand/Supplier QiO
- Unit of measure: PIECE
| Article | Price | |
|---|---|---|
 QiO Electric compact bike "EINS AP-8R" Mod. 24 unisex, 20", ice blue matt, 8-speed SHIMANO "Nexus" coaster brake, 48cm
|
The QiO "EINS AP-8R" is the sister model of the "EINS AP-8" and offers even lower maintenance. In addition to the virtually maintenance-free gear hub, it is equipped with a Gates CDC belt. The "EINS AP-8R" is ideal for simply getting on and riding off, whether for commuting or spontaneous tours.A new feature is the "Purion 200" display, which shows all important information at a glance. The Bosch "Active Line Plus" motor provides harmonious support up to 25 km/h and is powered by a 400 Wh "PowerPack". The battery is easy to remove and charge. The 8-speed Shimano "Nexus" gear hub is particularly low-maintenance. Thanks to the bright LED headlight and rear light with stop light function integrated in the pannier rack, you are safe on the road in the evening. The stem can be rotated by 90° and the pedals can be folded down to save space. The maximum rider weight is 120 kg.
