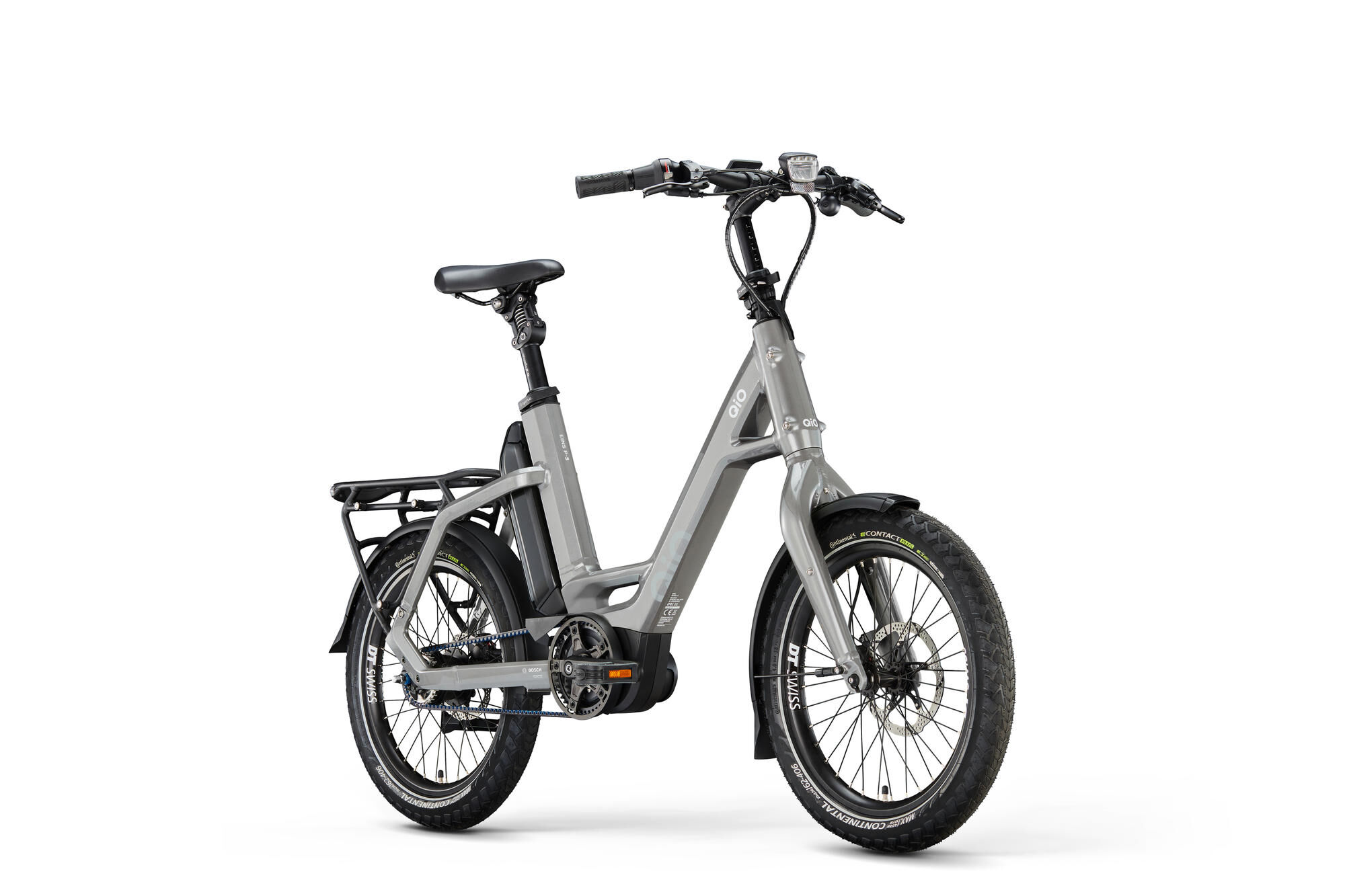

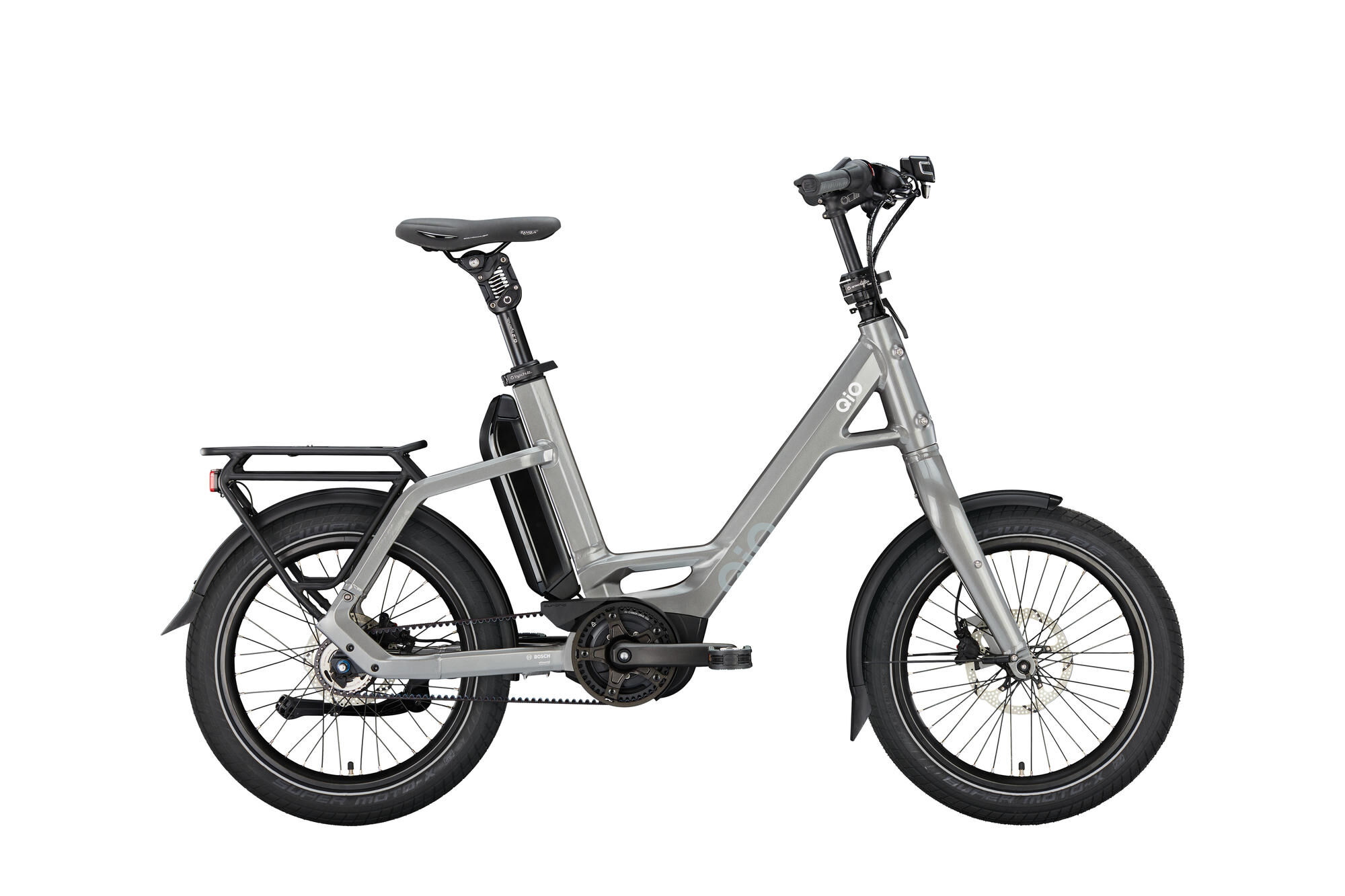

QiO Electric compact bike "EINS P-5" (#1)
unisex, 20", lead metal, 5-speed SHIMANO "Nexus" freewheel, 48 cm
Read more Read less - Article number: 02652032
- Original number: 01723334
The electric compact bike has a Bosch Performance Line mid-motor with an output of 250 W. The Battery has a capacity of 545 Wh and is integrated into the frame design. The drives are powered by a belt drive. A hub gear is installed for gear selection. The bike is equipped with a low step-through and offers suspension seatposts and a Chain Guard. The 20" wheels are fitted with Fenders. The permissible system weight is 180 kg, which allows the use of additional luggage.
PU 1
Product information
- Access height 182 mm
- Battery capacity 545.0 Wh
- Bosch Smart System yes
- Brake system hydraulic rim brake
- Chainstay 451 mm
- Colour designation lead metal
- Drive belt
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , deep entry , electronic sliding aid , fender , suspension seatpost , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears 5-speed
- Gender unisex
- Length 1685 mm
- Main colour grey
- Material 1 aluminium
- Model series EINS
- Passage width 190 mm
- Permissible system weight 180 kg
- Reach 408 mm
- Seat angle 70.5 °
- Seat tube 48 mm
- Shifting name 5-Gang SHIMANO "Nexus" Leerlauf
- Shifting type internal gear shifting
- Stack 541 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Stem length 70.0 mm
- Support up to 25km/h
- Toptube 576 mm
- Type compact bike
- Wheel distance 1108 mm
- Wheel size 20 "
- Battery BOSCH "PowerPack 545", 545 Wh
- Battery Lock ABUS Akkuschloss
- Bottom bracket BOSCH
- Brake lever TRP HD-EU817
- Chain guard CURANA "C+", 46 teeth
- Chain ring / pulley Gates "CDC", 46 teeth, belt line 45.5 mm
- Charger BOSCH 4 A
- Crank Stronglight "Magan 3B", 170 mm
- Derailleur hanger QIO Slider Dropout
- Display BOSCH "Intuvia 100", 4-stages, remote control, push aid
- Engine BOSCH "Performance Line" engine, max. 75 Nm
- Fender curana "Apollo Orbit 70"
- Fork Aluminum, tapered 1 1/4" - 1.5"
- Frame QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm
- Front hub SHIMANO "Deore HB-M5100", Center Lock, Schnellspanner
- Front light Busch + Müller "Briq-S E", 60 Lux
- Front rotor TRP "TR-25", Ø 180 mm, Centerlock
- Front tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Front wheel brake TRP "C1.8 HD-EU817", Post Mount
- Grips HERRMANS "Nucore Town", wave
- Handlebar ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
- Headset TOKEN "TK255E-HJ04", IS52/40 / IS52/44
- Pedals UNION "SP-153", foldable
- Rear carrier "MIK HD 2.0" for MIK Side
- Rear hub SHIMANO "Nexus SG-C7000-5D", 5-speed, Center Lock
- Rear light Busch + Müller "Dart E Brex "
- Rear rotor TRP "TR-25", Ø 160 mm, Centerlock
- Rear tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Rear wheel brake TRP "C1.8 HD-EU817"
- Remote BOSCH "BRC3600", LED Remote
- Rims DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
- Saddle Selle Royal "On", Moderate Wide
- Seatpost by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever SHIMANO "Nexus SL-C7000-5"
- Spokes DT-Swiss ELEMENTAL, schwarz
- Sprocket / pulley Gates "CDX", 28 teeth
- Stands URSUS "R78 - King Mini"
- Stem BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black
- Supplier Article Number: 01723334
- EAN 4251971163751
- MSRP: €4,199.00
- Fedas-Code 159021
- DST-Code 1A01
- WEEE registration number DE92509320
- SB-Article No
- Bidex-Code 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight 26.5 kg
| Article | Price | |
|---|---|---|

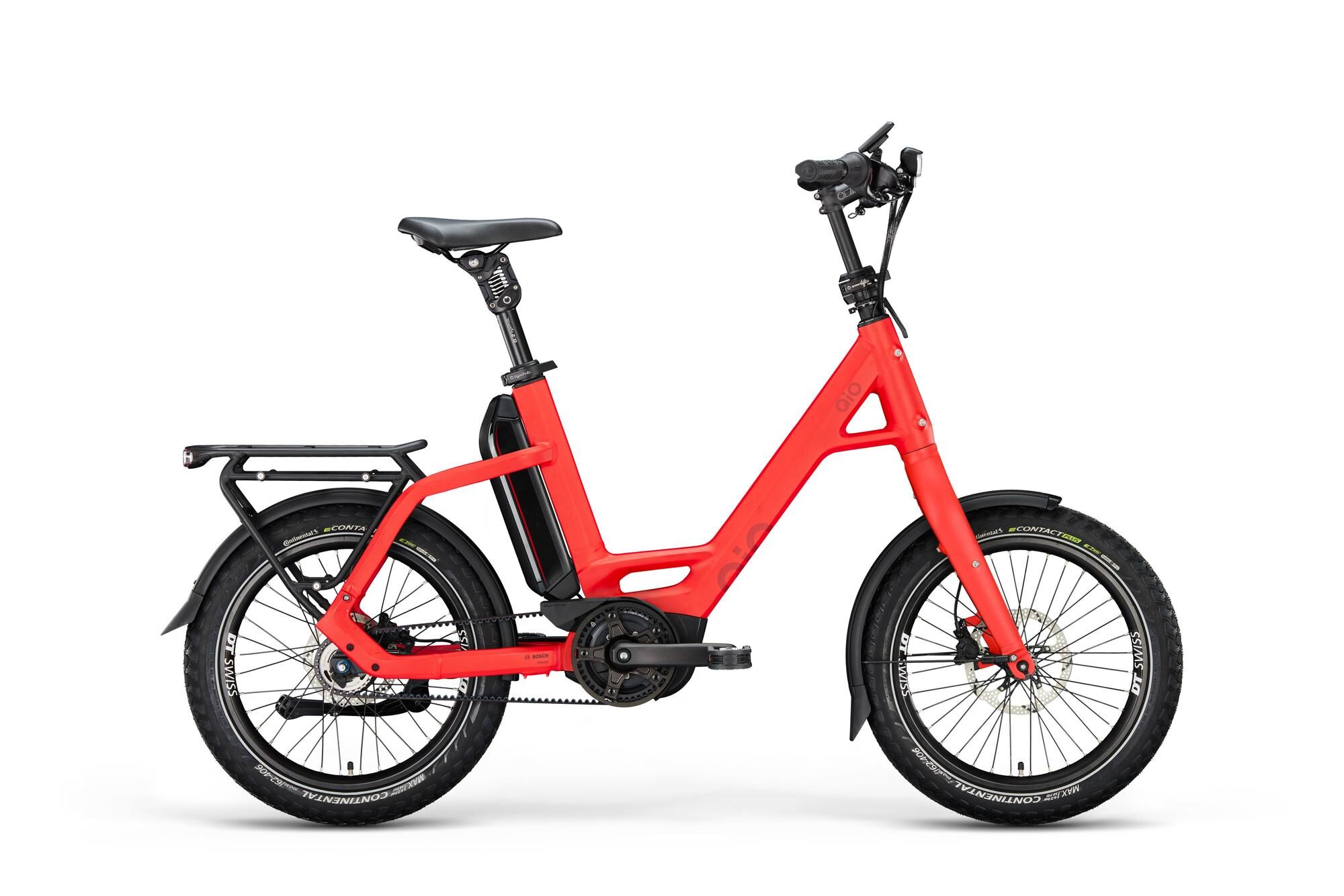

 for imola red matt frame colour Read more Read less
| PU 1 | |

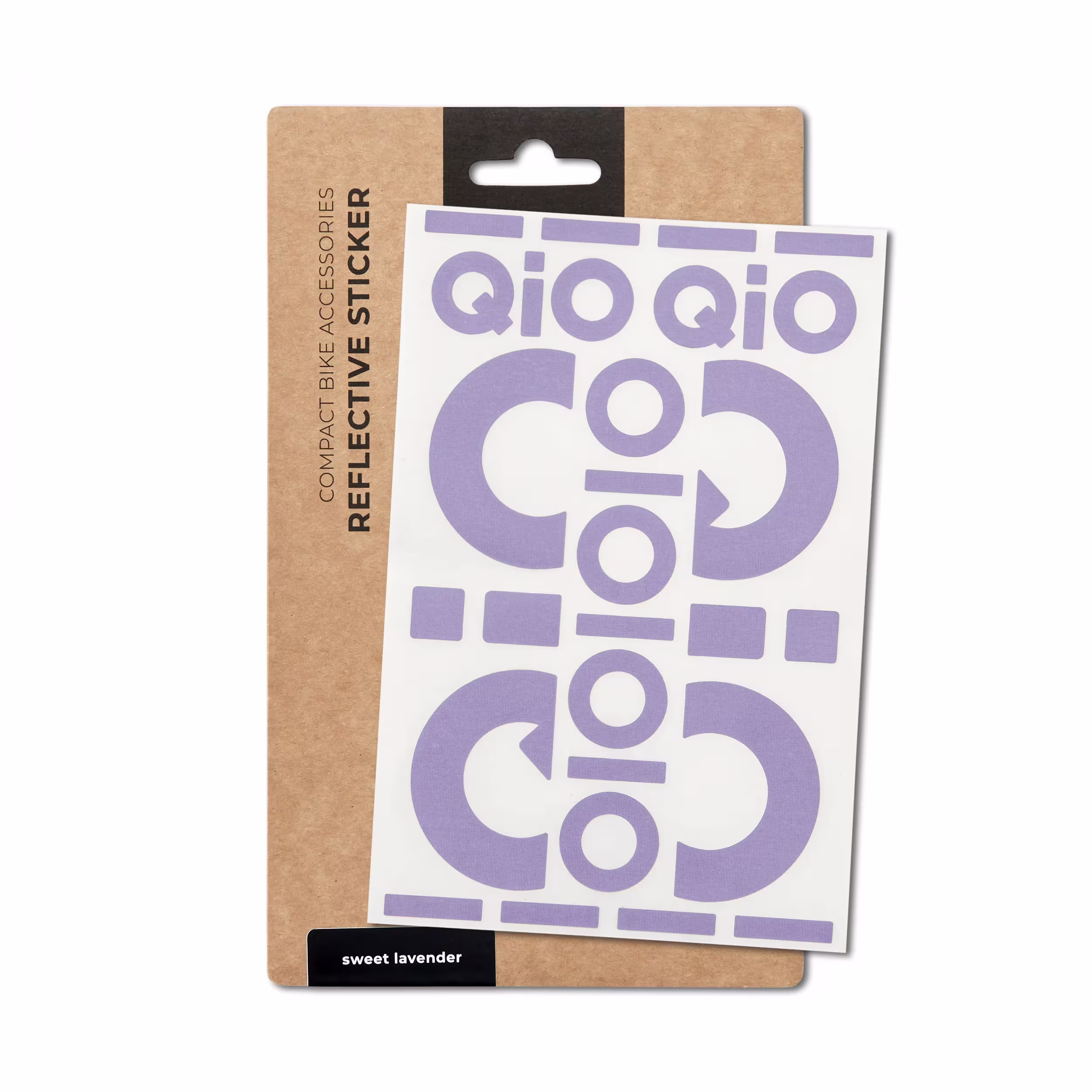

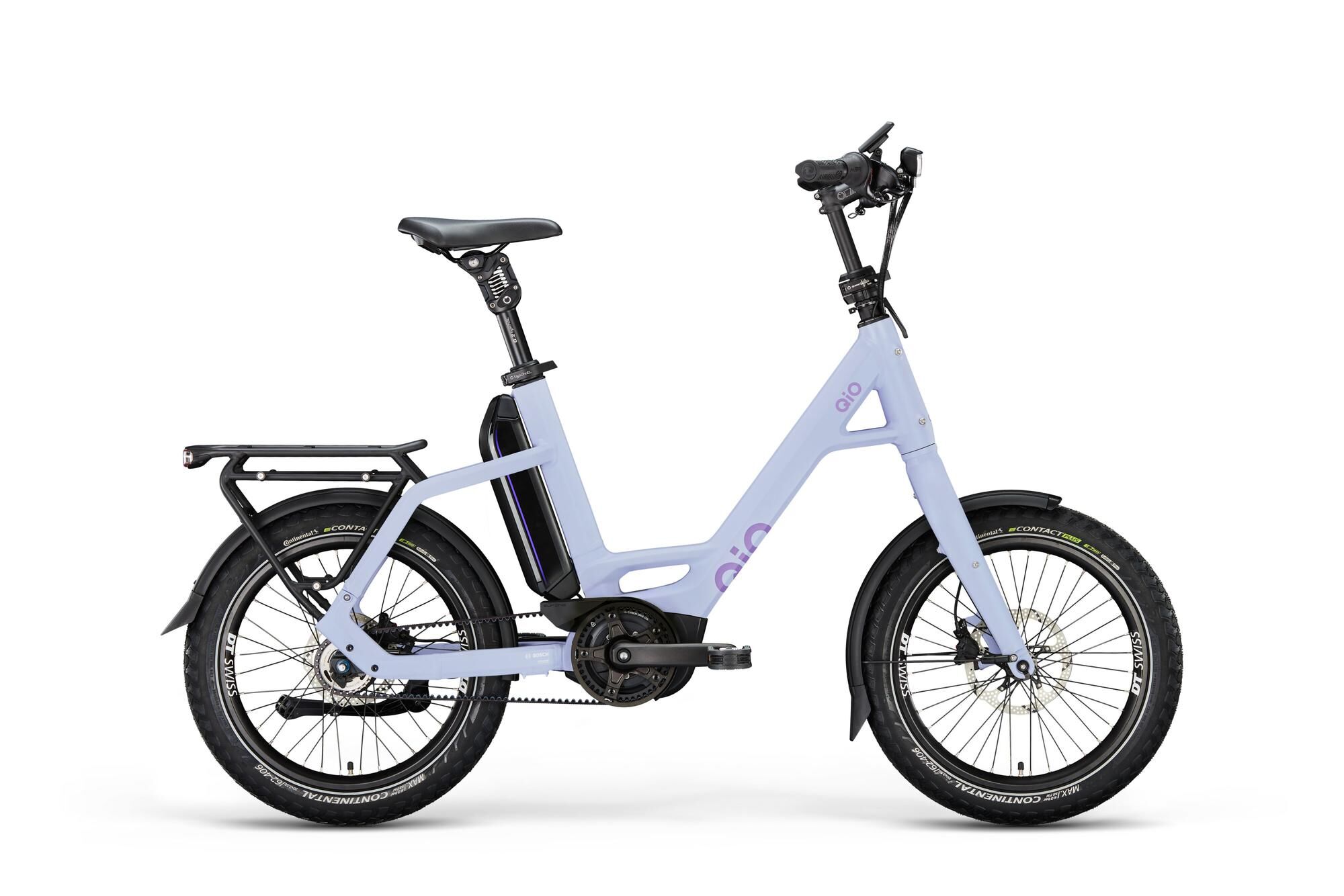

 for sweet lavender matt frame colour Read more Read less
| PU 1 | |
 for lead metal frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 10 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 10 | |
 | PU 3 | |
 | PU 5 | |
 black, AZ Standard, removable keys, with Battery Lock for PowerPack BES 3 Read more Read less
| PU 480 | |
 | PU 1 | |
 Scarves: blackCover: dark gray Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 10 | |
 | PU 1 | |
 | PU 1 | |

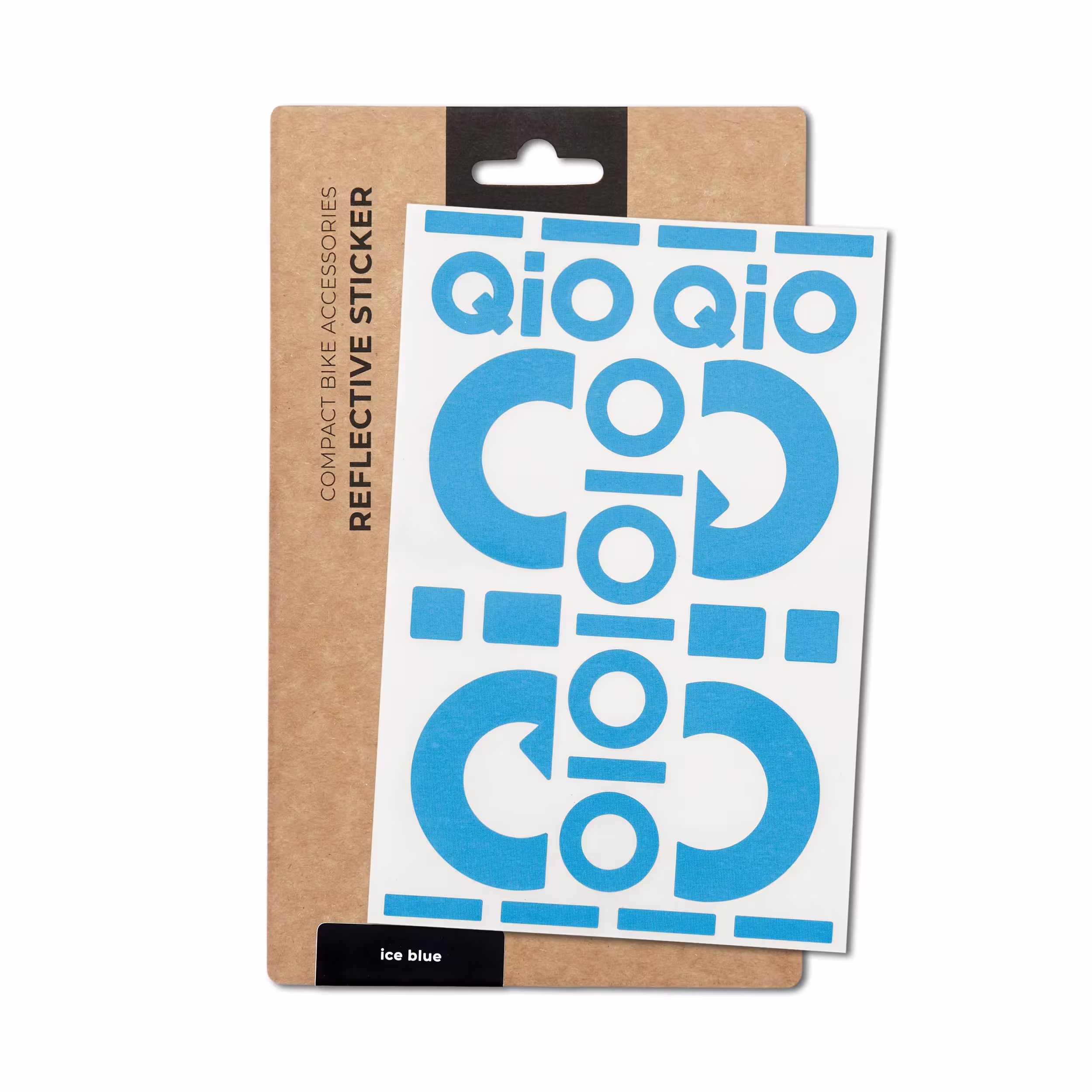

 for ice blue matt frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 5 | |
 | PU 1 | |

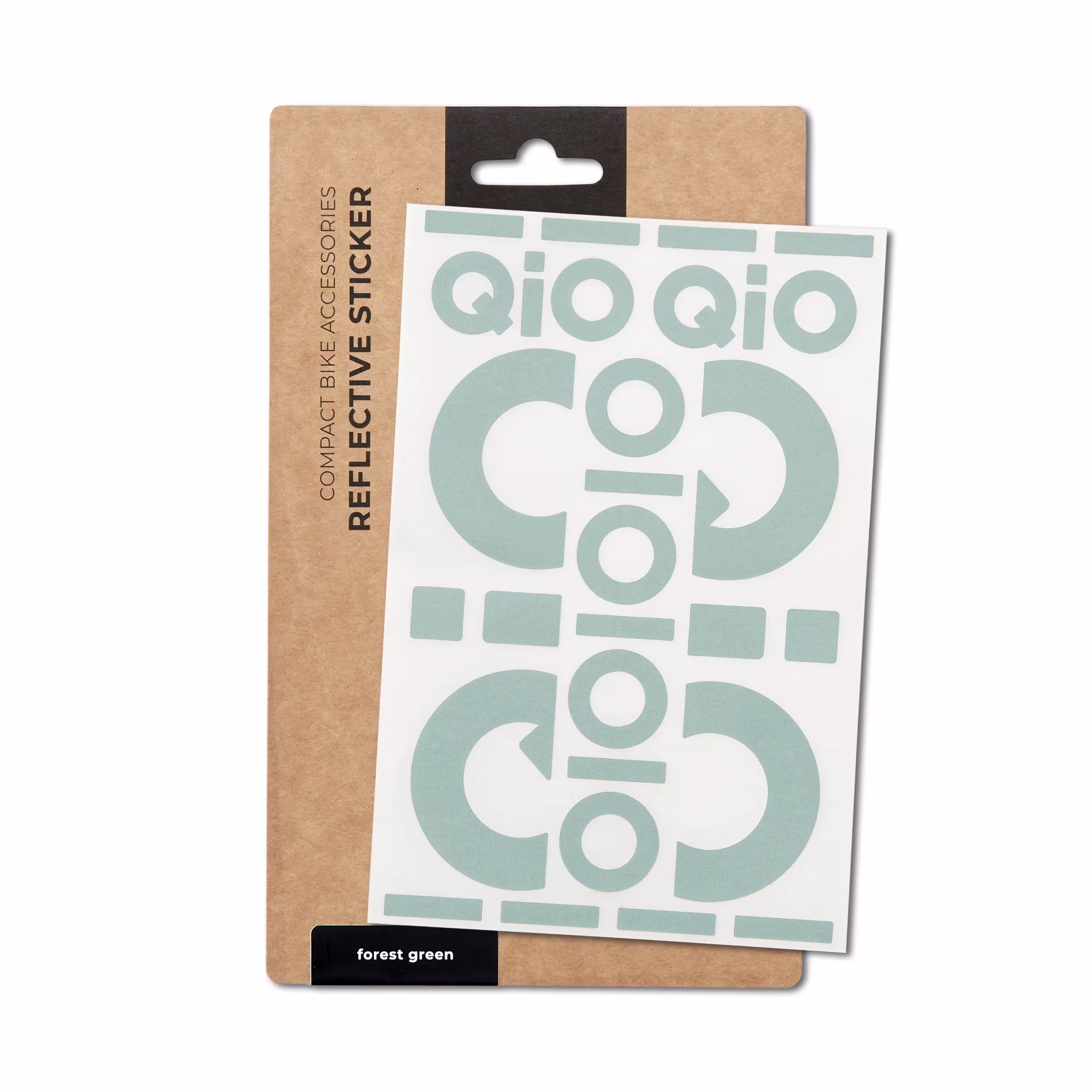

 for forest green frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 "Folding Lock Duo", black, incl. one short and one long XPlus Lock Cylinder Read more Read less
| PU 1 | |

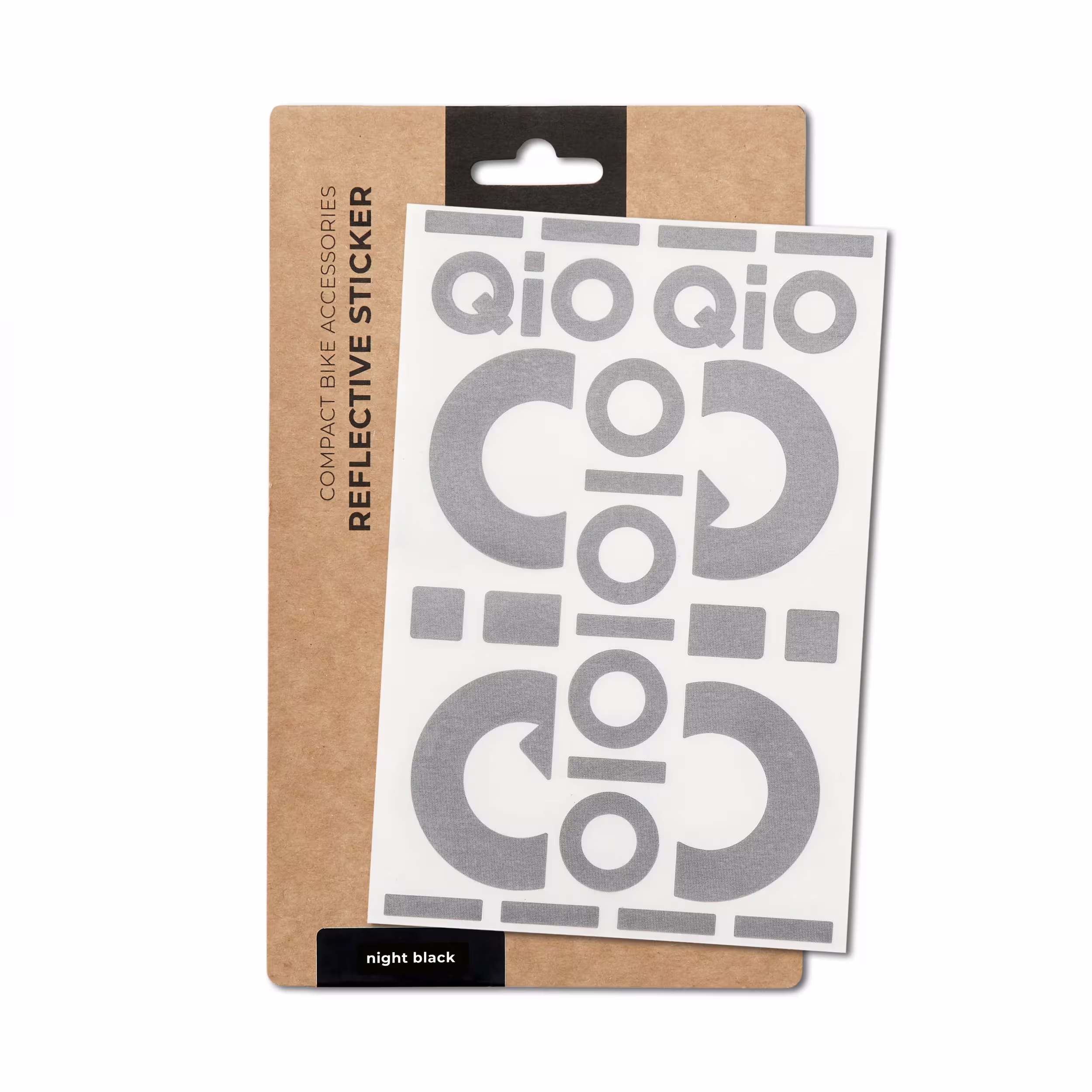

 for night black matt frame colour Read more Read less
| PU 1 | |
 | PU 14 | |
 | PU 10 | |
 | PU 1 | |
 | PU 10 | |
 | PU 1 | |
 | PU 1 | |

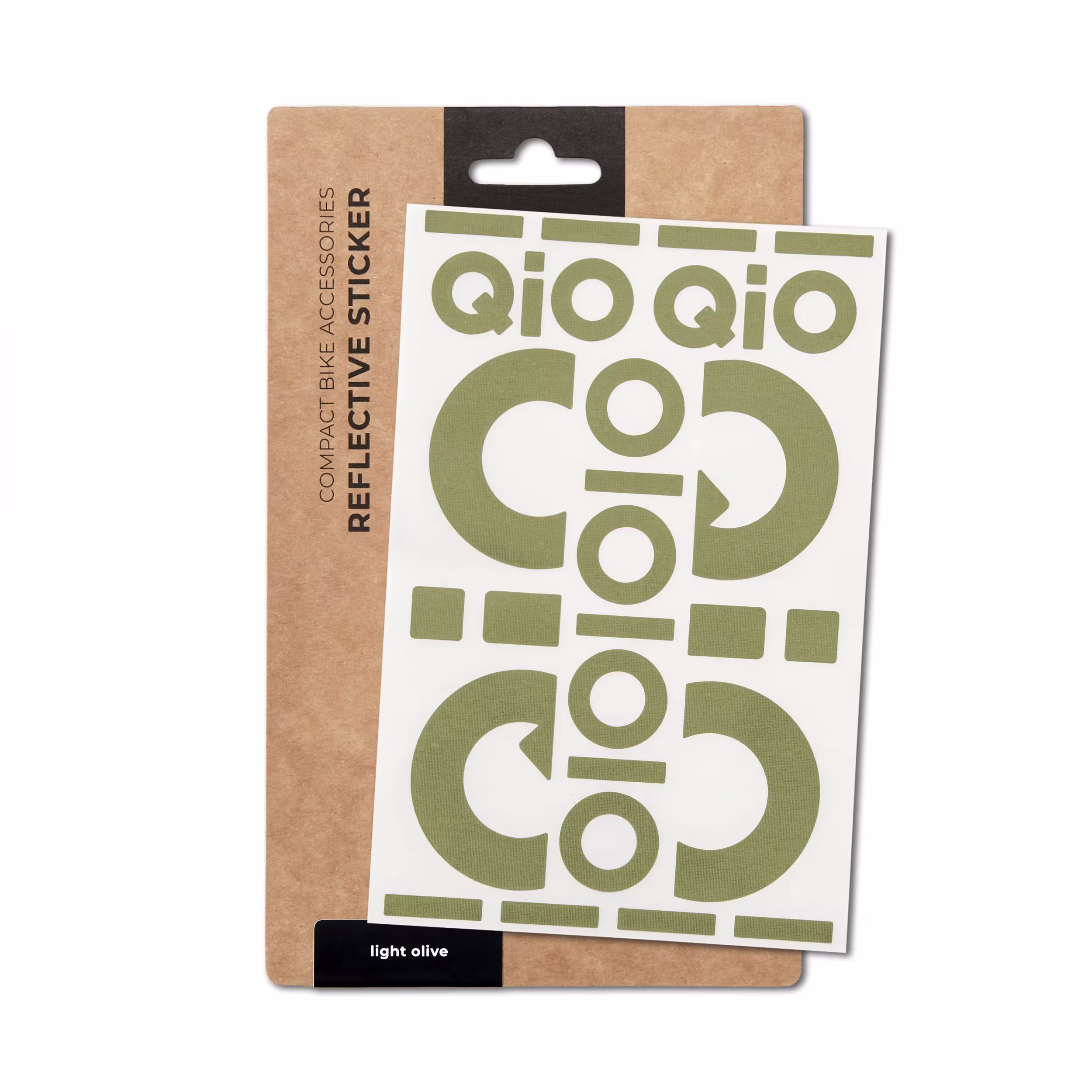

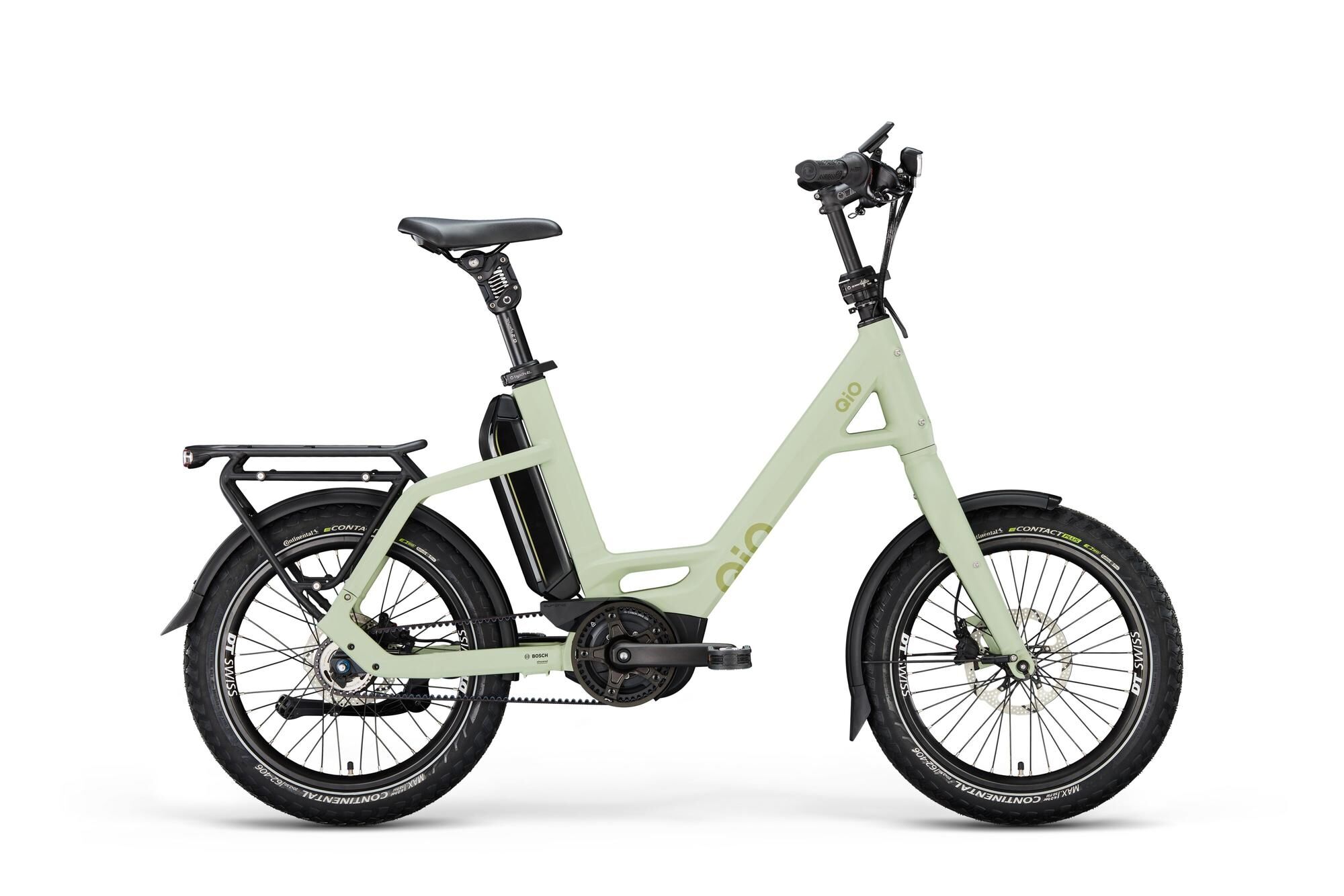

 for light olive matt frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 for crystal white frame colour Read more Read less
| PU 1 | |
 | PU 10 | |
 | PU 16 | |
 | PU 10 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 25 | |
 | PU 50 | |
 | PU 1 |
| Article | Price | |
|---|---|---|
 Out of Stock unisex, 20", lead metal, 5-speed SHIMANO "Nexus" freewheel, 48 cm Read more Read less
| PU 1 |
Start your day relaxed with the QiO "EINS P-5" e-bike. Whether it's to the bakery, through the fields or across the campsite - the smart Bosch system (BES3) ensures a fully connected ride.The "EINS P-5" offers the Bosch "Performance Line" engine, a 545 Wh Battery and the "Intuvia 100" Display. The 5-speed Shimano "Nexus" hub gears and the low-maintenance Gates CDC Straps guarantee smooth power transmission. With its 20" wheels, the e-bike is maneuverable and ideal for narrow city streets, where the sprung parallelogram seatposts offer plenty of comfort and are theft-proof.The compact design makes it easy to take with you, whether in the car or camper van. Foldable pedals and rotating Handlebars save space. Ideal for commuters who just want to get going.
