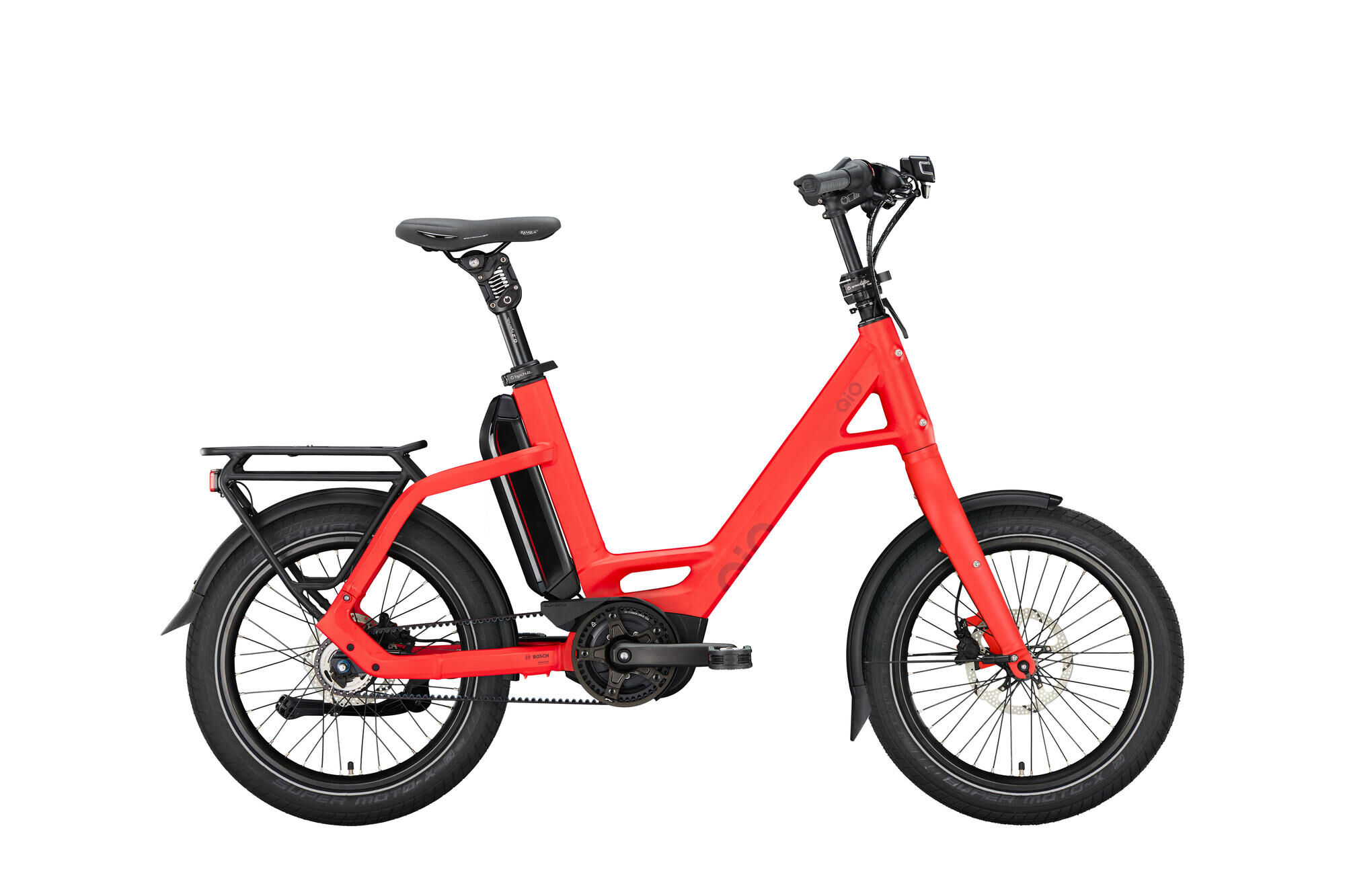

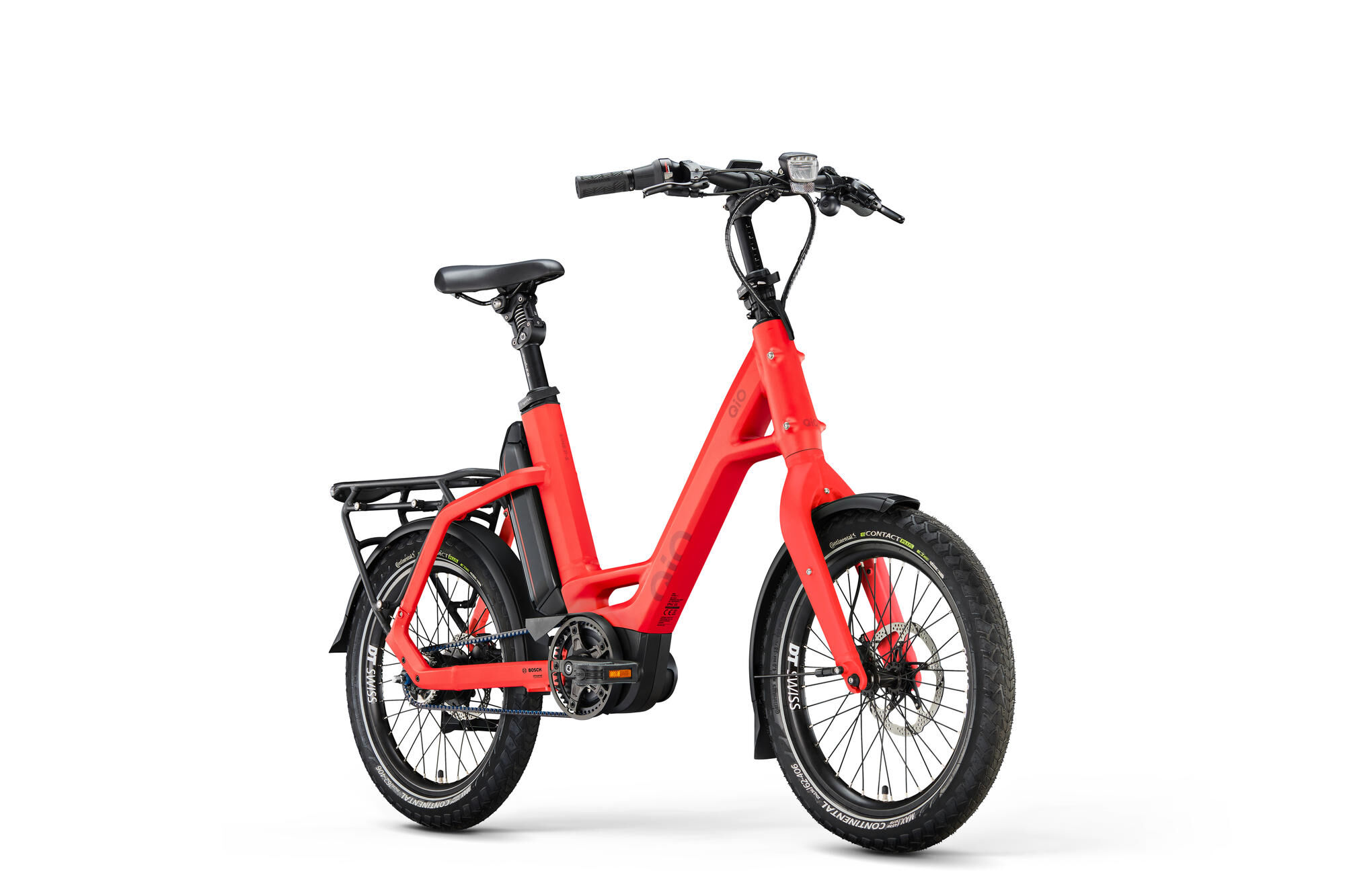

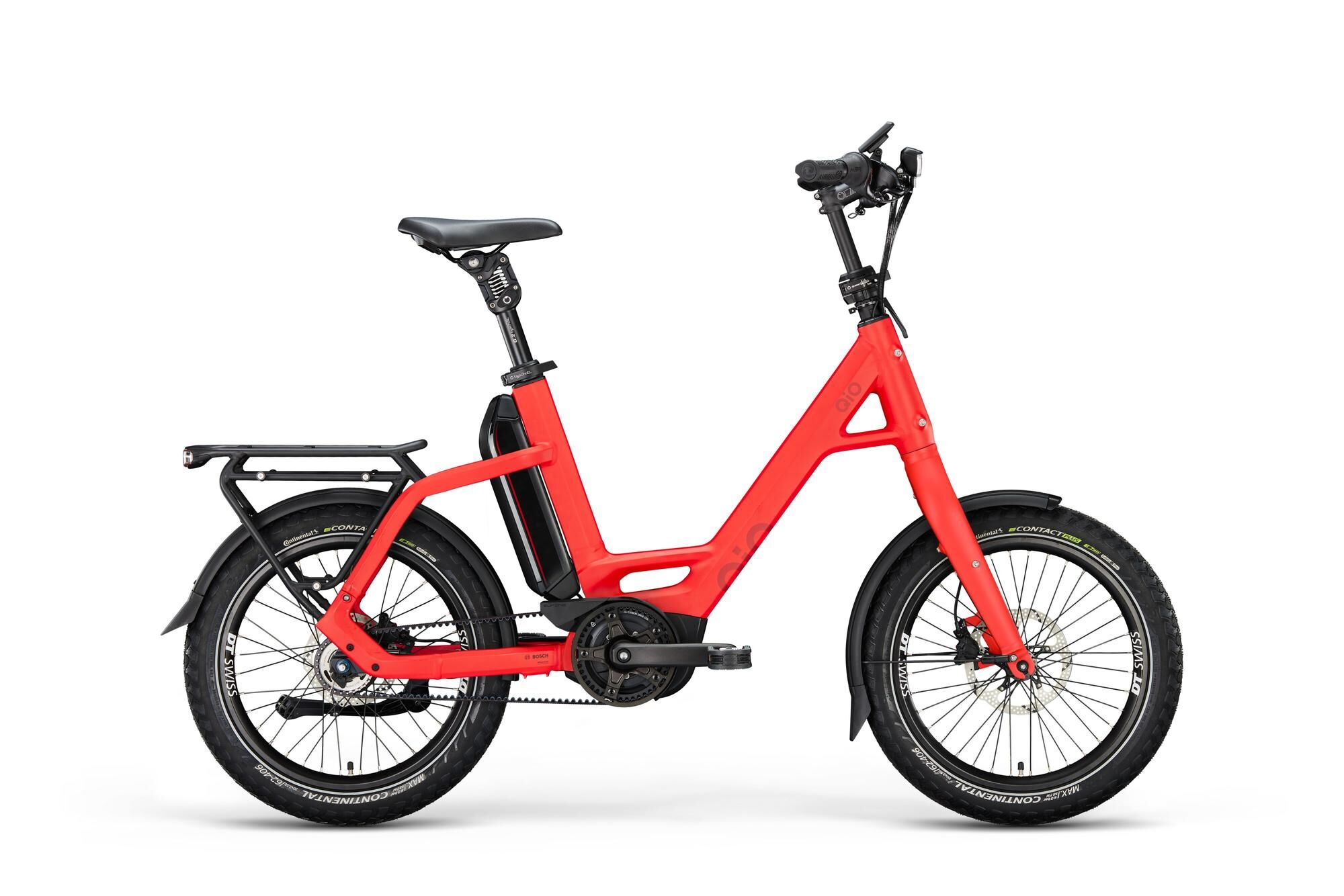

QiO Electric compact bike "EINS P-5" (#1)
unisex, 20", imola red matt, 5-speed SHIMANO "Nexus" freewheel, 48 cm
Read more Read less - Article number: 02652038
- Original number: 01723394
The electric compact bike has a Bosch Performance Line mid-motor with an output of 250 W. The Battery has a capacity of 545 Wh and is integrated into the frame design. The drives are powered by a belt drive. A hub gear is installed for gear selection. The bike is equipped with a low step-through and offers suspension seatposts and a Chain Guard. The 20" wheels are fitted with Fenders. The permissible system weight is 180 kg, which allows the use of additional luggage.
Product information
- Access height 182 mm
- Battery capacity 545.0 Wh
- Bosch Smart System yes
- Brake system hydraulic rim brake
- Category compact bike
- Chainstay 451 mm
- Colour designation imola red matt
- Drive belt drive
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , deep entry , electronic sliding aid , fender , suspension seatpost , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears 5-speed
- Gender unisex
- Length 1685 mm
- Main colour red
- Material 1 aluminium
- Passage width 190 mm
- Permissible system weight 180 kg
- Reach 408 mm
- Seat angle 70.5 °
- Seat tube 48 mm
- Shifting name 5-Gang SHIMANO "Nexus" Leerlauf
- Shifting type internal gear shifting
- Stack 541 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Stem length 70.0 mm
- Support up to 25km/h
- Toptube 576 mm
- Wheel distance 1108 mm
- Wheel size 20 "
- Battery: BOSCH Powerpack 545, Li-Ionen, 36 V / 14,4 Ah / 545 Wh
- Battery Lock: ABUS 40973 T82 DT3.1, BES3
- Bottom bracket: BOSCH
- Brake lever: TRP HD-EU817
- Bremse H.R.: TRP Scheibenbremse HD-EU817
- Bremse V.R.: TRP Scheibenbremse HD-EU817
- Chain / belt: GATES "CDC", 120Z.
- Chain guard: CURANA "C+" zweiteilig, 46Z.
- Chain ring / pulley: GATES "CDC", 46Z.
- Charger: Bosch 4 Ah
- Crank: STRONGLIGHT "Magan"
- Derailleur hanger: QIO Slider Dropout
- Display: BOSCH, "Intuvia 100", 4-Stufen, Remote Control, Schiebehilfe, eBike Flow App
- Engine: BOSCH Mittelmotor "Performance", 36 V, 250 W, das smarte System
- Fender: CURANA "Apollo Orbit 70", Aluminium, 20 Zoll, schwarz matt
- Fork: Alu 6061 Disc
- Frame: QIO EINS, Alu 6061
- Front hub: SHIMANO "HB-M5100", 36 Loch, schwarz
- Front light: BUSCH&MÜLLER "BRIQ-S" 60 LUX, DC 9-15V
- Front rotor: 180mm Centerlock
- Front tire: CONTINENTAL "E Contact" Plus, 62-406
- Grips: HERRMANS "Nucore Town Wave", schwarz, Rechts 90MM, Links 123MM
- Handlebar: ERGOTEC "Lady Town" Level 4, Ø 31,8 mm
- Headset: TOKEN "TK255E-HJ04"
- Pedals: UNION "SP-153" Faltpedal
- Rear carrier: QIO "MIK-HD" und "MIK-SIDE" Systemträger, B&M Rücklicht integriert
- Rear hub: SHIMANO "Nexus" 5-Gg. LL
- Rear light: BUSCH&MÜLLER "TOPLIGHT DART BREX", 6-50V, DC, mit Notbremslichtfunktion
- Rear rotor: TEKTRO TR-47, 160mm 5 Loch (RBN)
- Rear tire: CONTINENTAL "E Contact" Plus, 62-406
- Remote: BOSCH LED Remote, das smarte System, Schiebehilfe
- Rims: DT Swiss "U663", Disc, schwarz
- Saddle: SELLE ROYAL "ON"
- Seatpost: BY,SCHULZ "G.2" Federsattelstütze, antitheft 34,9mm x 400mm, Medium
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: SHIMANO "Nexus", 5-Gg.
- Spokes: DT-Swiss ELEMENTAL, schwarz
- Sprocket / pulley: GATES, "CDX:BLACK", 28Z.
- Stands: URSUS "King-EVO" 40mm schwarz
- Stem: BY,SCHULZ "SDS" 70mm, 7°, 31,8mm
- Supplier Article Number: 01723394
- EAN: 4251971163812
- MSRP: €4,199.00
- Fedas-Code: 159021
- DST-Code: 1A01
- WEEE registration number: DE92509320
- SB-Article: No
- Bidex-Code: 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight: 26.5 kg
| Article | Price | |
|---|---|---|
 unisex, 20", imola red matt, 5-speed SHIMANO "Nexus" freewheel, 48 cm Read more Read less
|
Start your day relaxed with the QiO "EINS P-5" e-bike. Whether it's to the bakery, through the fields or across the campsite - the smart Bosch system (BES3) ensures a fully connected ride.The "EINS P-5" offers the Bosch "Performance Line" engine, a 545 Wh Battery and the "Intuvia 100" Display. The 5-speed Shimano "Nexus" hub gears and the low-maintenance Gates CDC Straps guarantee smooth power transmission. With its 20" wheels, the e-bike is maneuverable and ideal for narrow city streets, where the sprung parallelogram seatposts offer plenty of comfort and are theft-proof.The compact design makes it easy to take with you, whether in the car or camper van. Foldable pedals and rotating Handlebars save space. Ideal for commuters who just want to get going.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 unisex, 20", crystal white, 5-speed SHIMANO "Nexus" coaster brake, 48 cm Read more Read less
| ||
 unisex, 20", crystal white, 5-speed SHIMANO "Nexus" freewheel, 48 cm Read more Read less
| ||
 unisex, 20", forest green, 5-speed SHIMANO "Nexus" coaster brake, 48 cm Read more Read less
| ||
 unisex, 20", forest green, 5-speed SHIMANO "Nexus" freewheel, 48 cm Read more Read less
| ||

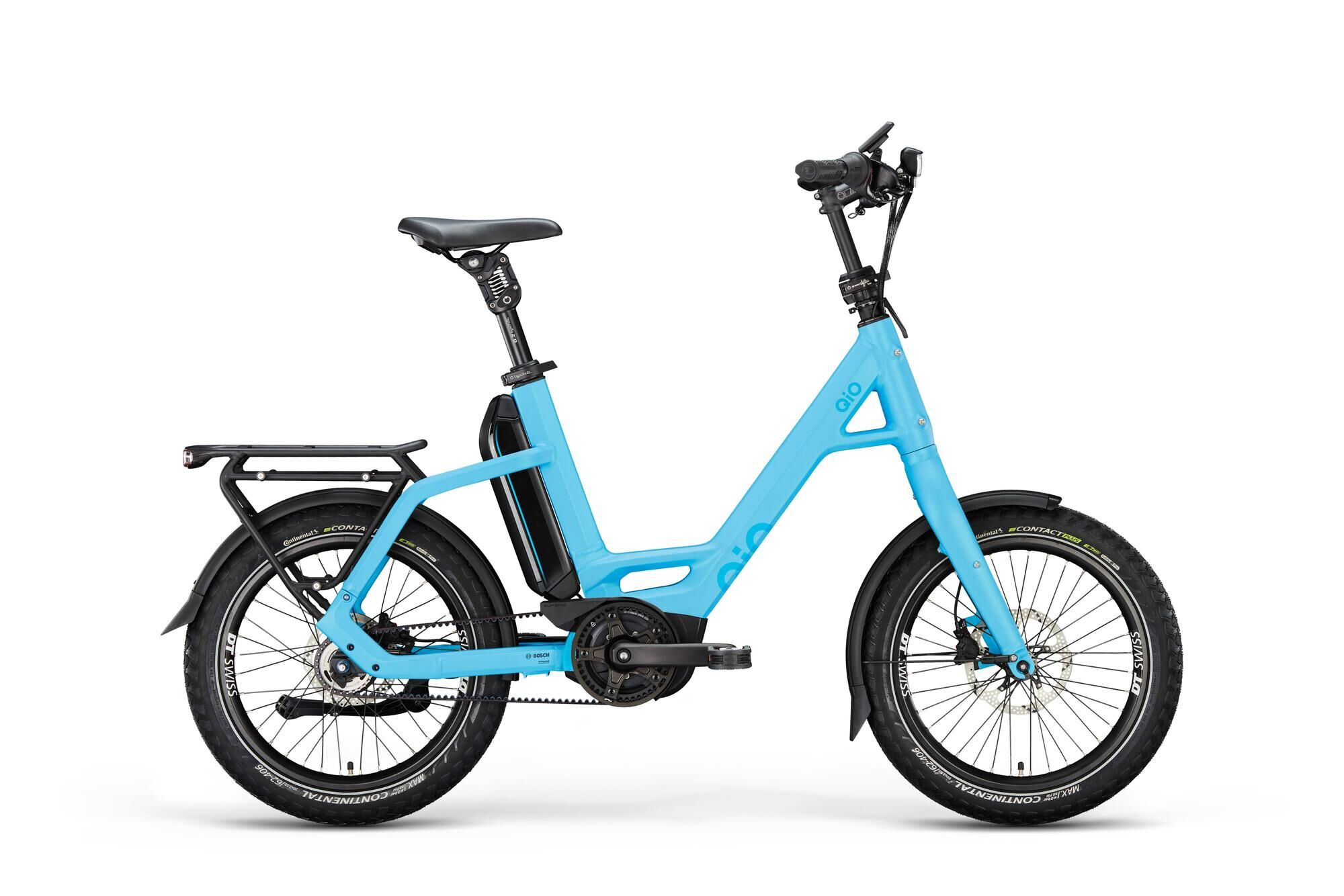

 unisex, 20", ice blue matt, 5-speed SHIMANO "Nexus" coaster brake, 48 cm Read more Read less
| ||
 unisex, 20", ice blue matt, 5-speed SHIMANO "Nexus" freewheel, 48 cm Read more Read less
| ||
 unisex, 20", imola red matt, 5-speed SHIMANO "Nexus" coaster brake, 48 cm Read more Read less
| ||
 unisex, 20", imola red matt, 5-speed SHIMANO "Nexus" freewheel, 48 cm Read more Read less
| ||
 unisex, 20", lead metal, 5-speed SHIMANO "Nexus" coaster brake, 48 cm Read more Read less
| ||
 unisex, 20", lead metal, 5-speed SHIMANO "Nexus" freewheel, 48 cm Read more Read less
| ||

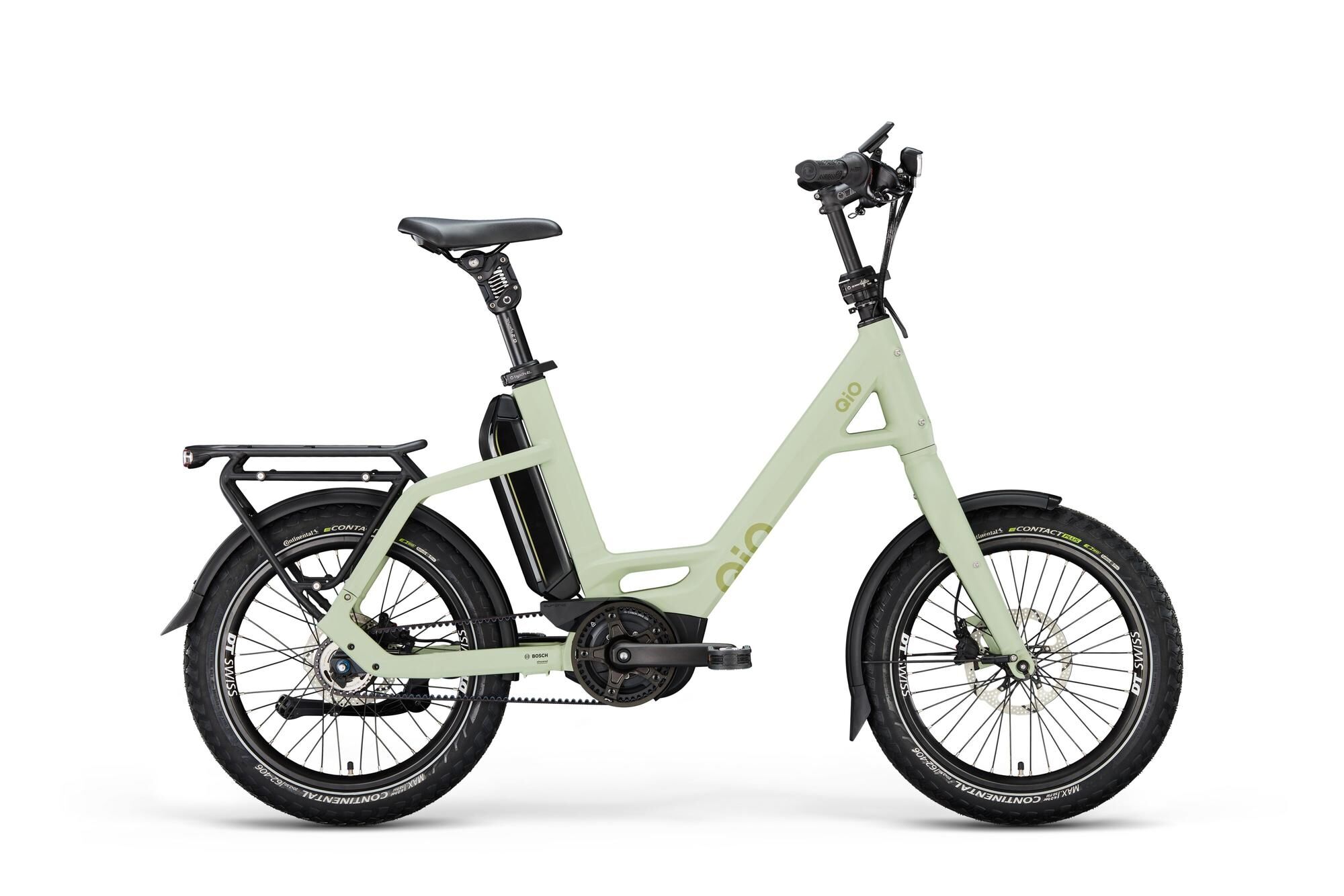

 unisex, 20", light olive matt, 5-speed SHIMANO "Nexus" coaster brake, 48 cm Read more Read less
| ||
 unisex, 20", light olive matt, 5-speed SHIMANO "Nexus" freewheel, 48 cm Read more Read less
| ||

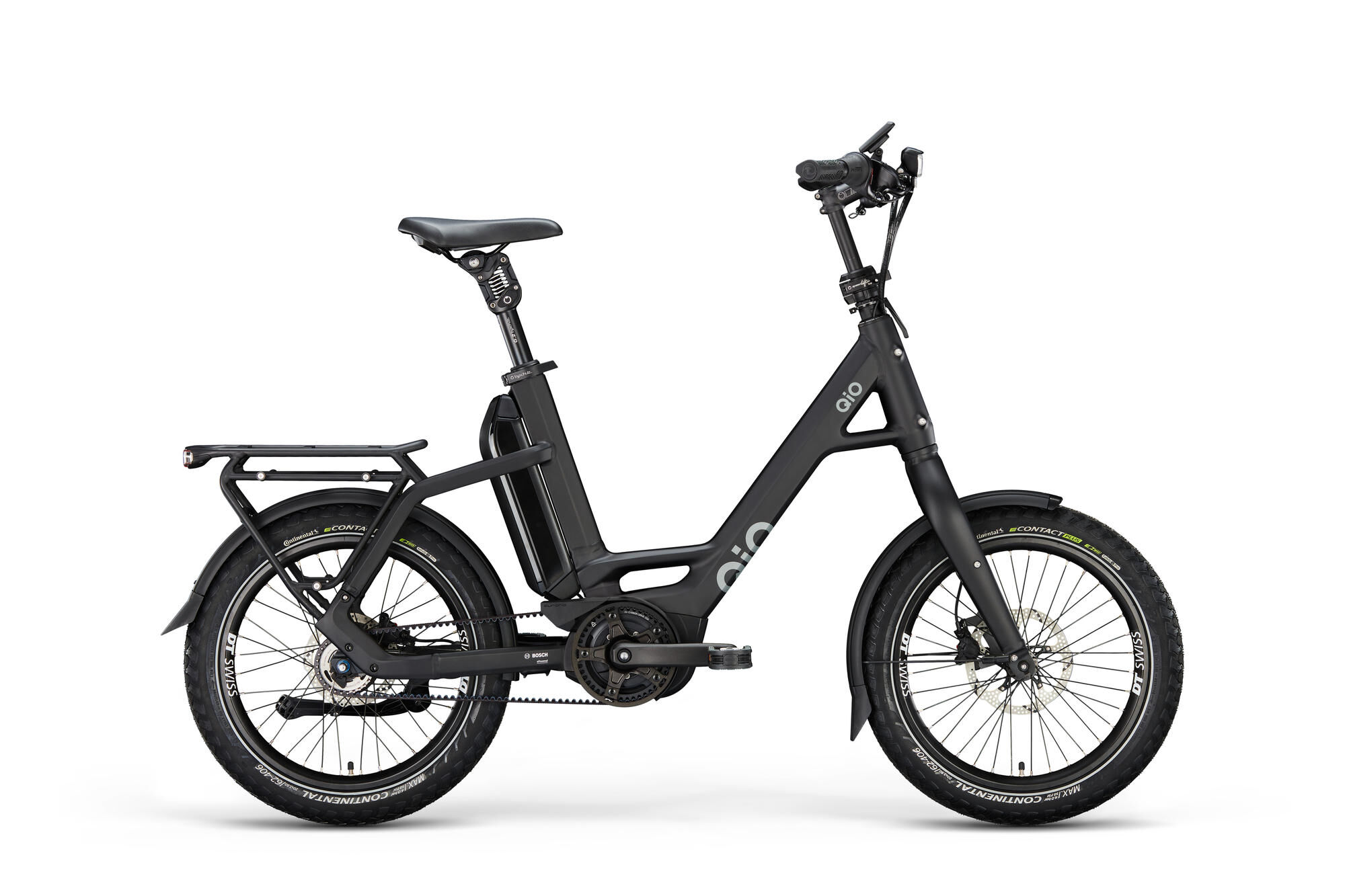

 unisex, 20", night black matt, 5-speed SHIMANO "Nexus" coaster brake, 48 cm Read more Read less
| ||
 unisex, 20", night black matt, 5-speed SHIMANO "Nexus" freewheel, 48 cm Read more Read less
| ||

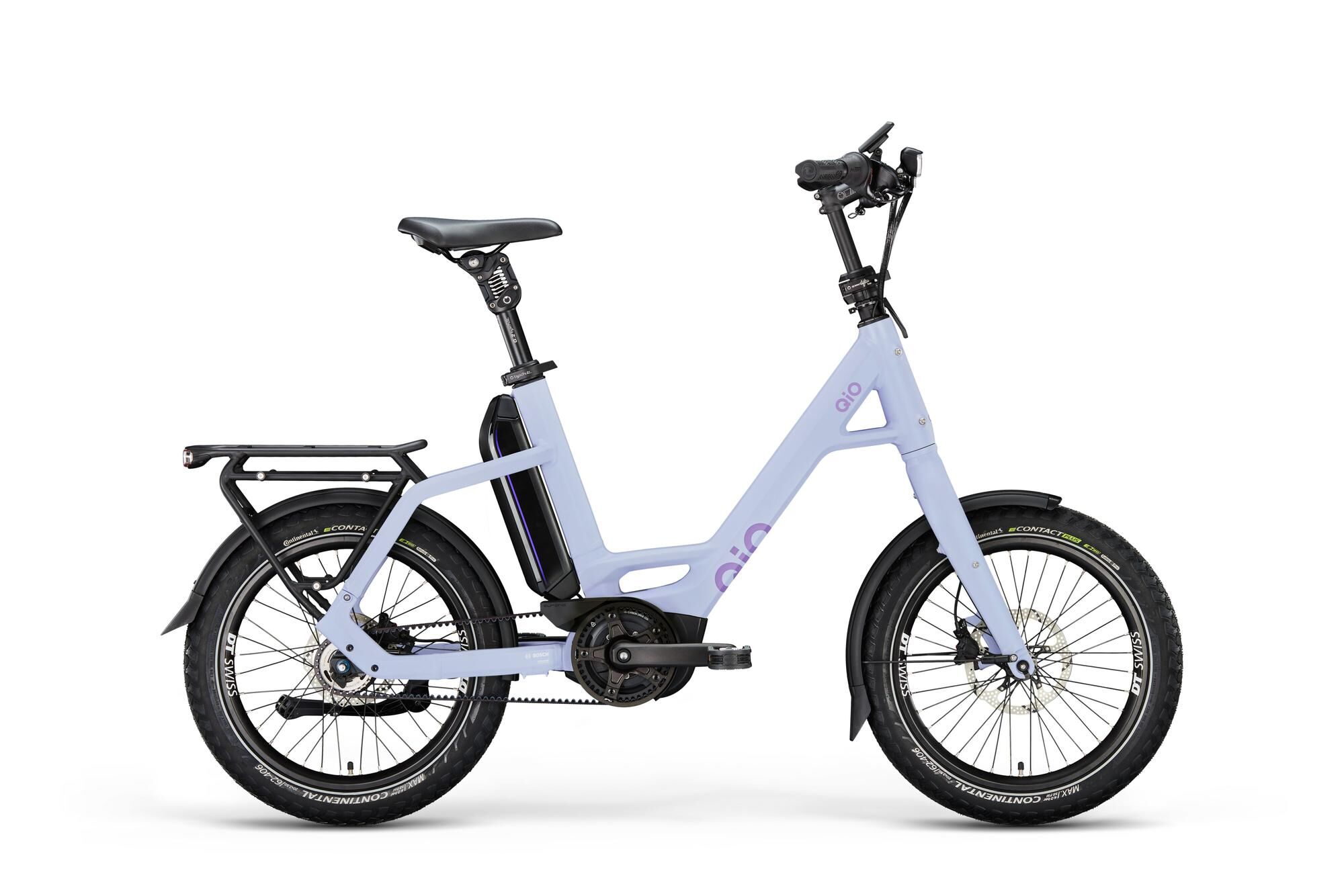

 unisex, 20", sweet lavender matt, 5-speed SHIMANO "Nexus" coaster brake, 48 cm Read more Read less
| ||
