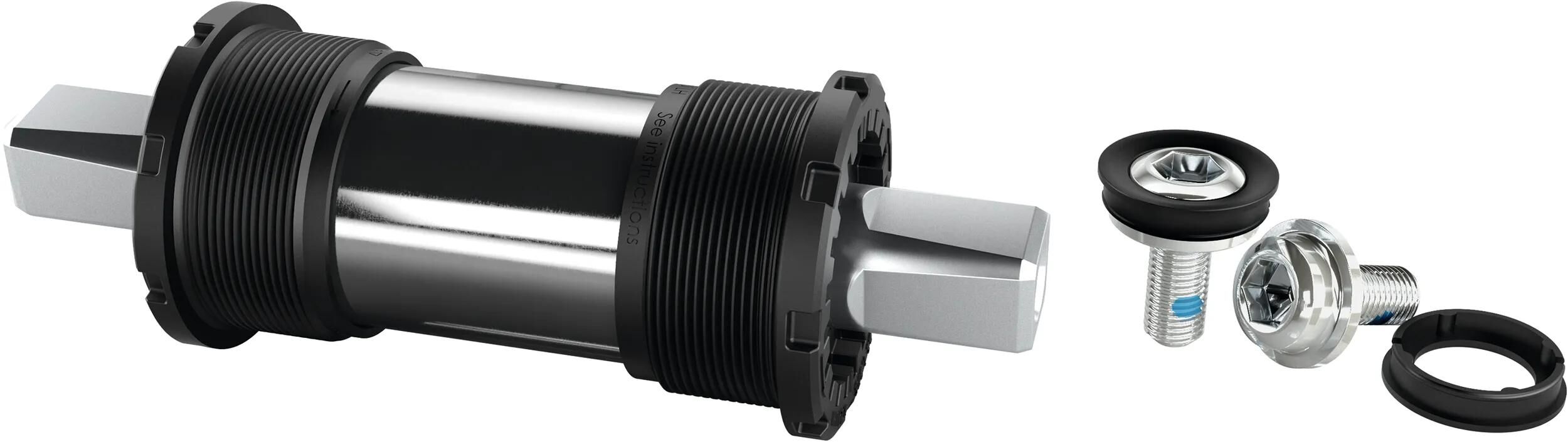

THUN bottom bracket "Efficient Jive"
119mm axle length
- Article number: 03326527
- Original number: 16219606
self-service package, square (12,73mm), BSA thread

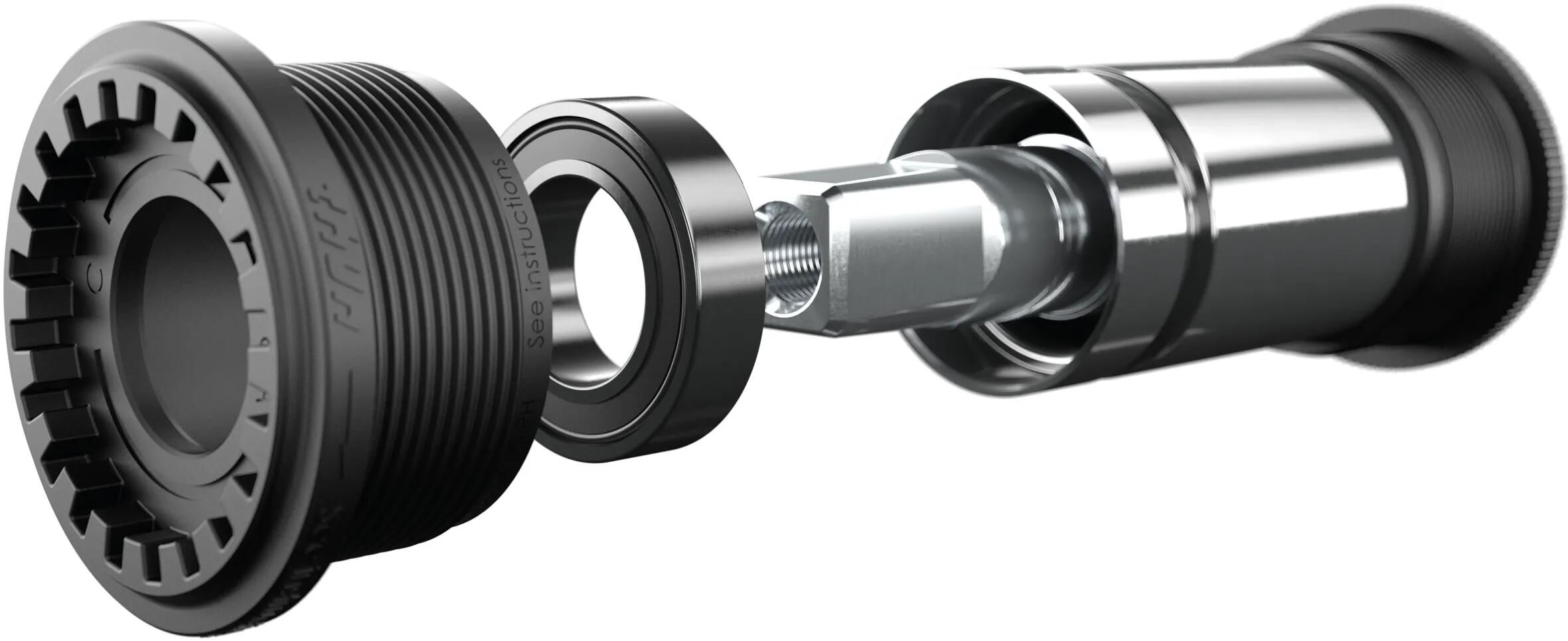

1,375" x 24, 68mm housing width, durable, maintenancefree, weather resistant. Left functional shoulder (FS), axle made of special hardend material with (ML-hardness), certification: ISO 4210 (MTB), optimum rotation quality because of double sealed industrial bearings, zinc-coated steel sleeve to protect the bottom bracket, composite A bearing shell, incl. 2 inside hexagon screws with polyamide-stain coating and clip-ring, installation note: shell tightening torque: 25-30 Nm (assembly without grease); screws tightening torque: 42-45 Nm, made in Germany
Product information
- Axle length 119.0 mm
- Axle standard ISO
- Bearing type sealed bearing
- Bottom bracket width 68 mm
- Design 4-edge
- Main colour black
- Secondary colour silver
- Standard bottom bracket BSA
- Type Article
- Supplier Article Number: 16219606
- EAN: 4006546028436
- MSRP: €19.95
- DST-Code: 2R01
- Bidex-Code: 202040
- Brand/Supplier THUN
- Unit of measure: PIECE
- Weight: 0.303 kg
