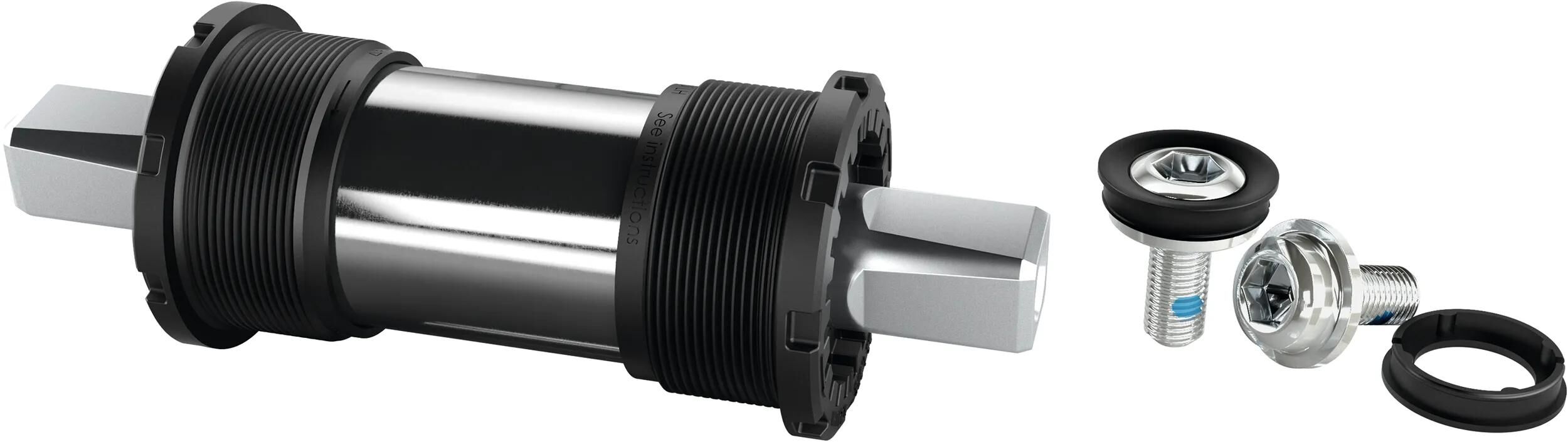

THUN bottom bracket "Efficient Jive"
122,5mm axle length
- Article number: 03326535
- Original number: 16220606
self-service package, square (12,73mm), BSA thread
1,375" x 24, 68mm housing width, durable, maintenancefree, weather resistant. Left functional shoulder (FS), axle made of special hardend material with (ML-hardness), certification: ISO 4210 (MTB), optimum rotation quality because of double sealed industrial bearings, zinc-coated steel sleeve to protect the bottom bracket, composite A bearing shell, incl. 2 inside hexagon screws with polyamide-stain coating and clip-ring, installation note: shell tightening torque: 25-30 Nm (assembly without grease); screws tightening torque: 42-45 Nm, made in Germany
Product information
- Axle length: 122.5 mm
- Axle standard: ISO
- Bearing type: sealed bearing
- Bidex-Code: 202040
- Bottom bracket width: 68 mm
- DST-Code: 2R01
- Design: 4-edge
- Fedas-Code: 160361
- Main colour: black
- Secondary colour: silver
- Standard bottom bracket: BSA
- Type: Article
- Supplier Article Number:: 16220606
- EAN: 4006546028580
- MSRP: €19.95
- Brand/Supplier THUN
- Unit of measure: PIECE
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 THUN bottom bracket "Efficient Jive" 110mm axle length
| ||
THUN bottom bracket "Efficient Jive" 113mm axle length
| ||
THUN bottom bracket "Efficient Jive" 116mm axle length
| ||
THUN bottom bracket "Efficient Jive" 119mm axle length
| ||
THUN bottom bracket "Efficient Jive" 122,5mm axle length
| ||
THUN bottom bracket "Efficient Jive" 127mm axle length
|
