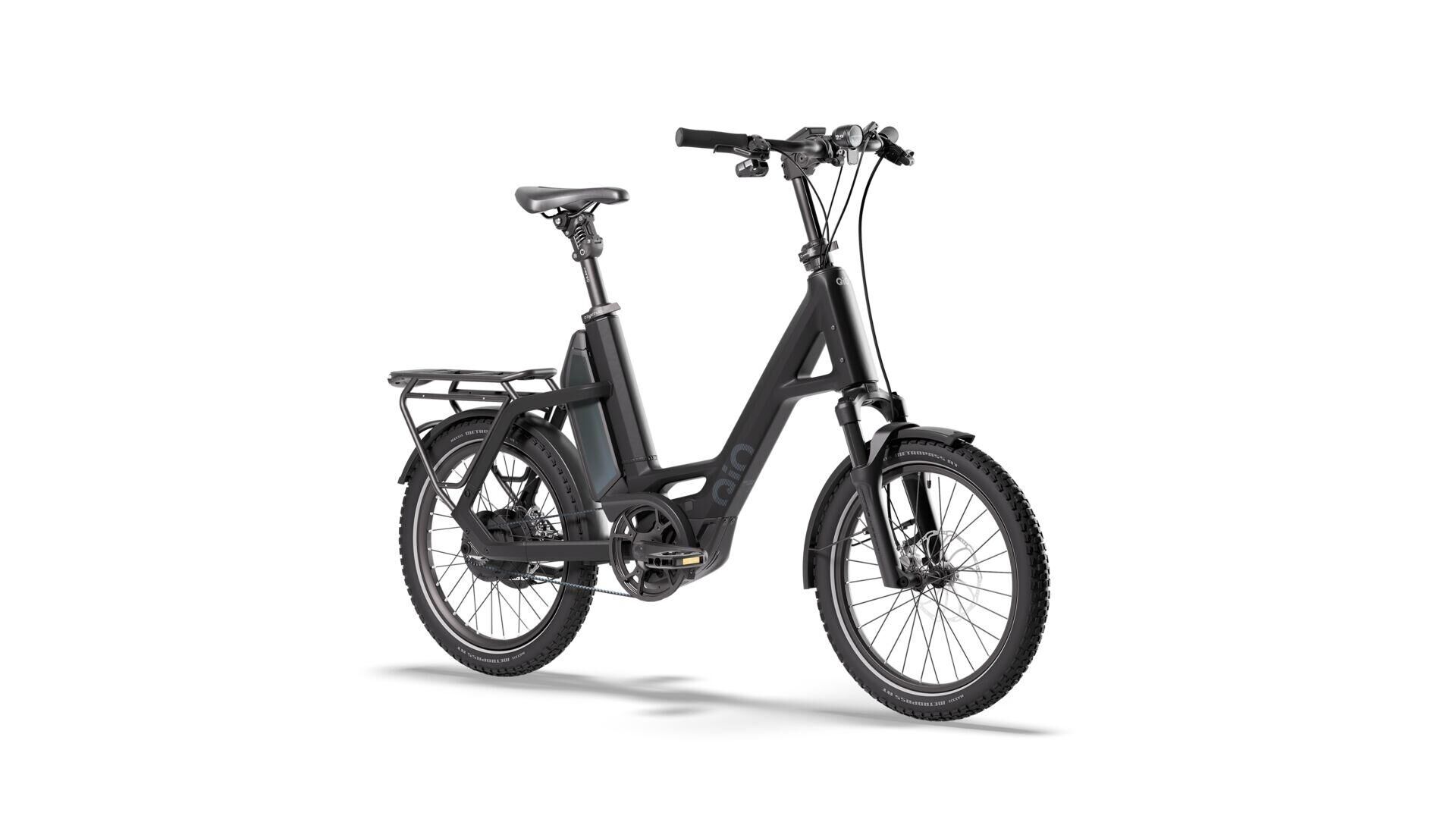

QiO Electric compact bike "Compact CXNINEx" (#1)
unisex, 20", night black matt, 3X3 NINE, 48 cm
Read more Read less - Article number: 02652173
- Original number: 4251971178458
The electric compact bike has an aluminum frame and is equipped with a Bosch Performance Line CX mid-motor, which offers a motor power of 250 W. The Battery has a capacity of 800.0 Wh and is integrated into the down tube. The drive variant is via a belt drive, while gear selection is possible via a 3X3 NINE hub gear. The braking system consists of hydraulic disc brakes. With 20" wheels and a Suspension Fork with 80 mm fork travel, the weight of the bike is designed for a permissible system weight of 180 kg.
PU 1
Product information
- Access height 450 mm
- Battery capacity 800.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Chainstay 451 mm
- Colour designation night black matt
- Drive belt
- Drive system BOSCH Performance Line CX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , electronic sliding aid , fender , suspension fork , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears 9-speed
- Gender unisex
- Length 1685 mm
- Main colour black
- Material 1 aluminium
- Model series Compact
- Passage width 190 mm
- Permissible system weight 180 kg
- Reach 408 mm
- Seat angle 71.0 °
- Seat tube 480 mm
- Shifting name 3X3 NINE
- Shifting type internal gear shifting
- Stack 541 mm
- Standover height 450 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Support up to 25km/h
- Toptube 576 mm
- Travel 80 mm
- Type compact bike
- Wheel distance 1108 mm
- Wheel size 20 "
- Battery BOSCH "Active Line Plus", max. 50 Nm
- Battery Lock ABUS "XPlus"
- Bottom bracket BOSCH
- Chain / belt GATES "CDX"
- Chain guard SKS "Chainblade"
- Chain ring / pulley Gates "CDX Fin Line", 50 teeth, belt line 51.7 mm
- Charger BOSCH 4 A
- Crank PROWHEEL "EB03", 170 mm
- Derailleur hanger Slider dropout, suitable for CXNINEx
- Display BOSCH "Kiox 500", 4-stages, Remote Control, push-aid
- Engine BOSCH "Performance Line CX", BDU38, max. 100 Nm
- Fender SKS "A 69 R"
- Fork SR SUNTOUR "SF22-Mobie34-CGO-Boost", 80 mm travel, Thru Axle
- Frame QIO Compact, Bosch Gen. 4, BES3, aluminum, 48 cm
- Front hub SHIMANO "HB-TC500-15-B", 15 x 110 mm Boost, Thru Axle, Center Lock
- Front light Busch + Müller "IQ-XS E Highbeam", 100 Lux
- Front rotor MAGURA "MDR-S 2.0", Ø 203 mm
- Front tire MAXXIS "MetroPass AT", 62-406, Reflex
- Front wheel brake MAGURA "LOUISE"
- Grips HERRMANS "Nucore Town", wave
- Handlebar ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
- Headset ACROS ZS66/31,75 OD74 / ZS66/46/OD72, Blocklock
- Pedals MARWI "SP-157" Faltpedale
- Rear carrier "MIK HD 2.0" for MIK Side
- Rear hub 3x3 "Nine", 9-speed, idle, center lock
- Rear light Busch + Müller "Dart E Brex "
- Rear rotor MAGURA "MDR-S", Ø 203 mm
- Rear tire MAXXIS "MetroPass AT", 62-406, Reflex
- Rear wheel brake MAGURA "LOUISE"
- Rims DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
- Saddle Selle Royal "On", Moderate Wide
- Seatpost by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever 3X3 "E.TR.ADJ"
- Spokes 2,0 mm, Niro, schwarz
- Sprocket / pulley Gates "CDX:BLACK Fin Line", 28 teeth
- Stands URSUS "Invisible Mount", 20"
- Stem ergotec "Sepia Ahead XL", 80 mm long, adjustable, level 5
- Supplier Article Number: 4251971178458
- EAN 4251971178458
- MSRP: €5,999.00
- Fedas-Code 159021
- DST-Code 1A01
- WEEE registration number DE92509320
- SB-Article No
- Bidex-Code 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight 29.8 kg
| Article | Price | |
|---|---|---|
 | PU 1 | |
 | PU 1 | |
 | PU 10 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 50 | |
 | PU 12 | |
 | PU 10 | |
 "R Duo" - removable keys, with two Battery Locks Read more Read less
| PU 12 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 10 | |
 | PU 1 | |
 | PU 25 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 5 | |
 | PU 1 | |
 | PU 12 | |
 | PU 1 | |
 | PU 5 | |
 | PU 1 | |
"Folding Lock Duo", black, incl. one short and one long XPlus Lock Cylinder Read more Read less
| PU 1 | |
 | PU 10 | |
 | PU 10 | |
"NR Duo" - non-removable keys, with two Battery Locks Read more Read less
| PU 12 | |
 | PU 1 | |
 | PU 10 | |
 | PU 1 | |
 | PU 10 | |
 Scarves: blackCover: dark gray Read more Read less
| PU 1 | |
 | PU 3 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 |
The "Compact CXNINEx" from QiO is the top model in the series and redefines modern e-bike mobility - with an uncompromising focus on performance, comfort and efficiency. Equipped with the powerful Bosch Performance Line CX mid-motor with Smart System, the bike offers dynamic and finely adjustable support up to 25 km/h, ideal for urban and rural routes.The suspension Fork with 80 mm travel and the suspension Seatpost ensure a noticeable reduction in vibrations and bumps - even on rough surfaces. The chassis is complemented by the high-quality 3x3 gear hub, which provides nine precisely coordinated gears for maximum efficiency and riding comfort.The Gates CDX belt drive stands for low-maintenance durability and a particularly smooth ride. In combination with the powerful 800 Wh Battery, this results in an impressive range that covers even longer tours with ease.Hydraulic 4-piston disc brakes ensure maximum safety and control, reliably decelerating even in wet conditions and at high speeds. Lighting is provided by the high-quality Busch+Müller "IQ-XS high beam" mED headlight, which offers excellent illumination of the road with 100 lux low beam and 150 lux high beam function - ideal for riding in the dark and in poor visibility conditions.
