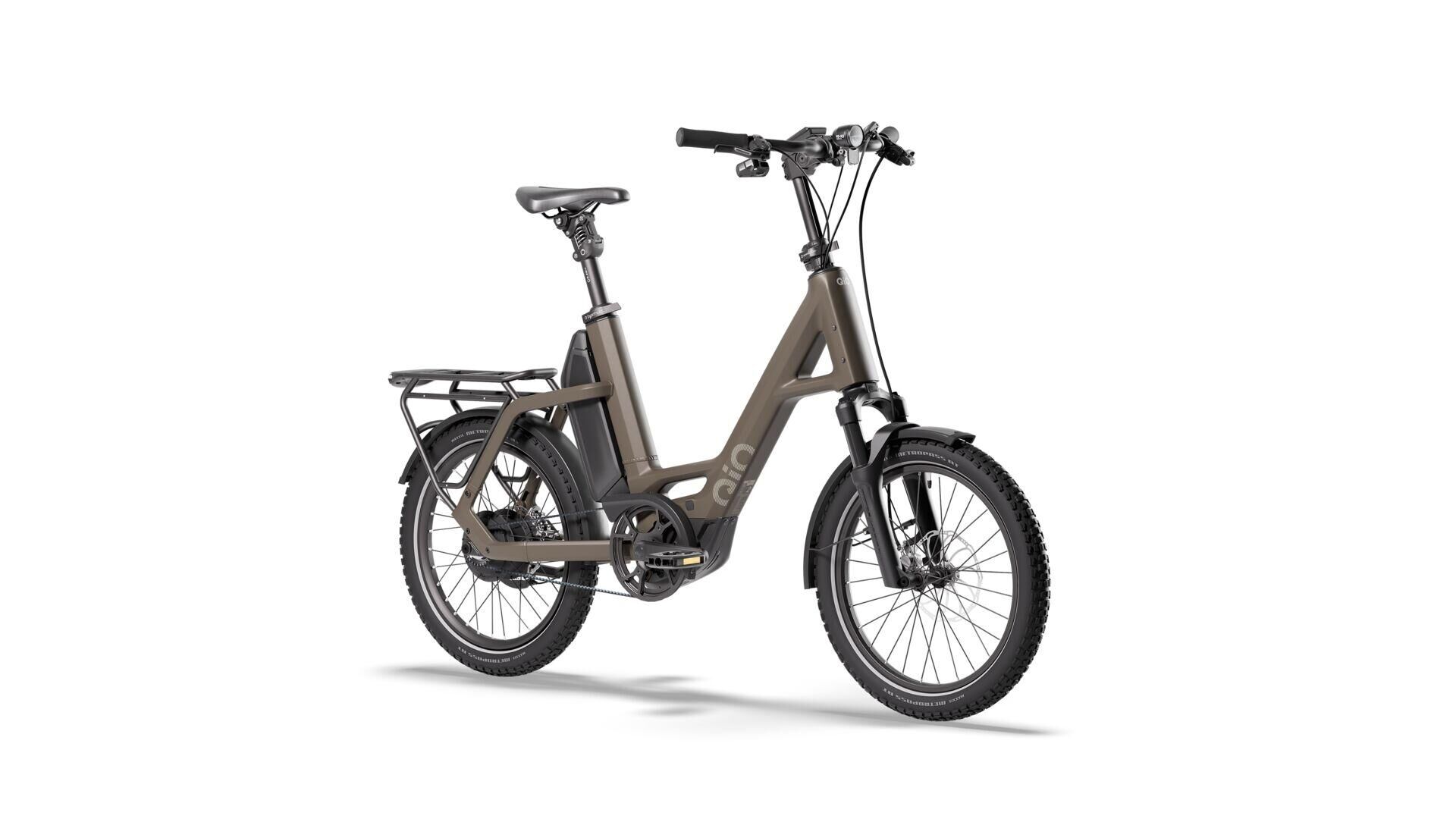

QiO Electric compact bike "Compact CXNINEx" (#1)
unisex, 20", dark olive matt, 3X3 NINE, 48 cm
Read more Read less - Article number: 02652175
- Electric compact bike with a 250 W mid-drive motor and an 800.0 Wh battery capacity.
- 3X3 NINE hub gear system and belt drive.
- Hydraulic Disc Brakes.
- Suspension Fork with 80 mm of travel.
- 20-inch wheels.
- Electronic Pushing Help, Chain Guard, Fenders, and integrated rack.
- Aluminum frame.
- Maximum system weight: 180 kg.
PU 1
Product information
- Battery capacity 800.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Colour designation dark olive matt
- Drive belt
- Drive system BOSCH Performance Line CX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , electronic sliding aid , fender , suspension fork , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears 9-speed
- Gender unisex
- Main colour green
- Material 1 aluminium
- Model range Compact
- Permissible system weight 180 kg
- Shifting name 3X3 NINE
- Shifting type internal gear shifting
- Support up to 25km/h
- Travel 80 mm
- Type compact bike
- Wheel size 20 "
- Access height 450 mm
- Chainstay 451 mm
- Length 1685 mm
- Passage width 190 mm
- Reach 408 mm
- Seat angle 71.0 °
- Seat tube 480 mm
- Stack 541 mm
- Standover height 450 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Toptube 576 mm
- Wheel distance 1108 mm
- Battery BOSCH "Active Line Plus", max. 50 Nm
- Battery Lock ABUS "XPlus"
- Bottom bracket BOSCH
- Chain / belt GATES "CDX"
- Chain guard SKS "Chainblade"
- Chain ring / pulley Gates "CDX Fin Line", 50 teeth, belt line 51.7 mm
- Charger BOSCH 4 A
- Crank PROWHEEL "EB03", 170 mm
- Derailleur hanger Slider dropout, suitable for CXNINEx
- Display BOSCH "Kiox 500", 4-stages, Remote Control, push-aid
- Engine BOSCH "Performance Line CX", BDU38, max. 100 Nm
- Fender SKS "A 69 R"
- Fork SR SUNTOUR "SF22-Mobie34-CGO-Boost", 80 mm travel, Thru Axle
- Frame QIO Compact, Bosch Gen. 4, BES3, aluminum, 48 cm
- Front brake MAGURA "LOUISE"
- Front hub SHIMANO "HB-TC500-15-B", 15 x 110 mm Boost, Thru Axle, Center Lock
- Front light Busch + Müller "IQ-XS E Highbeam", 100 Lux
- Front rotor MAGURA "MDR-S 2.0", Ø 203 mm
- Front tire MAXXIS "MetroPass AT", 62-406, Reflex
- Grips HERRMANS "Nucore Town", wave
- Handlebar ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
- Headset ACROS ZS66/31.75 OD74 / ZS66/46/OD72, blocklock
- Pedals MARWI "SP-157" Faltpedale
- Rear brake MAGURA "LOUISE"
- Rear carrier "MIK HD 2.0" for MIK Side
- Rear hub 3x3 "Nine", 9-speed, idle, center lock
- Rear light Busch + Müller "Dart E Brex "
- Rear rotor MAGURA "MDR-S", Ø 203 mm
- Rear tire MAXXIS "MetroPass AT", 62-406, Reflex
- Rims DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
- Saddle Selle Royal "On", Moderate Wide
- Seatpost by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever 3X3 "E.TR.ADJ"
- Spokes 2,0 mm, Niro, schwarz
- Sprocket / pulley Gates "CDX:BLACK Fin Line", 28 teeth
- Stands URSUS "Invisible Mount", 20"
- Stem ergotec "Sepia Ahead XL", 80 mm long, adjustable, level 5
- EAN 4251971178472
- MSRP: €5,999.00
- Fedas-Code 159021
- DST-Code 1A01
- WEEE registration number DE92509320
- SB-Article No
- Bidex-Code 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight 29.8 kg
- product data sheet QiO Electric compact bike Compact CXNINEx DA
- product data sheet QiO Electric compact bike Compact CXNINEx DE
- product data sheet QiO Electric compact bike Compact CXNINEx EN
- product data sheet QiO Electric compact bike Compact CXNINEx ES
- product data sheet QiO Electric compact bike Compact CXNINEx FR
- product data sheet QiO Electric compact bike Compact CXNINEx IT
- product data sheet QiO Electric compact bike Compact CXNINEx NL
| Article | Price | |
|---|---|---|
 | PU 10 | |
 | PU 10 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 3 | |
 | PU 10 | |
 | PU 1 | |
 | PU 4 | |
 | PU 1 | |
 | PU 4 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 |
The "Compact CXNINEx" from QiO is the top model in the series and redefines modern e-bike mobility—with an uncompromising focus on performance, comfort, and efficiency. Equipped with the powerful Bosch Performance Line CX mid-drive motor and Smart System, the bike offers dynamic and precisely adjustable assistance up to 25 km/h, ideal for both urban and rural routes.The suspension fork with 80 mm of travel and the suspension seatpost ensure a noticeable reduction in vibrations and shocks—even on rough terrain. The drivetrain is complemented by the high-quality 3x3 hub gear system, which provides nine precisely tuned gears for maximum efficiency and riding comfort.The Gates CDX belt drive offers low-maintenance durability and an exceptionally smooth ride. Combined with the powerful 800 Wh Battery, this results in an impressive range that easily covers even longer rides.Hydraulic 4-piston disc brakes ensure maximum safety and control, providing reliable stopping power even in wet conditions and at high speeds. Lighting is provided by the high-quality Busch+Müller "IQ-XS high beam" mED Front Light, which offers excellent illumination of the road with 100 lux low beam and 150 lux high beam—ideal for riding in the dark and in poor visibility conditions.
