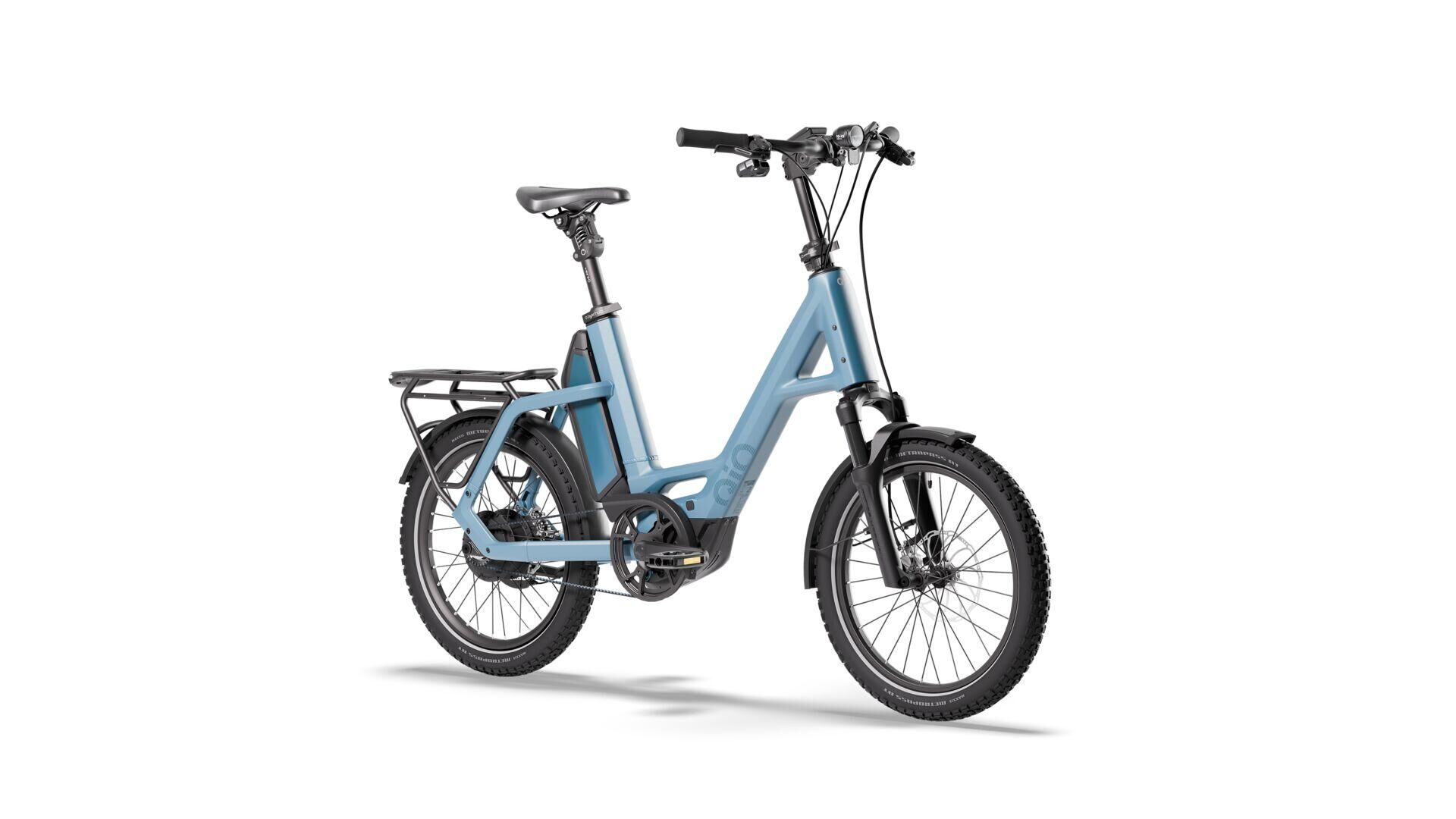

QiO Electric compact bike "Compact CXNINEx" (#1)
unisex, 20", retro blue matt, 3X3 NINE, 48 cm
Read more Read less - Article number: 02652178
- Original number: 4251971178502
The electric compact bike has an aluminum frame and is equipped with a Bosch Performance Line CX mid-motor, which offers a motor power of 250 W. The Battery has a capacity of 800.0 Wh and is integrated into the down tube. The drive variant is via a belt drive, while gear selection is possible via a 3X3 NINE hub gear. The braking system consists of hydraulic disc brakes. With 20" wheels and a Suspension Fork with 80 mm fork travel, the weight of the bike is designed for a permissible system weight of 180 kg.
Product information
- Access height 450 mm
- Battery capacity 800.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Category compact bike
- Chainstay 451 mm
- Colour designation retro blue matt
- Drive belt drive
- Drive system BOSCH Performance Line CX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , electronic sliding aid , fender , suspension fork , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears 9-speed
- Gender unisex
- Length 1685 mm
- Main colour blue
- Material 1 aluminium
- Passage width 190 mm
- Permissible system weight 180 kg
- Reach 408 mm
- Seat angle 71.0 °
- Seat tube 480 mm
- Shifting name 3X3 NINE
- Shifting type internal gear shifting
- Stack 541 mm
- Standover height 450 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Support up to 25km/h
- Toptube 576 mm
- Travel 80 mm
- Wheel distance 1108 mm
- Wheel size 20 "
- Battery: BOSCH "PowerPack 800", 800 Wh
- Battery Lock: ABUS "X-Plus"
- Bottom bracket: BOSCH
- Bremse H.R.: MAGURA "LOUISE" 4-Kolben, Easy Link
- Bremse V.R.: MAGURA "LOUISE" 4-Kolben, Easy Link
- Chain / belt: GATES "CDX"
- Chain guard: SKS "Chainblade short"
- Charger: BOSCH 4 A, BES3
- Crank: PRO WHEEL "EB 09", Gen.5
- Display: BOSCH "Kiox 500"
- Engine: BOSCH "Performance Line CX" BES3
- Fender: SKS "A69R" 20"
- Fork: SUNTOUR "SF22" Mobie34, CGO Boost DS, 15AH2
- Frame: QiO Kompakt, Bosch Gen. 5, BES3, Aluminium
- Front hub: SHIMANO "HB-TC500-15" Center Lock, 15x110mm, 36H
- Front light: BUSCH & MÜLLER "Lumotec IQ-XS Highbeam", 100/150 Lux
- Front rotor: MAGURA "MDR-C", 180mm, Centerlock
- Front tire: MAXXIS "MetroPass AT", 62-406
- Grips: HERRMANS "Nucore Grip Town Wave", Rechts, 90mm, Schwarz
- Handlebar: ERGOTEC "LADYTOWN", 31,8mm, Schwarz
- Headset: ZS66/ZS66, 1 1/4" - 1,5" tapered, mit Blocklock
- Pedals: MARWI "SP-157" Faltpedale
- Rear hub: 3x3 "SP.36.148", 9-Fach Getriebenabe, 36H, 12x148
- Rear light: Busch und Müller "Toplight Dart Brex" 80mm
- Rear rotor: MAGURA "MDR-C", 180mm, 3X3
- Rear tire: MAXXIS "MetroPass AT", 62-406
- Rims: 30-406, 36H, schwarz
- Saddle: SELLE ROYAL "ESSENZA", Heavy Duty
- Seatpost: BYSCHULZ "G.2", Parallelogramm, 34.9mm, 400mm, Hard
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Spokes: 2,0 mm, Niro, schwarz
- Sprocket / pulley: GATES "CDX", 28 Zähne
- Stem: BYSCHULZ "SPEEDLIFTER TWIST", 1 1/4", Ø28,6mm
- Supplier Article Number: 4251971178502
- EAN: 4251971178502
- MSRP: €5,999.00
- Fedas-Code: 159021
- DST-Code: 1A01
- WEEE registration number: DE92509320
- SB-Article: No
- Bidex-Code: 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
The "Compact CXNINEx" from QiO is the top model in the series and redefines modern e-bike mobility - with an uncompromising focus on performance, comfort and efficiency. Equipped with the powerful Bosch Performance Line CX mid-motor with Smart System, the bike offers dynamic and finely adjustable support up to 25 km/h, ideal for urban and rural routes.The suspension Fork with 80 mm travel and the suspension Seatpost ensure a noticeable reduction in vibrations and bumps - even on rough surfaces. The chassis is complemented by the high-quality 3x3 gear hub, which provides nine precisely coordinated gears for maximum efficiency and riding comfort.The Gates CDX belt drive stands for low-maintenance durability and a particularly smooth ride. In combination with the powerful 800 Wh Battery, this results in an impressive range that covers even longer tours with ease.Hydraulic 4-piston disc brakes ensure maximum safety and control, reliably decelerating even in wet conditions and at high speeds. Lighting is provided by the high-quality Busch+Müller "IQ-XS high beam" mED headlight, which offers excellent illumination of the road with 100 lux low beam and 150 lux high beam function - ideal for riding in the dark and in poor visibility conditions.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 unisex, 20", dark olive matt, 3X3 NINE, 48 cm Read more Read less
| ||
 unisex, 20", forest green, 3X3 NINE, 48 cm Read more Read less
| ||
 unisex, 20", imola red, 3X3 NINE, 48 cm Read more Read less
| ||
 unisex, 20", lead metal, 3X3 NINE, 48 cm Read more Read less
| ||
 unisex, 20", lunar white matt, 3X3 NINE, 48 cm Read more Read less
| ||
 unisex, 20", night black matt, 3X3 NINE, 48 cm Read more Read less
| ||
 unisex, 20", petrol blue matt, 3X3 NINE, 48 cm Read more Read less
| ||
 unisex, 20", retro blue matt, 3X3 NINE, 48 cm Read more Read less
|
