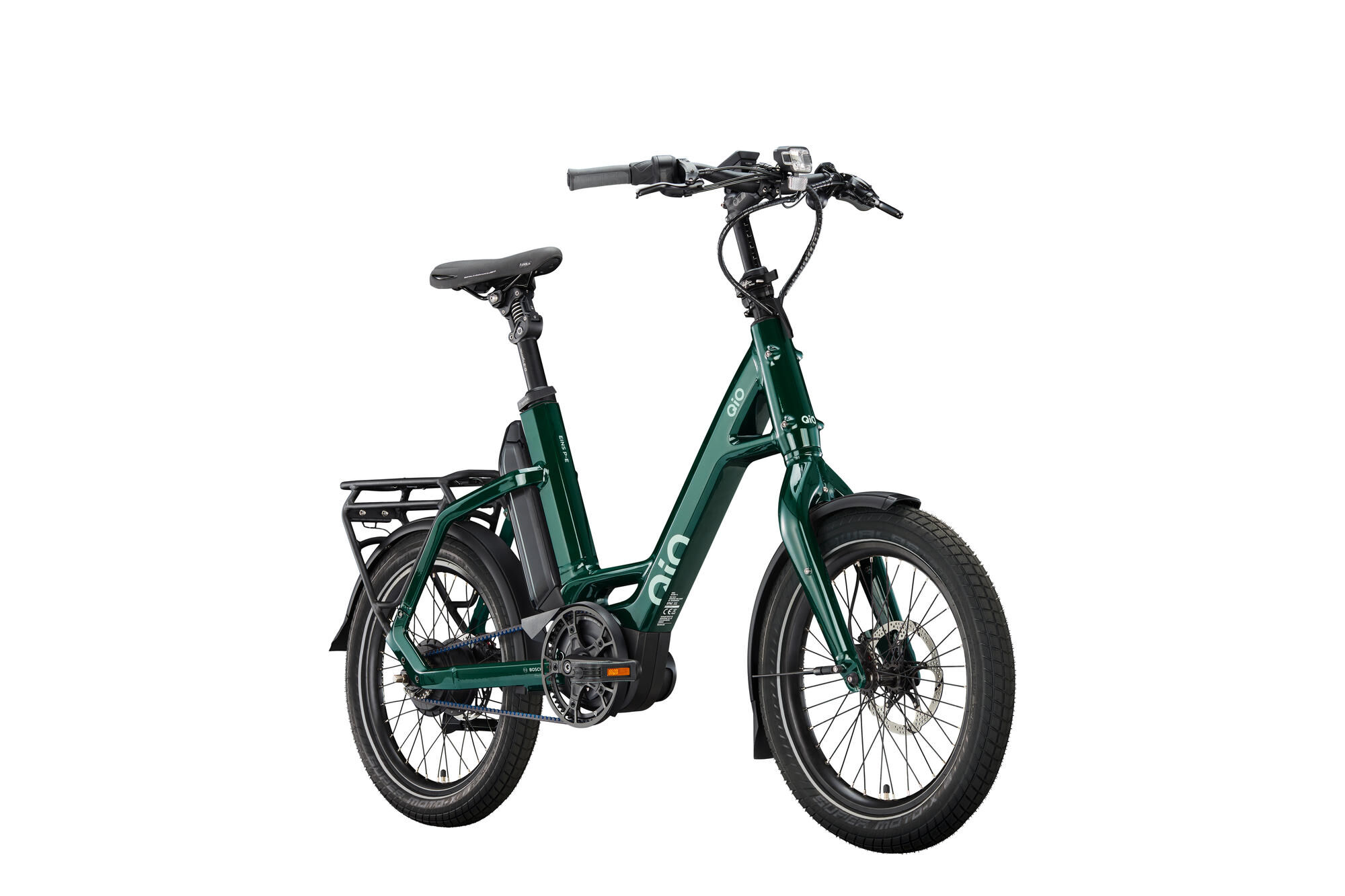

QiO Electric compact bike "EINS P-E" Mod. 24
unisex, 20", forest green, enviolo "TR", 48 cm
Read more Read less - Article number: 02651521
- Original number: 01722516
The electric compact bike consists of an aluminum frame and has 20" wheels. It is driven by a belt drive, while the drive system includes a BOSCH Performance Line mid-motor with 250 W motor power. An enviolo "TR" gear hub enables gear selection. The braking equipment includes hydraulic disc brakes. The electric compact bike has an integrated battery with a capacity of 545 Wh and a permissible system weight of 180 kg. The equipment includes a chain guard, suspension seatposts, a lower step-through, electronic Pushing Help, a system luggage rack and Fenders.
PU 1
Product information
- Battery capacity 545.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Colour designation forest green
- Drive belt
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , deep entry , electronic sliding aid , fender , suspension seatpost , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears stepless
- Gender unisex
- Main colour green
- Material aluminium
- Model range EINS
- Permissible system weight 180 kg
- Shifting name enviolo "TR"
- Shifting type internal gear shifting
- Support up to 25km/h
- Type compact bike
- Wheel size 20 "
- Battery BOSCH "PowerPack 545", 545 Wh
- Battery Lock CONTEC "PowerLoc"
- Chain / belt GATES "CDX"
- Chain guard CURANA "C+", 55 teeth
- Chain ring / pulley Gates "CDX", 55 teeth, belt line 45.5 mm
- Charger BOSCH 4 A
- Crank Stronglight "Magan 3B", 170 mm
- Derailleur hanger QIO Slider Dropout
- Display BOSCH "Kiox 300", 4-stages, remote control, push aid
- Engine BOSCH "Performance Line" engine, max. 75 Nm
- Fender SKS "A 69 R"
- Fork Aluminum, tapered 1 1/4" - 1.5"
- Frame QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm
- Front brake TRP "C1.8 HD-EU817", Post Mount
- Front hub URSUS "RD30", Center Lock, QR
- Front light CONTEC "DLUX 80 E+", 80 lux
- Front rotor TRP "TR-25", Ø 180 mm, Centerlock
- Front tire SCHWALBE "Super Moto-X", 62-406, Reflex
- Grips HERRMANS "Clik Original DD37"
- Handlebar ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
- Headset TOKEN "TK255E-HJ01", IS52/40 / IS52/44
- Pedals UNION "SP-153", foldable
- Rear brake TRP "C1.8 HD-EU817"
- Rear carrier QIO "MIK HD"
- Rear hub ENVIOLO "TR", stepless, 6-hole
- Rear light CONTEC "TL-335 E-Stop", stop light
- Rear rotor TRP "RS02M", Ø 160 mm, 6-hole
- Rear tire SCHWALBE "Super Moto-X", 62-406, Reflex
- Remote BOSCH "BRC3600", LED Remote
- Rims SCHÜRMANN "YAK DISC 25", 25-406, 36 holes, disc brake, black
- Saddle Selle Royal "Nuvola 5060", Relaxed
- Seatpost by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever ENVIOLO "Twist Pure Display", stepless
- Spokes Niro, schwarz
- Sprocket / pulley Gates "CDX", 22 teeth
- Stands URSUS "R78 - King Mini"
- Stem BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black
- Supplier Article Number: 01722516
- EAN 4251971142343
- MSRP: €4,499.00
- Fedas-Code 159021
- DST-Code 1A01
- WEEE registration number DE92509320
- SB-Article No
- Bidex-Code 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight 27.3 kg
| Article | Price | |
|---|---|---|
 | PU 16 | |
 | PU 1 | |
 | PU 10 | |
 | PU 10 | |
 | PU 1 | |
 | PU 14 | |
 | PU 1 | |
 | PU 500 | |
 | PU 1 | |
 | PU 3 | |
 | PU 10 | |
 | PU 1 | |
 | PU 4 | |
 | PU 4 |
| Article | Price | |
|---|---|---|
 Out of Stock unisex, 20", forest green, enviolo "TR", 48 cm Read more Read less
| PU 1 |
The QiO "EINS P-E" compact e-bike is perfect for touring or shopping in the city. Thanks to the Bosch Smart System, it is fully networked and always up to date. The eBike Flow app enables communication between the "Performance Line" engine, the 545 Wh Battery and the Operating Unit. You can select riding modes, plan routes and record tours automatically. The results can be synchronized with health apps.The continuously variable Enviolo "TR" hub gears are perfect for overland tours and hilly terrain - together with the Bosch "Performance Line" engine, you can make sporty progress at up to 25 km/h. The compact design, foldable pedals and compressible Handlepost make it easy to store in small spaces or in a camper van.With 62 mm wide tires on 20" wheels and the Parallelogramm Suspension Seatposts, the e-bike offers a high level of comfort on paved paths through the city. The by.schulz seatpost is also equipped with anti-theft protection.
