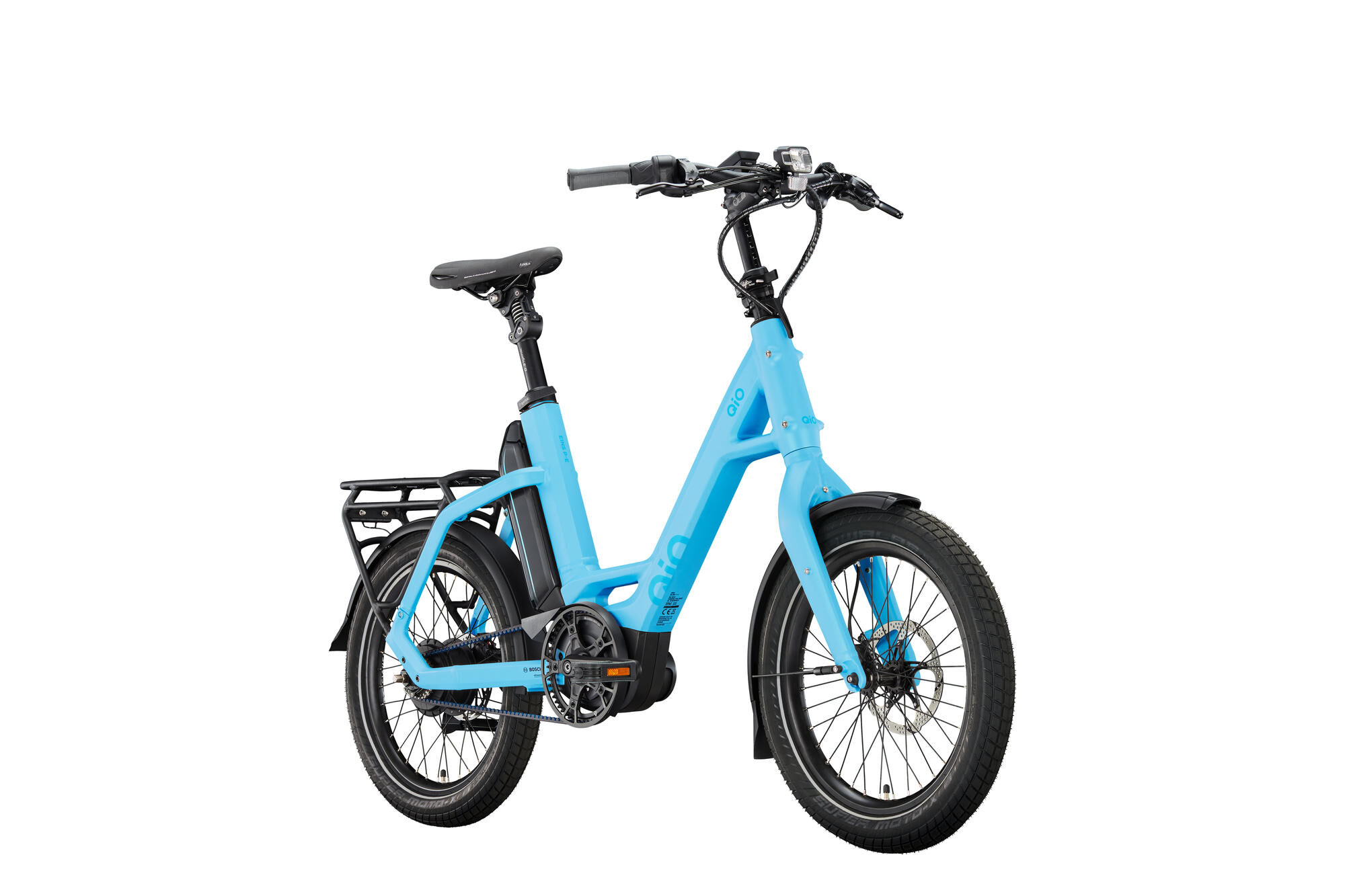

QiO Electric compact bike "EINS P-E" Mod. 24
unisex, 20", ice blue matt, enviolo "TR", 48cm
- Article number: 02651547
- Original number: 01722549
Product information
- Battery capacity: 545.0 Wh
- Bosch Smart System: yes
- Brake system: hydraulic disc brake
- Category: compact bike
- Colour designation: ice blue matt
- Drive: belt drive
- Drive system: BOSCH
- Drive version: middle motor
- E-bike: yes
- Engine power: 250 W
- Features: fender
- Frame height: 48 cm
- Frame shape: unisex
- Gears: stepless
- Gender: unisex
- Main colour: blue
- Material 1: aluminium
- Permissible total weight: 180 kg
- Shifting name: enviolo "TR"
- Shifting type: internal gear shifting
- Support: up to 25km/h
- Wheel size: 20 "
- Battery: BOSCH "PowerPack 545", 545 Wh, BES3
- Battery Lock: CONTEC "PowerLoc", BES3
- Chain / belt: GATES "CDX", 122 teeth
- Chain guard: CURANA "C+", 55 teeth, Bosch Gen.3, plastic, 2 pieces, black
- Chain ring / pulley: GATES "CDX", 55 teeth, Bosch Gen.3, 5-arm, incl. spider and protection
- Charger: BOSCH 4 A, BES3
- Crank: Stronglight "Mangan 3", 170mm, for Bosch Gen.3, BNI, aluminium, black
- Derailleur hanger: QIO slider dropout
- Display: BOSCH "Kiox 300", 4-stages, remote control, push aid
- Engine: BOSCH Motor "Performance Line", Gen.3, BES3
- Fender: SKS "A 69 R", plastic, 65mm, matt black
- Fork: QIO EINS 20", aluminium, tapered 1 1/4" - 1,5", 313,5mm shaft, post mount, ice blue matt
- Frame: QIO EINS, Bosch Gen.3, BES3, aluminium, 49,5cm, ice blue matt
- Front hub: URSUS "RD30", Center Lock, 36 holes, QR black
- Front light: CONTEC "DLUX 80 E+", 80 lux, DC 12 V, universal bracket, SDS-Link
- Front rotor: TRP "TR-25", Ø 180mm, Center Lock, thickness: 1,8mm
- Front tire: SCHWALBE "Super Moto-X" Performance Line, 62-406, Green Guard, Addix, 67 TPI, E-50, reflex
- Grips: HERRMANS "Clik Original DD37", 90/123mm, handlebar clamp, black
- Handlebar: ERGOTEC "Lady Town", 620mm, Ø 31,8mm, 30° backsweep, rise 16mm, Level 4, black
- Pedals: UNION "SP-153", foldable
- Rear carrier: QIO "MIK HD", integrated, black
- Rear hub: ENVIOLO "TR", 6-hole, 36 holes, black
- Rear light: CONTEC "TL-335 E-Stop", distance between screws: 50mm, stoplight function
- Rear rotor: TRP "RS02M", Ø 160mm, 6-hole, thickness: 1,8mm
- Rear tire: SCHWALBE "Super Moto-X" Performance Line, 62-406, Green Guard, Addix, 67 TPI, E-50, reflex
- Remote: BOSCH "BRC3600", LED remote
- Rims: SCHÜRMANN "YAK DISC 25", 25-406, 36 holes, disc brake, black
- Saddle: SELLE ROYAL "Nuvola 5060", unisex, relaxed, black
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: ENVIOLO "Twist Pure Display", for TR hub, grey, stepless
- Spokes: Niro, schwarz
- Sprocket / pulley: GATES "CDX", for Enviolo, 22 teeth
- Stands: URSUS "R78 - King Mini", adjustable, 40mm hole distance, black
- Stem: BY.SCHULZ "Stem SDS", 1 1/8", 31,8mm handlebar clamp, 70mm long, angle 7°, black
- Supplier Article Number:: 01722549
- EAN: 4251971142367
- MSRP: €4,499.00
- Brand/Supplier QiO
- Unit of measure: PIECE
| Article | Price |
|---|
The QiO "EINS P-E" compact e-bike is perfect for touring or shopping in the city. Thanks to the Bosch Smart System, it is fully integrated and always up to date. The eBike Flow app enables communication between the "Performance Line" motor, the 545 Wh battery and the control unit. You can select riding modes, plan routes and have tours recorded automatically. The results can be synchronized with health apps.The continuously variable Enviolo "TR" hub gears are perfect for overland tours and hilly terrain - together with the Bosch "Performance Line" motor, you can make sporty progress at up to 25 km/h. The compact design, foldable pedals and compressible steering column make it easy to stow away in small spaces or in a camper van.With 62 mm wide tires on 20" wheels and the parallelogram suspension seatpost, the e-bike offers a high level of comfort on paved paths through the city. The by.schulz seat post is also equipped with anti-theft protection.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 QiO Electric compact bike "EINS P-E" Mod. 24 unisex, 20", lead metal, enviolo "TR", 48cm
| ||
 QiO Electric compact bike "EINS P-E" Mod. 24 unisex, 20", crystal white, enviolo "TR", 48cm
| ||
 QiO Electric compact bike "EINS P-E" Mod. 24 unisex, 20", night black matt , enviolo "TR", 48cm
| ||
 QiO Electric compact bike "EINS P-E" Mod. 24 unisex, 20", forest green, enviolo "TR", 48cm
| ||
 QiO Electric compact bike "EINS P-E" Mod. 24 unisex, 20", light olive matt, enviolo "TR", 48cm
| ||
 QiO Electric compact bike "EINS P-E" Mod. 24 unisex, 20", ice blue matt, enviolo "TR", 48cm
| ||
 QiO Electric compact bike "EINS P-E" Mod. 24 unisex, 20", imola red matt, enviolo "TR", 48cm
| ||
 QiO Electric compact bike "EINS P-E" Mod. 24 unisex, 20", sweet lavender matt, enviolo "TR", 48cm
|
