Out of Stock

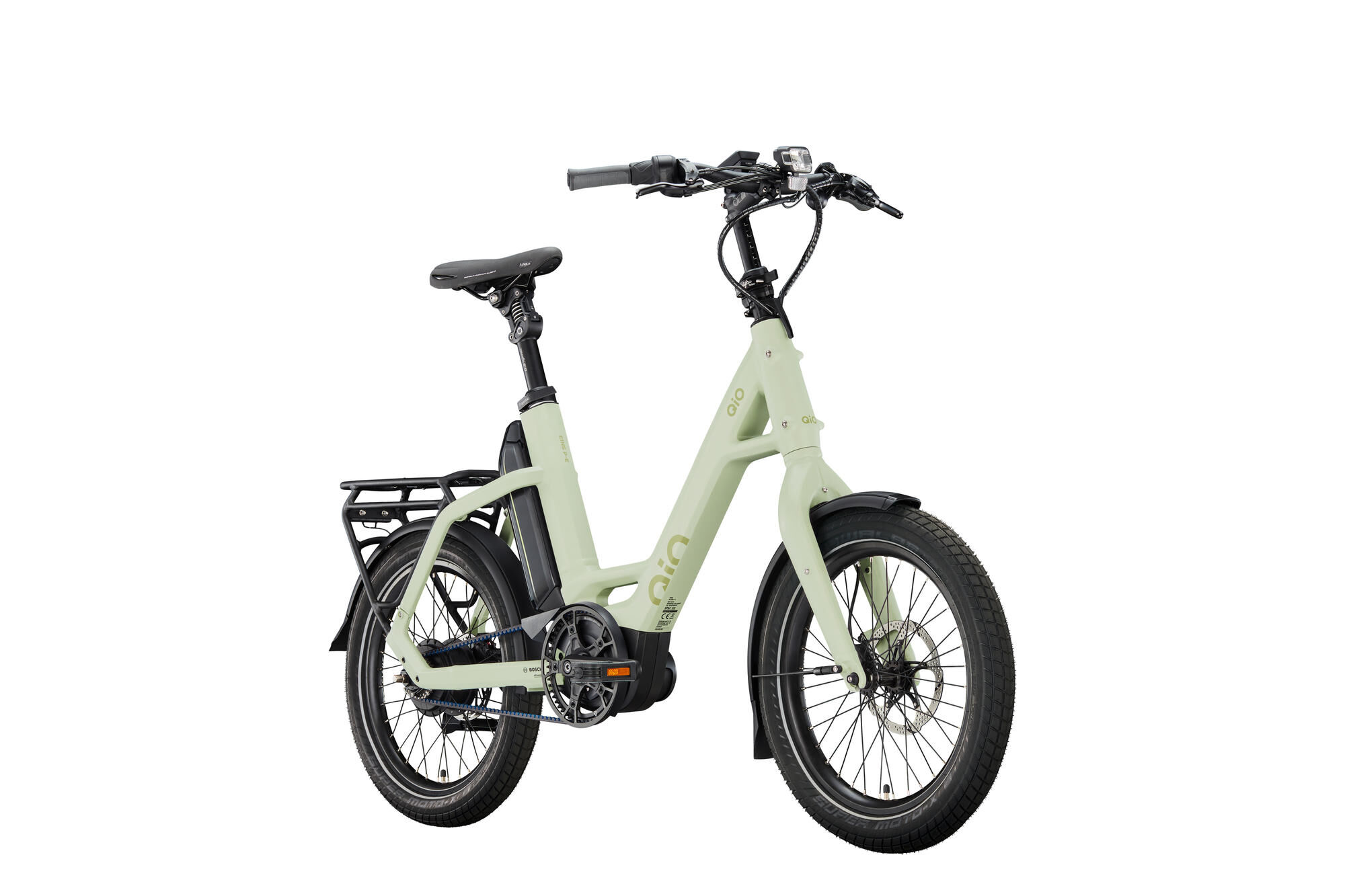

QiO Electric compact bike "EINS P-E" Mod. 24

unisex, 20", light olive matt, enviolo "TR", 48 cm

Article number: 02651539
Original number: 01722531

This item is available in 8 variants. All in Alternative articles All in Accessories

The electric compact bike consists of an aluminum frame and has 20" wheels. It is driven by a belt drive, while the drive system includes a BOSCH Performance Line mid-motor with 250 W motor power. An enviolo "TR" gear hub enables gear selection. The braking equipment includes hydraulic disc brakes. The electric compact bike has an integrated battery with a capacity of 545 Wh and a permissible system weight of 180 kg. The equipment includes a chain guard, suspension seatposts, a lower step-through, electronic Pushing Help, a system luggage rack and Fenders.

PU 1

Print as PDF

Product information

Battery capacity 545.0 Wh
Bosch Smart System yes
Brake system hydraulic disc brake
Colour designation light olive matt
Drive belt
Drive system BOSCH Performance Line
Drive version middle motor
E-bike yes
Engine power 250 W
Features chain guard , deep entry , electronic sliding aid , fender , suspension seatpost , system carrier
Frame height 48 cm
Frame shape unisex
Gears stepless
Gender unisex
Main colour green
Material 1 aluminium
Model series EINS
Permissible system weight 180 kg
Shifting name enviolo "TR"
Shifting type internal gear shifting
Support up to 25km/h
Type compact bike
Wheel size 20 "

Battery BOSCH "PowerPack 545", 545 Wh
Battery Lock CONTEC "PowerLoc"
Chain guard CURANA "C+", 55 teeth
Chain ring / pulley Gates "CDX", 55 teeth, belt line 45.5 mm
Charger BOSCH 4 A
Crank Stronglight "Magan 3B", 170 mm
Derailleur hanger QIO Slider Dropout
Display BOSCH "Kiox 300", 4-stages, remote control, push aid
Engine BOSCH "Performance Line" engine, max. 75 Nm
Fender SKS "A 69 R"
Fork Aluminum, tapered 1 1/4" - 1.5"
Frame QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm
Front hub URSUS "RD30", Center Lock, QR
Front light CONTEC "DLUX 80 E+", 80 lux
Front rotor TRP "TR-25", Ø 180 mm, Centerlock
Front tire SCHWALBE "Super Moto-X", 62-406, Reflex
Grips HERRMANS "Clik Original DD37"
Handlebar ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
Headset TOKEN "TK255E-HJ01", IS52/40 / IS52/44
Pedals UNION "SP-153", foldable
Rear hub ENVIOLO "TR", stepless, 6-hole
Rear light CONTEC "TL-335 E-Stop", stop light
Rear rotor TRP "RS02M", Ø 160 mm, 6-hole
Rear tire SCHWALBE "Super Moto-X", 62-406, Reflex
Remote BOSCH "BRC3600", LED Remote
Rims SCHÜRMANN "YAK DISC 25", 25-406, 36 holes, disc brake, black
Saddle Selle Royal "Nuvola 5060", Relaxed
Seatpost by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
Sensor Pedal pressure measuring im Motor + speed sensor
Spokes Niro, schwarz
Sprocket / pulley Gates "CDX", 22 teeth
Stands URSUS "R78 - King Mini"
Stem BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black

Supplier Article Number: 01722531
EAN 4251971142350
MSRP: €4,499.00
Fedas-Code 159021
DST-Code 1A01
WEEE registration number DE92509320
SB-Article No
Bidex-Code 123040
Brand/Supplier QiO
Unit of measure: PIECE
Weight 27.3 kg
